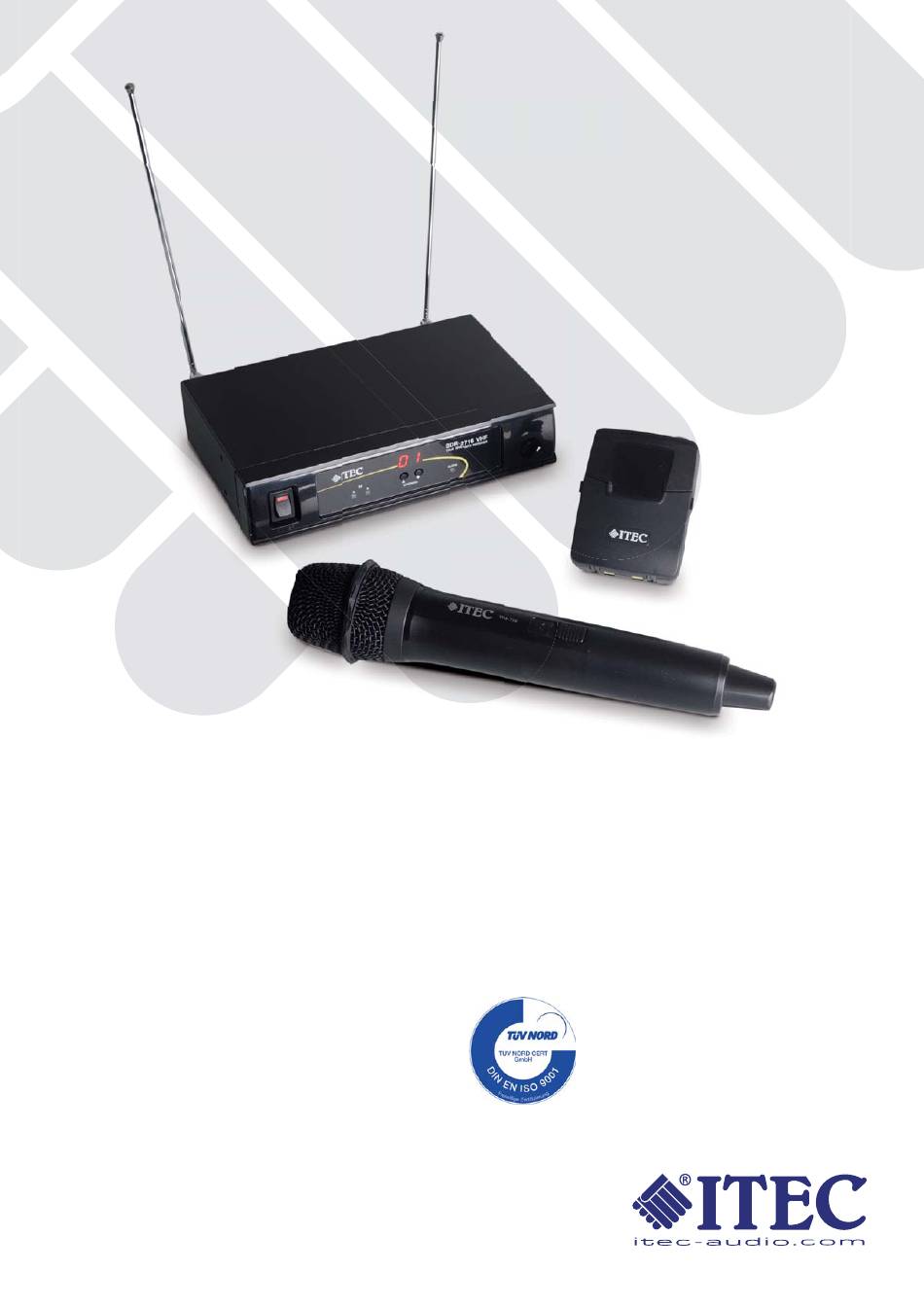

WM-716-A / WT-716-A / SDR-716M-A / SDR-2716-A
WM-716-A / WT-716-A / SDR-716M-A / SDR-2716-A
PROFESSIONAL RADIO MICROPHONE SYSTEM
PROFESSIONAL RADIO MICROPHONE SYSTEM
VHF FREQUENCY RANGE
ITEC Tontechnik und
Industrieelektronik GesmbH
8200 Gleisdorf
Laßnitzthal 300
Austria / Europe
VHF RADIO MICROPHONE SYSTEM_EN_2019/04_REV_2024/06
MANUAL
Advertisement
Related Manuals for Itec SDR-716M-A
Summary of Contents for Itec SDR-716M-A
- Page 1 WM-716-A / WT-716-A / SDR-716M-A / SDR-2716-A WM-716-A / WT-716-A / SDR-716M-A / SDR-2716-A PROFESSIONAL RADIO MICROPHONE SYSTEM PROFESSIONAL RADIO MICROPHONE SYSTEM VHF FREQUENCY RANGE MANUAL ITEC Tontechnik und Industrieelektronik GesmbH 8200 Gleisdorf Laßnitzthal 300 Austria / Europe VHF RADIO MICROPHONE SYSTEM_EN_2019/04_REV_2024/06...
- Page 2 Double charging station for the charging of two WM-716-A/WT-716-A. 1.2. Features of the system With the ITEC 716-A you have a modern and professional radio microphone system in the VHF frequency range. The receivers (the receiver module and the 19“ installation model) are True-Diversity receivers, guaranteeing wide range and interference-free reception without temporary dropouts.
- Page 3 1.3.2. Assembly of the receivers in the 19“ rack The ITEC SDR 2716-A is suitable for installation in 19 „racks. There are two diff erent sets of mounting brackets available. Installation of one receiver with mounting bracket set FB 71-A Installation of two receivers with mounting bracket set FB 72-A In case of rack installation, the use of external antennas is recommended.
- Page 4 ITEC RADIO MICROPHONE SYSTEMS 2. Receiver 2.1. Diversity stationary receiver ITEC SDR-2716-A Elements on the front: POWER: On / off switch Channel : Buttons for channel adjustment Channel display RF A/B: Reception indicator (shows if reception and which of the two antennas is currently active)
-
Page 5: Frequency Adjustment
ITEC RADIO MICROPHONE SYSTEMS Frequency adjustment: There are two frequency ranges (EUV232 and EUV243) with 8 adjustable channels each (see point 5, Frequency list). The range is defi ned by the respective variant and can not be changed. The channel setting on the receiver is made using the „Channel “... - Page 6 ITEC RADIO MICROPHONE SYSTEMS 2.1. Diversity Module receiver ITEC SDR-716M-A Elements on the front: 1. (PWR/VOL: On/off switch and audio level adjustment) ment) 2. Channel : Buttons for channel adjustment 3. Channel display 4. RF A/B: Reception indicator (shows if reception and which of the two antennas is currently active) 5.
- Page 7 ITEC RADIO MICROPHONE SYSTEMS 3. Hand-held Microphones or transmitters 3.1 Hand-held microphone ITEC WM-716-A Battery status indicator Battery indicator: Battery indic ator: The red / green battery status indicator indicates the battery condition: when turned on, the indicator lights The red / green n battery status indicator indicates the battery condition: when turned on, red for about 1 second and then turns green.
- Page 8 Furthermore, there are two controls in this area for adjusting the volume of diff erent microphones. If you get transmitter and microphone from ITEC, an optimal setting has already been made. Therefore, make changes to these controllers only in exceptional cases.
- Page 9 Attention: Never place a device that is equipped with normal batteries in the charging station. Only suitable for handheld microphones or bodypack transmitters with original ITEC NiMh batteries 1.5V, „AA“. The charging station should be connected to a wall outlet with the associated 230VAC / 12VDC power The charging station should be connected to a wall outlet w adapter.
-
Page 10: Frequency List
8 = 16 237.925 8 = 16 249.900 XXX.XXX to prefer Hereby ITEC Tontechnik und Industrieelektronik GmbH declares that ITEC 716-A series radio equipment complies with Directive 2014/53 / EU. Full test reports are available on request. www.itec-audio.com VHF RADIO MICROPHONE SYSTEM_EN_2019/04_REV_2024/06... - Page 11 The safety notes given in the product documentations, which are Produktdokumentation sind zu beachten. part of the supply, must be observed. ITEC Tontechnik und Industrieelektronik GesmbH, 8200 Gleisdorf, Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133/3780-0, Fax: +43 (0)3133/3780-9, ATU28706200, DVR: 0703109, HRB 3418 Landesgericht Graz, www.itec-audio.com...
- Page 12 95 x 75 x 140 mm (W x H x D), Weight= 400 g All information without guarantee. Subject to technical changes. ITEC- Tontechnik und Industrieelektronik GesmbH, 8200 Gleisdorf, Lassnitzthal 300 Tel.: +43 (0)3133 / 3780-0, offi ce@itec-audio.com, www.itec-audio.com VHF RADIO MICROPHONE SYSTEM_EN_2019/04_REV_2024/06...
