Summary of Contents for Empress Effects multidrive

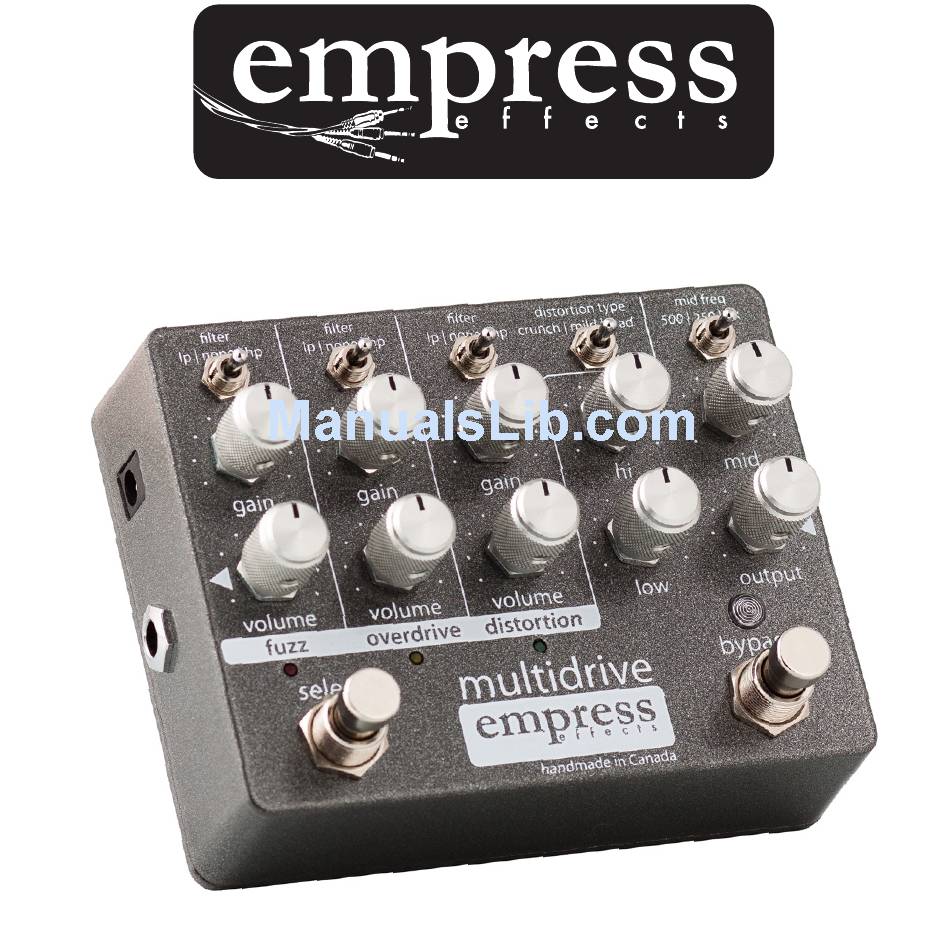

- Page 1 manual...
- Page 2 In the studio, we’ve found that running multiple amps in parallel really allowed us to get creative and complex tones that weren’t possible with only one amp. The Multidrive was created with this amp-stacking concept in mind. We think you’ll find the blend is...
- Page 3 The Basics of the Multidrive The Empress Multidrive gives you fuzz, overdrive and distortion circuits that can be run simultaneously, in parallel; their individual outputs get blended together to create the final output. The gain control on each section controls how distorted the section sounds, and the volume control on each section controls how much of the effect appears at the output.
- Page 4 Choose which channels is applied to the signal. W are active in each preset using the dip switch located being bypassed (true byp inside the multidrive. LEDs indicate which channels are active at any given time.
- Page 5 The 12 o’clock setting is 0 dB, no boost or cut, and the extreme boost and cut is about 10 dB. s shining, the multidrive e ect output: controls the output gain. The point When o , the multidrive is where unity gain is achieved varies and pass).
-
Page 6: Quick Start
Set the knobs and switches to match the picture above. If the blue bypass LED is not already lit, press the bypass switch to engage the Multidrive. If the red, yellow and green LEDs are not lit, press the select switch to change states and engage all 3 channels. Now use up the individual fuzz, overdrive and distortion volumes to blend them to taste. - Page 7 Configuring the Select Switch The Multidrive allows you to toggle between two unique combinations of the individual fuzz, overdrive and distortion sections using the select switch. In each state you can combine one, two, or all three sections together to create your own unique drive sound.
-
Page 8: Specifications
Specifications Input Impedance: 1MΩ Output Impedance: 510Ω Frequency Response (-3dB): 35Hz – 17kHz Input Voltage: 9VDC-18VDC Required Current: 120mA Power Input Connector: 2.1mm Barrel Connector Height (enclosure only): 1.5” Height (including controls): 2” Length: 3.5” Width: 4.5” Weight: 1lbs *Noise and Distortion measurements are completely dependent on the settings.
