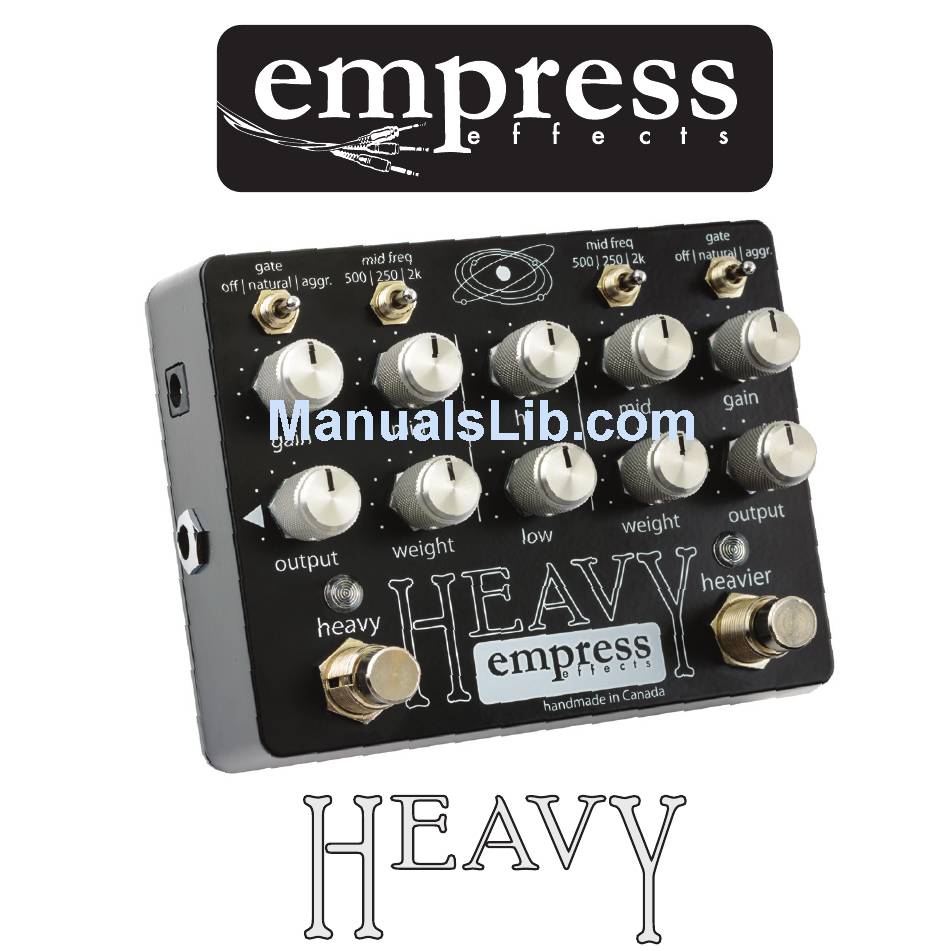

- Page 1 user manual...

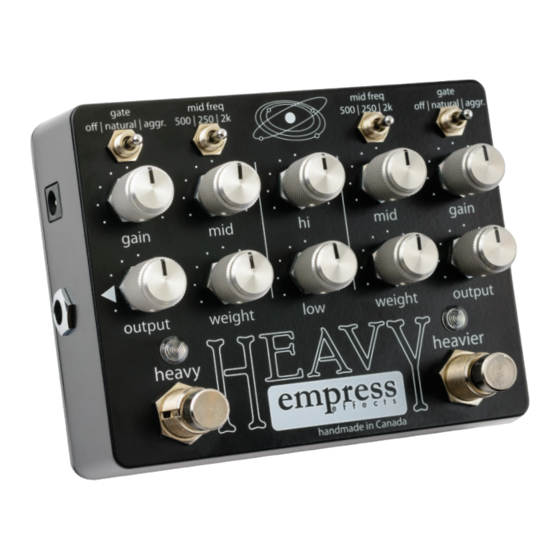

- Page 2 Introduction Thank you for purchasing the Empress Effects Heavy! In this aptly named box you'll find a huge range of killer high gain tones. From crisp, mid-driven 80's metal, to scooped, modern down-tuned brutality, this little box of sonic mayhem does it all. The two...
-
Page 3: Quick Start
Thick n' Punchy heavier: Tight n' Brutal Switching: Press the heavy stomp to engage the heavy channel. Press the heavier stomp to engage the heavier channel. To return to bypass, press the stomp switch of whichever channel is currently... - Page 4 EQ. Set the character of the low end with the weight control and the overall level of the low end with the low EQ band. heavy / heavier: used to tog and to bypass the pedal. LED active at any given time. Whe...
- Page 5 The 12 o’clock setting is 0 dB, no boost or cut, and the extreme boost and cut is about 10 dB. the hi and low EQ bands e ect both the heavy and heavier channels of the pedal gate: helps to eliminate noise by muting the output of the pedal when you are not playing.
-
Page 6: Noise Gate
Noise Gate The Heavy features an internal noise gate which is triggered from the input, before the signal is distorted. This results in a noise gate that is extremely responsive and dynamic. Whether you're playing a long sustaining note that's meant to ring out into feedback, or you need a tight gate for those quick stops, the noise gate will react and adjust accordingly. -
Page 7: Specifications
Specifications Input Impedance: 1MΩ Output Impedance: 510Ω Input Voltage: 9VDC-18VDC Required Current: 200mA Power Input Connector: 2.1mm Barrel Connector Height (enclosure only): 1.5” Height (including controls): 2” Length: 3.5” Width: 4.5” Weight: 1lbs * To help you get the most out of this pedal, we've put up some brief instructional videos on our website * www.empresseffects.com... - Page 8 The warranty applies only to the original owner of the product. While a product is under warranty, Empress Effects will repair the product free of charge. We reserve the right to cancel the warranty should the product be tampered with, modified, damaged through misuse, or damaged through failure to follow the operating instructions.
