Promate proPad.3
User Guide
Introduction
Promate proPad.3 is a Multifunctional Calculator Mouse Pad with USB hub, Card Reader and
Temperature Display. This highly innovative device provides synergy of functions which makes it more
proficient in the most demanding terms of office and personal use environment.

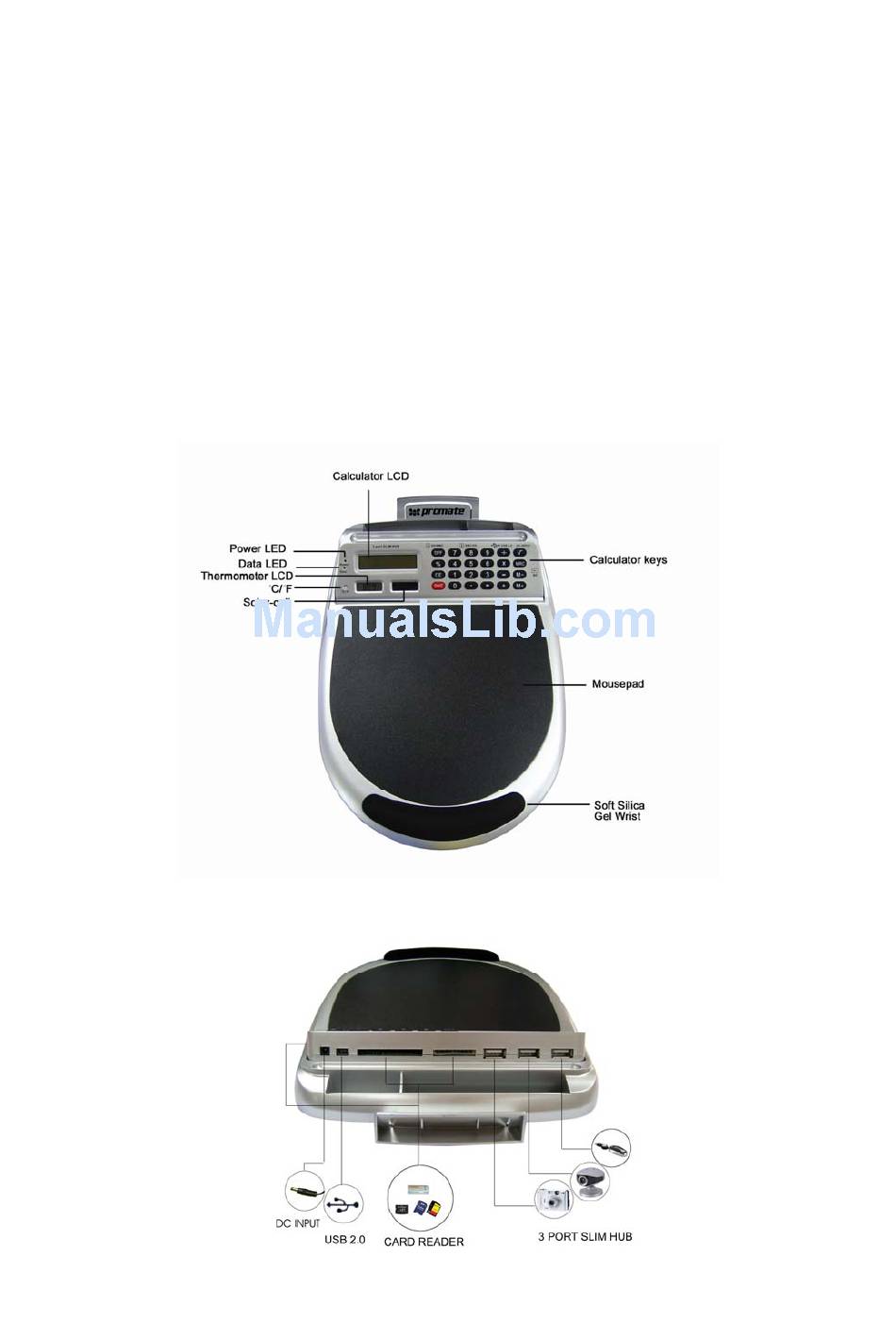

Product panel view
Advertisement
Related Manuals for Promate proPad.3
Summary of Contents for Promate proPad.3
- Page 1 Promate proPad.3 User Guide Introduction Promate proPad.3 is a Multifunctional Calculator Mouse Pad with USB hub, Card Reader and Temperature Display. This highly innovative device provides synergy of functions which makes it more proficient in the most demanding terms of office and personal use environment. Product panel view ...
- Page 2 Solar‐cell digital thermometer & calculator Thermometer The product is designed with extremely thin body and delicate shape. Celsius and Fahrenheit can be displayed simultaneity. Switch between Celsius and Fahrenheit. Specifications Measuring range: ‐50°C ~70°C (‐58°F ~158°F) Accuracy: ±1°C (±2°F) Distinguish: temperature: >‐20°C (°F) is 0.1°C (°F) Temperature: ...
-
Page 3: Description Of The Function Keys
RESET key Picture 2 Notice □ The quantity of electricity is not enough when LCD displays faintly, battery should be replaced for a new one. □ Replacement of battery: Pull out the battery box, put into the batteries according to the indication of polarity, then push into the battery box. Calculator Before Use □ Do not press too hard against the LCD panel because it contains glass. □ Never dispose of battery in the fire. □ Keep battery out of reach of children. □ Please press “ON/C” if you see no indication. □ This product including accessories may change due to upgrading without prior notice. General Description □ Build‐in dc 1.5v battery. It could be used normally without changing the battery for a long time. □ ... -
Page 4: Specifications
ON/C Open and clear LCD display √ Extracts the square root of a positive number displayed in the entry register. MRC I. First push, as MR key, transfers the contents of the memory register into the display register. II. Second push, as MC key, clears the memory. M‐ Subtracts the current display from the content of memory. M+ Adds the current display from the content of memory. Specifications Operating capacity: 8 digits Power supply: Built‐in solar cell and button battery (DC 1.5V ) LR44 or equivalent. Automatic Power‐off: Approx. 7 min. Operating temperature: ... -
Page 5: Operating Temperature
Technical Information Specifications: Memory cards supported: Three Memory Slots: ‐ SM: Smart Media Front slots: SM and SD/MMC ‐ SD: SD, Mini SD Side slots: Memory Stick ‐ MMC: MMC, MMC‐II Interface: ‐ MS: MS, MS‐Pro, MS‐DUO, MS‐PDUO Mini 5‐Pin Mini USB supports USB1.1/2.0 ‐ *Picture Card (Uses SM Slot and Indicator) Chipset: GENESYS / SMSC LED Activity Indicators: ‐ One power‐on indicator Operating temperature: ‐ Three hub port "in‐use" and transfer indicators ‐10°C ~+40°C Certification: RoHs, CE, FCC Dimensions (L*D*H): 322.5*210*24 mm Power: Bus‐power: 5V 500mA Self‐power: 5V 2.5A Adapter: Input: 100~240V 50Hz‐60Hz Output: 5V 2.5A System Requirements: ... - Page 6 □ Windows Me/2000/XP/Vista without device driver □ Windows 98/98SE (with device driver) □ An available and working USB port ...
