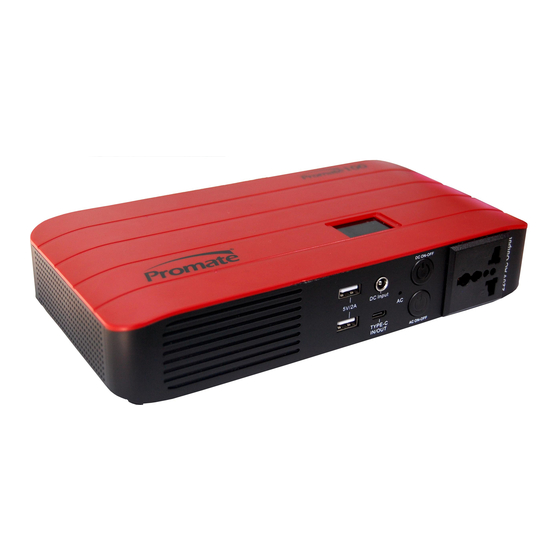

Promate 100 is a powerbank with AC and DC outputs. 220VAC output is suitable for small household appliances.
This device also supplies 12VDC, and 5V (USB), which are applicable to a variety of DC powered items. It also has a
Type-C port which can be used as a fast charger.
Technical Parameters:
1.
Two (2) 5V, 2A USB ports, Total output: 3A
2.
One (1), 1W, 12VDC LED light
3.
Blue LED display for battery capacity
4.
Switch buttons: One (1) AC power, and one (1) DC power
5. 1pc input port: 3A maximum input current
6. Type-C port for charging, (is this 45W or 4.5W)
7.
AC outlet, 120W, 220V
8.
14.8V/6.6Ah (97.68Wh) lithium ion (Li-Ion) battery
BOX ALSO INCLUDES:
1. One (1) AC Adapter
2. One (1) Octopus cable
Owner's Manual
1
Advertisement
Related Manuals for Promate 100
Summary of Contents for Promate 100
- Page 1 Owner’s Manual Promate 100 is a powerbank with AC and DC outputs. 220VAC output is suitable for small household appliances. This device also supplies 12VDC, and 5V (USB), which are applicable to a variety of DC powered items. It also has a Type-C port which can be used as a fast charger.
- Page 2 （1） Please make sure you follow carefully the instructions mentioned in this manual before using this device to ensure safety operation. Keep the manual at a proper place. （2） Make sure you fully charge this device before using it for the first time. （3）...
- Page 3 Charging Instructions (See Page 3 for reference) You can charge your Promate 100 using three (3) different methods: Method 1: Connect AC Adapter to Port 5 Method 2: Connect Type-C USB to port 8 When charging, the battery indicator will show a pulsing battery level (see image below) Operating Instructions: 1.
- Page 4 Electrical Safety: （1） Handle this device with care. Rough handling will damage its internal parts. （2） Don’t immerse this device. This might damage the circuit board and other parts, and this might short-circuit the device. （3） Please use accessories provided in this set. （4）...
- Page 5 USB maximum output current voltage less than 3A Type-C output Maximum output load power is 50V，9.0V，12.0V，15.0V ，20V for different loads Charging and LED display Battery capacity 0-100% discharge indicator Overcharge 4.25*4V=17.0V protection voltage Over charge recover ≦16.5V voltage Overdischarge ≤12.0V...
- Page 6 SERVICE INFORMATION CONTACT POWERTECH ASIA PACIFIC INC. PRODUCT SERVICE DEPARTMENT AT (+63-2) 628-1050 LIMITED WARRANTY Warranty Coverage: Powertech Asia Pacific Inc., (the Company) warrants to the original retail customer that it will repair or replace, free of charge, any parts found by the Company or its authorized service representative to be defective in material or workmanship.
