- Page 1 BEDIENUNGSANWEISUNG mit Montageanweisungen Instructions for use and installation Instructions d’utilisation et d’installation EKEF8752.1 EKE8752.1ED EKE8752.1F...
-
Page 2: Table Of Contents
Dear customer, Thank you for having chosen a KÜPPERSBUSCH ceramic hob In order to install properly your appliance and to make the best use of it, please read this entire instruction manual carefully. SUMMARY SAFETY ..........................17 ....................17 RECAUTIONS BEFORE USING ...................... -
Page 3: Safety
SAFETY Precautions before using Unpack all the materials. The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by building-in or connecting errors. To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface. -
Page 4: Precautions Not To Damage The Appliance
Precautions not to damage the appliance Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass. Sand or other abrasive materials may damage ceramic glass. Avoid dropping objects, even little ones, on the vitroceramic. ... -
Page 5: Description Of The Appliance

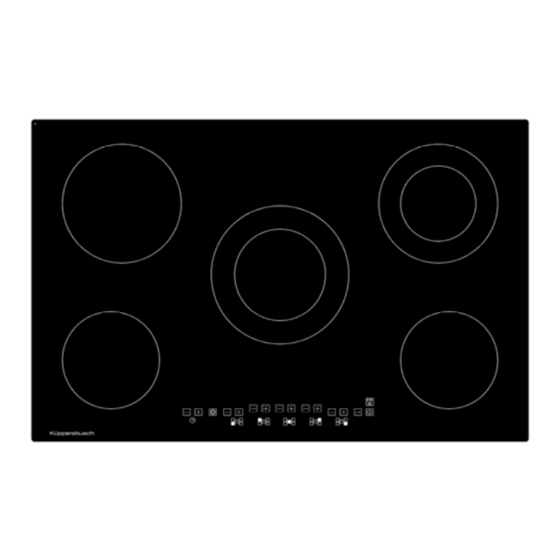

Heating zone location Power Diameter Front left 1200 W 155 mm Rear left 1800 W 190 mm EKEF8752.1 8100 W Middle 2200 / 1000 W 220 / 145 mm EKE8752.XX Rear right 1700 / 700 W 190 / 120 mm... -
Page 6: Residual Heat Indication
Residual heat indication After the switch-off of the hob, the heating zone is still hot and indicates [ H ] on the display. The symbol [ H ] disappears when the heating zone may be touched safely. When the residual heat indicator light is on, don’t touch the heating zone and don’t put any heat sensitive object on them. -
Page 7: Timer
Timer The timer is able to be used simultaneous with all heating zones and this with different time settings (from 1 to 99 minutes) for each heating zone. Setting and modification of the cooking time : Action Control panel Display Select the power press [ + ] or [ - ]... -
Page 8: Automatic Cooking
Automatic cooking All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power during a certain time, and then reduces automatically its power on the preselected level. Start-up Action Control panel Display Full power setting Press on key [ + ] [ 0 ] to [ 9 ]... -
Page 9: Recall Function
Recall Function After switching off the hob ( ), it is possible to recall the last settings. cooking stages of all cooking zones (power) minutes and seconds of programmed cooking zone-related timers Heat up function The recall procedure is following: ... -
Page 10: Cooking Advices
COOKING ADVICES Examples of power setting (The values below are indicative) Sauces, butter, chocolate, gelatine 1 to 2 Melting, Reheating Dishes prepared beforehand Rice, pudding, sugar syrup 2 to 3 Simmering, Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5... -
Page 11: Environment Protection
The symbol [ E ] displays : The electronic system is defective. Disconnect and replug the hob. Call the After-sales Service. One or all cooking zones cut-off: The safety system has engaged You forgot to cut-off the cooking zone for a long time. ... -
Page 12: Installation Instructions
Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection tape (3). Fitting - installing: Cut out sizes of the worktop: EKEF8752.1 798 mm 518 mm 750 mm 490 mm 44 mm EKE8752.1ED... -
Page 13: Electrical Connection
The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 75 °C. ... - Page 14 Caution! This appliance has only to be connected to a network 230 V~ 50/60 Hz. Connect always the earth wire. Respect the connection diagram. The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver.
