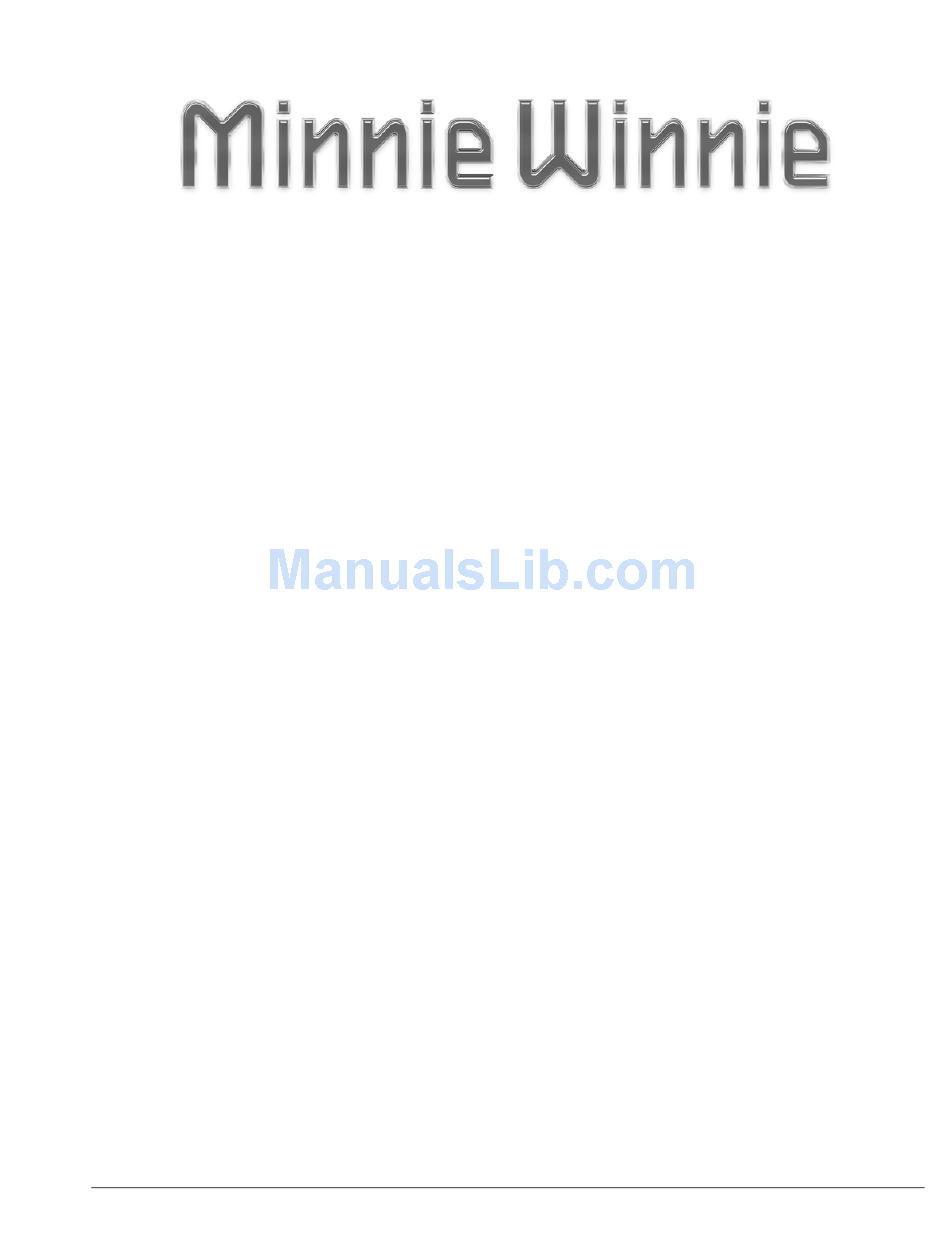

  • Page 1 Rev. 1511150615 Part No. 161500-15-003 Copyright 2014 Winnebago Industries, Inc. All rights reserved.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 – INTRODUCTION About this Manual ..........................1-1 Safety Messages Used in this Manual ....................1-1 Pre-Delivery Inspection ........................1-2 Before Driving ..........................1-2 Front Axle Tire Alignment ....................... 1-2 Service and Assistance ........................1-2 Reporting Safety Defects ........................1-2 Occupant and Cargo Carrying Capacity Label .................
  • Page 4 Table Of Contents Mirrors – Power Sideview Exterior ....................3-4 Air Conditioner/Heater – Automotive (Dash) .................. 3-5 Radio In-Dash/Rearview Monitor System ..................3-5 Radio In-Dash/Rearview Monitor System ..................3-6 Engine Access – Interior ........................3-7 Engine Cooling System ........................3-7 Tires ..............................
  • Page 5 Table Of Contents Fresh Water System .......................... 7-1 Water Pump ............................7-2 Disinfecting Your Fresh Water System .................... 7-3 Shower Hose Vacuum Breaker ......................7-4 Toilet ..............................7-4 Drainage System (P-Traps) ....................... 7-4 Waste Water System ......................... 7-5 Waste Water System - Waste Pump (Model 27Q) ................7-6 Holding Tank Heater ........................
  • Page 6 Table Of Contents Roof ..............................11-1 Undercarriage ..........................11-1 Exterior Finish ..........................11-2 Exterior Graphic Care ........................11-3 Plastic Parts – Cleaning ........................11-3 Exterior Lights ..........................11-4 Interior Soft Goods ......................... 11-4 Cabinetry – Cleaning ........................11-5 Decorative Vinyl Wall Paneling – Cleaning ................... 11-5 Tables and Countertops ........................

  • Page 7: Introduction

    The instructions included in this manual are intended as a guide, and in no way DANGER indicates a hazardous situation extend the responsibilities of Winnebago which, if not avoided, will result in death or Industries beyond the standard written serious personal injury.

  • Page 8: Pre-Delivery Inspection

    National Highway Traffic Safety Administration (NHTSA) in addition to notifying Winnebago Industries, Inc. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety...

  • Page 9: Occupant And Cargo Carrying Capacity Label

    However, NHTSA cannot become involved in individual problems between you, your dealer, or ® Winnebago Industries To contact NHTSA, you may either call the Vehicle Safety Hotline toll-free at: 1-888-327-4236; (TTY: 1-800-424-9153) or go to their website at http://www.safercar.gov...

  • Page 10: Vehicle Certification Label

    These pressure levels must be maintained to assure proper handling, safety, 2. Chassis manufacture date. and fuel economy. 3. Month and year of manufacture at Winnebago ® 9. Rear Axle Wheel Configuration: Single or Industries Dual as it relates to the inflation.

  • Page 11: Specifications And Capacities

    55 gal. Notes: All information is based upon the most recent data available. Visit the Winnebago Industries, Inc. web page – www.winnebagoind.com – for the most current product information. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.

  • Page 12: Owner And Vehicle Information

    Motorhome Serial Number ___________________________________________________________ Chassis Vehicle Identification No. (VIN) ________________________________________________ Vehicle Mileage at Delivery __________________________________________________________ Selling Dealer Name ________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ ® YOUR WINNEBAGO INDUSTRIES DEALER /SERVICE CENTER Name ____________________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ Contact ____________________________________________Phone ________________________ CHASSIS SERVICE CENTER...

  • Page 13: Safety And Precautions

    SECTION 2 – SAFETY AND PRECAUTIONS GENERAL WARNINGS DRIVING SAFETY • Only seats equipped with seat belts are to be occupied while the vehicle is moving. WARNING • Make sure all passengers have seat belts fastened. Lap belts should fit low on the hips and upper thighs.

  • Page 14: Fuel And Propane Gas

    SECTION 2 – SAFETY AND PRECAUTIONS • Do not adjust tilt steering in a moving vehicle. • Do not operate the cruise control on icy or WARNING extremely wet roads, winding roads, in heavy traffic, or in any other traffic situation where a constant speed cannot be maintained.

  • Page 15: Propane Gas Leaks

    SECTION 2 – SAFETY AND PRECAUTIONS DANGER DANGER Do not use gas cooking appliances for IF YOU SMELL PROPANE comfort heating. Can lead to carbon 1. Extinguish any open flames and all monoxide poisoning, which can lead to smoking materials. death or serious injury.

  • Page 16: Carbon Monoxide Alarm

    RV application. We - Press the Test/Reset button weekly to test recommend obtaining a replacement from your ® Winnebago Industries dealer. Further Information See the manufacturer’s user guide provided in your InfoCase for further instructions.

  • Page 17: Carbon Monoxide Warning

    Do not run engine in confined areas, such as a recommend obtaining a replacement from your garage, except to move vehicle into or out of the ® Winnebago Industries dealer. area. Further Information Please refer to the manufacturer’s user manual provided in your InfoCase for complete operating instructions and safety precautions.

  • Page 18: Smoke Alarm

    Extinguisher, the replacement must be the same InfoCase for further instructions. type and size as the one originally supplied in your coach. We recommend obtaining a replacement only from your Winnebago ® Industries dealer or a reliable RV parts supplier.

  • Page 19: Electrical

    SECTION 2 – SAFETY AND PRECAUTIONS ELECTRICAL MAINTENANCE • Careless handling of electrical components • Do not remove the radiator cap while engine can be fatal. Never touch or use electrical and radiator are still hot. Always check components or appliances while feet are bare, coolant level visually at the see-through while hands are wet, or while standing in coolant reservoir.

  • Page 20: Slideout Rooms

    SECTION 2 – SAFETY AND PRECAUTIONS Escape Window (Lift both red safety latch handles UP and Slider Window Latch push window OUT) (Lift latch UP and slide window open) -Typical View -Typical View Most slider windows along the side of any motorhome can also be used as alternate emergency exits, should the need arise.

  • Page 21: Formaldehyde Information

    SECTION 2 – SAFETY AND PRECAUTIONS WARNING WARNING This vehicle, like other vehicles, may Keep all persons clear of the slideout contain small amounts of one or more room and moving parts while extending or substances which are listed by the state retracting.

  • Page 22: Roof And Ladders

    Never use a damaged ladder. ® Winnebago Industries • Keep the rungs of the ladder clean and dry If Winnebago Industries determines that mold while in use. Never use the ladder when it is ® ® is present in the Winnebago...

  • Page 23: Roadside Emergency

    However, if an ® emergency requires you to change the tire Winnebago Industries does not assume yourself, please exercise extreme caution and responsibility for damage incurred while towing read all tire changing information in the chassis this vehicle.

  • Page 24: Jump Starting

    SECTION 2 – SAFETY AND PRECAUTIONS JUMP STARTING If you wish to try jump starting the engine using another vehicle or booster system, see your chassis manual for connecting jumper cables to the automotive electrical system. NOTICE Do not attempt to push start this vehicle. Damage to the transmission or other parts of the vehicle will occur.

  • Page 25: Driving Your Motorhome

    SECTION 3 – DRIVING YOUR MOTORHOME The information in this section refers only to features installed or adapted to the dash and Folding Dinette Seat Back driver compartment area by Winnebago ® Industries . It also includes passenger seating in the living area of the coach.

  • Page 26: Child Restraints

    SECTION 3 – DRIVING YOUR MOTORHOME protection of the safety belt, never let more than one person use the same safety belt at any one WARNING time, and do not let the safety belts become damaged by pinching them in the doors or in the seat mechanism.

  • Page 27: Keys

    SECTION 3 – DRIVING YOUR MOTORHOME may have a greater chance of being injured in an accident if they are seated in a child restraint system which is not properly secured. A child restraint system is designed to be secured in a vehicle seat by a lap belt or the lap belt portion of a lap-shoulder belt.

  • Page 28: Mirrors - Power Sideview Exterior

    SECTION 3 – DRIVING YOUR MOTORHOME Further Information See your chassis manual for instructions on activating, operating, and canceling hazard warning flashers. MIRRORS – POWER SIDEVIEW EXTERIOR –If Equipped Always adjust mirrors for maximum rear visibility before traveling. Make sure the seat is adjusted for proper vehicle control and that you •...

  • Page 29: Air Conditioner/Heater - Automotive (Dash)

    SECTION 3 – DRIVING YOUR MOTORHOME Further Information Refer to the manufacturer’s user manual provided in your InfoCase for further information. AIR CONDITIONER/HEATER – AUTOMOTIVE (DASH) See your chassis manual for operating information on driver and passenger comfort controls – air conditioner, heater, defroster, and ventilation.
  • Page 30 SECTION 3 – DRIVING YOUR MOTORHOME Radio Remote Control Basic Operating Instructions A hand-held remote control for the radio lets • (1) LCD Screen. you control the radio from a distance for your • (2) +/- VOLUME - Press to set the volume. convenience.

  • Page 31: Engine Access - Interior

    SECTION 3 – DRIVING YOUR MOTORHOME Radio Remote Control NOTE: Your chassis engine cooling system is filled with special extended-life coolant A hand-held remote control for the radio lets that is not the same as common anti- you control the radio from a distance for your freeze available at retail outlets.

  • Page 32: Air Springs - Rear Helper

    SECTION 3 – DRIVING YOUR MOTORHOME also cause the vehicle to “pull” to the right or left. Have your dealer inspect your vehicle’s suspension and steering components periodically for misalignment or wear. Air Spring Out-of-balance tires will not roll smoothly and can lead to vibrations and uneven tread wear, such as cupping and flat spots.

  • Page 33: Appliances And Systems

    SECTION 4 – APPLIANCES AND SYSTEMS The appliances installed in your motorhome are manufactured by reputable RV appliance makers and have been tested by independent laboratories to meet all applicable standards and codes set for RV appliances. See Section 2 - Safety and Precautions of this manual for any safety and precautions you need to take regarding the operation of your appliances.

  • Page 34: Refrigerator Service Access Compartment

    SECTION 4 – APPLIANCES AND SYSTEMS To Open 1. Use a screwdriver or coin to turn the latch knobs to the vertical position as shown. •CLOSED • Gas- Refrigerator will operate on gas from the propane tank if the main valve is open and the tank contains gas.

  • Page 35: Avoiding Asphyxiation

    SECTION 4 – APPLIANCES AND SYSTEMS Avoiding Asphyxiation The Range and optional Oven in your motor home operate on propane gas and will provide The following warning label has been located most of the functions of the range in your home. in the cooking area to remind you to provide an adequate supply of fresh air for combustion.

  • Page 36: Microwave Oven

    SECTION 4 – APPLIANCES AND SYSTEMS WARNING Portable fuel-burning equipment including wood and charcoal grills and stoves, shall not be used inside the recreational vehicle. The use of this equipment inside the recreational vehicle can cause fires or asphyxiation. Failure to comply could result in death or serious injury.

  • Page 37: Water Heater - Gas

    SECTION 4 – APPLIANCES AND SYSTEMS 1. Both the chassis engine and the generator engine must be shut off and 120-volt AC shoreline unplugged. 2. An interior light should be turned on to Sensors provide a small load which draws off the battery surface charge.

  • Page 38: Pressure-Temperature Relief Valve

    SECTION 4 – APPLIANCES AND SYSTEMS To fill the Water Heater, turn the Water Pump switch ON and open a hot water faucet anywhere in the coach. When water begins to flow steadily from the faucet, the Water Heater is full. Propane Gas Operation •...

  • Page 39: Furnace - Propane Gas

    SECTION 4 – APPLIANCES AND SYSTEMS 2. Move SYSTEM switch from Off to Heat and set the desired temperature using the Temp Selector slider. 3. Furnace fan should start to blow immediately after setting the thermostat. 4. After about 30 seconds, the furnace burner should light.

  • Page 40: Ducted Roof Air Conditioning System

    SECTION 4 – APPLIANCES AND SYSTEMS DUCTED ROOF AIR CONDITIONING SYSTEM The furnace thermostat also controls ducted roof air conditioner operation when the Thermostat switch is placed in “Cool” position. All cooling functions controlling to setpoint have a short cycle protection time delay of three minutes.

  • Page 41: Propane Gas

    SECTION 5 – PROPANE GAS PROPANE GAS SUPPLY Tank Gauge & Tank Fill Overflow Sender The propane gas system supplies fuel for the Valve Valve gas range/oven, water heater, furnace, and refrigerator (while in gas mode). When used and handled properly, this system is safe and economical and provides modern living conveniences wherever you travel.

  • Page 42: Safe Use Of The Propane Gas System

    SECTION 5 – PROPANE GAS to the National Propane Gas Association, propane gas outlets in the United States do not WARNING offer any other type of liquefied petroleum gas than propane to the general public.) Check local phone directory yellow pages for locations of Do not fill propane container(s) to more local propane gas refilling stations or bulk than 80 percent of capacity.

  • Page 43: Propane Gas Warnings And Precautions

    SECTION 5 – PROPANE GAS Propane gas also contains an odor additive PROPANE GAS WARNINGS that you can smell if propane is present in the air. AND PRECAUTIONS Here are a few precautions to observe that will help you to use the propane gas system safely: It is illegal for vehicles equipped with propane container to travel on certain roadways or •...

  • Page 44: Propane Gas Pressure Regulator

    SECTION 5 – PROPANE GAS WARNING WARNING Do not place propane cylinders inside the Visually inspect the pressure regulator vehicle. vent periodically for blockage by Propane cylinders are equipped with accumulated debris or insect nests, etc. safety devices that relieve excessive Vent obstruction could result in excessive pressure by discharging propane to the pressure causing fire or explosion, which...

  • Page 45: Propane Vaporization In Cold Weather

    SECTION 5 – PROPANE GAS This means that in extremely cold weather when a large volume of gas is being used by the furnace for heating, it is possible to experience a loss of gas pressure. At first, this problem may appear to be caused by an empty tank or a regulator freeze-up, but is actually caused by failure of the liquid gas to vaporize as fast as it is needed by the furnace.

  • Page 47: Electrical

    SECTION 6 – ELECTRICAL Your coach is equipped with an electrical the power converter automatically changes a system consisting of two separate voltages: portion of the 120-volt current to 12-volt DC current. All equipment in the motorhome that is • 12-volt DC system (battery current);...
  • Page 48 SECTION 6 – ELECTRICAL 30 Amp Receptacle WARNING • Swivel the small cover section upward to access the cord passage. This connection is for 110/125 Volt AC, 60 Hz 30 Ampere supply. Do not exceed circuit rating. Exceeding the circuit rating may cause a fire and result in death or serious injury.

  • Page 49: Power Center

    SECTION 6 – ELECTRICAL WARNING Service inlet access must be closed when utility connections are not in use. Park Fuses or Breakers Most campgrounds are equipped with a fuse or circuit breaker at the receptacle (which we recommend shutting off before engaging or disengaging the power cord.) This protects the park’s wiring, as well as the power cord on your 2.

  • Page 50: Charging Section

    SECTION 6 – ELECTRICAL Certain circuits, however, remain unchanged overheated. This can result from operating above for use by items which require 120-volt current, its maximum limit for an extended period of time such as the air conditioner(s), the refrigerator in or by obstruction of ventilation to unit.

  • Page 51: Electrical Outlets - House 120-Volt Ac

    SECTION 6 – ELECTRICAL NOTE: Typical view of breaker panel. Breaker •Push to Reset arrangement may vary according to circuit after appliance and equipment options. Fuses monthly testing and breakers are labeled on panel. or ground fault tripping. ELECTRICAL OUTLETS – HOUSE 120-VOLT AC A number of standard household electrical outlets are provided throughout the coach for...

  • Page 52: Electrical System - House 12-Volt Dc

    SECTION 6 – ELECTRICAL Operation Warnings and Cautions WARNING The exhaust of all internal combustion engines contains carbon monoxide (CO). This poisonous gas is colorless, odorless, tasteless, and lighter than air. The exhaust systems of both your motorhome engine and your generator engine have been installed with your safety in mind.

  • Page 53: House/Coach Battery Disconnect Switch

    SECTION 6 – ELECTRICAL Chassis Battery The chassis battery is used to operate the engine starter and automotive accessories and controls found on the instrument panel. The slideout room systems and the electric step are also connected to the chassis battery. See your chassis manual for further information on chassis batteries and chassis electrical system.

  • Page 54: Battery Care

    SECTION 6 – ELECTRICAL The two best defenses against sulfating and insufficient charge are to: 1. Turn off the House/Coach Battery Disconnect switch to avoid parasitic discharge (the trickle discharge caused by directly connected components like propane gas detectors or digital clock displays, etc.) 2.

  • Page 55: Circuit Breakers And Fuses - House 12-Volt Dc

    If your coach is going to be unoccupied for supplied, back onto the positive terminal ® two weeks or more, Winnebago Industries after servicing. Care must be taken to recommends disconnecting the chassis battery in avoid pinching the cable between any your coach to avoid battery discharge.

  • Page 56: Battery Charge Meter

    SECTION 6 – ELECTRICAL affected lights or appliances and reset the breaker or replace the fuse with a new one of equal amperage rating. House 12-Volt Fuses A label on the House 12-Volt Fuse panel states the amperage rating and circuit protected for each fuse.

  • Page 57: Plumbing

    SECTION 7 – PLUMBING The tank is filled through the Tank Fill FRESH WATER SYSTEM Connection located on the side of the vehicle. The Fresh Water System provides water to the City Water Connection galley sink, shower, bathroom lavatory, toilet, and water heater.

  • Page 58: Water Pump

    SECTION 7 – PLUMBING 1. Connect hose to City Water Connection. 2. Turn the Water Pump switch(es) OFF. Disconnecting from City Water 1. Turn the city water supply OFF. 2. Disconnect hose from the coach and replace the cap on the City Water Connection. 3.

  • Page 59: Disinfecting Your Fresh Water System

    SECTION 7 – PLUMBING Initial Waterline Priming DISINFECTING YOUR FRESH 1. Ensure that all water drain valves are closed, WATER SYSTEM including water heater valve. ® (As required by NFPA 1192 Standard on 2. Turn Water Pump switch to “OFF” position. Recreational Vehicles) 3.

  • Page 60: Shower Hose Vacuum Breaker

    SECTION 7 – PLUMBING 5. Drain the water tank and refill with fresh If items are placed into the shower tub before water. shower valve vacuum release is complete, they may become wet. 6. Open each faucet again and run fresh water to flush chlorinated water from the lines.

  • Page 61: Waste Water System

    SECTION 7 – PLUMBING If you should experience a sewer odor, pour 1st - Pull Black Waste Tank Drain approximately 1 cup of water down each sink and valve to drain black water (sewage) shower drain in the coach. tank - then close. WASTE WATER SYSTEM (Holding Tanks) The drainage system is self-contained and...

  • Page 62: Holding Tank Level Indicators

    SECTION 7 – PLUMBING Using On-Site Sewer Hook-Ups The black water holding tank contains the sewage from the toilet and may include the The sewage drain hose may remain attached to bathroom lavatory on some models. The gray the dump outlet and be routed out the bottom of water holding tank contains the waste water from the compartment while the motorhome is parked the galley sink, shower, and may include...
  • Page 63 SECTION 7 – PLUMBING 2. Remove dust cap from sewage drain outlet drained and dump valve closed to avoid and connect sewage drain hose. Be sure it is sewage back-up into gray tank. Gray firmly attached. water also rinses any black water solids from the sewage drain hose.

  • Page 64: Holding Tank Heater

    SECTION 7 – PLUMBING miles to dislodge the solids. A few starts and stops will aid in the process. Then reconnect the sewage drain hose and drain in the normal manner. NOTE: Always keep sewage drain outlet capped while sewage connection is not in use. Holding Tank Level Indicators See “Systems Monitor Panel”...

  • Page 65: Waterline & Tank Drain Valves

    SECTION 7 – PLUMBING engine must be running (such as when driving down the road). This will prevent excessive discharge of the house battery. NOTE: The holding tank heater pads are electrical resistant-type heating elements. This type of heating element typically uses a large amount of current while operating.

  • Page 66: Water Heater Bypass And Antifreeze Siphon Valves

    SECTION 7 – PLUMBING 2. Drain Fresh Water Tank and Waterlines. WATER HEATER BYPASS AND Open all waterline drain valves and drain ANTIFREEZE SIPHON VALVES fresh water tank. (See “Water System Drain Valve Locations” chart at the end of this Your coach is equipped with a Water Heater section for locations of drain valves on your Bypass valve and an Antifreeze Siphon...
  • Page 67 NOTE: It is not necessary to add antifreeze to the system. A “blow-out” plug can be the toilet since the flush valve will be ® ® purchased at any Winnebago or Itasca closed. dealer. Do not add automotive antifreeze or...
  • Page 68 SECTION 7 – PLUMBING Your drainage and fresh water systems are now winterized. See instructions for removal from storage in Section 11 - Maintenance and Storage. 7-12...

  • Page 69: Water System Drain Valve Locations

    SECTION 7 – PLUMBING WATER SYSTEM DRAIN VALVE LOCATIONS MODEL SYSTEM DRAIN VALVE LOCATIONS Waterlines • Two (2) valves beneath the rear dinette seat. Remove panel to access. Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button”...
  • Page 70 SECTION 7 – PLUMBING Waterlines • Two (2) valves under lavatory. Remove panel under lavatory. Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button” in center of connector) to drain any water left in the city waterline.

  • Page 71: Entertainment

    SECTION 8 – ENTERTAINMENT TV – (SWIVEL) –If Equipped (Typical View - your coach may vary in appearance according to floorplan) Your coach may be equipped with a TV swivel/telescoping mechanism, which allows you to angle the TV to best suit your viewing needs.

  • Page 72: Dvd Player

    SECTION 8 – ENTERTAINMENT • When the main menu DVD PLAYER screen appears, press the “Enter” button on –If Equipped the remote or “Play/ Pause” button on DVD player to begin playing the main feature. Use the arrow buttons on the DVD remote to select another feature to play.

  • Page 73: Tv Antenna

    SECTION 8 – ENTERTAINMENT NEXT WARNING ENTER Never allow the antenna to touch • When the main menu screen appears, use the electrical power lines or any other electrical wires. arrow buttons on the DVD remote to select the desired entry or press the ENTER or PLAY buttons on the remote (or “Play”...

  • Page 74: Tv Signal Amplifier

    SECTION 8 – ENTERTAINMENT C AU T I ON • Power Switch To avoid equipment damage, always align directional handle to DOWN position before lowering. Never partially raise or lower antenna. Antenna must be raised fully up into operating position or lowered fully down into travel position.

  • Page 75: Furniture And Softgoods

    SECTION 9 – FURNITURE AND SOFTGOODS SLEEPING FACILITIES WARNING Do not exceed 225 lbs. maximum weight capacity. Misuse of ladder could result in death or serious injury. WARNING See Operators Manual before using ladder. • Maximum Capacity: 225 lbs. Sleeping facilities are not intended for use while vehicle is in motion.
  • Page 76 SECTION 9 – FURNITURE AND SOFTGOODS •Lower ladder to floor. •Make sure top of ladder is properly engaged onto retainer brackets and ladder is resting firmly on floor before using. • Reverse steps to store ladder. • Straps are provided on the mattress section to secure and store the ladder while traveling or when not in use.

  • Page 77: Sofa/Bed Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS SOFA/BED CONVERSION Lock Rod –If Equipped Sofa to Bed • Pull OUT on security latch (located on front of sofa) to release sofa seat. 2. Lift the dinette cushions upward and push table straight down. Security Latch (Located on front of sofa) - Pull OUT to release...

  • Page 78: Dinette/Bed Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS Dinette to Bed 1. Remove both dinette back cushions and set aside. Reverse steps to convert back into dinette seating. Once the table is up, engage the lock rod by 2. Lift both dinette seat cushions upward. pushing the lock rod up.

  • Page 79: Mini Dinette/Couch Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS 4. Release the catch on the table leg brace and fold the leg up against the bottom of the table. Table Leg Catch Bed to Dinette 5. Remove the table from the wall support Reverse steps to convert back into dinette bracket by lifting the end of the table.
  • Page 80 SECTION 9 – FURNITURE AND SOFTGOODS Dinette to Couch 4. Arrange dinette cushions to cover couch and back area. 1. Remove seat back cushions from snaps and set aside. Couch to Dinette 2. Release the catch on the table leg brace and 1.

  • Page 81: U-Shaped Dinette/Bed Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS Belt with Dinette Use when in dinette position. Belt with Couch 2. Pull the table leg tubes from the floor or table sockets and store beneath dinette seat. 3. Place the table top onto the ledge of the dinette seat.

  • Page 82: Pleated Blinds

    SECTION 9 – FURNITURE AND SOFTGOODS 3. Secure both latches on the table leg to lock in U-SHAPED DINETTE/BED lowered position. CONVERSION –If Equipped (Typical View – Your coach may differ in appearance) The U-Shaped Dinette can be converted into additional sleeping space when needed by lowering the dinette table and arranging the dinette cushions.

  • Page 83: Roller Shades (Manual) - Solar/Blackout

    SECTION 9 – FURNITURE AND SOFTGOODS They are raised or lowered by grasping the • With the blind fully lowered, dampen the bottom edge of the blind and moving it up or entire area of the pleats with a good quality down by hand.

  • Page 84: Wood Furniture And Cabinetry

    People are drawn to the natural beauty of and the wood is considered part of the natural ® wood. At Winnebago Industries , our craftsmen aging process and is not to be considered defect work with the art found in each piece of wood to or damage.

  • Page 85: Slideout Rooms

    The ignition key must be placed in the on or run position to operate the slideout room(s). The park brake must be applied for the room(s) to run. Winnebago recommends running the engine whenever you run the slideout rooms in or out, the engine alternator should insure the rooms have adequate 12-volt DC power to operate correctly.
  • Page 86 SECTION 10 – SLIDEOUT ROOMS • Ensure exterior compartment doors are closed so that they will not interfere with slideout WARNING operation. • Check inside and outside the vehicle to make sure that there are no people who could be CRUSH HAZARD.

  • Page 87: Slideout Room - Extreme Weather Precaution

    SECTION 10 – SLIDEOUT ROOMS • The circuit breaker may be tripped. The SLIDEOUT ROOM – EXTREME circuit breaker, labeled “Slideout Power” is WEATHER PRECAUTION located on a panel on an interior wall of the passenger side storage compartment just Certain extreme weather conditions, such as behind or ahead of the entrance door.

  • Page 88: Slideout Emergency Retraction (Lippert)

    SECTION 10 – SLIDEOUT ROOMS • (5) - EXCESSIVE MOTOR CURRENT. SLIDEOUT EMERGENCY High amperage (also indicated by one side of RETRACTION (LIPPERT) slideout room continually stalling). • (6) - MOTOR SHORT CIRCUIT. Motor or –If Equipped wiring to motor has shorted out. If the slideout mechanism is malfunctioning and the room will not retract using the interior •...
  • Page 89 SECTION 10 – SLIDEOUT ROOMS 3. Remove the top (4) pan head screws and top (4) flat head screws at the top of the aluminum trim. 4. Gently pull aluminum trim away from sidewall with hand to disengage screw from motor.

  • Page 90: General Slideout Care

    SECTION 10 – SLIDEOUT ROOMS Slideout Room Seal Care and 7. When the slideout room is fully retracted, secure the room with a support item (e.g. 2x4 Maintenance wood board) above the interior slideout room While most household cleaners work well for to secure room during travel.

  • Page 91: Maintenance And Storage

    • Have the sealant replaced if you notice any of attention. Delaying these repairs may allow water the above. Your local Winnebago Industries leakage and result in damage to interior ceiling dealer has the correct and necessary parts and and body panels, upholstery, etc., which is not experience to help you maintain your sealants.

  • Page 92: Exterior Finish

    SECTION 11 – MAINTENANCE AND STORAGE weight to the vehicle. This, in effect, reduces the • Wash with cool water out of direct sunlight amount of cargo you can carry and remain within using a mild liquid soap (any “no-tears” baby GVWR and GAWR limits.

  • Page 93: Exterior Graphic Care

    SECTION 11 – MAINTENANCE AND STORAGE If the finish begins to look dull or discolored, • Wash graphics with plain soap and water or it may need to be cleaned with a polishing or any car wash detergent. Rinse thoroughly. cleaning compound formulated for gel-coated •...

  • Page 94: Exterior Lights

    EXTERIOR LIGHTS motorhome is parked for an extended ® period of time. Most Winnebago Industries vehicles have polycarbonate lenses on exterior lamps, which are very sensitive to a variety of chemical solvents and cleaners.

  • Page 95: Cabinetry - Cleaning

    SECTION 11 – MAINTENANCE AND STORAGE CABINETRY – CLEANING WARNING Wooden items may be cleaned with a soft cloth and a good quality wood finish cleaning product. When cleaning upholstery and fabric, do Vinyl simulated wood panels may be cleaned not use lacquer thinner, nail polish with a mild, water-based cleaner and a soft cloth.

  • Page 96: Galley Sink

    SECTION 11 – MAINTENANCE AND STORAGE General Cleaning GALLEY SINK Clean often with hot water and soap. If a Stainless Steel cleanser is necessary, make sure the product is recommended for use on plastics. Care and Cleaning Instructions Avoid harsh abrasive cleaners, ammonia, or The stainless steel sink can usually be cleaned citric-based products as discoloration may result.

  • Page 97: Bathroom

    SECTION 11 – MAINTENANCE AND STORAGE Treatment of Stains • Sweep or vacuum floor daily (use a vacuum without a beater bar head.) Remove loose dirt Acids, alkali, alcoholic beverages, coffee, soft ® with a soft brush or Swiffer type product. drinks, ketchup, fruit, fruit juices, food, •...

  • Page 98: Doors And Windows

    SECTION 11 – MAINTENANCE AND STORAGE Tub and Shower Walls 5. Fully charge the batteries. Batteries must have at least 80% charge to survive The tub and shower walls in the bathroom freezing temperatures and long period of should be cleaned with mild soap and warm non-use.

  • Page 99: Vehicle Storage - Removal

    SECTION 11 – MAINTENANCE AND STORAGE that can be damaged by freezing temperatures. Information at the beginning of this section. See “Winterizing Procedures” in Section 7 - Resealing is quite simple and the material is Plumbing. quickly and easily applied. Appropriate compounds are available from your dealer.

  • Page 100: Coach Maintenance Chart

    SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Propane Gas System ...
  • Page 101 SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Safety Equipment Check operation of the following items: ...

  • Page 102: Miscellaneous

    SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Sealants ...

  • Page 103: Loading The Vehicle

    SECTION 12 – MISCELLANEOUS NOTE: We recommend that you dump all LOADING THE VEHICLE holding tanks before traveling to avoid carrying unnecessary weight. NOTE: Your motorhome’s load capacity is designated by weight, not by volume, so you cannot necessarily use all available WARNING space when loading your motorhome.
  • Page 104 SECTION 12 – MISCELLANEOUS Corner Weighing (Side-to-Side) You will first drive only your front wheels onto the scale pad, then drive ahead so that the The most accurate method of weighing a whole vehicle is on the scale, then finally pull off motorhome is to weigh each “corner”...

  • Page 105: Car Or Trailer Towing

    SECTION 12 – MISCELLANEOUS axle is 12,000 lbs., then the load on each rear dual Because of individual vehicle use and loading set (left rear duals or right rear duals) should not habits, we recommend weighing the vehicle exceed 6,000 lbs. while fully loaded to avoid exceeding any of the listed Gross Weight Ratings.

  • Page 106: Trailer Wiring Connector

    SECTION 12 – MISCELLANEOUS force applied to the motorhome brakes, the more TRAILER WIRING force will be applied to the rear vehicle’s braking CONNECTOR system. We do not recommend the usage of a “surge- Your coach is pre-wired for trailer or car style”...

  • Page 107: Awning - Manual

    350 The tow vehicle brakes may be rated for lbs. All Winnebago Industries models operation at GVWR, not GCWR. equipped with a Class IV hitch have a...

  • Page 108: Storage Compartment Doors

    SECTION 12 – MISCELLANEOUS NOTE: Actual features and locations may vary depending on model, available C AU T I ON equipment, and storage compartment configuration. Pinch Hazard. Ensure there are no ROOF LADDER people who could be harmed or objects that can be damaged.

  • Page 109: Windows

    SECTION 12 – MISCELLANEOUS • Do not overload. Ladder is intended for one person. • Make sure you are physically capable to safely use the ladder. Strength, flexibility, and stability are required. • Be aware that the vehicle may sway as you climb the ladder.
  • Page 110 SECTION 12 – MISCELLANEOUS You can help reduce excessive moisture inside the motorhome by taking the following steps: Ventilate with outside air Partially open one or more windows and a roof vent to circulate outside air through the coach. In cold weather, this ventilation may increase use of the furnace, but it will greatly reduce the condensation inside the coach.
  • Page 111 INDEX About this Manual ..........................1-1 Air Conditioner Filter ..........................4-8 Air Conditioner/Heater – Automotive (Dash) ..................3-5 Air Springs – Rear Helper ........................3-8 Audio/Video System Basic Operation ....................8-1 Awning – Manual ..........................12-5 Awning – Power ........................... 12-5 Bathroom ..............................
  • Page 112 Index Exterior Finish ............................11-2 Exterior Graphic Care ........................... 11-3 Exterior Lights ............................11-4 Fire Extinguisher ............................. 2-6 Fold-Down Dinette Seat ......................... 3-1 Formaldehyde Information ........................2-9 Fresh Water System ..........................7-1 Front Axle Tire Alignment ........................1-2 Front Overhead Bunk ..........................9-1 Fuel and Propane Gas ..........................
  • Page 113 Index Radio In-Dash/Rearview Monitor System ....................3-6 Range and Oven ............................4-2 Range and Refrigerator ......................... 11-6 Range Hood ............................4-4 Refrigerator ............................. 4-1 Refrigerator Service Access Compartment ..................... 4-2 Reporting Safety Defects ........................1-2 Roadside Emergency ..........................2-11 Roller Shades (Manual) – Solar/Blackout ....................9-9 Roof ..............................
  • Page 114 Index Vehicle Certification Label ........................1-4 Vehicle Storage – Preparation ......................11-8 Vehicle Storage – Removal ........................11-9 Vinyl Flooring ............................11-6 Waste Water System - Waste Pump (Model 27Q) ................. 7-6 Waste Water System ..........................7-5 Water Heater – Gas ..........................4-5 Water Heater Bypass and Antifreeze Siphon Valves ................

Table of Contents
