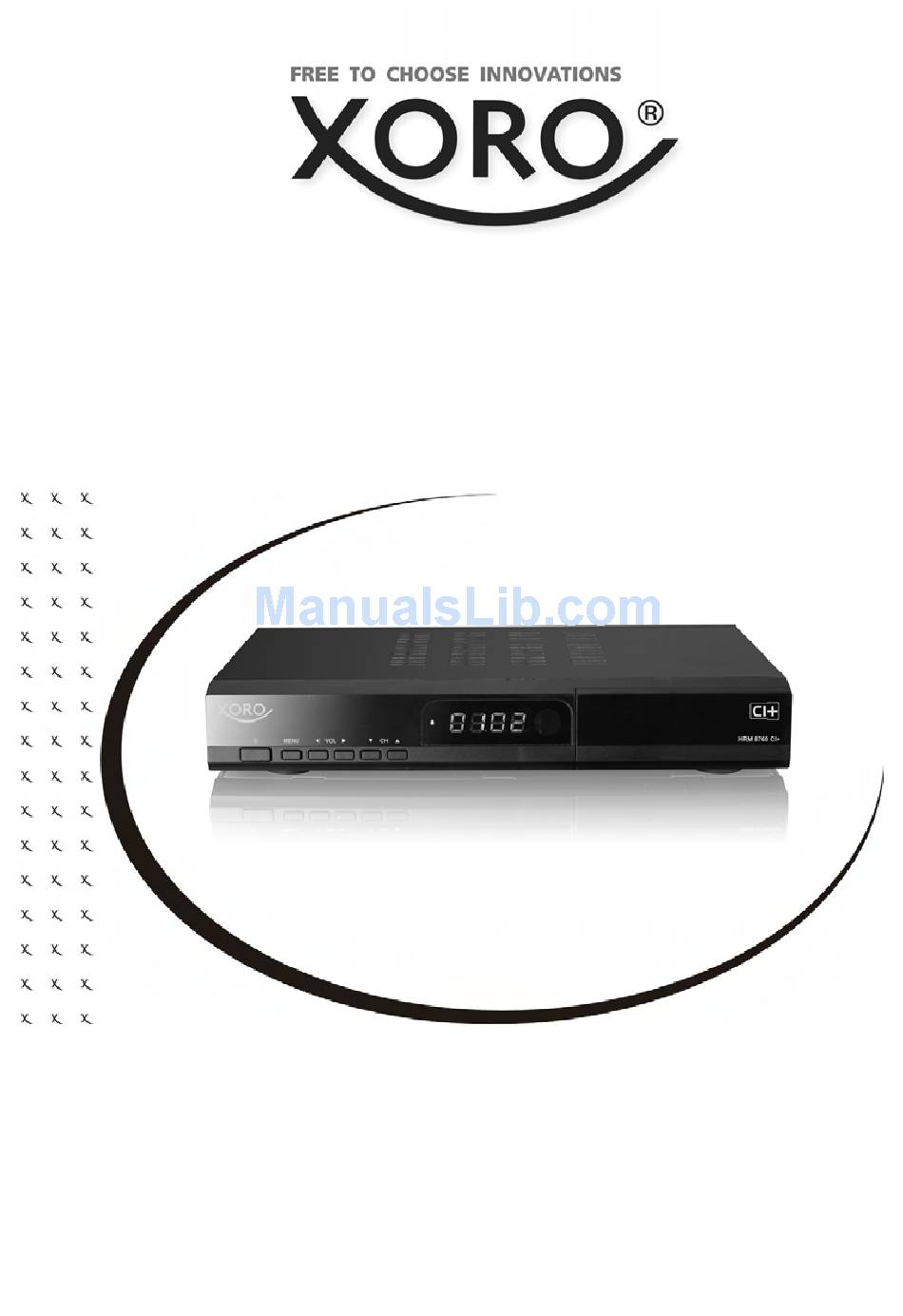

  • Page 1 HRM 8760 CI+ User’s Manual (ENG)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ADVICE................... 3 QUICK SETUP..................5 FEATURES.................... 7 HOW TO CONNECT YOUR RECEIVER ..........7 HARDWARE ..................9 WATCHING TV..................13 MENU OPERATION ................21 EDITING CHANNELS ................22 INSTALLATION ................... 24 USER SETUP ..................25 MULTIMEDIA..................29 CI PLUS ....................

  • Page 3: Safety Advice

    1 SAFETY ADVICE This product has been manufactured to comply with international safety standards. Please read the following safety precautions carefully. MAIN SUPPLY: 220-240V AC 50/60Hz Operate this product only from the type of power supply indicated on the marking label.
  • Page 4 - Do not place the product on an unstable cart, stand, tripod, bracket, or table where it can fall. A falling product can cause serious injury to a child or adult, and serious damage to the appliance. LIGHTNING, STORM or NOT IN USE: Unplug the product from the wall outlet and disconnect the antenna during a thunderstorm or when left unattended and unused for long periods of time.

  • Page 5: Quick Setup

    2 QUICK SETUP Check accessories Please check the gift box for completeness of accessories. Included should be: Receiver, Remote Control, User Manual and 2 Batteries. Connect the Receiver to the TV Set Connect your Receiver with your TV Set. Details can be found in the User Manual under chapter 4.
  • Page 6 Information about changes to the channel list please see chapter 8. Edit Channels in the User Guide. Under chapter 5.1, you can make yourself familiar with the functions of your remote control. Under chapter 6, the TV, as well as Recording and Playback functions of your receiver are described.

  • Page 7: Features

    3 FEATURES • Supports SD / HD (MPEG4 AVC/H.264) • Tuner supports DVB-T/DVB-T2 and DVB-C Signals • One CAM slot that compatible with CI & CI plus 1.2 standard • USB PVR Function (by using external HDD) - Time Shift Mode (by using external HDD) •...
  • Page 8 4.1 Connecting the Receiver to TV Connect the Cable from your Terrestrial DVB-T/T2 Antenna or digital Cable (DVB-C) to the connector marked “RF IN“ at the rear of the receiver. Connect an HDMI-Cable between the HDMI-ports of your TV Set and your Receiver.

  • Page 9: Hardware

    5 HARDWARE 5.1 Remote Control POWER. By pressing this button, the receiver will go into standby mode. When the receiver is in standby mode, it can be awakened by pressing this button again. MUTE. By pressing this button, all audio outputs of the receiver are muted.
  • Page 10 MENU: By pressing this button, the user can activate the main menu of the receiver. EXIT: By pressing this button, the user can exit from the menu without saving the made changes or go one step back in the menu structure. cursor UP: By pressing this button, the user can jump to next channel on the channel list.
  • Page 11 5.2 Front Panel 1. POWER BUTTON Switch on- and off (Stand-by). 2. MENU BUTTON Open Main Menu. 3. VOLUME UP & DOWN Increase or decrease the volume. 4. CHANNEL UP & DOWN Selection of TV/Radio channels. 5. 7-Segment Display In operation displays the current channel number. 6.
  • Page 12 Rear Panel Name FUNCTION RF IN Input for DVB-C or DVB-T/T2 Signal RF OUT Loop-Output for DVB-Signal YPbPr Component Output CVBS Video Composite R & L Audio Output Right & Audio Output Left HDMI Output High-Definition Digital Video/Audio Output USB 2.0 Port (5V, max. 500mA) COAXIAL Digital Audio Output (S/PDIF coaxial) SCART...

  • Page 13: Watching Tv

    6 WATCHING TV This chapter describes how to watch TV and listen to radios using the receiver. Thanks to the advantages of Digital TV transmissions, extra features are added to the broadcast, such as information about the current and next program and extra options such as the ability to choose between different languages for Audio and Subtitling.
  • Page 14 In Live TV Mode, press the OK key to open the Channel List. Move the cursor key UP / DOWN to move in the List channel-by-channel. Choose your desired channel with the OK key. Exit the List with the EXIT key. Find a specific channel by pressing the FIND key on your remote control/ Enter the first letters of the desired...
  • Page 15 6.2 Options • Subtitling language (GREEN key): The user can select from available subtitle languages, if more than one exists. Selection from the available choices is made with cursor UP or cursor DOWN key and confirmation by OK key. Some broadcasters also provide Subtitles in either, DVB- or Teletext Format.
  • Page 16 Move the cursor LEFT or RIGHT to move to another time of the current day. Use the BLUE key to advance to the next day and use the YELLOW key to go back by one day. For your orientation, please also note the timeline indicating the current time in comparison to the programs.
  • Page 17 6.4 EPG-Timer (Timer programming via EPG) In the Single- or Multi-EPG Mode, you have the option to reserve programs in the timer. Move the cursor to the desired program and simply press the REC key on your remote control. An additional window is opened, which displays the timer reservations.
  • Page 18 6.6.2 EPG Recording Via the EPG, you can program a Timer reservation – Please also see 6.4 for more details. 6.6.3 Timer Recording via manual Record List Alternatively to programming an Event via the EPG, you can also program an Event manually (Start-/End-Time, Channel) via the RECORD List.
  • Page 19 6.6.4 TimeShift-Function During Live TV, you can press the PAUSE key to activate the TimeShift function. Provided you have connected a USB HDD, the Receiver will pause the program. With the PLAY key, you can continue to watch the time shifted program. The Information Bar indicates how much time you are watching time shifted compare to the live program.
  • Page 20 Under FILE LIST, press the RIGHT key to navigate to the MediaExplorer. Here you will find media files that are stored on your USB HDD. Move to the file you wish to play and press the OK key. Note that due to the numerous different file formats that are available, some files couldn’t be played back.

  • Page 21: Menu Operation

    7 MENU OPERATION The main menu can be activated by pressing the MENU key. Main menu provides access to most important functions and features of the receiver. These are divided into the following Menus. Each Menu contains corresponding sub-menus. The Main Menu consists of: •...

  • Page 22: Editing Channels

    8 EDITING CHANNELS Create Channel List This menu is used to shape your channel list according to your personal preference. Press the MENU key, select ‘Edit Channels’ by using the RIGHT cursor and press OK. Change between TV and Radio Channels by pressing the TV/RADIO key.
  • Page 23 Edit Favorite Channels This menu is used to create a list of your favourite channels. Thus you can create up to 8 different Favorite Lists. Press the MENU key, select EDIT FAVORITE CHANNELS by using the RIGHT and DOWN key and confirm using the OK key.

  • Page 24: Installation

    9 INSTALLATION This menu contains following items: • Automatic search terrestrial • Manual search terrestrial • Automatic search Cable • Manual search Cable You have two options for the Search of channels. If you know the parameters of the channels, choose Manual Search and choose the according RF channel/Frequency.

  • Page 25: User Setup

    10 USER SETUP Please use the cursor keys to select: - Language Setting, - Time Setting, - Parental Control, - A/V Control, - OSD Setting, - Automatic Power Down. 10.1 Language Setting • Menu Language: Select the preferred language for the system menus.
  • Page 26 10.2 Time Setting This menu contains Time Setting, Summer Time and GMT Offset. Select “Manual” or “Auto” mode using the cursor LEFT or cursor RIGHT keys and press OK to confirm. If you wish to change time and date manually in time offset menu, please set the option to “Manual”.
  • Page 27 10.4 A/V Control In the Audio/video menu, you can modify the properties of the audio and video signals to suit your TV and audio equipment. • TV-Type: Please select the video format consistent with your TV. • Aspect ratio: User can inform the receiver about the display aspect ratio of the TV that is connected to the receiver.
  • Page 28 10.5 OSD Setting In this Submenu, you can adjust the display time (i.e. time of the appearing of the info bar or other on-Screen Messages) and the OSD transparency (in %) over the Live picture. 10.6 Automatic Power Down In this Submenu, you can choose the time after which the receiver will go into Standby (Sleep-Mode).

  • Page 29: Multimedia

    11 MULTIMEDIA (only with a connected and operational external HDD) In this Sub Menu, you can make some settings for your connected Hard-Disk- Drive for the PVR Operation and also format the HDD. The Sub Menu includes the following functions: •...
  • Page 30 If an external HDD is connected to the USB port and is operational, recordings can be made directly on the HDD. Please enter: Date Start Time Stop Time Channel List (TV / Radio) Channel Mode (Once / Daily / Weekly) Save the newly set Recording Event by pressing the BLUE key.
  • Page 31 11.3 HDD Properties In this Sub Menu, you can see all information about your connected Hard-Disk Drive as well as an option to format the HDD. HDD Information displays the File System, the Total-, Used- and Free- Size of the connected USB Hard-Disk- Drive.

  • Page 32: Ci Plus

    11.4 File List After opening the File List Sub menu, you can navigate to subfolders on the connected USB HDD. Press the OK key to open the subfolder. Move to the file you wish to play and press the OK key. Please note that due to the numerous different file formats that are available, some files could not be played back.

  • Page 33: System

    13 SYSTEM The System Menu has 4 Sub menus: - Information, - Software Upgrade, - Default Setting. The Information Sub menu is used to display information about the receiver and its hardware, software and loader. 13.1 Software Upgrade This allows to update the system software to maintain the best possible performance of the receiver.
  • Page 34 13.2 Default Setting In this menu, you can delete all channels for TV or Radio. Additionally you can perform a factory reset to set back Channels, the Configuration to the original state as well as perform a Default Setting. Note: it is highly recommended not to perform any factory reset without the presence/injunction of a Technical Operator.

  • Page 35: Trouble Shooting

    14 TROUBLE SHOOTING Problem Possible causes Remedy LED on front panel AC Power cord Connect power cord properly does not light disconnected into the power socket No picture or sound Wrong connection of the Connect correctly with HDMI Video/audio output to TV input cable or RCA terminal Wrong connection of antenna...

  • Page 36: Technical Assistance

    Limited Warranty In case the products delivered are not free from defects in material or workmanship, MAS Elektronik AG has the right to either repair or replace the defective product at its choice. MAS Elektronik AG manufactures and repairs goods using components which are new or equivalent to new in accordance with industry standards and practice.
  • Page 38 XORO by MAS Elektronik AG Weidegrund 3 21614 Buxtehude Deutschland Telefon: 04161 800 24 24 (Mo. - Fr. 11:00Uhr bis 17:00 Uhr) Fax: 04161 800 24 61 xoro@mas.de www.xoro.de DE: V1 ENG: OEM_V1 FS: 12522...
