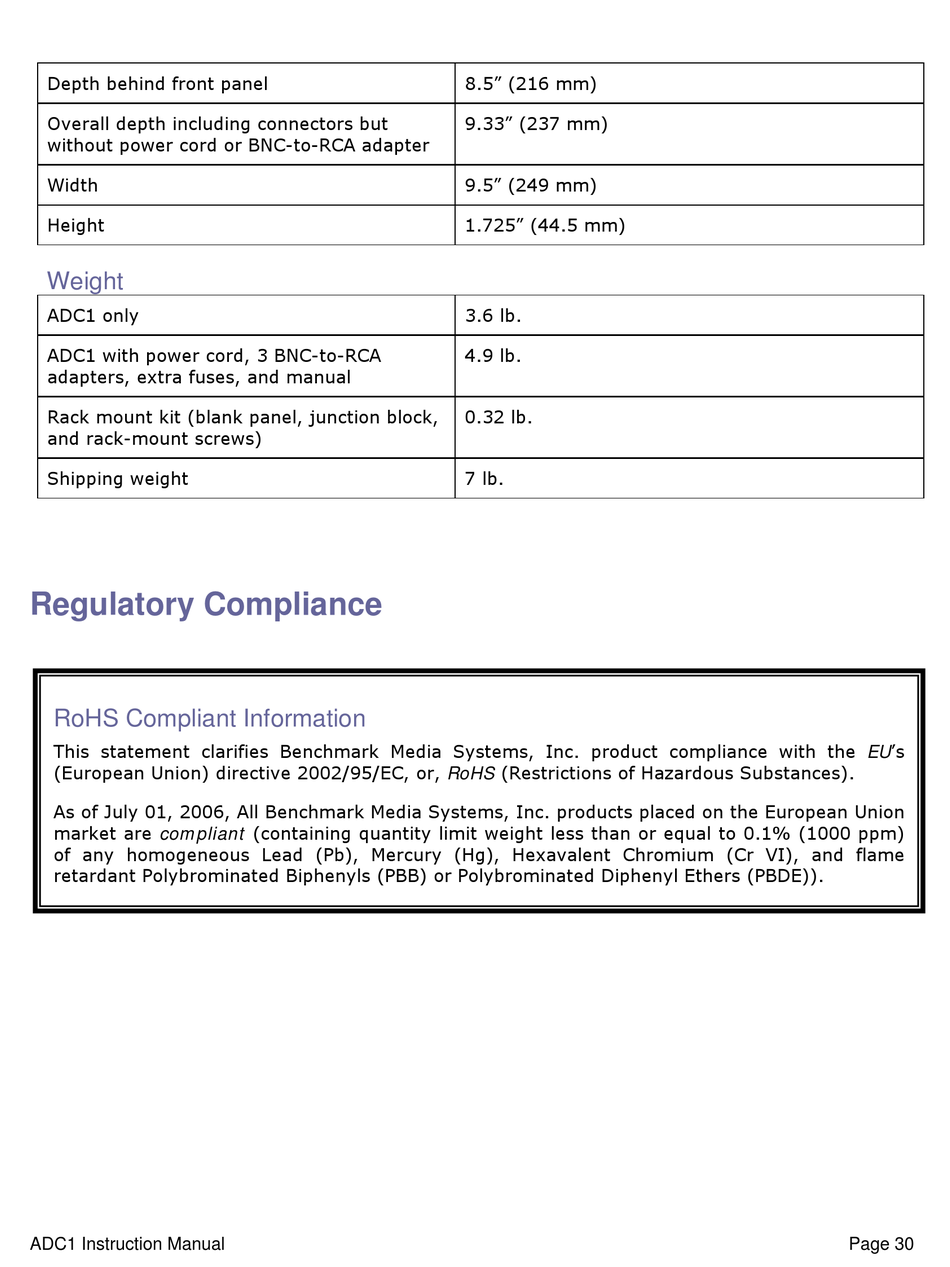

Depth behind front panel
Overall depth including connectors but
without power cord or BNC-to-RCA adapter
Width
Height
Weight
ADC1 only
ADC1 with power cord, 3 BNC-to-RCA
adapters, extra fuses, and manual
Rack mount kit (blank panel, junction block,
and rack-mount screws)
Shipping weight
Regulatory Compliance
RoHS Compliant Information
RoHS Compliant Information
This statement clarifies Benchmark Media Systems, Inc. product compliance with the EU's
(European Union) directive 2002/95/EC, or, RoHS (Restrictions of Hazardous Substances).
RoHS Compliant Information
As of July 01, 2006, All Benchmark Media Systems, Inc. products placed on the European Union
market are compliant (containing quantity limit weight less than or equal to 0.1% (1000 ppm)
of any homogeneous Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr VI), and flame
retardant Polybrominated Biphenyls (PBB) or Polybrominated Diphenyl Ethers (PBDE)).
ADC1 Instruction Manual
8.5" (216 mm)
9.33" (237 mm)
9.5" (249 mm)
1.725" (44.5 mm)
3.6 lb.
4.9 lb.
0.32 lb.
7 lb.
Page 30
