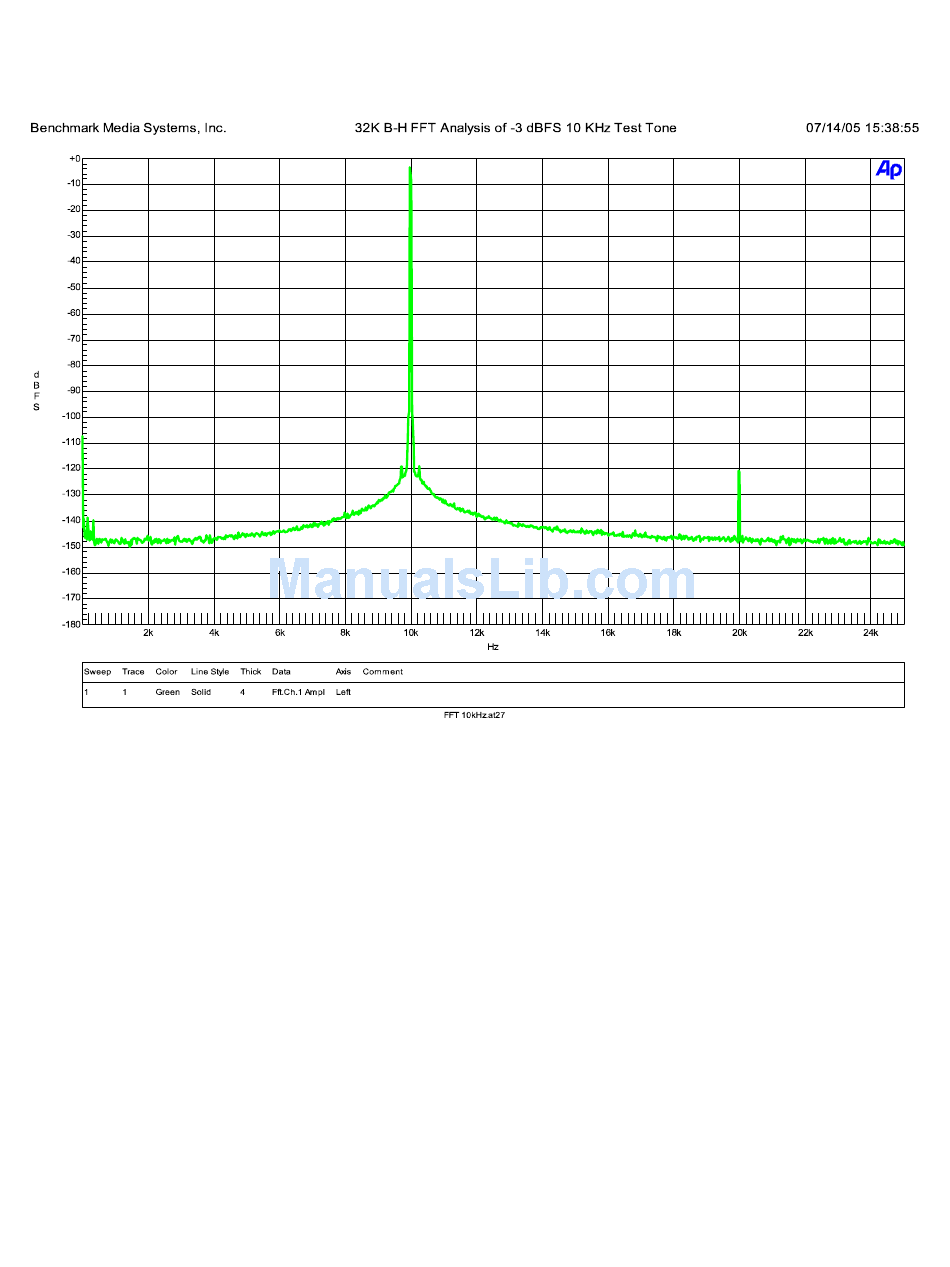

32K B-H FFT, -3 dBFS, 10 KHz

The above FFT plot shows that the ADC1 is free from jitter-induced sidebands. Any jitter present at

the conversion sampling circuit would produce sidebands equally spaced above and below the 10

kHz test tone. The tone at 20 kHz is due to second harmonic distortion, and measures almost 120

dB below full scale. Note the near absence of spurious tones.

ADC1 Instruction Manual

Page 25
