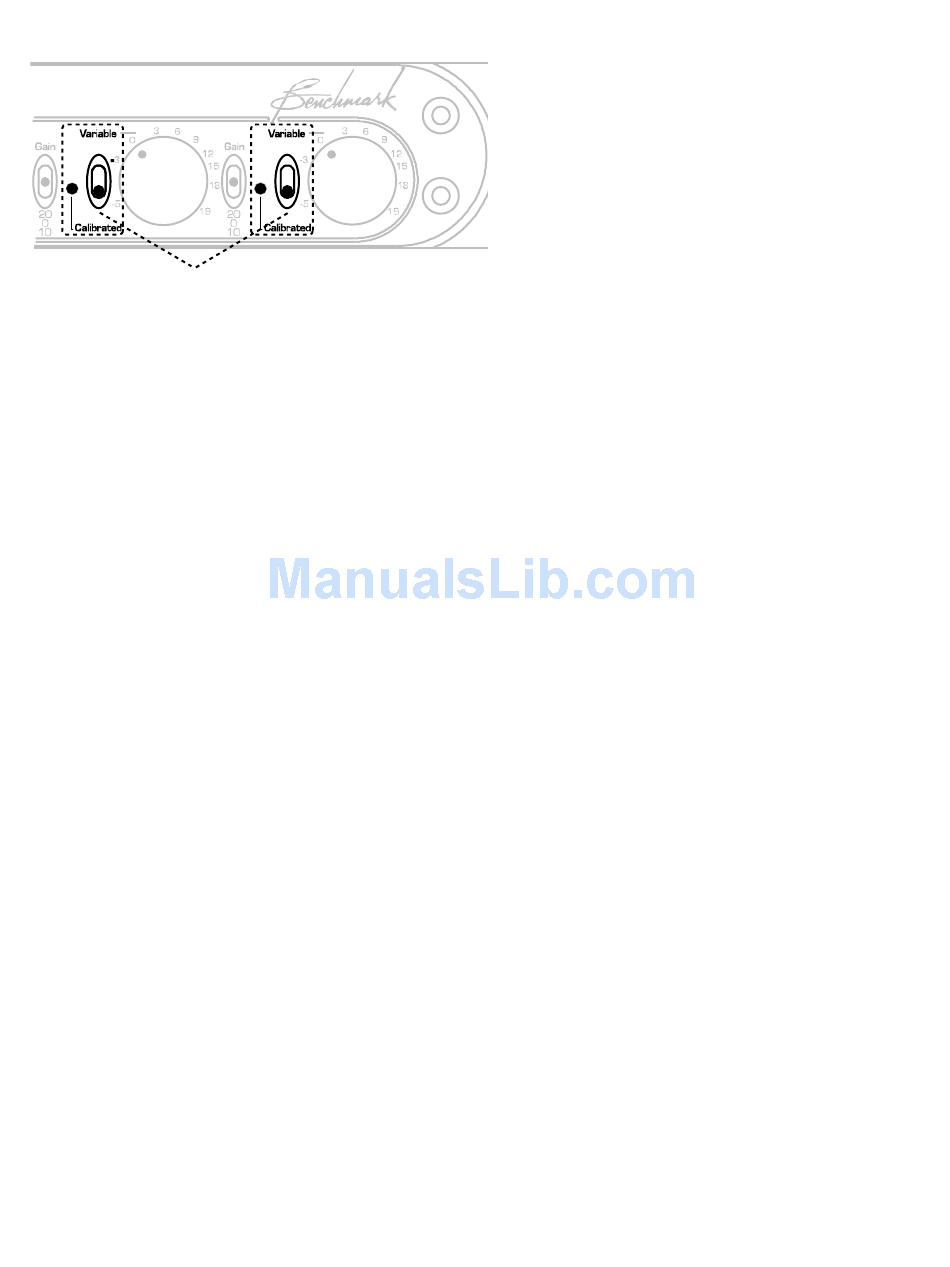

Down Position

Rack Mounting

To enable rack mounting, the front panel of
the ADC1 has rack-mount holes that are
machined to conform to standard rack mount
dimensions. The width of the ADC1 panel is
exactly ½ that of a standard 19" panel. The
ADC1 is one rack unit high. Either ear of the
ADC1 can be mounted directly to a standard
19" rack. A machined junction block connects
the other ear to a ½ width blank panel,
another ADC1, a DAC1, or other ½ width
Benchmark products. When joined, the two
units form a single rigid 19" panel that can be
installed in any standard 19" rack.
ADC1 Instruction Manual Page 15
