ClearOne VIEW Pro D210 Quick Start Manual

High-definition, ip, compressed audio/video decoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VIEW
Pro D210
®
High-definition, IP , Compressed Audio/Video Decoder
Quick-Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIEW Pro D210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne VIEW Pro D210

Summary of Contents for ClearOne VIEW Pro D210

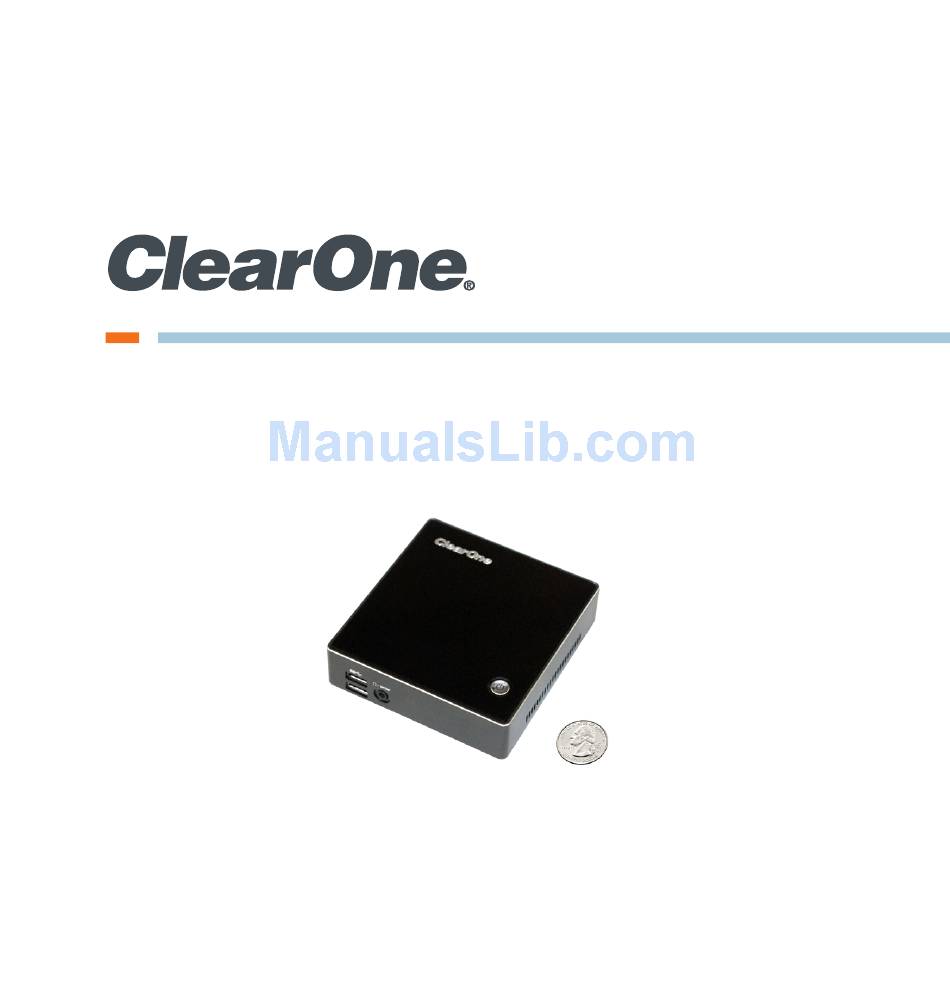

  • Page 1 VIEW Pro D210 ® High-definition, IP , Compressed Audio/Video Decoder Quick-Start Guide...

  • Page 2: Table Of Contents

    Table of Contents THE VIEW PRO ENCODER AND DECODER ........ 1 ENCODER AND DECODERS IN A NETWORK ......2 PARTS INCLUDED ................. 3 QUICK-START OVERVIEW ............4 MOUNTING THE D210 DECODER ..........4 CONNECTING THE DECODER ............. 7 CONFIGURING THE DECODER............ 9 PART NUMBERS ................

  • Page 3: The View Pro Encoder And Decoder

    StreamNet networks. The VIEW Pro D210 decoder takes the combined video and audio stream, usually provided from a VIEW Pro E120 encoder, decodes it, and then sends the video and audio to a display such as a HDTV or projector and sound system.

  • Page 4: Encoder And Decoders In A Network

    VIEW PRO ENCODER & DECODER ENCODER AND DECODERS IN A NETWORK The VIEW Pro encoder receives input from an AV source device such as BluRay Player, DVD Player, etc. and distributes it over a StreamNet TCP/ IP network using a standard 100 Mbit or Gbit Ethernet connection. The D210 or D110 decoders, as counterparts, are installed at the locations of the target video displays.

  • Page 5: Parts Included

    VIEW PRO D210 QUICK-START GUIDE PARTS INCLUDED The following items are included with the VIEW Pro D210 Decoder: The following items are included with the VIEW Pro D210 Decoder: • D210 Decoder Unit • Power Supply with cord • Mounting Plate (VESA, holes spaced 100 mm X 100 mm, 3.9 inches X 3.9 inches)

  • Page 6: Quick-Start Overview

    VIEW PRO ENCODER & DECODER QUICK-START OVERVIEW Perform these steps in the following order to use the VIEW Pro D210 Decoder in your StreamNet network: Mounting the D210 Decoder.(Optional) Connecting the D210 Decoder Configuring the D210 Decoder. MOUNTING THE D210 DECODER The D210 includes a Mounting Plate and screws.
  • Page 7 VIEW PRO D210 QUICK-START GUIDE NOTE: Although the Mounting Plate does attach the decoder to the back of a display, it also allows the decoder to be attached to a separate VESA mount. Insert the 2 screws with the extended heads into the back of the D210 and tighten.
  • Page 8 VIEW PRO ENCODER & DECODER...

  • Page 9: Connecting The Decoder

    VIEW PRO D210 QUICK-START GUIDE CONNECTING THE DECODER Connect the D210 Decoder to: • DC power provided by the power supply • Ethernet LAN where the encoders and the computer running the StreamNet Dealer Setup program are connected • HDMI Audio/Video output to the HDMI input on the display or...
  • Page 10 (use one at a time ) USB 3.0 Ports Any of the VIEW Pro D210 Decoder USB 3.0 ports can be used by the USB to DB9 Serial Adapter allowing serial communication to/from the unit. Additionally, the Local Playback license and the USB Human...

  • Page 11: Configuring The Decoder

    VIEW PRO D210 QUICK-START GUIDE CONFIGURING THE DECODER The VIEW Pro D210 Decoder is configured for use in the commercial or residential network using the StreamNet Dealer Setup program. StreamNet Dealer Setup is a PC-based program that allows you to configure devices so that they can communicate across a StreamNet network.
  • Page 12 VIEW PRO ENCODER & DECODER Create a New or Open an Existing Project Add the VIEW Pro D210 to the Project...
  • Page 13 VIEW PRO D210 QUICK-START GUIDE Match the Correct Device from the Right-Hand Column...
  • Page 14 VIEW PRO ENCODER & DECODER Configuring: Info Tab for D210...
  • Page 15 VIEW PRO D210 QUICK-START GUIDE Configuring: Info Tab Advanced Options for D210...
  • Page 16 VIEW PRO ENCODER & DECODER Configuring: Display Outputs Tab for D210...
  • Page 17 VIEW PRO D210 QUICK-START GUIDE Configuring: Display Controls Tab for D210...
  • Page 18 Send Configuration to Multiple Devices icon. This will send the configuration setting to the device(s). Wait for the device(s) to restart. These steps in these processes are detailed in the DigiLinX Dealer Setup manual available for viewing or download at www.ClearOne.com.

  • Page 19: Part Numbers

    VIEW PRO D210 QUICK-START GUIDE PART NUMBERS 910-0003-001 VIEW Pro Decoder D210 910-0001-001 VIEW Pro Decoder D110 910-0000-001 VIEW Pro Encoder E120 910-0001-002 StreamNet Legacy Audio per unit license for VIEW Pro Decoder 910-0000-002 StreamNet Legacy Audio per unit license for VIEW Pro...

  • Page 20: Contact Information

    Tel: +44 (0) 1189.036.053 Tel: +852.3590.4526 e-mail: global@clearone.com e-mail: global@clearone.com LATAM: Middle East: Tel: 801.974.3621 Tel: +852.3590.4526 e-mail: global@clearone.com e-mail: global@clearone.com © 2015 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. QSG-0019-001 Revision 1.0 March, 2015...
