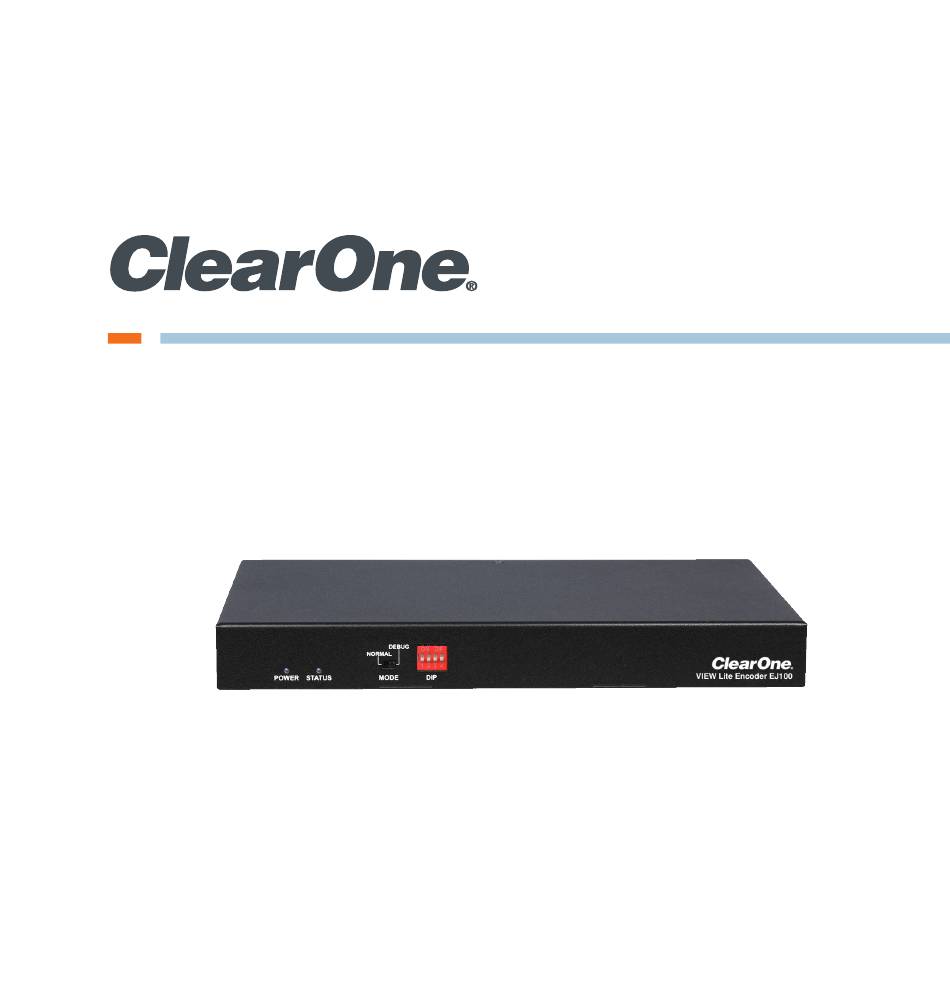

- Page 1 VIEW Lite EJ100 Digital AV Encoder ® JPEG2000 Based Audio/Video Encoder Quick-Start Guide...
-
Page 2: Table Of Contents
Table of Contents PRODUCT OVERVIEW ..............1 VIEW IP S ........1 ® oVEr trEAmIng yStEm ................1 EVIcE PPLIcAtIon ENCODERS AND DECODERS IN A NETWORK ......1 PARTS INCLUDED ................. 3 MOUNTING THE EJ100 ENCODER ..........3 CONNECTING THE EJ100 ENCODER .......... 4 CONFIGURING THE ENCODER ........... -
Page 3: Product Overview
Installation should be done by a qualified Dealer Service representative. ENCODERS AND DECODERS IN A NETWORK The VIEW Lite EJ100 encoder receives input from an AV source device such as BluRay Player, DVD Player, etc. and distributes it over a dedicated TCP/IP network using a standard Gigabit Ethernet connection. - Page 4 VIEW LITE EJ100 ENCODER...
-
Page 5: Parts Included
QUICK-START GUIDE PARTS INCLUDED The following items are included with the VIEW Lite EJ100 Encoder: • 1X VIEW Lite EJ100 Encoder Unit • 1X 12V DC Power Adapter • 1X Detachable Plug • 1X Phoenix Euroblock (Male, 3.5 mm, 3 pins) • 1X IR Emitter (3.9 ft / 1.2 m) -
Page 6: Connecting The Ej100 Encoder
VIEW LITE EJ100 ENCODER CONNECTING THE EJ100 ENCODER VIEW Lite EJ100 Front Panel Power LED Status LED Mode Indicator Indicator Switch Switch Power: Solid red indicates the unit is powered on. » » Status: • Off (no light): Unit powered off, or in the boot process. - Page 7 QUICK-START GUIDE VIEW Lite EJ100 Rear Panel RS232 Serial HDMI Audio/Video Command Loopback Output Network/PoE 12V DC Input Reset Button 3.5mm 3.5mm USB 2.0 HDMI Audio/ 3.5mm 3.5mm Port Audio Input Audio Output Port Video Input IR Input IR Output 12V DC Input: Power provided by the power supply.
-
Page 8: Configuring The Encoder
Ethernet network. These processes are detailed in the VIEW Lite CONSOLE User Manual available for viewing or download at www.ClearOne.com. COMPLIANCE Details on compliance can be found on the ClearOne website under “Resource Library”. -
Page 9: Part Numbers
Tel: 801.974.3760 TollFree: 800.945.7730 e-mail: techsales@clearone.com Fax: 801.303.5711 International: TechSupport Tel: +1.801.975.7200 Tel: 801.974.3760 e-mail: global@clearone.com e-mail: tech.support@clearone.com © 2018 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. QSG-0058-001 Revision 1.0 JULY 2018...
