ClearOne VIEW Pro D310 Quick Start Manual

High-definition, ip, compressed audio/video decoder

Advertisement

Quick Links

VIEW
Pro D310
®
High-definition, IP , Compressed Audio/Video Decoder
Quick-Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the VIEW Pro D310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ClearOne VIEW Pro D310

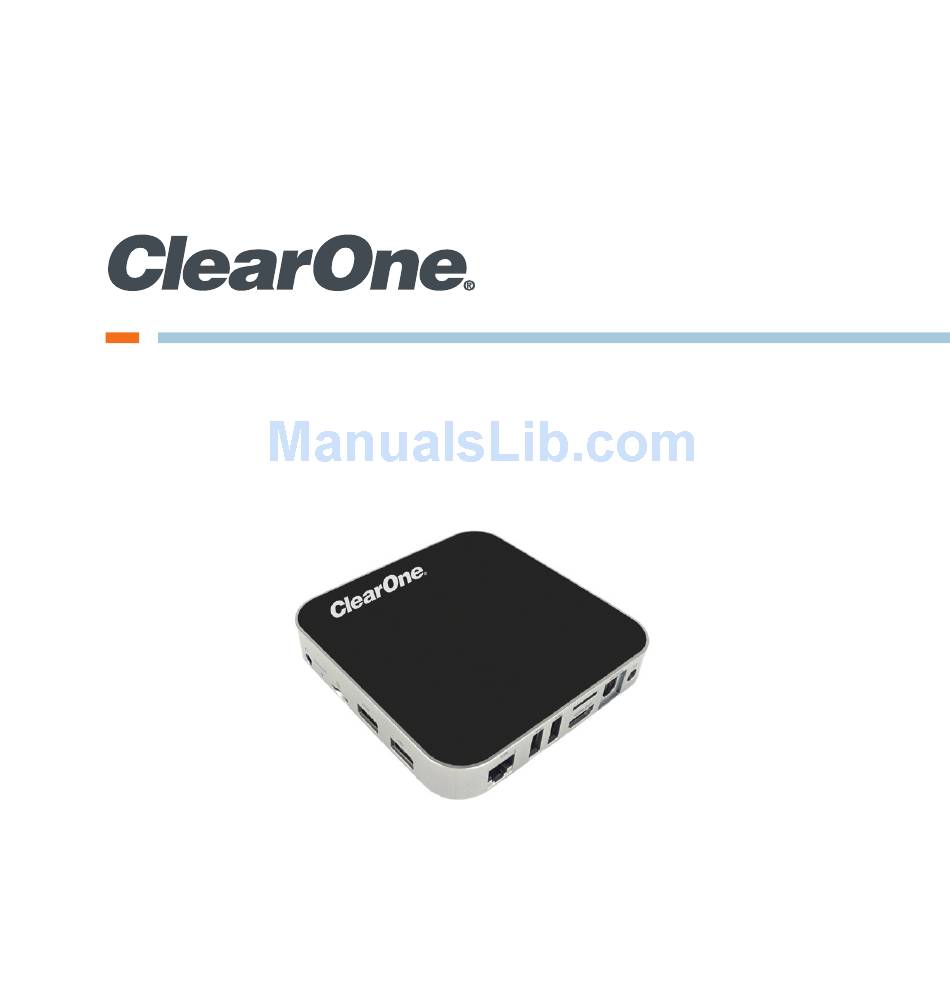

  • Page 1 VIEW Pro D310 ® High-definition, IP , Compressed Audio/Video Decoder Quick-Start Guide...
  • Page 2: Table Of Contents

    Table of Contents THE VIEW PRO ENCODER AND DECODER ........ 1 QUICK-START OVERVIEW ............1 ENCODER AND DECODERS IN A NETWORK ......2 PARTS INCLUDED ................. 3 MOUNTING THE D310 DECODER ..........4 CONNECTING THE DECODER ............. 6 CONFIGURING THE DECODER............ 7 PART NUMBERS ................
  • Page 3: The View Pro Encoder And Decoder

    StreamNet networks. The VIEW Pro D310 decoder takes the combined video and audio stream, usually provided from a VIEW Pro encoder, decodes it, and then sends the video and audio to a display such as a HDTV or projector and sound system.
  • Page 4: Encoder And Decoders In A Network

    VIEW PRO ENCODER & DECODER ENCODER AND DECODERS IN A NETWORK The VIEW Pro encoder receives input from an AV source device such as BluRay Player, DVD Player, etc. and distributes it over a StreamNet TCP/ IP network using a standard 100 Mbit or Gbit Ethernet connection. The encoder provides the IP data for VIEW Pro decoders to deliver to the displays, therefore decoders are installed at the locations of the target video displays.
  • Page 5: Parts Included

    VIEW PRO D310 QUICK-START GUIDE PARTS INCLUDED The following items are included with the VIEW Pro D310 Decoder: • D310 Decoder Unit • Power Supply • Mounting Plate (VESA, holes spaced 100 mm X 100 mm, 3.9 inches X 3.9 inches) •...
  • Page 6: Mounting The D310 Decoder

    VIEW PRO ENCODER & DECODER MOUNTING THE D310 DECODER The D310 includes a Mounting Plate and screws. The Mounting Plate can be used on a wall or for applications where a decoder must be located on a VESA mount, such as on the back of a monitor. Attach the Mounting Plate to a display with the 4 phillips-head screws.
  • Page 7 VIEW PRO D310 QUICK-START GUIDE Figure 2 Align the D310 with the Mounting Plate so that indicator arrows on the plate and the decoder are pointed upward. Insert the heads of the extended screws on the D310 into the keyhole slots of the Mounting Plate and slide down to secure.
  • Page 8: Connecting The Decoder

    VIEW PRO ENCODER & DECODER CONNECTING THE DECODER Connect the D310 Decoder to: • Ethernet LAN where the encoders and the computer running the VIEW CONSOLE program are connected • HDMI Audio/Video output to the HDMI input on the display or projector • USB 3.0 ports can be used by the USB to DB9 Serial Adapter allowing serial communication to/from the unit • A provided DC power supply...
  • Page 9: Configuring The Decoder

    VIEW PRO D310 QUICK-START GUIDE CONFIGURING THE DECODER The VIEW Pro D310 Decoder is configured for use in the network with the VIEW CONSOLE program. VIEW CONSOLE is a PC-based program that allows you to configure devices so that they can communicate across a StreamNet network.
  • Page 10 VIEW PRO ENCODER & DECODER Create a New or Open an Existing Project Add the VIEW Pro D310 to the Project...
  • Page 11 VIEW PRO D310 QUICK-START GUIDE Match the Correct Device from the Right-Hand Column...
  • Page 12 VIEW PRO ENCODER & DECODER Configuring: Info Tab for D310...
  • Page 13 VIEW PRO D310 QUICK-START GUIDE Configuring: Info Tab Advanced Options for D310...
  • Page 14 VIEW PRO ENCODER & DECODER Configuring: Display Outputs Tab for D310...
  • Page 15 VIEW PRO D310 QUICK-START GUIDE Configuring: Display Controls Tab for D310...
  • Page 16 Send Configuration to Multiple Devices icon. This will send the configuration setting to the device(s). Wait for the device(s) to restart. These steps in these processes are detailed in the VIEW CONSOLE manual available for viewing or download at www.ClearOne.com.
  • Page 17: Part Numbers

    General Tech Support: +1.800.283.5936 e-mail: global@clearone.com e-mail: global@clearone.com Middle East: Other Regions: Tel: +91.9930782195 Tel: +1.801.975.7200 e-mail: global@clearone.com e-mail: global@clearone.com © 2016 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. QSG-0030-001 Revision 1.1 AUGUST 2016...
