Summary of Contents for ClearOne VIEW Lite DJ100

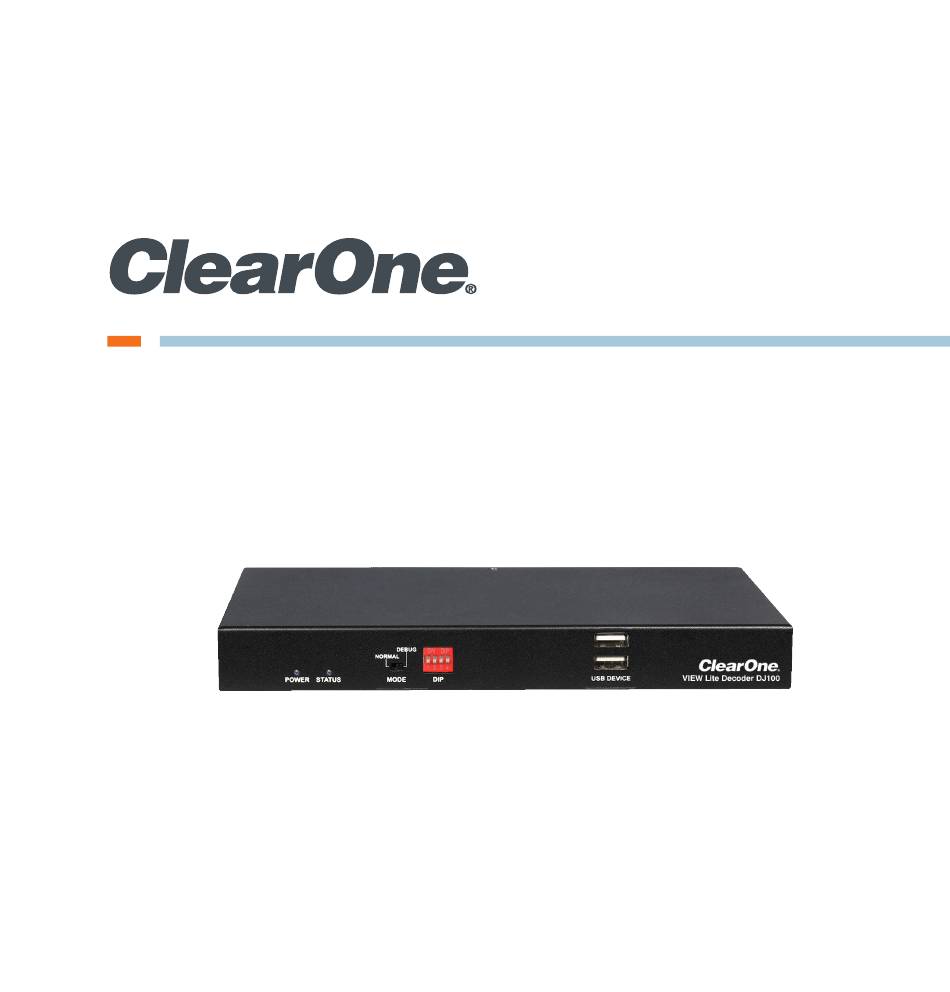

- Page 1 VIEW Lite DJ100 Digital AV Decoder ® JPEG2000 Based Audio/Video Decoder Quick-Start Guide...
-
Page 2: Table Of Contents
Table of Contents PRODUCT OVERVIEW ..............1 VIEW IP S ........1 ® oVEr trEAmIng yStEm ................1 EVIcE PPLIcAtIon ENCODERS AND DECODERS IN A NETWORK ......1 PARTS INCLUDED ................. 3 MOUNTING THE DJ100 DECODER ..........3 CONNECTING THE DJ100 DECODER ......... 4 CONFIGURING THE DECODER............ -
Page 3: Product Overview
QUICK-START GUIDE PRODUCT OVERVIEW VIEW IP S ® oVEr trEAmIng yStEm The VIEW Lite platform is designed to stream high-quality audio and video over a TCP/IP network (AVoIP™). An encoder, such as a VIEW Lite EJ100, takes digital video and audio from a source device, such as a receiver, cable box or DVR, and makes the source available anywhere on the dedicated Ethernet LAN network. - Page 4 VIEW LITE DJ100 DECODER...
-
Page 5: Parts Included
Verify that all items have been received. If there is any issue, please contact your ClearOne representative. MOUNTING THE DJ100 DECODER The VIEW Lite DJ100 Decoder comes with mounting ears that facilitate mounting on a table or wall. Mounting ears shown separately... -
Page 6: Connecting The Dj100 Decoder
VIEW LITE DJ100 DECODER CONNECTING THE DJ100 DECODER VIEW Lite DJ100 Front Panel Power LED Status LED Mode 2 x USB 2.0 Ports Indicator Indicator Switch Switch » Power: Solid red indicates the unit is powered on. Status: » • Off (no light): Unit powered off, or in the boot process. - Page 7 QUICK-START GUIDE VIEW Lite DJ100 Rear Panel 3.5mm RS232 Serial HDMI Audio/ 3.5mm 3.5mm Network / 12V DC Input Reset Button Audio Output Command Video Output IR Input IR Output PoE Port Port 12V DC Input: Power provided by the power supply.
-
Page 8: Configuring The Decoder
Ethernet network. These processes are detailed in the VIEW Lite CONSOLE User Manual available for viewing or download at www.ClearOne.com. COMPLIANCE Details on compliance can be found on the ClearOne website under “Resource Library”. PART NUMBERS 910-0100-002... - Page 9 Tel: 801.974.3760 TollFree: 800.945.7730 e-mail: techsales@clearone.com Fax: 801.303.5711 International: TechSupport Tel: +1.801.975.7200 Tel: 801.974.3760 e-mail: global@clearone.com e-mail: tech.support@clearone.com © 2018 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. QSG-0059-001 Revision 1.0 JULY 2018...
