Introduction
exacqVision Edge is a variation of the standard exacqVision Server application that operates on a compatible Axis camera. It can
record video from the local camera directly to the SD memory card in the camera or remote drives. The exacqVision Client
application can connect to any combination of embedded and standard servers simultaneously; however, the exacqVision Web
Service cannot be supported on an embedded camera because of processing requirements.
Requirements
A one-channel license from Exacq Technologies must be obtained for each embedded camera.
exacqVision Edge is compatible with Axis ACAP cameras:
The camera must be running version 5.2 firmware or later (5.4 or later if remote storage drives are used).
An SDHC class 10 or better SD memory card no larger than 32GB, purchased separately, is required for each camera.
NOTE: Up to 2GB is reserved for exacqVision Edge operations and cannot be used for exacqVision Edge data storage.

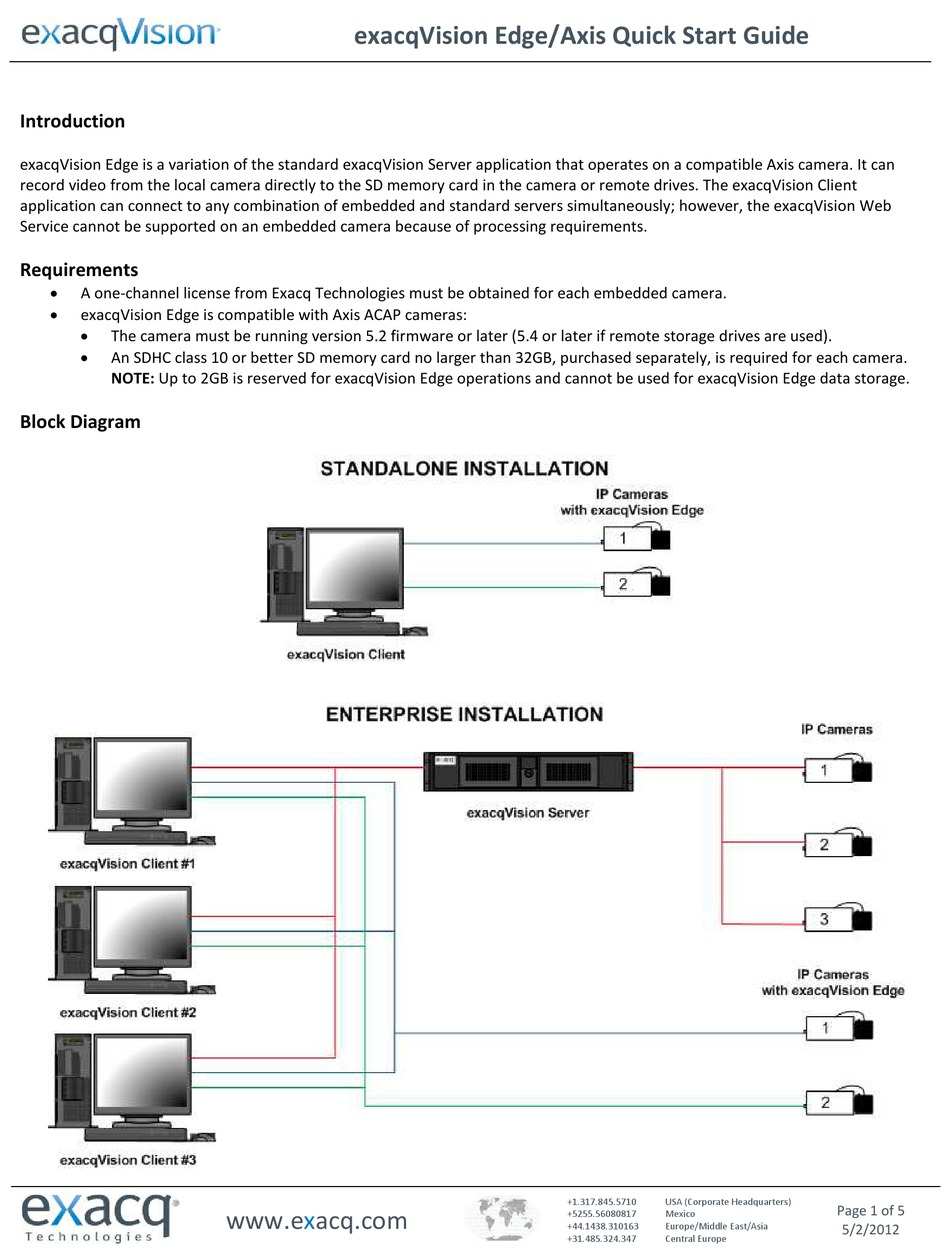

Block Diagram

exacqVision Edge/Axis Quick Start Guide
www.exacq.com
+1.317.845.5710
USA (Corporate Headquarters)
+5255.56080817
Mexico
+44.1438.310163
Europe/Middle East/Asia
+31.485.324.347
Central Europe
Page 1 of 5
5/2/2012

Advertisement

loading

Related Manuals for Axis exacqVision Edge

Summary of Contents for Axis exacqVision Edge

  • Page 1: Block Diagram

    Introduction exacqVision Edge is a variation of the standard exacqVision Server application that operates on a compatible Axis camera. It can record video from the local camera directly to the SD memory card in the camera or remote drives. The exacqVision Client application can connect to any combination of embedded and standard servers simultaneously;...

  • Page 2: Installation And Configuration

    6. Download the latest exacqVision Edge server application from https://www.exacq.com/support/downloads.html. NOTE: exacqVision Edge server software is available for both ARTPEC 3 and ARTPEC 4 processors. (ARTPEC 3 processors can host one application at a time, whereas ARTPEC 4 processors can host multiple applications simultaneously.) The download page contains a list of cameras supported by each exacqVision Edge ARTPEC version.
  • Page 3 Select Upload Package. It may take up to five minutes for the package to load and install. After successfully installing exacqVision Edge, exacqVision Server is displayed in the Installed Applications list. d. The License Installed column lists “no” because exacqVision software is licensed separately.

  • Page 4: Using Network Storage

    Edge can also save data to network attached storage (NAS) provided by the camera’s operating system. (An SD card must be installed even if you use NAS because critical exacqVision Edge processes run on the card.) To use NAS, make sure that: ...

  • Page 5: Troubleshooting

    Troubleshooting If you encounter a write error, complete the following steps: 1. Stop the exacqVision Edge server on the camera’s Applications page. 2. Unmount the SD card on the Storage Setup page. 3. Check the SD card. If necessary, repair and format the card.
