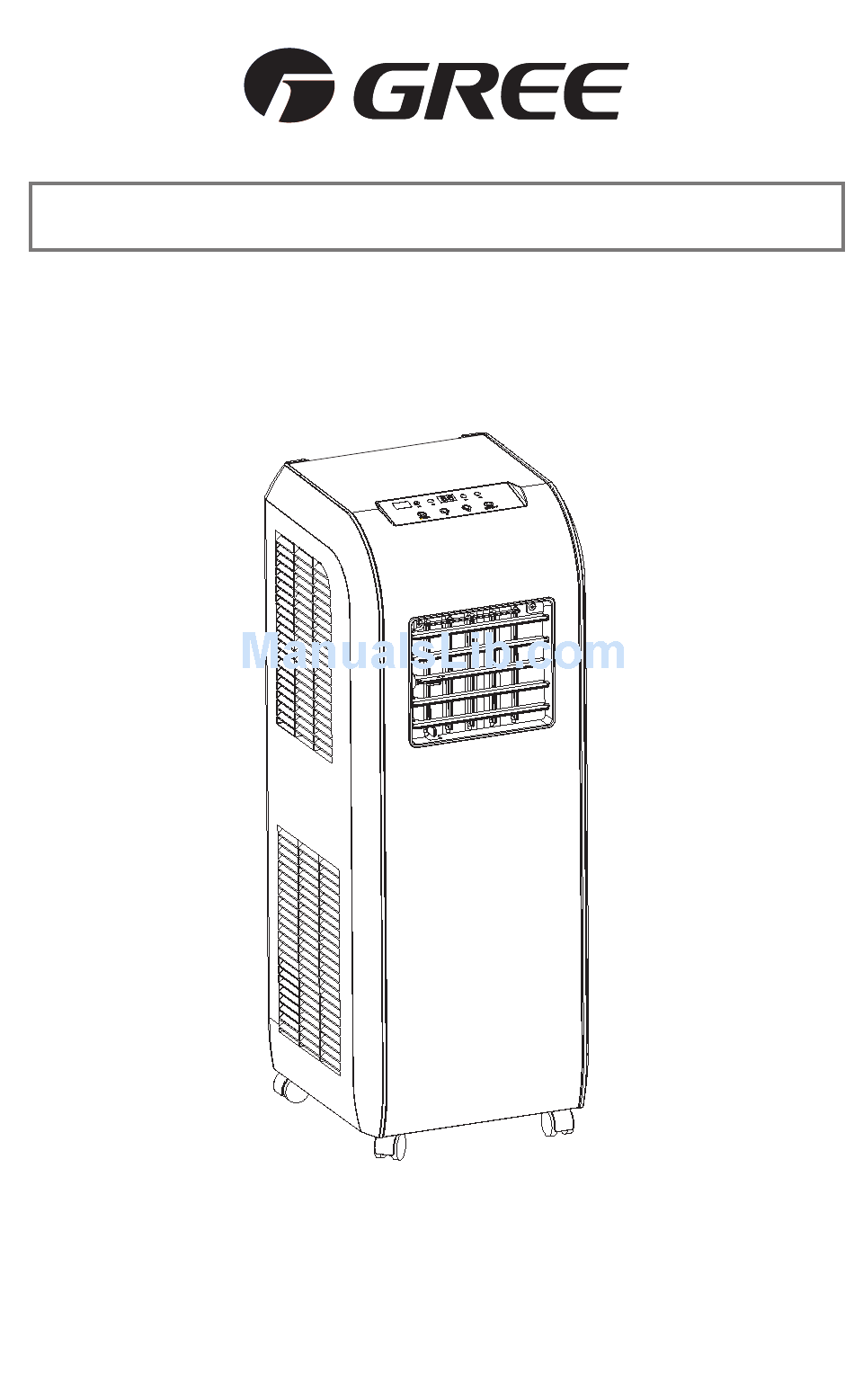

- Page 1 Before using this dehumidifier, please read the following instructions carefully and keep this manual along with your proof of purchase in a safe place for future reference. OWNER’S MANUAL MOBILE AIR CONDITIONER MODEL : 13-04661 WWW.GREE.CA St-Mathieu-de-Beloeil (Québec) Canada 1-866-680-GREE ©...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SUMMARY..................3,4 WORKING PRINCIPLE..............4 STRUCTURE ..................5 OPERATING METHODS ..............6 Functions and operation methods of control panel ......7 Environmental temperature ..............8 Operation of wireless remote control..........9 Names and functions of wireless remote control ......10 Guide for operation- General operation ..........10 Guide for operation- Optional operation ..........11 Changing batteries and notices ............11 DRAINAGE METHOD ..............12,13... -
Page 3: Summary
SUMMARY Mobile Air Conditioner is a type of small multifunctional and movable air conditioner that contains func tions of COOL DRY and separate ventilation and it can be moved freely according to different location and occasion.it is suitable for office and houses especially those with many rooms. This product also contains the ad- vantages of compact configuration, excellent process, elegant appearance, convenient moving, low cost and low noise. - Page 4 SUMMARY Window or wall When only used as dehumidifier, remember to take off heat discharge pipe from unit and install it onto unit when the unit is used as air conditioner. Since partial indoor air will Discharge pipe be heated as heat air and discharged to out- side by discharge pipe after cycling then Heated air outdoor air will enter to maintain balance...
-
Page 5: Structure
STRUCTURE Front Control panel Guide louver Swing louver Wheel Rear Remote Power cord Filters Upper air inlet grille Air outlet vent Lower air inlet grille... - Page 6 CONTROL PADS ON THE DEHUMIDIFIER The temp. range of this unit is 16°C Apply range for -35°C for cooling and ranges from COOL and DRY 16°C-35°C for dehumidifying Place the unit on horizontal floor Disposal when using and ma- intain a distan- requirement ce for above 50cm from walls,surfa- ce of flammable objects or other...
-
Page 7: Functions And Operation Methods Of Control Panel
Functions and operation methods of control panel Panel control When pressing key is valid,buzzer makes a sound,indicated light indicates relevant state,system will last for 2 seconds. l. ON/OFF Turn on or turn off the unit (press once to turn on unit and repress to turn off). 2. -
Page 8: Environmental Temperature
Environmental temperature Usage environmental temperature of this unit is 16 °C ~ 35°C. Cool 1 Install heat discharge pipe well, select a location near door and window, connect the heat discharge pipe to outside and note to leave an air return vent such as a window or door to guarantee the indoor air return normal. -
Page 9: Operation Of Wireless Remote Control
Operation of wireless remote control Names and functions of wireless remote control Note: Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remo- te control directly under the sunlight or any place where is very hot. - Page 10 Operation of wireless remote control Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. TIMER TIMER button By pressing this key under switch-off...
-
Page 11: Guide For Operation- General Operation
Operation of wireless remote control Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corres- ponding operation directly. -
Page 12: Drainage Method
DRAINAGE METHOD When COOL or DRY is running,condensate will drain to water tank.When water tank is filled buz- zer will sound 8 timers for warn, water tank green indicated light on panel on with H8 displayed on display window and whole unit stop running.Plug out plug on drainage hose and take off the hose fro- m fixing clamp, then drain out water in tank.After that,plug the pipe plug onto pipe to prevent leaka- ge of condensate and fix drainage pipe fixing clamp as shown in following figure.The unit will resu- me running... - Page 13 DRAINAGE METHOD Drain Hose Clip A. Drain port B. Attach drain hose clip with screw provided. 5. Snap the free end of the drain hose into the drain hose clip. Drain Hose Drain Hose A. Drain plug Drain hose clip B.
-
Page 14: Accessories And Installation Of Heat Exhaust Hose
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE Length range of exhaust pipe should be 500mm-1500mm. It is recommended to use it with shortest length. When installing, exhaust pipe should be as flat as possible. Don't prolong the pipe or connect it with other exhaust pipe Correct installation is as shown in figure (When installing it on wall, height of hall should be about 40cm-130cm from... - Page 15 ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE If the pipe are to be bent, please install it by considering following dimension. 55cm 55cm Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.)
-
Page 16: Maintenance
MAINTENANCE Mobile AC There are wheels at bottom of mobile air conditioner that enable the unit moves among rooms conveniently according to need. Warning Plug off power plug from socket and cut off power before any mainte- nance to prevent creepage occurs. Clean air filter If too much duct deposed on filter, performance of air conditioner will reduce, thus it is better to clean filter at least once 2 weeks. - Page 17 MAINTENANCE If malfunction occur, please check the following before maintenance: Troubles Possible Causes Solutions The air conditioner does- The power supply is not 1. Insert the power plug n't start. connected well. The power tightly. plug is not inserted tightly. 2.
-
Page 18: Safe Note And Notice
SAFE NOTE AND NOTICE Don't place the unit in narrow location. Guarantee better ventilation for Location unit to prevent malfunction occurs. Don't place the unit in where there is direct sunburn to prevent fade and re- duce of effect. The unit should be at least 50cm away from surface of flammable thing. Don't soak the unit or operate it in place where is easy to get wet to prevent creepage. -
Page 19: After Sales Service
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. AFTER SALES SERVICE If any quality problems or any other problems exist, please contact with the local dealer. WWW.GREE.CA St-Mathieu-de-Beloeil (Québec) Canada 1-866-680-GREE... - Page 20 WARRANTY LIMITED WARRANTY This portable air conditioner is covered by a warranty against defects in materials and workmanship, if used for the applications specified in this owner’s manual, for a period of (2) years from the date of original purchase in Canada. Note : The internal compressor is covered by a 5-year limited warranty.
