Summary of Contents for Edge Street Series ED7600-E2

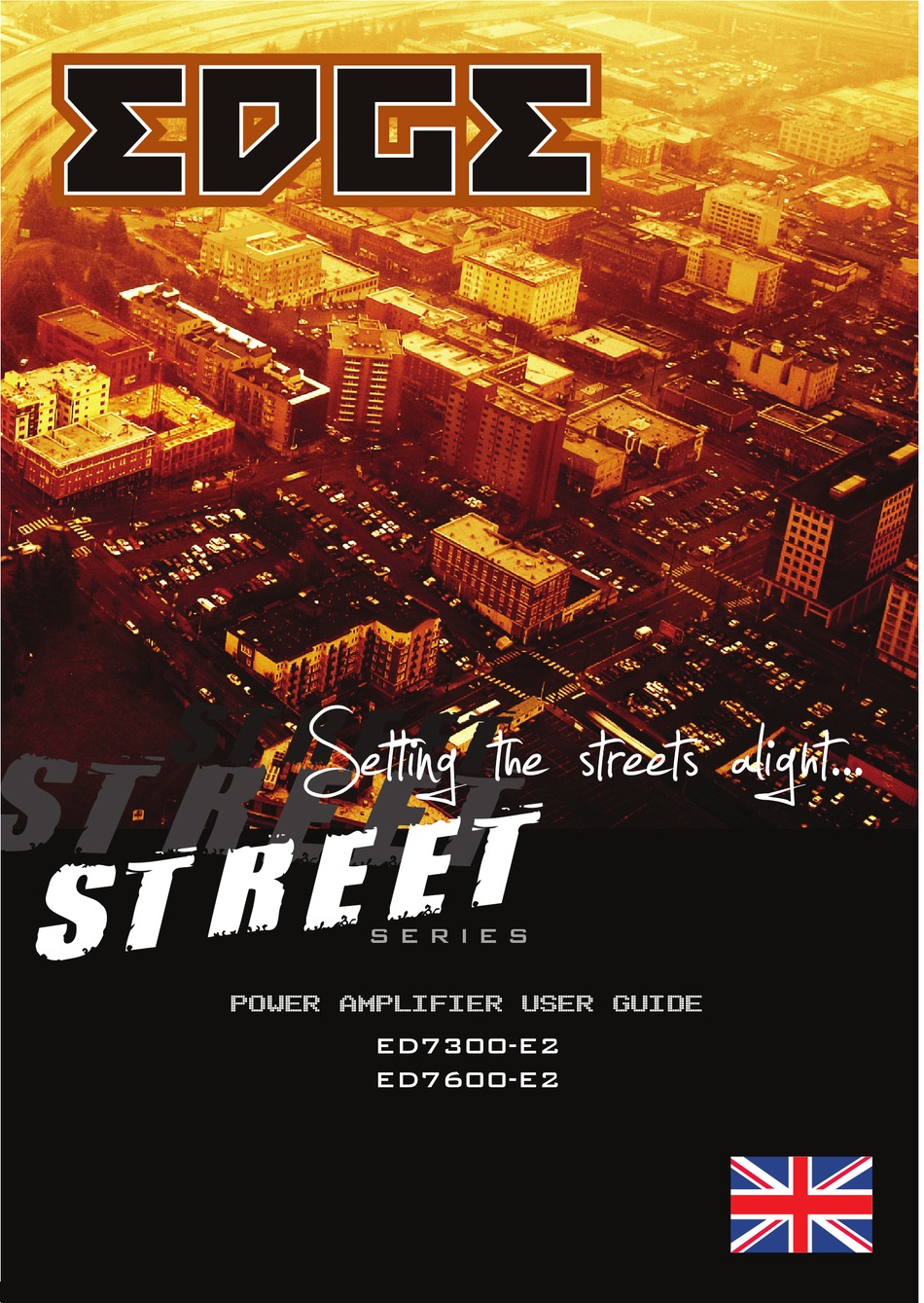

- Page 1 s e r i e s POWER AMPLIFIER USER GUIDE ED7300-E2 ED7600-E2...
-
Page 2: Owners Manual
Thank you for buying EDGE, we hope you enjoy listening to your product as much as we enjoyed creating it. -
Page 3: Limited Warranty
For the avoidance of doubt, EDGE does not limit its liability for death or personal injury to the extent only that it arises as a result of negligence of EDGE, its affiliates, directors, employees or other... -
Page 4: Mounting Guidelines
MOUNTING GUIDELINES Your EDGE amplifier is designed with a swift installation routine in mind. Please mount the amplifier in a dry location on a solid surface. NEVER mount the amplifier upside down as this will cause the amplifier to over heat and will eventually damage the amplifier. -
Page 5: Power Cable
POWER CABLE • At least 8 gauge cable should be used for the power connection to the amplifier. • The power cable should be taken directly from the battery. Rubber grommets should be used when passing through any bulkheads to prevent the cable from becoming chaffed or cut. •... - Page 6 ED7300 TERMINALS AND CONNECTIONS 1. High level input For connection to the speaker output of your source (head unit). This is to be used if the source (head unit) does not have a low level output. Note: Connect only to high level input or low level input. 2.
- Page 7 ED7300 STEREO WIRING CONFIGURATION 2 OHM MINIMUM 2 OHM MINIMUM BRIDGED WIRING CONFIGURATION 4 OHM MINIMUM 4 OHM MINIMUM...
- Page 8 ED7600 TERMINALS AND CONNECTIONS 10 12 1. Rear crossover mode select switch This switch is used to select the crossover mode of the amplifier. FLAT is full range output, HPF is used to limit the amount of low frequency information passed to the speakers and is fixed at 150Hz. LPF is used to limit the amount of high frequency information passed to the speakers.
- Page 9 ED7600 4 CHANNEL WIRING CONFIGURATION 2 OHM MINIMUM 2 OHM MINIMUM 2 OHM MINIMUM 2 OHM MINIMUM 3 CHANNEL WIRING CONFIGURATION 2 OHM MINIMUM 2 OHM MINIMUM 4 OHM MINIMUM 4 OHM MINIMUM...
-
Page 10: Setup Guide
Note: By using the crossovers correctly you will not only lengthen the life of your speakers but you will also get better performance from them. To optimise your setup seek the advise of a professional installation engineer or visit your local EDGE audio dealer. -
Page 11: Specifications
SPECIFICATIONS ED7300 ED7600 Type 2 Channel 4 Channel Height 2.3” (58mm) 2.3” (58mm) Width 7.9” (200mm) 13” (330mm) Depth 8.8” (224mm) 8.8” (224mm) RMS@ 4 ohm stereo 2 x 50 watts 4 x 50 watts RMS@ 2 ohm stereo 2 x 75 watts 4 x 75 watts RMS@ 4 ohm bridged 1 x 150 watts... - Page 12 www.edgecaraudio.com www.facebook.com/edgeaudio...
