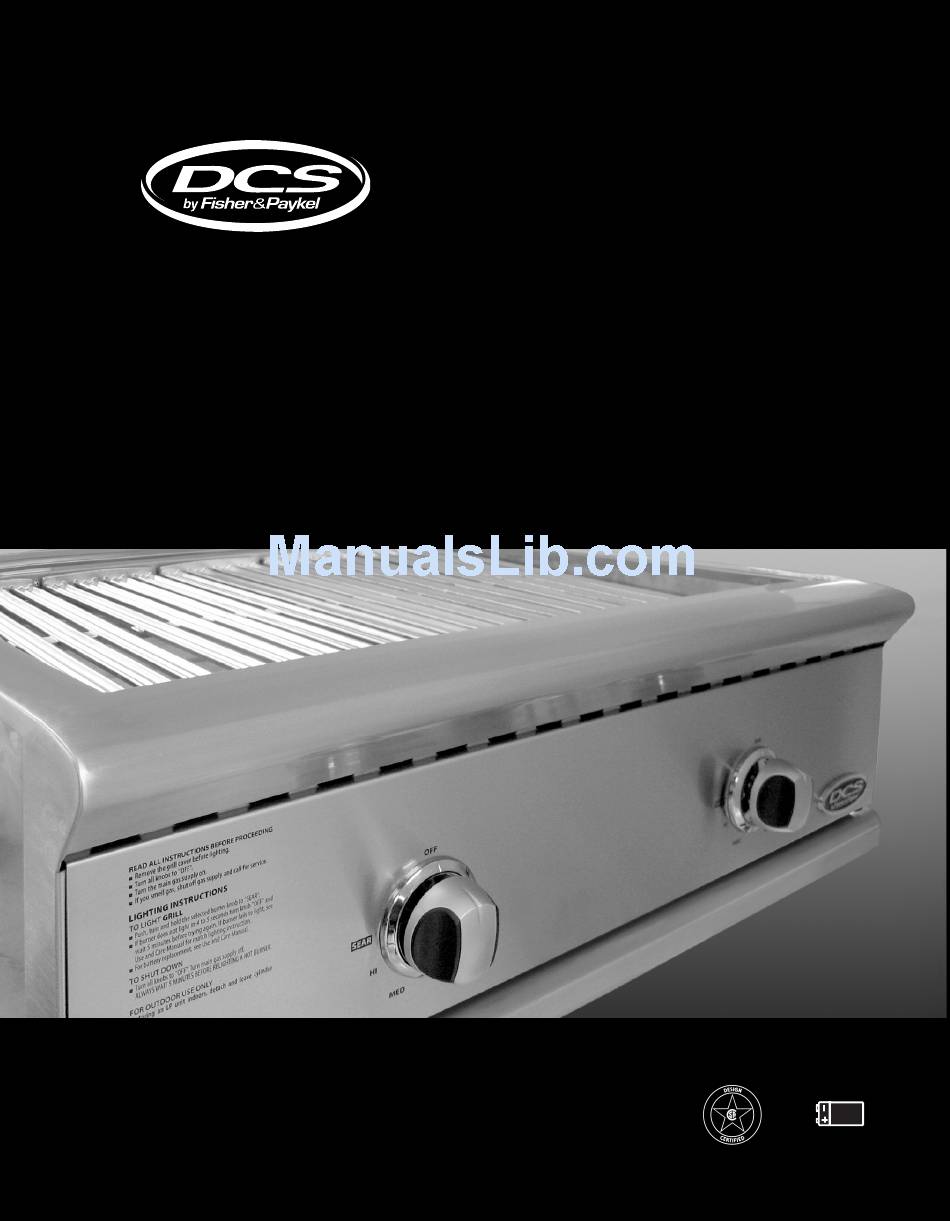

THE PROFESSIONAL
LIBERTY COLLECTION
Use and Care and Installation Guide
MODELS:
BFG-30G
BFG-30BGD
BFG-30BS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BFG-30G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DCS BFG-30G

Summary of Contents for DCS BFG-30G

  • Page 1 THE PROFESSIONAL LIBERTY COLLECTION Use and Care and Installation Guide MODELS: BFG-30G BFG-30BGD BFG-30BS...

  • Page 2: A Message To Our Customers

    NOTE: Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. DCS by Fisher & Paykel is not responsible for shipping damage. DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.

  • Page 3: Table Of Contents

    CONTENTS SAFETY PRACTICES & PRECAUTIONS OUTDOOR APPLIANCE MODELS BEFORE USING YOUR APPLIANCE INSTALLATION Locating Outdoor Appliance/Built-in Clearances 8-9 Built-in Construction Details Cart Assembly Instructions 11-15 Gas Hook-up 16-19 Leak Testing 20-21 Burner Adjustment Radiant Assembly Sink Side Shelf (optional) 25-26 Installer Checklist USING THE GRILL Lighting Instructions...

  • Page 4: Safety Practices & Precautions

    SAFETY PRACTICES & PRECAUTIONS IMPORTANT SAFETY NOTICE! Certain Liquid Propane dealers may fill liquid propane cylinders for use in the outdoor appliance beyond cylinder filling capacity. This “Overfilling” may create a dangerous condition. IMPORTANT SAFETY NOTICE! Be sure to remove covers from grill, griddle or side burners before attempting to light or use. “Overfilled”...
  • Page 5 SAFETY PRACTICES & PRECAUTIONS Never let clothing, pot holders or other flammable materials come in contact with or too close to any grate, burner or hot surface until it has cooled. Fabric may ignite and result in personal injury. Never attach or disconnect an LP cylinder, or move or alter gas fittings when the grill is in operation or is hot. Clean and perform general maintenance on the grill twice a year.

  • Page 6: Safety Practices & Precautions

    SAFETY PRACTICES & PRECAUTIONS Do not use aluminum foil to line drip pans, grates or radiants. This can severely upset combustion air flow or trap excessive heat in the control area. The result of this can be melted knobs or damaged ignition components. When using the side burners always use flat bottomed pans which are large enough to cover the side burner.

  • Page 7: Outdoor Appliance Models

    OUTDOOR APPLIANCE MODELS BFG-30G - All-Grill BFG-30BGD - Double Side Burner/Griddle BFG-30BS - Double Side Burner/Sink...

  • Page 8: Before Using Your Appliance

    - Cover hanger (2 pcs) - Burner caps (2 pcs) NOTE: If any of the listed items are missing, contact DCS at (888) 936-7872. Please be prepared with your Model #, Serial # and description of product you have purchased. Tag location of Model # and Serial # Read all installation instructions in this manual to see if the unit has been properly installed.

  • Page 9: Installation

    INSTALLATION LOCATING OUTDOOR APPLIANCE/BUILT-IN CLEARANCES LOCATION: When determining a suitable location, take into account concerns such as exposure to wind (If located in a windy area, a wind break must be provided to prevent poor burner performance or product damage.), proximity to traffic paths and keeping any gas or electrical supply lines as short as possible.
  • Page 10 Insulated jacket is not required for BFG-30BS Side Burner Sink Model. Use only the DCS insulated jacket (p/n #70859) which has specifically been designed and tested for this purpose. Review the detail drawing shown (Fig. 03) and take into account the provisions shown for gas line hook-up clearance in the right rear corner.

  • Page 11: Built-In Construction Details

    INSTALLATION BUILT–IN CONSTRUCTION DETAILS grill exhaust 12" (to combustible construction) Bottom of support flange 10-1/16" 2" 3/4" 22-3/4" 25-1/2" Standard layout for non-combustible enclosure: WARNING! 28-1/2" If installing the grill into a 3" non-combustible enclosure, all combustible 22-3/4" construction must still be outside the 12 inch clearance zone.

  • Page 12: Cart Assembly Instructions

    INSTALLATION CART ASSEMBLY INSTRUCTIONS IMPORTANT: Read all instructions before you begin. Do not jump ahead or skip any step. CAUTION: Some parts have sharp edges; care must be taken when handling the various components to avoid injury. Please read safety information provided in these instructions before beginning assembly.
  • Page 13 INSTALLATION CART ASSEMBLY INSTRUCTIONS Step 1 Link Carts Together (optional) (To link two or more CAD carts, the following instructions must be done first, using the hardware provided, before installing the top modules.) 1. To link your carts together - hand tighten 2 bolts, 4 washers, and 2 nuts on the front and back sides of the carts as shown in Fig.
  • Page 14 INSTALLATION CART ASSEMBLY INSTRUCTIONS Step 2 Outdoor Appliance Head Preparation 1. First you will need to remove the angle brackets from the side of the unit and replace them with cart mount brackets (Fig. 06). Unit is shipped prepared for island installation. SCREWS 2.
  • Page 15 INSTALLATION CART ASSEMBLY INSTRUCTIONS 3. Position tabs on side bracket to fit into slots on the cart (be aware of pinch points)(Fig. 12-13). When complete, the leading ledge should sit flush on the top of the cart (no gap)(Fig. 14). PINCH POINT Fig.
  • Page 16 INSTALLATION CART ASSEMBLY INSTRUCTIONS Step 4 Gas Hookup - LP Make sure the cart assembly is stable. Open the tank drawer. Place the LP tank into location as shown in Fig. 17. Connect the regulator assembly to the tank connection with all appliances valves in the “OFF” position. Open the tank valve and test for gas leaks (Fig.

  • Page 17: Gas Hook-Up

    (natural or LP) from your outdoor appliance. TOTAL GAS CONSUMPTION OF THE OUTDOOR APPLIANCE WITH ALL BURNERS ON HI/SEAR: BFG-30G - 50,000 Btu/hr BFG-30BGD - 49,000 Btu/hr BFG-30BS - 34,000 Btu/hr The appliance and its individual shut-off valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 PSIG (3.5 kPa.) The appliance must be...

  • Page 18: Lp Tank Requirements

    INSTALLATION GAS HOOK-UP LP GAS HOOK UP (TYPE 1 OR QCC1 REGULATOR): All outdoor appliances orificed for use with LP gas come equipped with a high capacity hose/regulator assembly for connection to a standard 20 lb. LP cylinder (Type 1). The LP tank is not included. Connection: 1/2"...
  • Page 19 If you intend to operate your Built-in grill on LP gas utilizing a 20 lb Type 1 cylinder, then the Built-in LP tank restraint must be installed prior to initial use of the grill. If you do not have one please contact DCS Customer Care at (888) 936-7872 for information on obtaining one.

  • Page 20: Gas Hook-Up

    INSTALLATION GAS HOOK-UP STEP 1 Place the tank restraint in the island (Fig. 25). STEP 2 Locate the tank restraint in the island within the recommended area (Fig. 24 and 26). STEP 3 Once located, secure to the bottom of the island using all eight hole locations provided on the restraint.

  • Page 21: Leak Testing

    INSTALLATION LEAK TESTING - GRILL/GRIDDLE UNIT GENERAL: Although all gas connections on the outdoor appliance are leak tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit.
  • Page 22 INSTALLATION LEAK TESTING - SIDE BURNER WARNING! Do not smoke while leak testing. Extinguish all open flames. Make a soap solution of one part liquid detergent, and one part water. Never test for leaks with an open flame. For LP units, check with a full cylinder.

  • Page 23: Burner Adjustment

    INSTALLATION BURNER ADJUSTMENT - GRILL/GRIDDLE UNIT Each outdoor appliance burner is tested and adjusted at the factory prior to shipment; however, variations in the local gas supply or a conversion from one gas type to another may make it necessary to adjust the burners. The flames of the burners should be visually checked and compared to that of the drawing in Fig.

  • Page 24: Radiant Assembly

    INSTALLATION RADIANT ASSEMBLY RADIANT ASSEMBLY INSTALLATION: 1. Unpack ceramic rods and remove radiant (Fig.37) from the unit. 2. Unlock radiant end cap by pushing it up with two fingers (Fig. 38). 3. Place 18 ceramic rods on the radiant (Fig. 39). 4.

  • Page 25: Sink

    INSTALLATION SINK FAUCET INSTALLATION 1. Attach the faucet to the sink as shown in Fig. 42 and 42a. CAUTION: Finger tight first, then use a 1” wrench. Faucet stem Valve Fig. 42 2. Insert drain plug into the drain hole Fig. 43. Rubber gasket Lock washer Fig.

  • Page 26: Side Shelf (Optional)

    INSTALLATION SIDE SHELF (Optional accessory) Attach Side Shelf Accessory on Either Side. Side shelf Model CAD-SK can be installed with the head already on the cart. 1. Screw shoulder bolts (2) into the bottom screw holes on the side of the cart only (Fig. 44 and 45). Tighten with 5/32 Allen wrench.

  • Page 27: Installer Checklist

    INSTALLATION SIDE SHELF (Optional accessory) 4. Place shelf in the up position and check that it is level. If shelf is not level, adjust side shelf set screw. Set screws can be adjusted using a 3/32 Allen wrench (Fig. 50). Turn the Allen wrench clockwise to raise the shelf.

  • Page 28: Using The Grill

    USING THE GRILL LIGHTING INSTRUCTIONS Note: Remove the top grill cover before lighting. Turn all knobs to “OFF”. Turn the main gas supply on. If you smell gas, shut- off gas supply and call for service. Grill Lighting Instructions: The grill knob is connected to the electronic ignition module. Pushing in on the grill knob will activate the ignition module to get a spark.

  • Page 29: Grilling Hints

    USING THE GRILL IMPORTANT - Using the Grill: Grilling requires high heat for searing and proper browning. Most foods are cooked between “MEDIUM” and “LOW” heat setting for the entire cooking time. However, when cooking large pieces of meat or poultry, it may be necessary to turn the heat to a lower setting after the initial browning.

  • Page 30: Using The Side Burner

    USING THE SIDE BURNER LIGHTING INSTRUCTIONS First remove the cover and any cooking utensils from the burner grate. Check to see if the burner cap is on correct. Push, turn and hold the control knob in at the “HI” position until the burner is lit or 4 seconds pass (Fig.

  • Page 31: Using The Griddle

    USING THE GRIDDLE The griddle is made from stainless steel, highly polished to provide a smooth cooking surface. It is normal for it to darken with use as oils cook onto the surface to provide a nonstick base or “seasoning”. GRIDDLE FLUE COVER Since the griddle is made from stainless steel, the surface will not...

  • Page 32: Lighting Instructions

    USING THE GRIDDLE LIGHTING INSTRUCTIONS Push in and turn griddle control knob to “HI” position. Pushing control knob in activates the ignition module and produces repeated sparking at burner igniter. Holding control knob in also opens the integral safety valve used for this section and starts the flow of gas to burner.

  • Page 33: Using The Sink

    USING THE SINK The sink is available to provide water to your Liberty collection. The faucet is in the “on” position when the lever is turned up (Fig. 58). The faucet is “off ” when in the down position as shown in Figure 59. On position Off position Fig.

  • Page 34: Care & Maintenance

    CARE AND MAINTENANCE BATTERY REPLACEMENT: 1. Remove drip pan. 2. Pull battery downward (This may require use of pliers.) 3. Re-install upward and push to snap in - Fig. 60. (Polarity is shown in Fig. 61). Note: Battery condition should be checked at least once a year. Fig.

  • Page 35: Care And Maintenance

    CARE AND MAINTENANCE If something has spilled into the trays it should be cleaned up as soon as possible to prevent “baked on” food soil. Grease from the griddle or the outdoor appliance drains through the drain tube (Fig. 64) into the tray and liner below.
  • Page 36 CARE AND MAINTENANCE ORIFICE CLEANING: With the burner removed, remove the orifice and shine a flashlight through the opening to ensure there is no blockage. Use a needle to clear any debris. Be extremely careful not to enlarge the hole or break off the needle. See Fig.

  • Page 37: Care & Maintenance

    CARE AND MAINTENANCE caps are porcelain enamel, follow the directions above that were given for the burner grates. A bristle brush can be used to clean out the toothed burner ports, if necessary. After cleaning, it is important to make sure the location pins on the bottom side of the port ring are properly aligned with the corresponding holes in the base.

  • Page 38: Troubleshooting Outdoor Appliance

    You may save the cost of a service call. Troubleshooting is for general purposes only. If the problem persists and you feel you require service, contact your dealer or the nearest authorized agency to perform service. Only authorized agencies can perform warranty service. Call DCS Customer Care at (888) 936-7872.

  • Page 39: Side Burner

    TROUBLESHOOTING - SIDE BURNER PROBLEM WHAT TO DO Burner won’t light when the Remove the burner grate. Push in the control knob and ignition is pushed. listen to the electrode while engaging the ignition. There should be a spark from the electrode. When the spark jumps, it makes a ticking sound.

  • Page 40: Service

    SERVICE HOW TO OBTAIN SERVICE: For warranty service, please contact your local service provider or DCS Customer Care Representative at (888) 936-7872. Before you call, please have the following information ready: Model Number (can be found on the inside, right side panel behind the drip pan handle. See page 7.) Serial Number (can be found on the inside, right side panel behind the drip pan handle.

  • Page 41: Warranty

    WARRANTY LIMITED WARRANTY When you purchase a new DCS Outdoor Appliance by Fisher & Paykel, you automatically receive a One Year Limited Warranty covering parts and labor for the entire product, and a Five Year Limited Warranty on all stainless steel main burners, outdoor appliance radiant assemblies and drip pans for servicing within the 48 mainland United States, Hawaii, Washington D.C.
  • Page 42 Please read your Use and Care Guide. If you then have any questions about operating the Product, need the name of your local DCS Authorized Service Agent, or believe the Product is defective and wish service under this Limited Warranty, please contact your dealer or call us at: TOLL FREE 1-888-936-7872 or contact us through our web site: www.dcsappliances.com.
  • Page 43 Fisher & Paykel Appliances, Inc. 5900 Skylab Road, Huntington Beach, CA 92647 Customer Care: 888.936.7872 Fax: 714.372.7003 www.dcsappliances.com Nous améliorons constamment ses produits et se réserve le droit de modifier les spécifications ou la conception de ses produits sans aucun préavis. As product improvement is an ongoing process, we reserve the right to change specifications or design without notice.
