9.2.4.4

Adjusting the depth of the calf plate

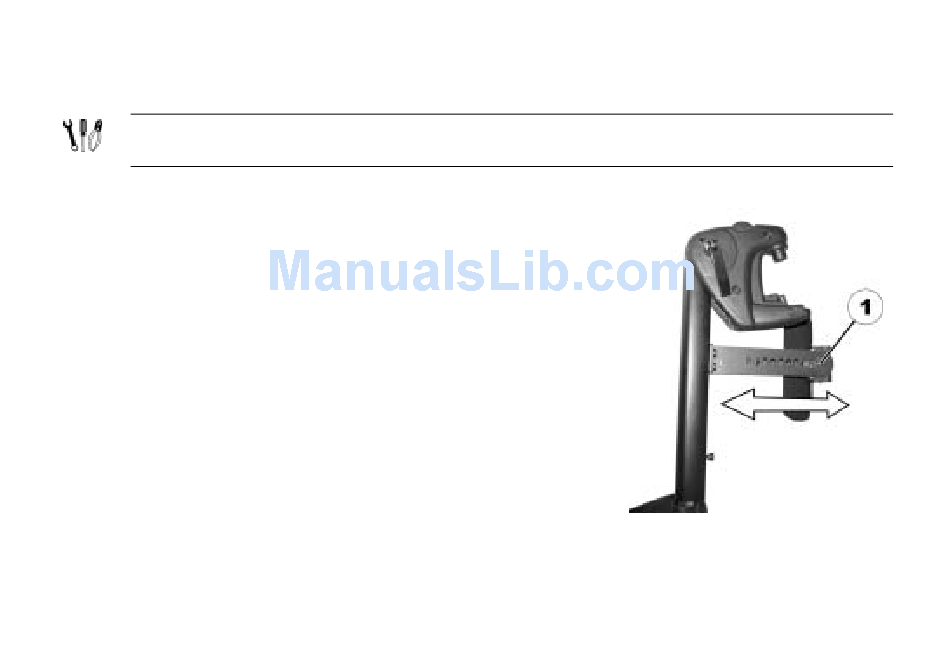

The depth of the calf plate can be adjusted via the holding plate. The holding plate hole
combinations allow 5 different depth settings.
Pre-requisites:
• 1x 10 mm open-ended spanner
• Use the open-ended wrench to loosen the nut (1) and
remove.
• Adjust to the desired depth. Please observe that the round
holes are intended for the calf plate retaining screw and the
oblong holes for the aglet without thread.
• Screw the nut back on and tighten.
121
