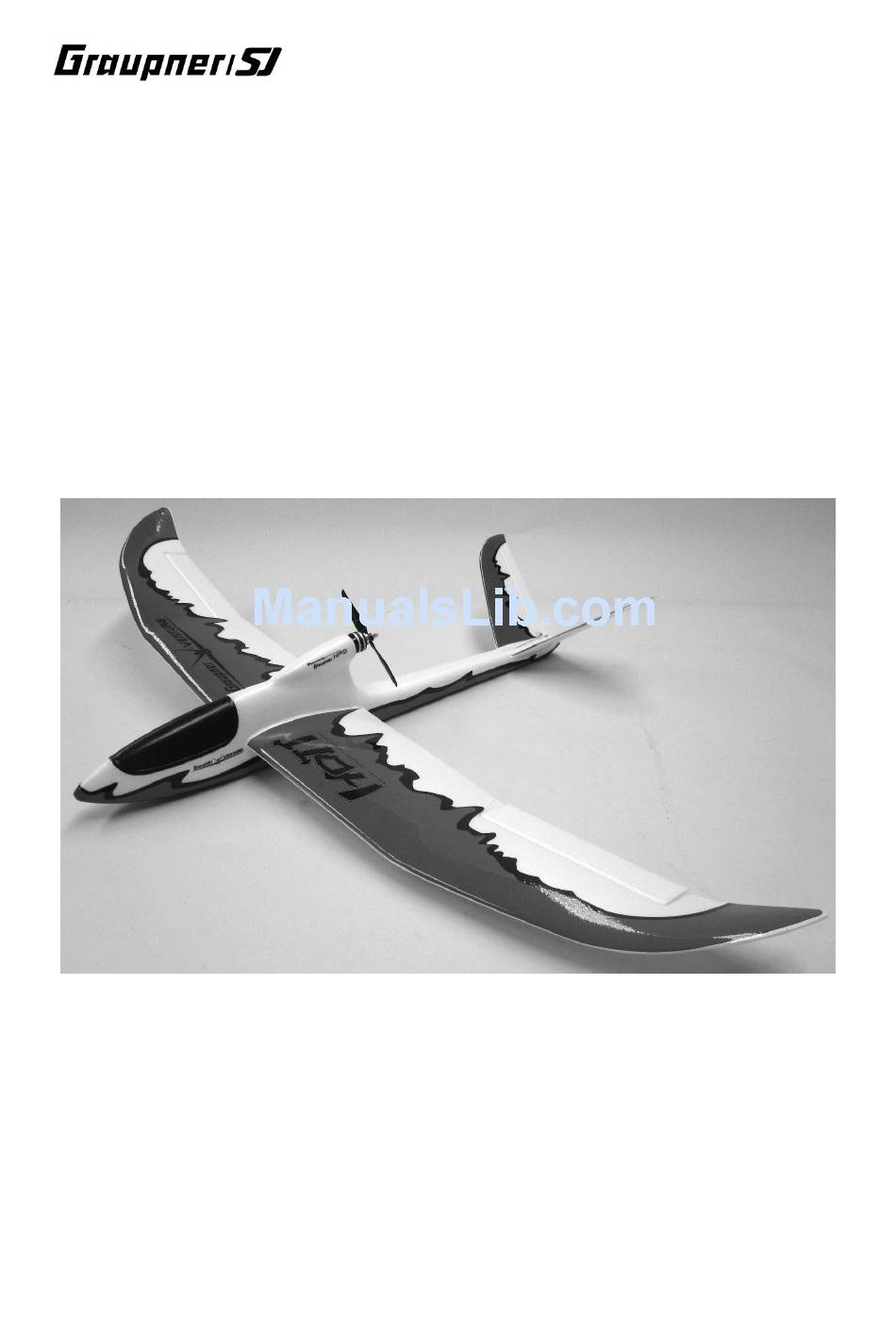

Order No. 9910.100
OPERATING INSTRUCTIONS
V-VENTURE
ARTF RC model aircraft fitted with COMPACT 260 motor set
A HoTT COMPUTER SYSTEM is required to operate the model
GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY
Modifications reserved. No liability for printing errors.
04/2013
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GRAUPNER V-VENTURE
Summary of Contents for GRAUPNER V-VENTURE
-
Page 1: Operating Instructions
Order No. 9910.100 OPERATING INSTRUCTIONS V-VENTURE ARTF RC model aircraft fitted with COMPACT 260 motor set A HoTT COMPUTER SYSTEM is required to operate the model GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 04/2013... - Page 2 2. Pair of wing panels with two DES 261 BB aileron servos, decals applied. 3. CFRP wing spar, 10 Ø x 500 mm 4. Operating instructions and safety notes for the V-VENTURE 9910.100 in Ger- man, English and French. 5. Operating instructions for the BRUSHLESS CONTROL 18 in German, English and French.
- Page 3 Configuring the MX-10 transmitter (not included; supplied in Order No. 33110) Your transmitter should be configured as described and illustrated before you use it to control the V-VENTURE: first set the right-hand stick to ‘non-centring’ action to control motor speed; see the MX-10 manual for details of the procedure.
- Page 4 5. If you need to correct the direction of rotation of any servo, operate the approp- riate servo reverse switch on the transmitter. Use the trim buttons to fine-tune the control surfaces to centre (neutral). These adjustments are very important, as GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 04/2013...
- Page 5 The picture shows the 2/2500 7.4 V LiPo battery installed in the fuselage. Fit the canopy on the fuselage again, and your V-VENTURE is ready to fly. Please note that for safety reasons the BEC plug and socket must always be disconnected after running the motor or flying the model.
- Page 6 BRUSHLESS CONTROL 18 speed controller are supplied separately in the pack. The above cross-sectional view of the V-VENTURE shows the internal features of the fuselage. Note that the motor mount can be withdrawn to the rear at any time if main- tenance is required.
- Page 7 Order No. 9910.100 to 9910.RTF. The Centre of Gravity range The safe C.G. range for the V-VENTURE is 75 to 85 mm, measured from the leading edge of the wing. Provided that the recommended LiPo battery is used, the model will balance correctly without further adjustment.
- Page 8 Your local model shop should have a copy which you can read. Be sure to use only those parts included in the kit, together with other genuine Graupner accessories and replacement parts as recommended expressly by us. Even if you change a single component, you can no longer be sure that the system will work reliably, and such changes also invalidate your guarantee.
- Page 9 Provided that you take reasonable care, model flying is a highly creative, instructive, enjoyable and relaxing pastime. GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 04/2013...
- Page 10 If material defects or manufacturing faults should arise in a product distributed by us in the Federal Republic of Germany and purchased by a consumer (§ 13 BGB), we, Graupner/SJ GmbH, D-73230 Kirchheim/Teck, Germany, acknowledge the obligation to correct those defects within the limitations described below.
