AT-AR236E, ADSL Bridge/Router
Quick Install Guide
Version 1.0
Quick Install Guide
Quick Install Guide
Page 1 of 27

Advertisement

Table of Contents
loading

Summary of Contents for Allied Telesis AT-AR236E

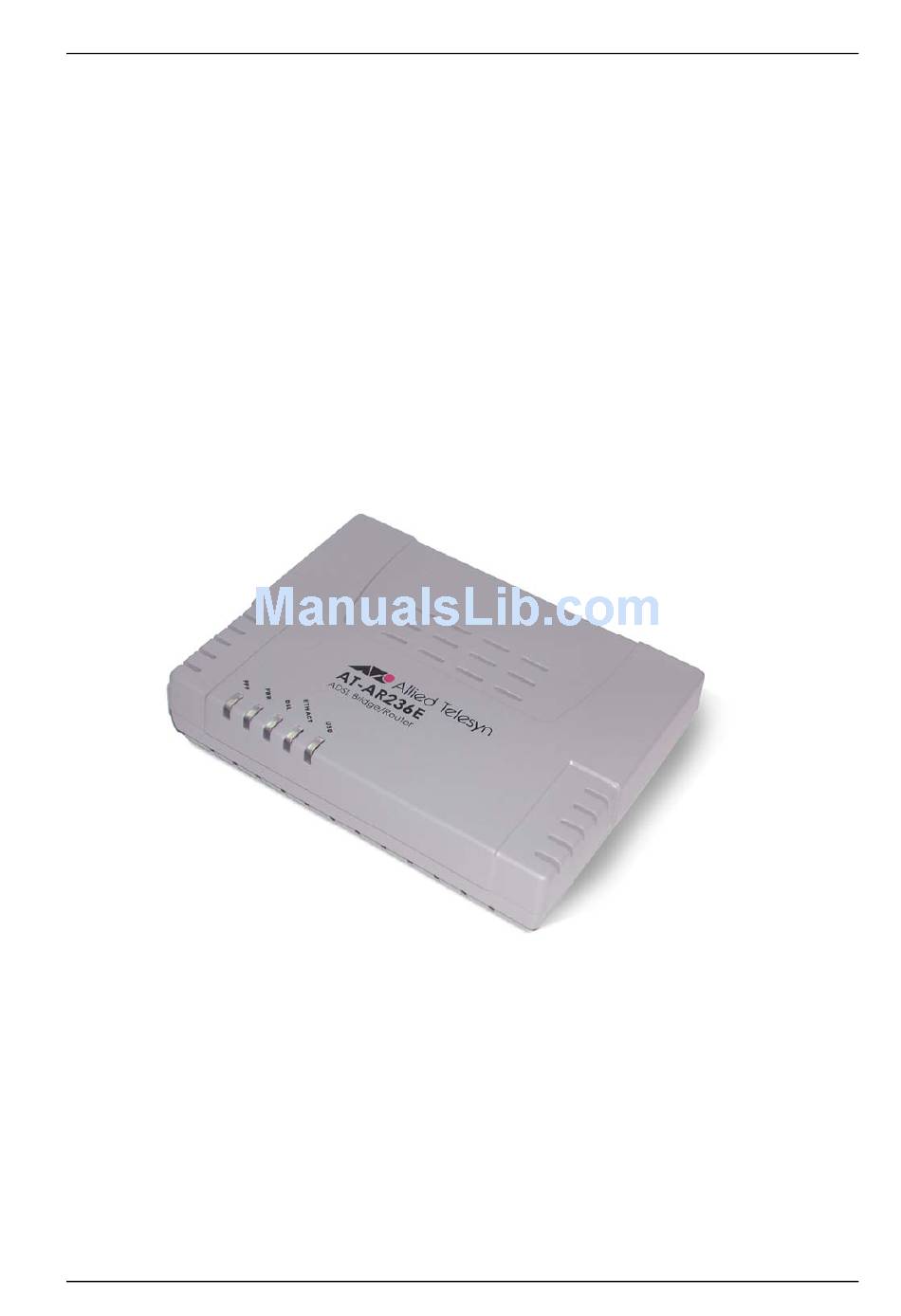

  • Page 1 Quick Install Guide AT-AR236E, ADSL Bridge/Router Quick Install Guide Version 1.0 Quick Install Guide Page 1 of 27...
  • Page 2: Table Of Contents

    1.3.1 Front Indicators ................7 1.3.2 Back Panel ..................8 Typical AT-AR236E Connection.............9 Chapter 2 – Connecting the AT-AR236E to Your Computer/Notebook......10 Connecting to the Ethernet .............10 Connecting to the ADSL ..............11 Checking Your Connections............12 Connecting the USB Cable.............12 Connecting the Power Adapter............13 Powering On...................13...
  • Page 3 Quick Install Guide Preventive or Scheduled Maintenance (PM) Tasks......26 PM or Scheduled Maintenance Tasks ..........27 PM Tools & Test Equipment............27 Quick Install Guide Page 3 of 27...
  • Page 4 Quick Install Guide Safety Messages WARNING HIGH VOLTAGE is used in the equipment. Make sure equipment is properly grounded before opening. Failure to observe safety precaution may result in electric shock to user. CAUTION Check voltages before connecting equipment to power supply and outlet. Wrong voltage applied may result in damage to equipment.
  • Page 5: Chapter 1 - Introduction

    Quick Install Guide Chapter 1 – Introduction Thank you on your purchase of the AT-AR236E! This ADSL bridge/router provides you with a high speed broadband Internet connection using your existing telephone line, and at the same time allows you to make phone calls.
  • Page 6: At-Ar236E Package

    6. Installation CD 7. POTS splitter * Figure 1-1: AT-AR236E Package * Depending on your country of purchase, the package may or may not come with a POTS splitter. The POTS splitter is required if you are connecting a telephone set and the router to a telephone wall socket simultaneously.
  • Page 7: At-Ar236E Overview

    Quick Install Guide AT-AR236E Overview Front Indicators 1.3.1 Figure 1-2 shows the front indicators of the router. Figure 1-2: Front Indicators 1. PPP Lights up when the PPP connection is established. 2. PWR Lights up when power is supplied to the router.
  • Page 8: Back Panel

    Ethernet adapter card, hub or switch. 4. RESET To reset your router to its factory default settings. (All customised settings that you have previously saved will be lost!) To reset the AT-AR236E, simply press the reset button for about 10 seconds. 5. DC 9V To connect to the power adapter that comes with the AT-AR236E package.
  • Page 9: Typical At-Ar236E Connection

    Quick Install Guide Typical AT-AR236E Connection Figure 1-4 below shows a typical single-user connection. Ethernet or USB Computer/notebook with Ethernet network card or USB port Figure 1- 4: Single-User Connection To connect to multiple computers/notebooks, you can expand the Ethernet connectivity via a hub or switch.
  • Page 10: Chapter 2 - Connecting The At-Ar236E To Your Computer/Notebook

    Power off your computer/notebook and/or any other connected devices before connecting to the router! Connecting to the Ethernet Connect your computer/notebook to the AT-AR236E as illustrated. The following illustration shows the connection of a single computer. See Figure 1-6 Figure 1-6: Connecting to the Ethernet Do not mistake a Line port for a Ethernet port.
  • Page 11: Connecting To The Adsl

    Quick Install Guide Connecting to the ADSL Figure 1-7 shows the connection of the AT-AR236E to a telephone wall socket (ADSL). Figure 1-7: Connecting to the ADSL Figure 1-8 shows the connection of the AT-AR236E and a telephone set. Figure 1-8: Connection of ADSL Router and Telephone Set The POTS splitter (with built-in microfilter) is a device that allows you to connect both your ADSL router and telephone set to the same telephone wall socket.
  • Page 12: Checking Your Connections

    Figure 1-9: Checking Connections Connecting the USB Cable Ensure that the USB cable is plugged in as shown in Figure 1-10. Backview of Backview of a AT-AR236E computer USB Port USB Cable Figure 1-10: Connecting the USB Cable Quick Install Guide...
  • Page 13: Connecting The Power Adapter

    Quick Install Guide Connecting the Power Adapter See Figure 1-11 for connection of the power adapter. Figure 1-11: Connecting the Power Adapter Powering On a) Switch on the power outlet that is connected to your router. b) Power on your computer(s)/notebook(s). Quick Install Guide Page 13 of 27...
  • Page 14: Chapter 3 - Configuring Your Ethernet Network Card

    Quick Install Guide Chapter 3 – Configuring Your Ethernet Network Card If your computer/notebook is connected to the USB port of the router, proceed to Chapter 4. Configuring Your Ethernet Network card Note… Proceed with this section only if your computer/notebook is connected to the Ethernet port of your router.
  • Page 15: For Windows ® 2000 / Windows ® Xp

    Quick Install Guide 4. Click the IP Address tab. 5. Select the option Obtain an IP address automatically and click OK to save the settings. See Figure 1-13 IP Address Select This Figure 1-13: TCP/IP Properties 6. Ensure that your router is powered on. 7.
  • Page 16 Quick Install Guide Note. . . This is important especially if you have more than one Local Area Connection icons displayed at the Network and Dial-up Connections/Network Connections window. Ensure that you have selected the correct one. 1. Select Internet Protocol (TCP/IP) and click Properties. See Figure 1-14 Ensure model is correct...
  • Page 17: Chapter 4 - Installing Your Usb Driver

    Quick Install Guide Chapter 4 – Installing Your USB Driver ® Installing the USB Driver for Windows 98 Second Edition Proceed with the steps below: 1. Power on your computer to start the Windows Operating System. 2. Insert the Installation CD into your CD-ROM drive. 3.
  • Page 18: Installing The Usb Driver For Windows ® Me

    Quick Install Guide 5. Select CD-ROM drives option and click Next. See Figure 1-18 Click Select This Next Figure 1-18: Driver location Note. . . Depending on your system’s configuration, you may be prompted for your Windows CD-ROM during the installation. At the prompt, replace the Installation CD in your CD-ROM drive with your Windows CD-ROM and click OK.
  • Page 19: Installing The Usb Driver For Windows ® 2000

    Quick Install Guide Select This Click Next Figure 1-19: Specifying driver location 4. Check Removable Media option and click Next. See Figure 1-20 Select This Figure 1-20: Driver location 5. Click Next again to proceed with the installation of indicated driver. 6.
  • Page 20: Installing The Usb Driver For Windows ® Xp

    Quick Install Guide Figure 1-21: Hardware Wizard 4. Select Search for a suitable driver for my device (recommended) option and click Next. See Figure 1-22 Select This Figure 1-22: Search Driver 5. Select CD-ROM drives option and click Next. 6. At the next prompt, click Next to proceed with the installation of indicated driver. 7.
  • Page 21 Quick Install Guide 3. At the prompt shown below, select Install from a list or specific location (Advanced) option and click Next. See Figure 1-23 Select This Click Next Figure 1-23: Installation from location 4. Select Search removable media option and click Next. See Figure 1-24 Select This Figure 1-24: Found New Hardware Wizard 5.
  • Page 22: Chapter 5 - Configuring Your Web Browser

    Quick Install Guide Chapter 5 – Configuring Your Web Browser Microsoft® Internet Explorer™ (based on IE 5.5) 1. From your Windows Desktop, double-click on the Internet Explorer icon to launch your web browser. 2. From the menu, click Tools and select Internet Options... 3.
  • Page 23: Chapter 6 - Setup At-Ar236E Via Quick Start

    Quick Install Guide Chapter 6 – Setup AT-AR236E via Quick Start a) On your web browser, key in 192.168.1.1 or AlliedTelesyn.ATI at the address bar and hit <Enter>. See Figure 1-26 Figure 1-26: Logging-in At the Log In page, enter “manager” for Username and “friend” for Password. Click on the Log In button to continue.
  • Page 24 Quick Install Guide 1. Select your Country and click Next. Figure 1-28: Quick Start 2. Select your Profile and click Next. Figure 1-29: Quick Start Quick Install Guide Page 24 of 27...
  • Page 25 Quick Install Guide 3. Enter the User ID and Password provided by your ISP. Click Connect to continue. Figure 1-30: Quick Start Upon successful connection to the Internet, the page as shown in Figure 1-31 will appear. It shows the connection status information. Figure 1-31: Basic Home Quick Install Guide Page 25 of 27...
  • Page 26: Chapter 7 - Maintenance

    Quick Install Guide Chapter 7 – Maintenance This section explains the maintenance concepts and provides instructions on preventive maintenance necessary to ensure that the system and equipment are maintained at their optimal operating condition. Maintenance Concepts This maintenance concept is categorised into one (1) main category: •...
  • Page 27: Quick Install Guide

    Quick Install Guide PM or Scheduled Maintenance Tasks PM tasks are to be performed at intervals recommended in Table 1-1. When performing PM cleaning tasks: a) Use a lint-free, non-abrasive cloth to perform cleaning – DO NOT use any solvent, abrasive cleaning agents or tissue paper.
