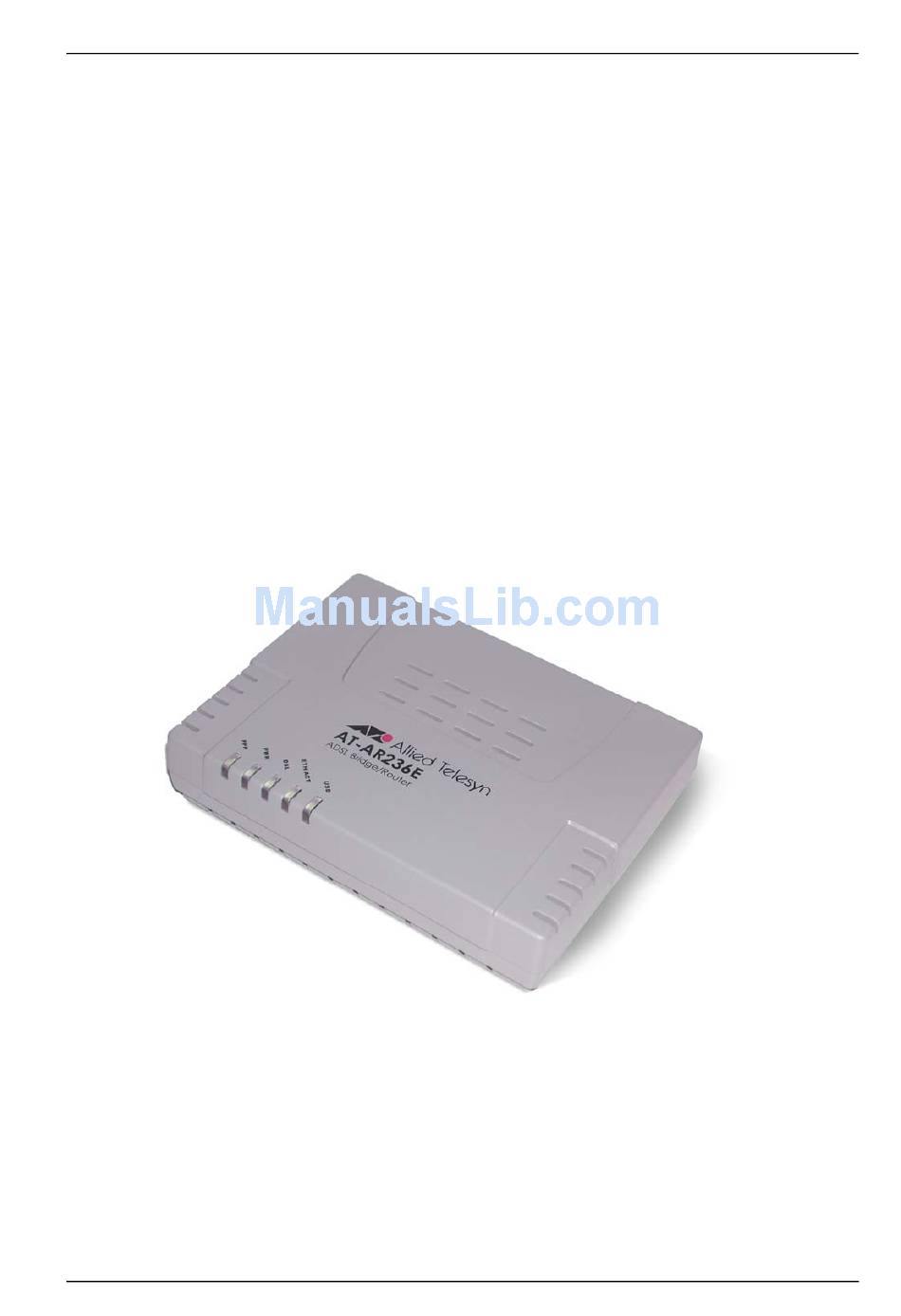

AT-AR236E, ADSL Bridge/Router
Reference Manual
Version 1.0
Reference Manual
Reference Manual
Page 1 of 41

Advertisement

Table of Contents
loading

Related Manuals for Allied Telesis AT-AR236E

Summary of Contents for Allied Telesis AT-AR236E

  • Page 1 Reference Manual AT-AR236E, ADSL Bridge/Router Reference Manual Version 1.0 Reference Manual Page 1 of 41...

  • Page 2: Table Of Contents

    Ports and Buttons................11 AT-AR236E Overview..............12 3.2.1 Front Indicators ................12 3.2.2 Back Panel ..................13 Chapter 4 – Installing the AT-AR236E ................14 Chapter 5 – Setting Up the AT-AR236E ................15 Log In .....................15 Quick Start..................16 LAN Configuration ................17 Diagnostics ..................18 5.4.1 Ping Test..................19 5.4.2...
  • Page 3 Reference Manual 5.5.9 SNMP .....................26 5.5.10 IP QoS ....................27 5.5.11 IGMP Multicast ................28 5.5.12 Port Forwarding................29 5.5.13 MAC Filtering (Bridge Filters) ............30 5.5.14 Access Control................30 5.5.15 Routing (Static Routing)..............31 5.5.16 Routing (Dynamic Routing) ............32 5.5.17 System Password ................33 5.5.18 Firmware Upgrade................34 5.5.19 Restore To Default .................34 Security...................35 5.6.1...

  • Page 4: List Of Illustrations

    Reference Manual List of Illustrations Figure Page Figure 1-1: System Configuration Diagram................8 Figure 1-2: Front Indicators ....................12 Figure 1-3: Back Panel......................13 Figure 1-4: Connection Diagram..................14 Figure 1-5: Quick Start......................16 Figure 1-6: Basic Home .......................16 Figure 1-7: Quick Start......................17 Figure 1-8: LAN Configuration ...................18 Figure 1-9: Diagnostics ......................18 Figure 1-10: Diagnostics (Test Results)................19 Figure 1-11: Ping Test......................19...
  • Page 5 Reference Manual Figure 1-25: MAC Filtering (Bridge Filters) ...............30 Figure 1-26: Access Control ....................31 Figure 1-27: Routing (Static Routing) .................32 Figure 1-28: Routing (Dynamic Routing)................33 Figure 1-29: System Password.....................33 Figure 1-30: Firmware Upgrade...................34 Figure 1-31: Restore To Default prompt................34 Figure 1-32: Security......................35 Figure 1-33: IP Filters ......................35 Figure 1-34: LAN Isolation....................36 Figure 1-35: Status .......................37...
  • Page 6 Reference Manual Safety Messages WARNING HIGH VOLTAGE is used in the equipment. Make sure equipment is properly grounded before opening. Failure to observe safety precaution may result in electric shock to user. CAUTION Check voltages before connecting equipment to power supply and outlet. Wrong voltage applied may result in damage to equipment.

  • Page 7: Chapter 1 - About This Manual

    This manual is designed and developed for the operators and users who are required to operate and perform first-level maintenance on the AT-AR236E. It assumes the user of this manual has basic knowledge and experience in operating similar router configurations and computer systems equipment.

  • Page 8: Chapter 2 - At-Ar236E Description

    Just click on the game you are playing online, and the rest is done for you. The AT-AR236E is fully compatible with all computers; as long as the computer supports a Ethernet interface and is running a TCP/IP protocol stack, it can have high speed WAN access.

  • Page 9: At-Ar236E Features

    Reference Manual AT-AR236E Features ADSL/ATM Support • ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) and G.992.2 (G.lite) compliant • ADSL2, ADSL2+, RE-ADSL compliant • Rate Adaptive modem at 32Kbps steps • Dynamic Adaptive Equalisation to improve Carrier’s service area •...
  • Page 10 Reference Manual Management Support • Web Based HTTP management GUI • TFTP/FTP for Firmware Upgrade • Web Based Firmware Upgrade (Local) • Soft Factory Reset Button via Web GUI • Diagnostic Test (DSL, OAM, Network, Ping Test) • Telnet/CLI (Read-Only) •...

  • Page 11: Chapter 3 - Your Router At A Glance

    GUI or following a software upgrade. To reset the AT-AR236E, simply press the reset button for about 10 seconds. The router will be reset to its factory defaults and after 30~40 seconds, the router will become operational again.

  • Page 12: At-Ar236E Overview

    Reference Manual AT-AR236E Overview Front Indicators 3.2.1 Figure 1-2 shows the front indicators of the router. Figure 1-2: Front Indicators 1. PPP Lights up when the PPP connection is established. 2. PWR Lights up when power is supplied to the router.

  • Page 13: Back Panel

    Ethernet adapter card, hub or switch. 4. RESET To reset your router to its factory default settings. (All customised settings that you have previously saved will be lost!) To reset the AT-AR236E, simply press the reset button for about 10 seconds. 5. DC 9V To connect to the power adapter that comes with the AT-AR236E package.

  • Page 14: Chapter 4 - Installing The At-Ar236E

    Connect the power adapter. Depending upon the type of network, you may want to put the power supply on an Uninterruptible Power Supply (UPS). Note… Only use the power adapter supplied with the AT-AR236E package. A different adapter may damage the router. Figure 1-4 shows the router connection diagram.

  • Page 15: Chapter 5 - Setting Up The At-Ar236E

    Reference Manual Chapter 5 – Setting Up the AT-AR236E The Basic tab contains features that are catered for basic users. This section will guide you through your router’s configurations. The AT-AR236E is shipped with standard PPP profiles. Log In To configure your router, open your web browser. You may get an error message at this point, this is normal.

  • Page 16: Quick Start

    Reference Manual Figure 1-5: Quick Start If your router is already configured, you will be directed to the Basic Home page. See Figure 1-6 Figure 1-6: Basic Home Quick Start If you have already configured your router and wish to change your current configuration, click Quick Start under Basic.

  • Page 17: Lan Configuration

    On one side of your router, you have your own Local Area Network (LAN) connections. This is where you connect your local computers to the AT-AR236E. The router is normally configured to automatically assign all computers on your network with Internet addresses.

  • Page 18: Diagnostics

    Reference Manual By turning off the DHCP Server and Relay, the network administrator must carefully configure the IP address, Subnet mask and DNS server addresses of every computer on your network. Do not assign the same IP address to more than one computer, and your router must be on the same subnet as all the other computers.

  • Page 19: Ping Test

    Reference Manual Figure 1-10: Diagnostics (Test Results) Ping Test 5.4.1 Once you have your router configured, ensure you can ping the network. You can access the Ping Test page by clicking on the “here” hyperlink in Diagnostics page. See Figure 1-10. Enter the target IP address that you wish to ping.

  • Page 20: Advanced

    Reference Manual Figure 1-12: Modem Test Advanced This mode is catered for advance users, a brief explanation of the links are listed as shown in Figure 1-13 below. Figure 1-13: Advanced WAN Connection 5.5.1 On the other side of your router is where the Wide Area Network (WAN) connection resides; also referred to as a broadband connection.

  • Page 21: New Connection

    Reference Manual New Connection 5.5.2 A new connection is basically a virtual connection. Your router can support up to 8 different (unique) virtual connections. If you have multiple (different) virtual connections, you may need to utilise the static and dynamic routing capabilities of the router to pass data correctly. Figure 1-14: New Connection (PPPoE Connection Setup) ADSL Modulation 5.5.3...

  • Page 22: Quickstart

    Reference Manual Figure 1-15: ADSL Modulation (Modem Setup) Quickstart 5.5.4 PPPoA is also known as RFC 2364. It is a method of encapsulating PPP packets over ATM. PPP or Point to Point Protocol is a method of establishing a network connection/session between network hosts.

  • Page 23: Lan Configuration

    Reference Manual Figure 1-16: Quickstart (PPPoA Connection Setup) LAN Configuration 5.5.5 You can change the router’s IP address by selecting LAN under Advanced and then click LAN Configuration, followed by Configure. Your router’s default IP Address and Netmask are 192.168.1.1/255.255.255.0; this subnet mask will allow the router to support 253 users.

  • Page 24: Lan Clients

    Reference Manual Figure 1-17: LAN Configuration LAN Clients 5.5.6 To add a LAN client, select LAN under Advanced and click LAN Clients. If DHCP is enabled, all DHCP clients are automatically displayed. If a fixed IP address server is on the LAN and you want this server to be visible via the WAN, you must add its IP address.

  • Page 25: Upnp

    Reference Manual UPnP 5.5.7 UPnP, NAT and Firewall Traversal allow traffic to pass-thru the router for applications using the UPnP protocol. This feature requires one active DSL connection. In the presence of multiple DSL connections, select the one over which the incoming traffic will be present, for example the default Internet connection.

  • Page 26: Snmp

    Reference Manual Timeout – if the router fails to connect to a SNTP server within the timeout period, it will retry the connection. Polling Interval – time between a successful connection with a SNTP server and a new attempt to connect to a SNTP server. Retry Count –...

  • Page 27: Ip Qos

    Reference Manual Figure 1-21: SNMP Management IP QoS 5.5.10 When QoS is enabled on the router, the designated machine, application or person would have precedence over peers when competing for bandwidth. The IP QoS page allows you to configure QoS for a connection, view previously configured QoS rules, add a new rule or delete an existing rule.

  • Page 28: Igmp Multicast

    Reference Manual Figure 1-22: IP QoS IGMP Multicast 5.5.11 Under Advanced, select Application and click IGMP Multicast. The following page will be displayed. See Figure 1-23. Remember to click on the Apply button and then click Save Settings, after you have enabled IGMP Multicast and selected the connection from Available Connections.

  • Page 29: Port Forwarding

    Reference Manual Port Forwarding 5.5.12 Using the Port Forwarding page, you can provide local services (e.g. web hosting) for people on the Internet or play online games. When users send this type of request to your network via the Internet, the router will forward those requests to the appropriate computer. Port Forwarding can be used with DHCP assigned addresses but remember that a DHCP address is dynamic, not static.

  • Page 30: Mac Filtering (Bridge Filters)

    Reference Manual MAC Filtering (Bridge Filters) 5.5.13 The bridge filtering mechanism provides a way for users to define rules to allow/deny frames through the bridge based on source/destination MAC addresses and/or frame type. When bridge filtering is enabled, each frame is examined against the defined filter rules sequentially. When a matched is determined, the appropriate filtering action (determined by the access type selected .

  • Page 31: Routing (Static Routing)

    Routing (Static Routing) 5.5.15 If the AT-AR236E is connected to more than one network, you may need to set up a static route between them. A static route is a predefined pathway that network information must travel to reach a specific host or network. You can use Static Routing to allow different IP domain users to access the Internet through the AT-AR236E.

  • Page 32: Routing (Dynamic Routing)

    Routing (Dynamic Routing) 5.5.16 Dynamic Routing allows the AT-AR236E to automatically adjust to physical changes in the network. The router, using the RIP protocol, determines the network packets’ route based on the fewest number of hops between the source and the destination. The RIP protocol regularly broadcasts routing information to other routers on the network.

  • Page 33: System Password

    Reference Manual Figure 1-28: Routing (Dynamic Routing) System Password 5.5.17 You can change your router’s username and password by clicking on System Password. From here, you can change the User Name and Password. You can also change the Idle Timeout; you will need to log back into the system once the timeout expires.

  • Page 34: Firmware Upgrade

    To reset the AT-AR236E, simply press and hold the reset button for about 10 seconds. The router will be reset to its factory defaults and after about 30~40 seconds, it will be operational again.

  • Page 35: Security

    Reference Manual Security The security features section allows users to configure the following: • IP Filters • LAN Isolation Figure 1-32: Security IP Filters 5.6.1 IP filtering is similar to Port Forwarding except that it blocks traffic instead of forwarding them. See Figure 1-33 Figure 1-33: IP Filters Reference Manual...

  • Page 36: Lan Isolation

    Reference Manual LAN Isolation 5.6.2 LAN Isolation allows you to disable the flow of packets between up to two user-defined LAN groups (USB and Ethernet). This allows you to secure information in private portions of the LAN from other, publicly accessible segments. Figure 1-34: LAN Isolation Status The Status page allows users to view the following:...

  • Page 37: Connection Status

    Reference Manual Figure 1-35: Status Connection Status 5.7.1 Connection Status will display all the relevant information regarding your Internet connection; it will display the protocol type, WAN IP address, connection state, online duration and if it is disconnected, the reason will be displayed. See Figure 1-36 Figure 1-36: Connection Status System Log...

  • Page 38: Remote Log

    Reference Manual Figure 1-37: System Log Remote Log 5.7.3 This feature is for users to enable remote logging. Settings mentioned below are essential for this feature to work: • Log Level • Add/Delete IP Address • Logging Destination Figure 1-38: Remote Log Settings Reference Manual Page 38 of 41...

  • Page 39: Network Statistics

    Reference Manual Network Statistics 5.7.4 Information regarding the statistics of your Ethernet, USB and DSL will be displayed. Figure 1-39: Network Statistics DHCP Clients 5.7.5 Figure 1-40 shows the connected users. It also shows the MAC Address, IP Address, Host Name and Lease Time of DHCP Clients.

  • Page 40: Product Information

    Product Information 5.7.7 This page will show a summary of all the Product Information and Software Versions that came bundled with the AT-AR236E. Figure 1-42: Product Information Help The Help page takes you to the different Help Sections for Firewall, Bridge Filters, LAN Clients, LAN Group Configuration, PPP Connection, UPnP, IP QoS and RIP Help.

  • Page 41: Reference Manual

    Reference Manual Figure 1-43: Help Copyright © August 2005 Allied Telesyn. All Rights Reserved. Reference Manual Page 41 of 41...
