Page 1

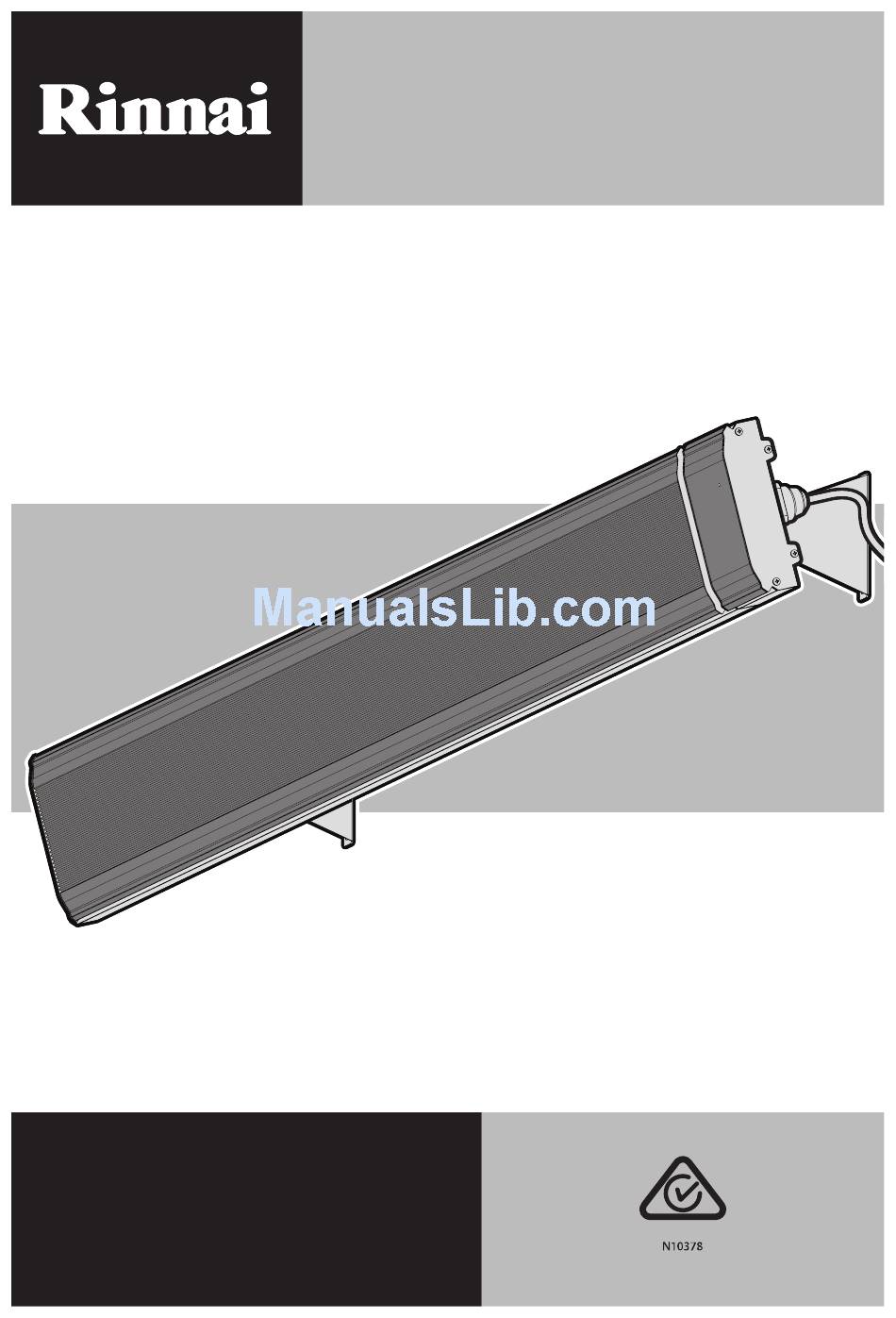

Operation & Installation Manual Outdoor Radiant Heater Models: ORH15S / ORH18M / ORH24L / ORH32XL This appliance shall be installed in accordance with: • Manufacturer’s Installation Instructions • Current AS/NZS 3000 Electrical Installation (Wiring Rules) • Local Regulations and Municipal Building Codes including local OH&S requirements This appliance must be installed, maintained and removed by an Authorised Person.
Page 2
This page is intentionally blank Rinnai ORH OIM...
Installation Method ������������������������������������������������������������������������������������������������������������������������������������������� 10 Electrical connections ��������������������������������������������������������������������������������������������������������������������������������������� 11 Location of Electrical Connection ��������������������������������������������������������������������������������������������������������������������� 11 Multiple Installations ����������������������������������������������������������������������������������������������������������������������������������������� 11 Care & Maintenance Cleaning ����������������������������������������������������������������������������������������������������������������������������������������������������������� 12 Save A Service Call ������������������������������������������������������������������������������������������������������������������������������������������ 12 When to Call for Service ����������������������������������������������������������������������������������������������������������������������������������� 12 Warranty Contacts Rinnai ORH OIM...
Ensure that the voltage and frequency of the power supply correspond to the ratings on the data plate of the appliance� Models ORH15S, ORH18M and ORH24L are fitted with an Australian flexible 1m cord and 3 pin plug. A dedicated 240V 50Hz earthed 10 Amp power point must be used with this appliance� Model ORH32XL are fitted with an Australian flexible 1m cord and 3 pin plug. A dedicated 240V 50Hz earthed 15 Amp power point must be used with this appliance�...
Page 5
NO USER SERVICEABLE PARTS - NEVER dismantle the appliance� Tampering with electrical connections and components is highly dangerous and can result in equipment malfunction, property damage, personal injury and/or death� DO NOT modify this appliance. Modifying from original specifications may create a dangerous situation and will void your warranty� Rinnai ORH OIM...
Non fan operation also means no drafts. IP65 Water ingress protection allows for safe cleaning of the external heater casing using a typical low pressure garden hose or by using a wet sponge. SPECIFICATIONS Model; ORH15S ORH18M ORH24L ORH32XL Max. rated power 1500W...
Switch "OFF" the power at the isolating switch to turn off the heater. The operation indicator will go out. The heater may take up to 30 minutes to fully cool down, depending on the area being heated and the conditions. NOTE Rinnai ORH OIM...
OH&S requirements UNPACKING If any damage is present DO NOT INSTALL or OPERATE the appliance and contact your supplier for advice. IMPORTANT APPROXIMATE HEATING AREA Indoor Area Spot Heating Dimension ORH15S ORH18M ORH24L ORH32XL 1030 1210 1490 1900...
Fans, lights and sprinkler fittings 125 Min. MUST NOT 600 Min. be below heater 1500 Min. 1000 Min. to surfaces (ie table tops, ect) 2100 Min. from floor 3000 Max. from floor (recommended) 600 Min. Same both ends Rinnai ORH OIM...
0° 15° 30° 45° Mark the position of the two brackets, using the following minimum recommended bracket spacing below to determine the correct location. Dimension (mm) ORH15S ORH18M ORH24L ORH32XL 530 ± 50 710 ± 50 990 ± 50 1400 ± 50...
GPO Connection The heater is provided with a power cord with a 3 pin plug (models ORH15S, ORH18M and ORH24L are with a 10 Amp plug and model ORH32XL is with a 15 Amp plug) for connection to a dedicated single-phase 240V AC~ 50HZ earthed power outlet.
Poor heating performance� Incorrectly sized installation, contact your authorised electrical installer� Faulty heater element, turn off the heater, and contact Rinnai� Will not heat / No operation indicator Check that power is connected and switched on, if still faulty, turn off the heater, and contact Rinnai�...
Rinnai Australia Pty Ltd 1� WHAT IS COVERED BY THIS WARRANTY? We warrant that your Rinnai Product purchased in Australia is free from defects in material and workmanship, subject to the terms and conditions contained in this document� 2� WARRANTY PERIOD This Warranty applies to any defect in your Rinnai Product which appears within the period: (a) commencing on the installation date specified in the Compliance Certificate or, if the installation date ...
Page 14
(a) This warranty applies to products which are manufactured on or after the date of publication of this warranty but before the next date of publication of this warranty� Please contact Rinnai’s Technical and Spare Parts department for further information about the warranty booklet publication dates�...
Page 15
No warranties except those implied and that by law cannot be excluded are given by Rinnai in respect of Goods supplied� Where it is lawful to do so, the liability of Rinnai for a breach of a condition or warranty is limited to the repair or replacement of the Goods, the supply of equivalent Goods, the payment of the cost of repairing or replacing the Goods or acquiring equivalent Goods as determined by Rinnai�...
Braeside, Victoria 3195 For further information visit: www.rinnai.com.au Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance requires service, please call our National Help Line. Rinnai recommends that this appliance be serviced every 1 years.
