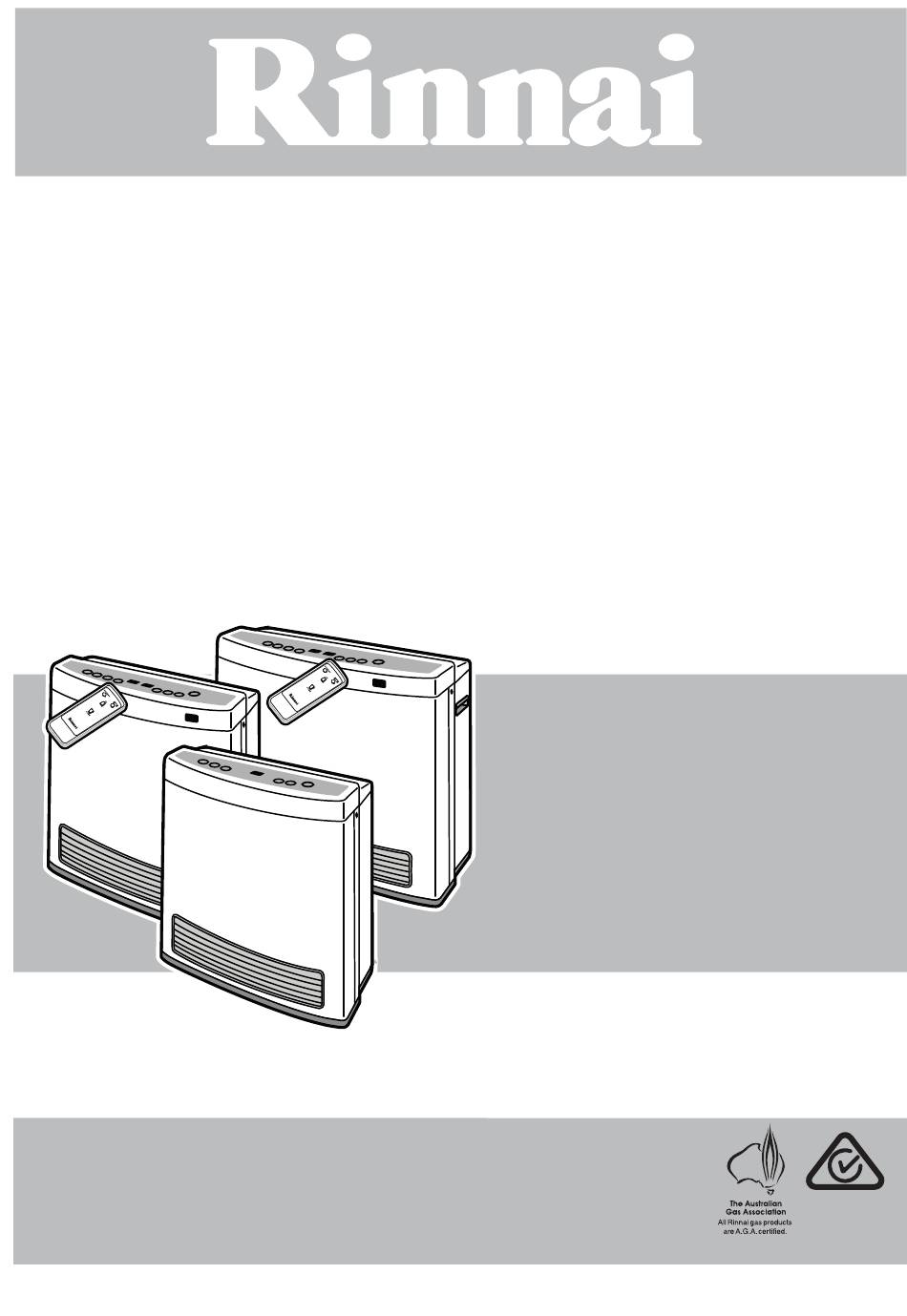

Portable Unflued Gas
Convection Heater
Operation Manual
This appliance shall be installed in accordance with:
• Manufacturer's Installation Instructions
• Current AS/NZS 3000 & AS/NZS 5601
• Local Regulations and Municipal Building Codes
This appliance must be installed, serviced and repaired by an Authorised Person.
*
Enduro Model is for Australia only. Remote Control not available in this Model.
To Suit Models

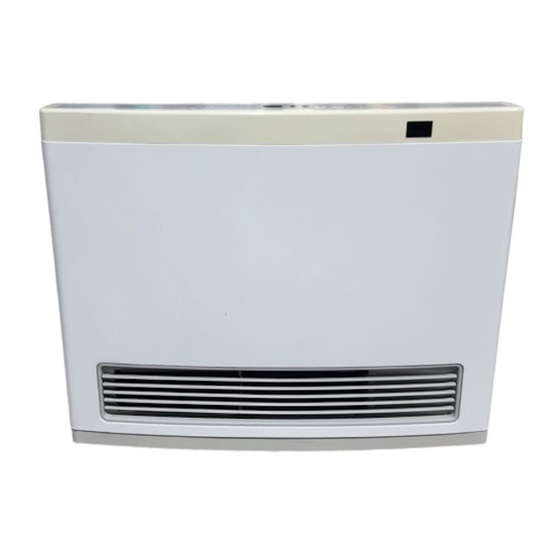

Avenger 25 - RCE-671TR
Dynamo 15 - RCE-471TR
Enduro* 13 - RCE-371H
N10378
Advertisement
Table of Contents
Related Manuals for Rinnai RCE-671TR
Summary of Contents for Rinnai RCE-671TR
- Page 1 Portable Unflued Gas Convection Heater Operation Manual To Suit Models Avenger 25 - RCE-671TR Dynamo 15 - RCE-471TR Enduro* 13 - RCE-371H This appliance shall be installed in accordance with: • Manufacturer’s Installation Instructions • Current AS/NZS 3000 & AS/NZS 5601 •...
- Page 2 This page is intentionally blank...
-
Page 3: Table Of Contents
AIR FILTERS ........................... 17 REMOVING FILTERS........................17 SERVICE ............................17 TROUBLE SHOOTING CHECKLIST....................18 ERROR CODES ..........................18 SPECIFICATIONS ......................... 19 GENERAL SPECIFICATIONS......................19 WEIGHT AND MEASURES......................19 WIRING DIAGRAM.......................... 20 BLOCK DIAGRAM ........................... 20 CONTACT INFORMATION ....................22 Rinnai Operation Manual... -
Page 4: About Your Portable Convector Heater
* Enduro Model is for Australia Only Control panel Gas inlet connection ON / OFF button Filter 1 Stops and operates the heater. Filter 2 Remote control receiver window Thermistor Louvre, warm air discharge 230/240V power cord Carry handle(s) Power cord tidy Rinnai Operation Manual... -
Page 5: Navigating The Control Panel
Indicates Timer 2 is in operation. Override button Standby button Operates the manual Override function. Stops the heater remotely. Override indicator Up / Down buttons Indicates the Override function is in operation. Increases / decreases temperature setting. Rinnai Operation Manual... -
Page 6: Navigating The Remote Control
• If you suspect your child has swallowed or inserted a button battery immediately call the 24hr Poisons Information Centre on 13 11 26 for fast, expert advice. • Regularly examine the remote controller and make sure the battery compartment is completely secured. • Dispose of used button batteries immediately and safely. Rinnai Operation Manual... -
Page 7: Features
The heater will automatically come on and will continue to operate for a period of 60 minutes then automatically turn off. OFF TIMER This feature allows you to program the heater to operate for a period of one hour before it automatically turns off. Rinnai Operation Manual... -
Page 8: Important Points
DO NOT spray aerosols near this heater while it is in operation. Most aerosols contain butane gas which can be a fire hazard if used near this heater when it is in operation. Use of aerosols, paint, polishes etc. whilst this heater is in use may also cause unpleasant smells. Rinnai Operation Manual... - Page 9 When the heater is operated for the first time or after long periods of non use a slight odour may be emitted, this is normal. However if odours persist switch off the appliance and contact Rinnai. During peak operating periods the filters should be cleaned weekly, however if the Filter warning indicator illuminates, turn off the appliance immediately and clean filters before further use.
-
Page 10: Installation
“VENTILATION” on page 9 and the warning label located on the appliance. For further information regarding room ventilation contact Rinnai or your local gas authority. • DO NOT USE THIS APPLIANCE TO HEAT A BEDROOM, BATHROOM, TOILET, COMBINED LIVING/SLEEPING AREA OR SAUNA. -
Page 11: Checking Room Size
DO NOT use this appliance to heat a bedroom, bathroom, toilet, combined living/sleeping area or sauna. If you require more information regarding your local ventilation requirements contact Rinnai (see back page for contact details) or your local gas regulatory authority. NEED HELP GAS CONNECTION The bayonet plug on the factory fitted flexible hose simply plugs into your bayonet fitting. -
Page 12: How To Operate The Heater
Rooms may not arrive at the "SET" temperature due to the size and construction of the room, location of the appliance or external temperatures. NOTE If the appliance burner does not ignite then the room temperature may be higher than the “SET” temperature. * Remote Control not available with this model. Rinnai Operation Manual... -
Page 13: To Turn The Heater Off
Economy mode. To cancel Economy mode press the Economy button and the Economy indicator will go out to show that the economy mode has now been cancelled. * Remote Control not available with this model. Rinnai Operation Manual... -
Page 14: Timer Operation - Avenger & Dynamo
To lock in the new Timer 1 on and off timer programs and to exit the Clock setting and Timer programming mode without altering the Timer 2 settings press the Set Times NOTE button three times, otherwise continue to “PROGRAMMING TIMER 2” on page 13. Rinnai Operation Manual... -
Page 15: Programming Timer 2
To cancel timer(s) operation press the associated timer button(s). The indicator will go out to signify that the heater is now operating under manual control. Rinnai Operation Manual... -
Page 16: Preheat
Off time setting is reached. If the ON/OFF button or the STANDBY button on the remote control are pressed the heater will be turned off and the timer programs will not operate. NOTE Rinnai Operation Manual... -
Page 17: Timer Operation - * Enduro
The Off Timer and On Timers work independently of each other. However, if both timers are operating and the Delay On time period is 30 minutes, the Delay Off Timer will override the Delay On Timer. * Enduro Model is for Australia only. Rinnai Operation Manual... -
Page 18: Lock And Safety Devices
If the heater is knocked over, the tilt switch will cut the gas supply. The fan keeps cycling. Power failure In the event of a power failure or power cut, the gas valves will automatically close. * Remote Control not available with this model. Rinnai Operation Manual... -
Page 19: Care And Maintenance
If the power supply cord or any other component of the heater are damaged, they must be replaced by Rinnai or a suitably qualified person. Any service or repair work should only be carried out by an authorised person. Rinnai has service and spare parts departments nationally see back cover for contact details. -
Page 20: Trouble Shooting Checklist
CARE AND MAINTENANCE TROUBLE SHOOTING CHECKLIST Use the following chart to help determine whether a service call is required, however if you are unsure about the way your heater is operating, contact Rinnai or your local agent. Fault Condition Possible Remedy... -
Page 21: Specifications
WEIGHT AND MEASURES Dimensions (mm) Model Weight (Kg) Avenger 25 (RCE 671TR) 12.5 Dynamo 15 (RCE 471TR) Enduro 13 (RCE 371H) Refer to appliance data plate for Gas Type, Gas Rates, Burner Pressures and Injector Sizes. NOTE Rinnai Operation Manual... -
Page 22: Wiring Diagram
SPECIFICATIONS WIRING DIAGRAM BLOCK DIAGRAM Rinnai Operation Manual... - Page 23 This page intentionally blank.
-
Page 24: Contact Information
Tel: (03) 9271 6625 Fax: (03) 9271 6622 109713 Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance RC -671-41x08(00) requires service, please call our Service Line. Rinnai recommends that this appliance be serviced every 2 years.
