Summary of Contents for Fanimation FP4820PW The Cumulos
-

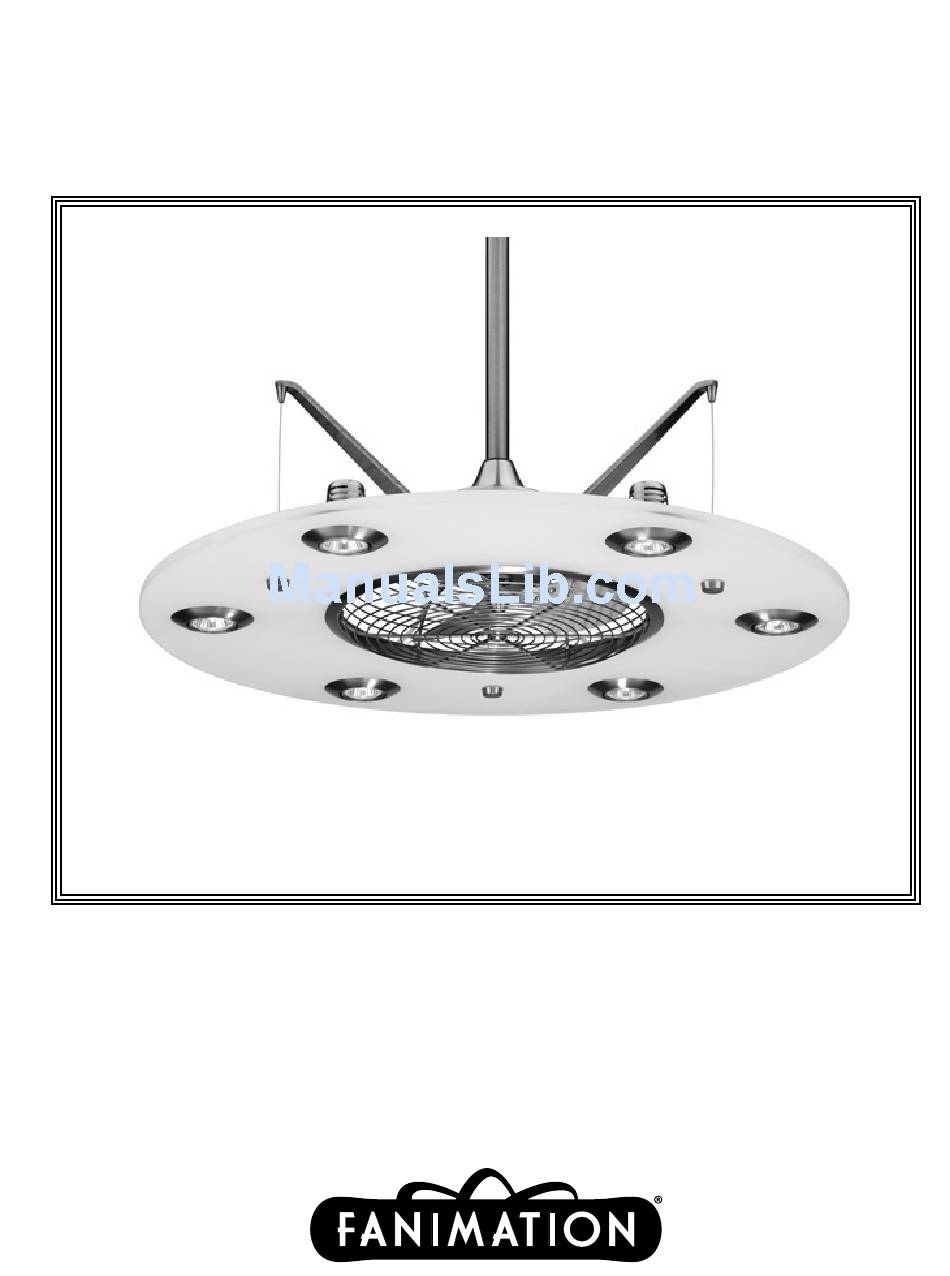

Page 1: Ceiling Fan
The Cumulos ™ Ceiling Fan Net Weight 10.66 kg (23.5 lbs) Model No. FP4820PW OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS... -
Page 2: Table Of Contents
Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation. -
Page 3: Tools Needed For Assembly
• Canopy Screw Cover Fanimation. Substitution of parts or accessories not • Motor Coupling Cover designated for use with this product by Fanimation could • Cable Support Arm (3) result in personal injury or property damage. Contact • Cable Retainer Assembly (3) your retail store for missing or damaged parts. -
Page 4: Electrical And Structural Requirements
Electrical and Structural Requirements Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. The outlet box must be securely anchored and capable of withstanding a load of at least 50 lbs. Figure 1 depicts Ceiling different structural configurations that may be used for mounting the outlet box. - Page 5 How to Assemble Your Ceiling Fan (cont’d) 3. Fasten Cable Retainer to Support Arm with screw provided, 3 places. (Figure 3) Figure 3 4. Remove the Hanger Ball by loosening the setscrew in the Hanger Ball until the ball falls freely down the Downrod.
-
Page 6: How To Hang Your Ceiling Fan
How to Assemble Your Ceiling Fan (cont’d) 9. While pulling up on the hanger ball, securely tighten the three setscrews in the downrod support. (Figure 5) Canopy NOTE: The setscrews must be properly installed as described above, or fan-wobble could result. 10. -
Page 7: How To Wire Your Ceiling Fan - C24 Remote Control
How to Hang Your Ceiling Fan (cont’d) 4. Carefully lift the fan and seat the downrod/hanger ball assembly on the hanger bracket that was just attached to the ceiling joist. Be sure the groove in the ball is lined up with tab on the hanger bracket. -
Page 8: Installing The Canopy Housing
Installing the Canopy Housing NOTE: This step is applicable after the necessary wiring is completed. ▲WARNING To avoid possible fire or shock, make sure that the spliced electrical wires are turned upward and completely pushed carefully up into the junction box and not pinched between the housing and the ceiling. -
Page 9: Replacing Light Bulbs
Replacing Light Bulbs ▲WARNING To prevent over-heating or electrical fi res, use ONLY 120 volt–20 watt, GU10 halogen bulbs as specifi ed. 1. Turn off power. 2. Remove burned-out bulb(s). By gently pressing upward on the bulb, twisting counter-clockwise and pulling out the bulb. -
Page 10: Parts List
Parts List Model #FP4820PW Ref. # Description Part # Hanger Bracket Assembly with Shoulder Screws (2) APG610BL Downrod/Hanger Ball Assembly Containing: Hanger Ball Assembly ADR1-6PW Downrod Hairpin Clip Clevis Pin Ceiling Canopy with Canopy Screw Cover PG165PW Motor Coupling Cover AP1115PW Fan Motor / Light Disc Assembly AMA4820PW... -
Page 11: Exploded-View Illustration
™ The Cumulos FP4820PW Exploded-View Figure 1 NOTE: The illustration shown is not to scale or its actual confi guration or fi nish may vary... - Page 12 10983 Bennett Parkway Zionsville, IN 46077 Toll Free (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website www.fanimation.com Copyright 2008 Fanimation 2008/11...
