StarTech.com USB2004EXTV Instruction Manual

Instruction Manual

4 Port USB 2.0 Extender over Cat5 (40m) or Cat6 (50m)
USB2004EXTV
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1x USB 2.0 Local Extender
• 1x USB 2.0 Remote Extender
• 1x Mini-USB to USB 2.0 A Cable – For Local Extender Unit
• 1x RJ45 Ethernet Cable
• 8x Rubber Feet
• 1x Universal Power Adapter (NA+JP/UK/EU/AUS) – For Remote
Extender Unit
• 1x Instruction Manual

System Requirements

• Available AC electrical outlet
• USB-enabled host computer with an available USB port
• RJ45 terminated Cat5 or higher Ethernet cabling
• Up to 4 USB peripheral devices
For the most up-to-date information, please visit: www.startech.com

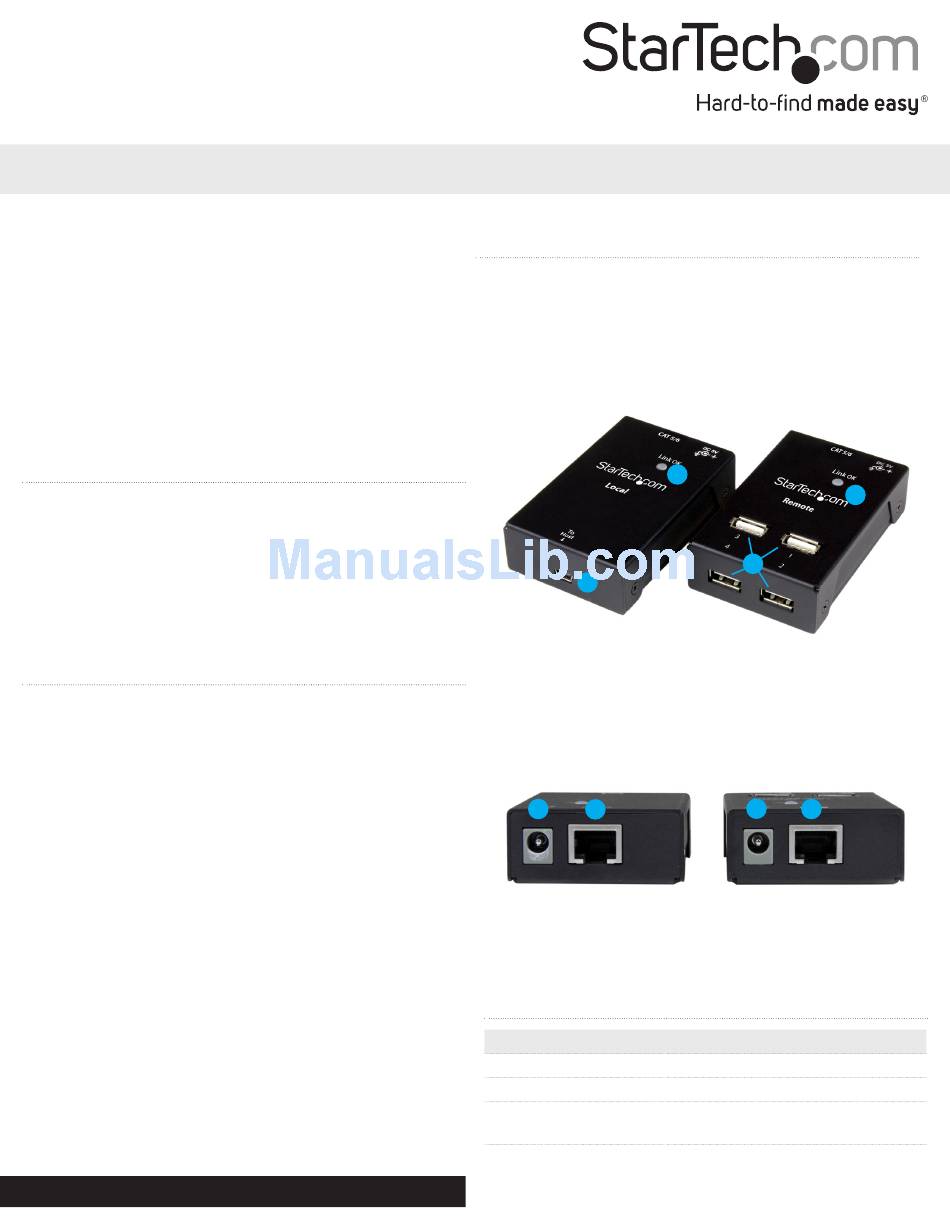

Product Overview

Front View

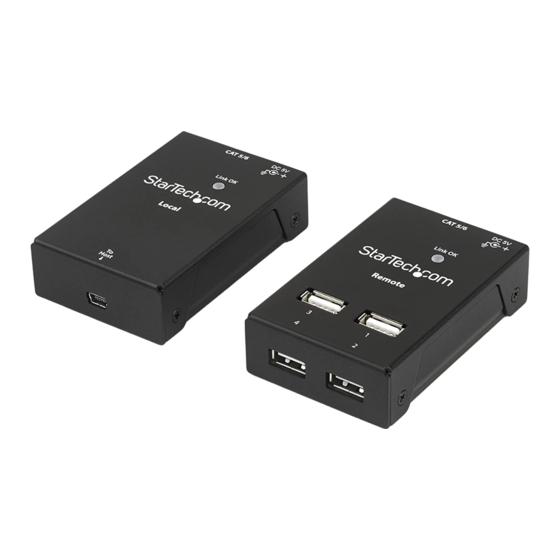

The Local Extender connects to your computer using the provided
Mini-USB to USB 2.0 A Cable and power is provided by your host
computer.
The Remote Extender provides four USB "A" ports for USB peripherals.
The Remote Extender is powered using the provided Universal
Power Adapter.
1
1. Local Extender Mini-USB 2.0 Host Port
2. Local Extender LED
3. Remote Extender USB "A" Peripheral Device Ports
4. Remote Extender LED
Rear View
1 2
1. Local Extender DC Power Input (Optional)
2. Local Extender RJ45 Link Port
3. Remote Extender DC Power Input
4. Remote Extender RJ45 Link Port

LED Indicators

LED Status
Off
Green
Blue (Remote Extender
Only)
2
4
3
*actual product may vary from photos
3 4
Indication
Power Off
Power On
Link Established
Manual Revision: 01/12/2015
