StarTech.com USB2004EXT100 Quick Start Manual

4 Port 100m USB 2.0 Extender over CAT5e

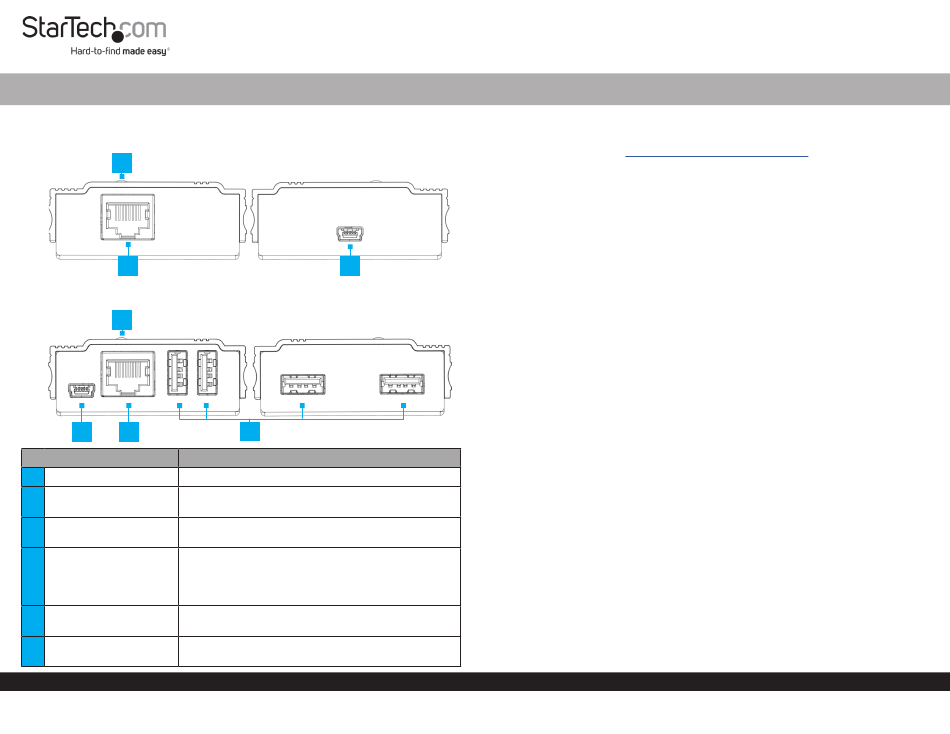

Product Diagram (USB2004EXT100)
Local Transmitter
1
2
Remote Receiver
4
5 2
Component
1
Status LED (Local)
•
RJ45 Link Port (Local/
•
2
Remote)
•
3 USB Mini-B Host Port
•
4 Status LED (Remote)
•
•
5
USB Mini-B Power Port
•
6 USB-A Port
3
6
Function
Green: The Local Transmitter is receiving power
Connect a Cat5e Cable (or better) between the
Local Transmitter and Remote Receiver
Connect the Local Extender to the Host Computer
using a USB-A to USB Mini-B Cable
Red: The Remote Receiver is receiving power but
not linked to the Local Transmitter
Blue: The Remote Receiver is receiving power and
linked to the Local Transmitter
Connect the Remote Receiver to the USB Power
Adapter using a USB-A to USB Mini-B Cable
Connect USB Peripheral Devices to the Remote
Receiver
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Product Information
For the latest product information, technical specifications, manuals, and Declarations
of Conformance please visit: www.StarTech.com/USB2004EXT100
Package Contents
Local Transmitter x 1
•
Remote Receiver x 1
•
USB-A to USB Mini-B Cables x 2
•
CAT5e Cable x 1
•
Universal Power Adapter (NA/JP, EU, UK, ANZ) x 1
•
Rubber Feet x 8
•
Quick-Start Guide x 1
•
Installation
Position the Local Transmitter near the Host Computer.
1.
Position the Remote Receiver near an AC Electrical Outlet.
2.
Connect a Cat5e Cable (or better) to the RJ45 Link Port on the Local Transmitter
3.
and the other end to the RJ45 Link Port on the Remote Receiver.
Note: The Cat5e Cabling cannot go through any networking equipment (router,
switch, etc.).
Connect USB Devices to the USB-A Ports on the Remote Receiver.
4.
Plug the Universal Power Adapter into the AC Electrical Outlet
5.
Connect the Universal Power Adapter to the USB Mini-B Power Port on the
6.
Remote Receiver using a USB-A to USB Mini-B Cable.
Connect the Host Computer to the USB Mini-B Host Port on the Local Transmitter
7.
using a USB-A to USB Mini-B Cable.
Quick-Start Guide
Manual Revision: June 1, 2021 9:14 AM
