StarTech.com USB2G4LEXT2 Quick Start Manual

Quick-start Guide

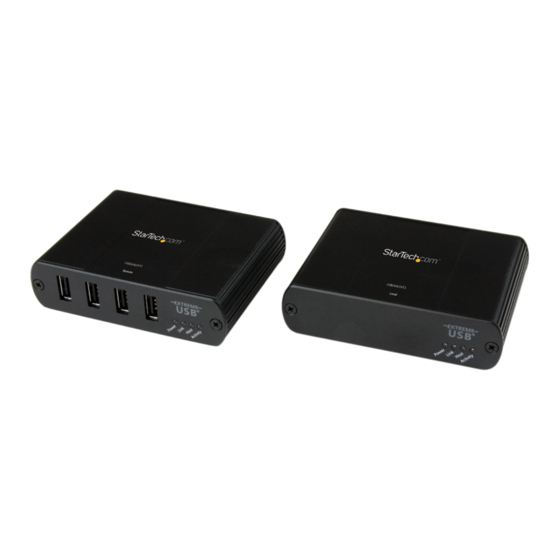

4 Port USB 2.0 Extender over Gigabit Ethernet or Cat5e, Cat6, or Cat7 Cabling - 100m (330ft)
USB2G4LEXT2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Package contents
• 1 x USB 2.0 extender local unit
• 1 x USB 2.0 extender remote unit
• 1 x USB cable
• 1 x mounting kit
• 1 x universal power adapter (NA, JP, EU, UK, ANZ)
• 1 x quick-start guide
System requirements
• Windows® 8 (32/64 bit), 7 (32/64 bit), Vista (32/64 bit), XP
(32/64 bit), 2000, Windows® Server 2012, 2008 R2, 2003 (32/64 bit),
Windows® CE 6.0, Mac OS 10.x and Linux
Installation
Note: Before you start, make sure that all the drivers required for
your USB device(s) are installed.
Network connect
1. Position the Local unit where you want it, and connect the Cat5e,
Cat6, or Cat7 patch cable to the Link port (RJ45) on the Local unit
and to a network switch or wall network port connected to a
switch.
Local extender (back view)
Max 100 m between network devices
2. Use the provided USB cable to connect the Local unit to a
computer.
Computer
For the most up-to-date information, please visit: www.startech.com
3. Position the Remote unit where you want it. Connect the Cat5e,
Cat6, or Cat7 patch cable to the Link port (RJ45) on the Remote
unit and to a network switch or wall network port connected to a
switch. Connect the Remote unit to a power source.
Remote extender (back view)
4. Attach USB device(s) to the Remote unit.
Remote extender (front view)
Direct Connect
1. Position the Local and Remote units where you want them, and
connect the Cat5e, Cat6, or Cat7 extension link cabling to the Link
ports (RJ45) on the Local and Remote units.
Local extender (back view)
Max 100 m (Cat5e, 6, or 7)
2. Use the provided USB cable to connect the Local unit to a
computer.
Computer
Remote extender (back view)
Manual Revision: 02/13/2017
