TYPHOON
PRESSURE WASHERS
OPERATOR MANUAL
Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: 01684 850777
Fax: 01684 850707
Email:
info@clemas.co.uk
Web:
www.clemas.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the TYPHOON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clemas & Co TYPHOON

Summary of Contents for Clemas & Co TYPHOON

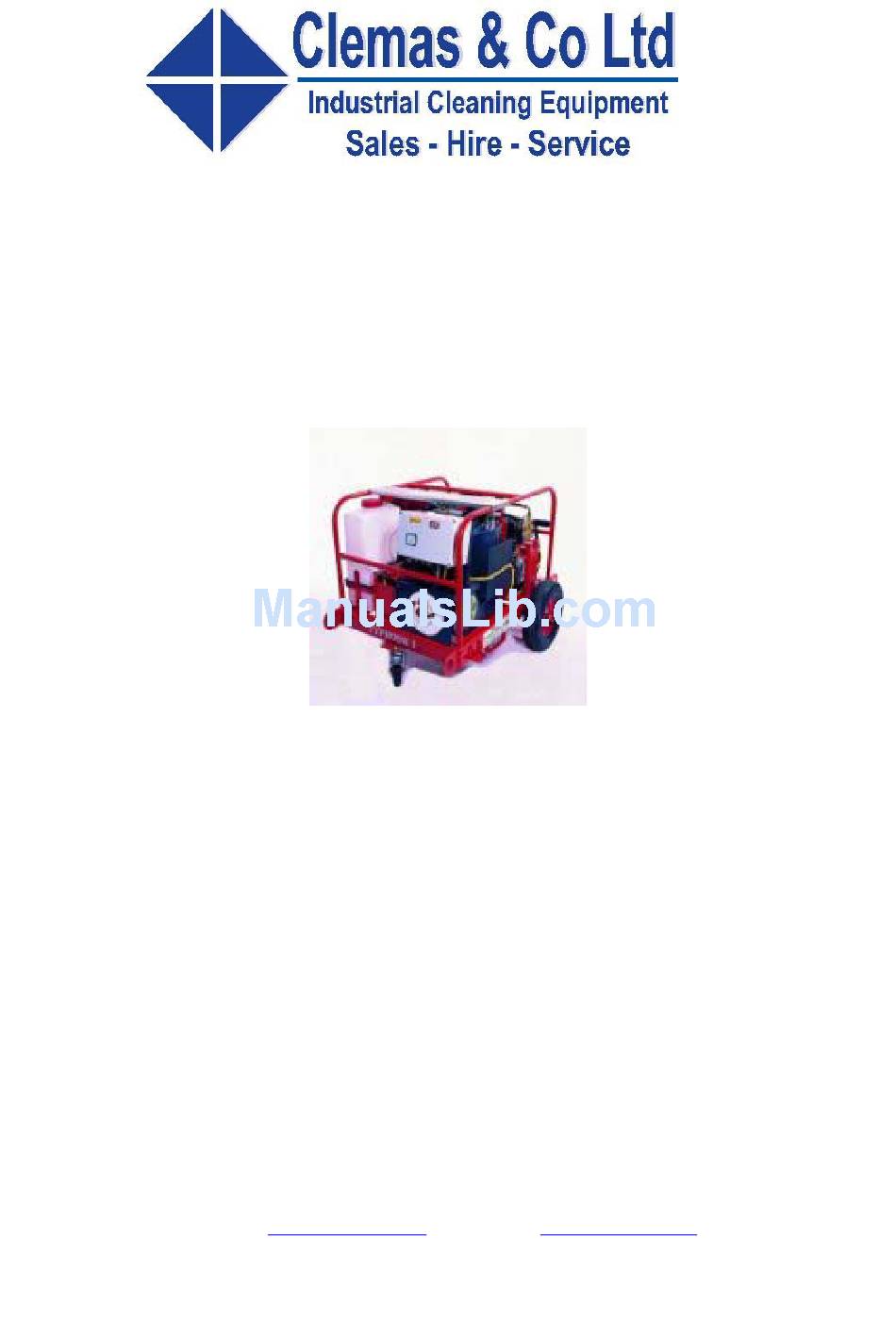

  • Page 1 TYPHOON PRESSURE WASHERS OPERATOR MANUAL Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...
