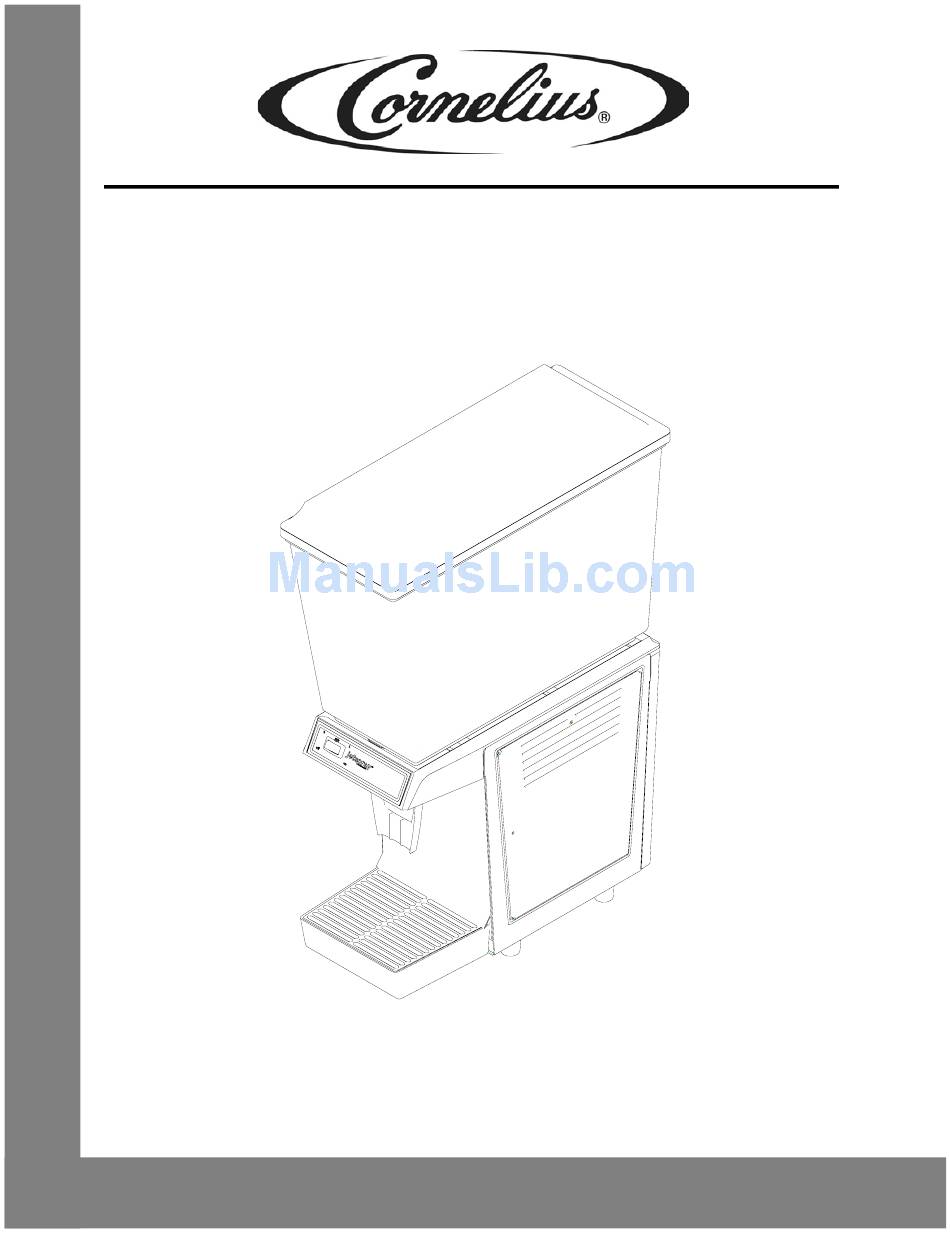

- Page 1 JetSpray Visual Display Dispenser JS7C Operator’s Manual Release Date: July 9, 2009 Publication Number: 620047630OPR Revision Date: November 23, 2009 Revision: B...
-
Page 2: Contact Information
Appropriate safety precautions should be followed and all local safety and construction requirements should be met. To inquire about current revisions of this and other documentation, or for assistance with any Cornelius product contact: www.cornelius.com... -
Page 3: Table Of Contents
Introduction ................1 Safety . -
Page 5: Introduction
• Do not let anyone operate the machine without proper training. This appliance is not intended for use by very young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. © 2009, IMI Cornelius Inc. - 1 - Publication Number: 620047630OPR... -
Page 6: Location
If a power cord is damaged, do not attempt to replace it. Take your unit to your nearest authorized service center for repair. A special tool is required to replace the cord. Publication Number: 620047630OPR - 2 - © 2009, IMI Cornelius Inc. -
Page 7: Water
WARNING - Dangerous voltages are present within the unit even if the power switch is turned off. Before attempting any adjustments inside the machine, turn the unit off and unplug it from the electrical receptacle. © 2009, IMI Cornelius Inc. - 3 -... -
Page 8: Installation And Operating Instructions
3. Turn bowl upside down and insert gasket into groove. Wet gasket for ease of insertion, pressing gas- ket into groove while following the number sequence (1 - 8) shown in Figure 2. Figure 2 Publication Number: 620047630OPR - 4 - © 2009, IMI Cornelius Inc. - Page 9 Figure 5 7. Replace push handle and pinch tube. a. Push the handle assembly straight up through the rectangular hole until the clips snap into place. (See Figure 6.) © 2009, IMI Cornelius Inc. - 5 - Publication Number: 620047630OPR...
-
Page 10: Operating Procedures
NOTE: If unit is to be used to dispense beverage from only one bowl, use right hand bowl, but add a gallon of water to left bowl to assure proper cooling. 3. The thermostat is preset at the factory and does not normally require resetting by owner. Publication Number: 620047630OPR - 6 - © 2009, IMI Cornelius Inc. -
Page 11: Frequent Maintenance Procedures
Replace the lid and run the unit for two or three minutes. Shut off the unit and drain the contents through the pinch tube valve. *Diversey-MultiChlor or equivalent powder or liquid sanitizer. CAUTION: DO NOT run the refrigeration system while sanitizing the unit. © 2009, IMI Cornelius Inc. - 7 - Publication Number: 620047630OPR... -
Page 12: Ventilation
High humidity causes condensation on the bowls. Be sure gasket has been installed properly. Check gasket for tears or cuts in the rubber.Tears cause leaks in the gasket. Remove and inspect pinch tube for holes. Publication Number: 620047630OPR - 8 - © 2009, IMI Cornelius Inc. - Page 13 START CAP. (50 HZ UNIT ONLY) COND. MOTOR MOTOR AGITATOR TERMINAL BOARD & WIRE MARKER LEGEND: WIRE MARKER CONNECTION OVERSEAS ONLY 115V 230 V Figure 11. Model JS7C Wiring Diagram © 2009, IMI Cornelius Inc. - 9 - Publication Number: 620047630OPR...
-
Page 14: Specifications
Machine Clearance: 6 inches - Rear 6 inches - Sides Open - Top Class of Windings: Compressor Motor - Class H (climatic rating: normal) Condenser Fan Motor - Class B Publication Number: 620047630OPR - 10 - © 2009, IMI Cornelius Inc. -
Page 15: Environment
Operator’s Manual Environment: Temperature: Operating: 60 F (16 C) to 110 F (43 Storage: Above 20 F (-7 C) with bowl empty and dry. Humidity: Below 95% © 2009, IMI Cornelius Inc. - 11 - Publication Number: 620047630OPR... -
Page 16: Warranty
Period of Warranty applicable to the original measured from the date of replacement. This Commercial Warranty does not include, and CORNELIUS will not assume or pay, the expense of travel time or mileage, any premium time of any party other than CORNELIUS; any repair, replacement, analysis or any other services or parts furnished by any party other than CORNELIUS unless specifically authorized in advance and in writing by CORNELIUS. - Page 17 Returned Goods Tag, properly filled out as to unit model number and serial number and detailed explanation of failure. Except for descriptions of size, quantity and type, which may appear on CORNELIUS' invoices and other written materials, and except for any statements of conformity of CORNELIUS' products with specifications of certain industry, government or professional organizations standards, which may appear as product information disclosures in CORNELIUS' literature and other documents from time to time.
- Page 18 Operator’s Manual Publication Number: 620047630OPR - 14 - © 2009, IMI Cornelius Inc.
- Page 20 IMI Cornelius Inc. www.cornelius.com...
