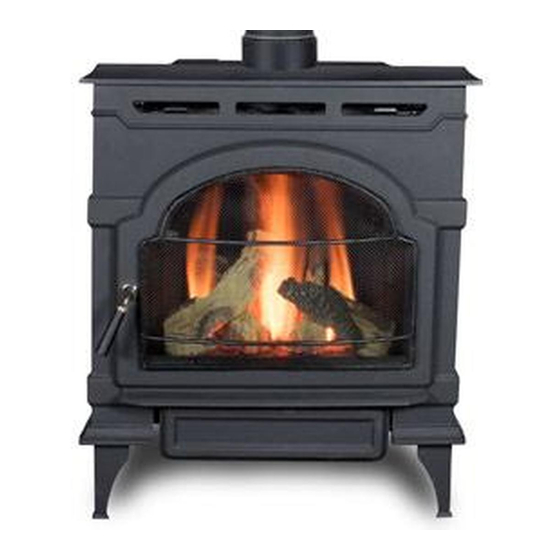

Oxford direct vent / natural vent gas heater
Table of Contents

Advertisement

INSTALLER/cONSUMER

SAFETY INFORMATION

pLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING AppLIANcE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
E x A c T LY,
A
ExpLOSION MAY RESULT
cAUSING pROpERTY DAMAGE,
pERSONAL INjURY OR LOSS
OF LIFE.
FOR YOUR SAFETY
Installation and service must
be performed by a qualified
installer, service agency or the
gas supplier.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch;
do not use any phone in your
building.
• Immediately call your gas supplier
from your neighbor's phone. Follow
the gas suppliers instructions.
• If you cannot reach your gas
supplier call the fire department.
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY
O F T H I S O R A N Y O T H E R
APPLIANCE.
This appliance may be installed in an after
market permanently located manufactured
(mobile) home where not prohibited by
local codes.
This appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases unless a certified kit is
used.
Oxford Direct Vent /
Natural Vent Gas Heater
Models: OxDV30NV
F I R E
O R
Homeowner's Installation
and Operating Manual
INSTALLER: Leave this manual with the appliance.
cONSUMER: Retain this manual for future reference.
5123
Oxford cover
30005123 1/13 Rev. 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OXDV30NV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vermont Castings OXDV30NV

  • Page 1: Safety Information

    Oxford Direct Vent / WARNING! Natural Vent Gas Heater IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED Models: OxDV30NV E x A c T LY, F I R E ExpLOSION MAY RESULT cAUSING pROpERTY DAMAGE, pERSONAL INjURY OR LOSS OF LIFE.
  • Page 2: Table Of Contents

    Table of contents pLEASE READ THE INSTALLATION & OpERATING INSTRUcTIONS BEFORE USING AppLIANcE. Thank you and congratulations on your purchase of an Vermont castings Group stove. IMpORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.
  • Page 3: General Information

    The Oxford Direct Vent/Natural Vent Room Heater, Model WARNING: Operation of this heater when not connected No. OXDV30NV, is a vented gas appliance listed to the ANSI to a properly installed and maintained venting system standard Z21.88-2009 and CSA-2.33-2009 for Vented Room can result in carbon monoxide (cO) poisoning and pos- Heaters, and CSA 2.17-M91, Gas-Fired Appliances For Use...
  • Page 4: Requirements For The Commonwealth Of Massachusetts

    Oxford Direct Vent / Natural Vent Gas Heater Installation Requirements Requirements for the commonwealth of Inspection Massachusetts The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the All gas fitting and installation of this heater shall only be installation unless, upon inspection, the inspector observes done by a licensed gas fitter or licensed plumber.
  • Page 5 Oxford Direct Vent / Natural Vent Gas Heater Oxford Direct Vent / Natural Vent Dimensions Refer to Page 6 for Flue Collar Centerline Dimensions 6 "  (172mm)  C  L  Valve Inlet  24 "  (622mm)  28 "  (721mm)  C  L  Valve   4 "  Inlet ...
  • Page 6: Installation Requirements

    Oxford Direct Vent / Natural Vent Gas Heater Installation Requirements The installation must conform with local codes or, in the Direct Vent System Only absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 - latest edition. (EXCEPTION: Do not derate this appliance for altitude.
  • Page 7: Parallel & Corner Installation

    Pipe Centerlines C: 15Z\x” (395 mm) Effective Minimum ST128c D: 9” (229 mm) ST128b Wall Thimble 57Z\x” (1461 mm) (Vermont Castings Group Fig. 3 Parallel installation, minimum back and side clearances Stardance Pipe) ST1121 and flue centerlines. Centerline 53Z\x” (1359 mm) (Simpson DuraVent Pipe)
  • Page 8: Gas Specifications

    Oxford Direct Vent / Natural Vent Gas Heater Horizontal Termination - Gas Specifications Direct Vent ONLY Max. Min. Input Input The vent must rise vertically a minimum of 24” (610 mm) Model Fuel Gas control BTU/h BTU/h off the top of the unit, before the first elbow. The horizontal 2465 Millivolt 28,000...
  • Page 9: Vertical Termination - Direct Vent Only

    Oxford Direct Vent / Natural Vent Gas Heater Vent Termination clearances Vertical Termination - Direct Vent ONLY When planning the installation, consider the location of A vertical vent system must terminate no less than 8’ (2.44 m) and no more than 40’ (12 m) above the appli- the vent terminal and clearances.
  • Page 10 Do not locate termination hood where excessive snow or ice build up may occur. Be sure to check vent termina- • Only Vermont castings Group and Duravent vent- tion area after snow falls, and clear to prevent accidental ing components specifically approved and labelled blockage of venting system.
  • Page 11: General Venting Information - Termination Location

    2. The special venting system used on Direct Vent appliances are certified as part of the appliance, with clearances tested and approved by the listing agency. 3.Vermont Castings Group assumes no responsibility for the improper performance of the appliance when the venting system does not meet these requirements.
  • Page 12: Termination Clearances

    Oxford Direct Vent / Natural Vent Gas Heater Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Alcove Applications* Outside Corner Combustible 6" (152 mm) Combustible 6" (152 mm) Noncombustible 2" (51 mm) Noncombustible 2" (51 mm) Balcony - Balcony - with no side wall...
  • Page 13: Venting Requirements And Options - Direct Vent Only

    These parts are available from DuraVent Cor- Vertical Termination Kit, 7/12-12/12 pitch 7TDVSKVB poration or your Vermont Castings Group Dealer. (1) 7/12 - 12/12 Flashing Refer to Figure 4 for dimensions relevant to the standard mini- and all of the other Vertical Termination parts.
  • Page 14: Install The Optional Fan

    Oxford Direct Vent / Natural Vent Gas Heater • Remove retaining nut from shaft of rheostat. (if pre- Install the Optional Fan installed) If you are installing the optional convection Fan Kit #2767 • Insert the rheostat through the hole in the back of (FK26), continue here.
  • Page 15: Venting System Assembly - Direct Vent

    First Section of Vent Pipe Install the Vent Adapter pipe #8 x 1/2” Sheet (Vermont castings Group Vent components) Metal Screws 1. Install the Restrictor plate. Consult the ‘Vent Run Specifications’ on Page 8 to determine whether the restrictor plate is needed. If so, put the restrictor plate 4”...
  • Page 16: Dura-Vent Components)

    Figure 22. slide the inner section out to allow access. • Run a bead of sealant around the bottom end of the Vermont castings Group System starter pipe and attach the assembly to the stove using 9C\,”...
  • Page 17 Fasten wall plate to wall. 4. For Vermont Castings Group Vent Pipe only: If nec- essary, measure to determine the vertical length (X) of pipe required from the adapter pipe to the wall cutout ST215 centerline, including a 2”...
  • Page 18: Vent Termination Below Grade

    2. Plumb to the center of the inner (4”) flue collar from the ceiling above, and mark that location. 3. cut the opening: 4” Clearance Vermont castings Group System: 9C\,” x 9C\,” (240 x 240 mm) Gravel DuraVent System: 10” x 10” (254 x 254 mm) 4.
  • Page 19: Venting System Assembly - Natural Vent

    The heater is approved for installation as a Natural Vent. overall height. Vermont Castings Group Direct Vent pipe could be used 11. Apply cement to the inner and outer termination col- directly after the Draft Hood Adapter up to the ceiling, lars and install the terminal cap.
  • Page 20: Install The Log Set

    Oxford Direct Vent / Natural Vent Gas Heater Attach the first section of venting to the draft hood. De- Left Log pending on the length of the individual venting sections Right Log and the lengths of the decorative pipe (if installed), you may need to slip the decorative pipe over the venting sec- tions before attaching upper sections to lower ones.
  • Page 21: Burner Information

    Oxford Direct Vent / Natural Vent Gas Heater In the U.S.; Gas connection should be made in accor- Air Shutter Adjustment Instructions dance with current National Fuel Gas Code, ANSI Z223.1/ NFPA 54. Since some municipalities have additional local To adjust the air shutter, the following procedures should codes, be sure to consult your local authority.
  • Page 22: Complete The Assembly

    Oxford Direct Vent / Natural Vent Gas Heater 8. The air shutter is located on the bottom of the burner Should color need further adjustment, repeat steps 1 to the left. (Fig. 37) Unfasten the two nuts holding the - 12 for air shutter adjustment. shutter in place.
  • Page 23: Thermostat Connection (Optional)

    Oxford Direct Vent / Natural Vent Gas Heater Thermostat connection (optional) Use only a thermostat rated for 500 millivolts. Check the table below for the appropriate gauge thermo- stat wire to use for the length of lead required in your in- stallation.
  • Page 24: Operation

    Oxford Direct Vent / Natural Vent Gas Heater Operation Your First Fire Flame & Temperature Adjustment Read these instructions carefully and familiarize yourself For stoves equipped with HI/LO valves, flame adjustment with the burner controls. Locate the pilot assembly, Figure is accomplished by rotating the HI/LO adjustment knob 45.
  • Page 25: Lighting And Operating Instructions

    Oxford Direct Vent / Natural Vent Gas Heater Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.
  • Page 26: Troubleshooting - Sit Nova 820 Gas Control System

    Oxford Direct Vent / Natural Vent Gas Heater Troubleshooting the Gas control System SIT NOVA 820 MILLIVOLT VALVE NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position. Symptom possible causes corrective Action 1.
  • Page 27: Fuel Conversion Instructions

    Oxford Direct Vent / Natural Vent Gas Heater Fuel conversion Instructions WARNING! This conversion kit shall be installed Remove Screws Rear Log Bracket by a qualified service agency in accordance with the manufacturer’s instructions and all applicable Pilot codes and requirements of the authority having ju- risdiction.
  • Page 28 Oxford Direct Vent / Natural Vent Gas Heater pilot type 2 • Loosen pilot hood turning counterclockwise using a 7/16” wrench. (Fig. 54) NOTE: You may use pene- trating oil to prevent pilot hood threads from seizing • Remove pilot orifice with needlenose pliers. (Fig. 55) NOTE: Use a wrench to hold pilot tube in place while removing the orifice.
  • Page 29 Oxford Direct Vent / Natural Vent Gas Heater 23.Reinstall the right and left log bracket assembly. Left Burner Leg 24.Reinstall the rear log bracket. 25.Replace logs. Injector Shoulder 26.Replace glass and stove front. Conversion is complete. 90° ST353 Fig. 56 Be sure to maintain 90° angle at left burner leg. ST353 air shutter adjust burner replace...
  • Page 30: Maintenance

    6. Replace the glass panel and frame assembly. Glass Replacement 7. Replace the Stove Front. Replace glass only with Vermont Castings Group ap- proved parts. Refer to Page 33 for Replacement Parts. Refer to Figure 58 and previous instructions for removal of the damaged glass frame.
  • Page 31: Gasket Replacement

    Oxford Direct Vent / Natural Vent Gas Heater Inspect the Vent System Annually Have the vent system inspected annually by a qualified technician. Shut off the main gas supply before inspect- ing the system. Both the inner exhaust pipe and the outer combustion supply pipe must be checked to confirm that they are unblocked and in good condition.
  • Page 32: Wiring Diagram

    Oxford Direct Vent / Natural Vent Gas Heater Wiring Diagrams POWER On/Off Switch Wiring CORD Chassis TP/TH Ground Millivolt Gas Valve Black ST124b Thermostat Optional Thermostat FAN JUNCTION BOX (Optional) Thermostat (Optional) Wiring St124b Strain Relief on/off/switch ON / OFF TP/TH Rheostat wiring...
  • Page 33: Replacement Parts

    8  11  15a,b, 31  36a,b Vermont Castings Group reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. 5123 Oxford Direct Vent / Natural Vent Gas Heater Oxford parts Models OxDV30NV Ref.
  • Page 34 Bracket Piezo Ignitor (not shown) 20010876 *Magnet, Control Door (not shown) 1408818 *Use common super glue or silicone to attach magnets. Fuel conversion Kits Conversion Kit, NG to LP - OXDV30NV Kit #30005154 Conversion Kit, LP to NG - OXDV30PV Kit #30005155 30005123...
  • Page 35: Optional Accessories

    Oxford Direct Vent / Natural Vent Gas Heater Optional Accessories Fan Kits Remote controls FK26 Fan The remote control allows you to turn the heater on or off from anywhere in the room. Refer to Page 32 for wiring The FK26 fan helps distribute heated air from within diagrams.
  • Page 36 Oxford Direct Vent / Natural Vent Gas Heater 30005123...
  • Page 37 Oxford Direct Vent / Natural Vent Gas Heater 30005123...
  • Page 38 Oxford Direct Vent / Natural Vent Gas Heater 30005123...
  • Page 39: Warranty

    Oxford Direct Vent / Natural Vent Gas Heater LIMITED LIFETIME WARRANTY PRODUCT COVERED BY THIS WARRANTY All Vermont Castings Group gas stoves equipped with an Insta-Flame Ceramic Burner. BASIc WARRANTY Vermont Castings Group (hereinafter referred to collectively as the • Any part and/or component replaced under the provisions of this war-...
  • Page 40: Energuide

    Based on CSA P.4.1-09 Selon CSA P.4.1-09 Nous recommandons que nos appareils de chauffage au gaz soient installés et entretenus par Vermont castings Group des professionnels qui ont été 149 Cleveland Drive • Paris, Kentucky 40361 accrédités aux È.U. par le National www.vermontcastingsgroup.com Fireplace Institute ®...
