Maintenance - Excel Galaxy II User Manual

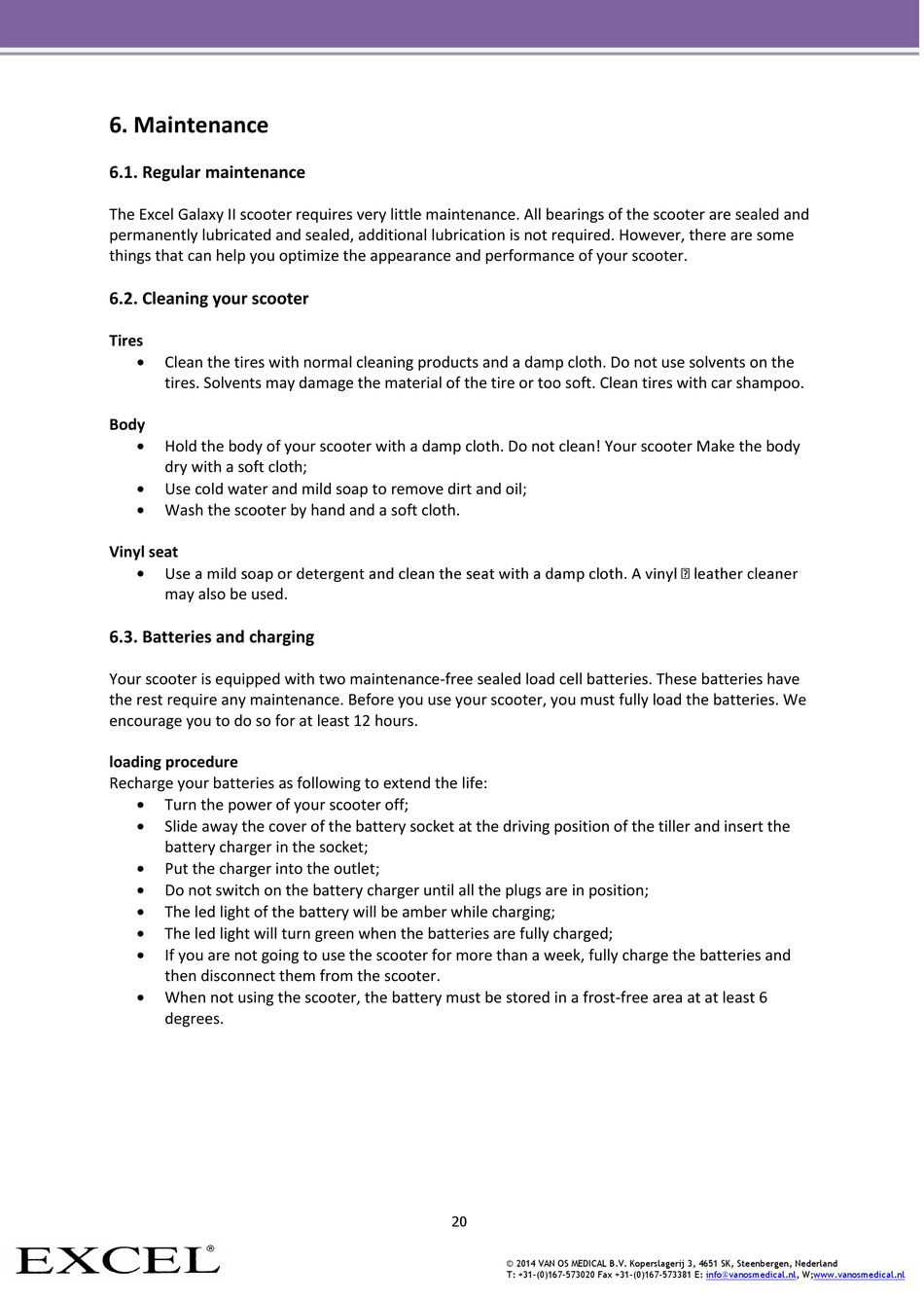

6. Maintenance

6.1. Regular maintenance
The Excel Galaxy II scooter requires very little maintenance. All bearings of the scooter are sealed and
permanently lubricated and sealed, additional lubrication is not required. However, there are some
things that can help you optimize the appearance and performance of your scooter.
6.2. Cleaning your scooter
Tires

Clean the tires with normal cleaning products and a damp cloth. Do not use solvents on the
tires. Solvents may damage the material of the tire or too soft. Clean tires with car shampoo.
Body

Hold the body of your scooter with a damp cloth. Do not clean! Your scooter Make the body
dry with a soft cloth;

Use cold water and mild soap to remove dirt and oil;

Wash the scooter by hand and a soft cloth.
Vinyl seat

may also be used.
6.3. Batteries and charging
Your scooter is equipped with two maintenance-free sealed load cell batteries. These batteries have
the rest require any maintenance. Before you use your scooter, you must fully load the batteries. We
encourage you to do so for at least 12 hours.
loading procedure
Recharge your batteries as following to extend the life:

Turn the power of your scooter off;

Slide away the cover of the battery socket at the driving position of the tiller and insert the
battery charger in the socket;

Put the charger into the outlet;

Do not switch on the battery charger until all the plugs are in position;

The led light of the battery will be amber while charging;

The led light will turn green when the batteries are fully charged;

If you are not going to use the scooter for more than a week, fully charge the batteries and
then disconnect them from the scooter.

When not using the scooter, the battery must be stored in a frost-free area at at least 6
degrees.
20
