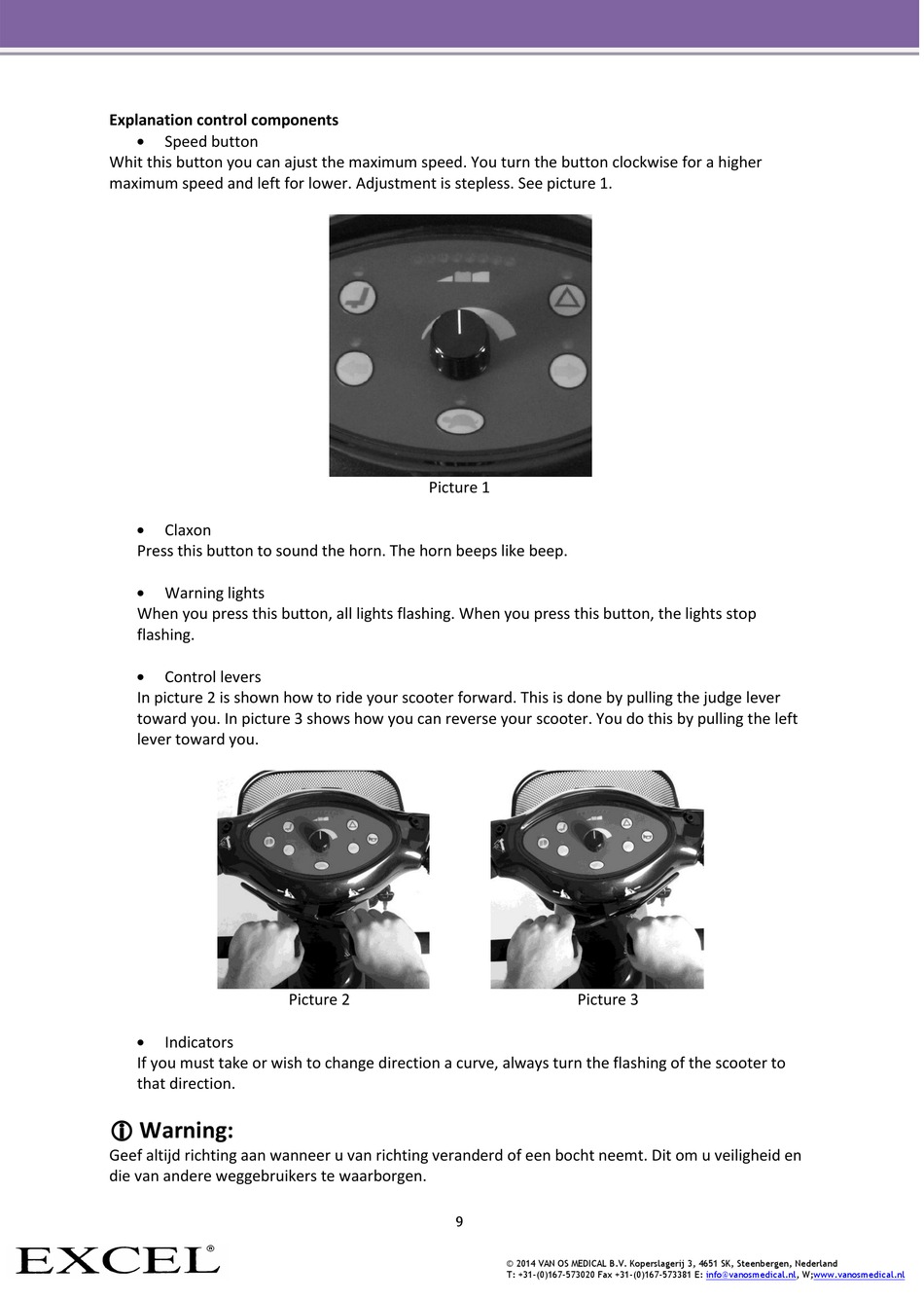

Explanation control components
Speed button
Whit this button you can ajust the maximum speed. You turn the button clockwise for a higher
maximum speed and left for lower. Adjustment is stepless. See picture 1.
Claxon
Press this button to sound the horn. The horn beeps like beep.
Warning lights
When you press this button, all lights flashing. When you press this button, the lights stop
flashing.
Control levers
In picture 2 is shown how to ride your scooter forward. This is done by pulling the judge lever
toward you. In picture 3 shows how you can reverse your scooter. You do this by pulling the left
lever toward you.
Indicators
If you must take or wish to change direction a curve, always turn the flashing of the scooter to
that direction.
Warning:
Geef altijd richting aan wanneer u van richting veranderd of een bocht neemt. Dit om u veiligheid en
die van andere weggebruikers te waarborgen.
Picture 1
Picture 2
9
Picture 3
© 2014 VAN OS MEDICAL B.V. Koperslagerij 3, 4651 SK, Steenbergen, Nederland
T: +31-(0)167-573020 Fax +31-(0)167-573381 E: info@vanosmedical.nl,
W;www.vanosmedical.nl
