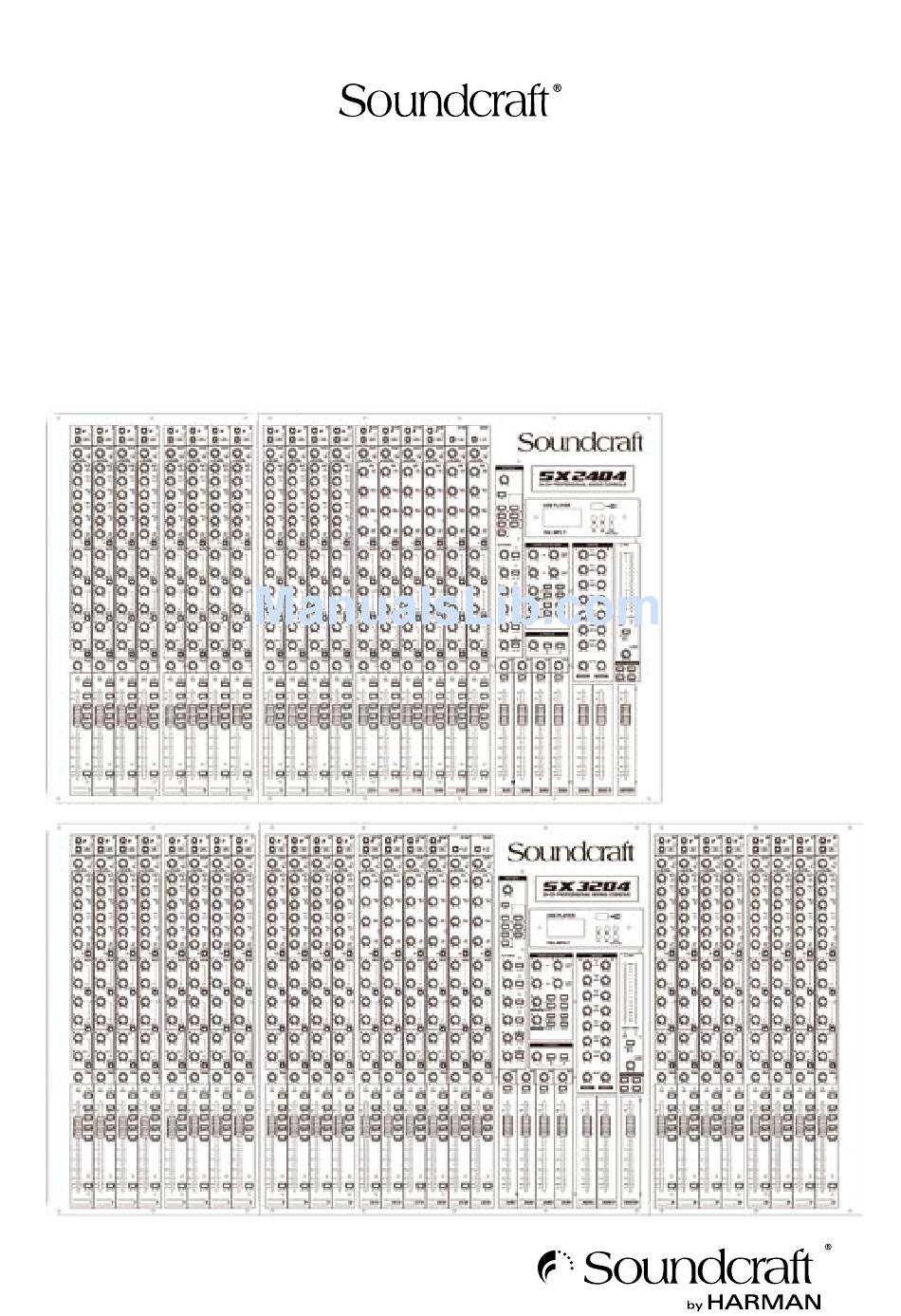

- Page 1 SX SERIES PROFESSIONAL MIXING CONSOLE SX2404 / SX3204 User Guide V1.0...
- Page 2 Soundcraft shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
-
Page 3: Table Of Contents
3.1 OVERVIEW ..............................8 3.2 FRONT PANEL ............................... 9 3.3 REAR PANEL ..............................12 4. USB PLAYER ..........................15 5. WIRING UP ..........................16 6. BLOCK DIAGRAM ........................18 7. SPECIFICATIONS .........................19 7. SPECIFICATIONS .........................20 8. WARRANTY ...........................21 Soundcraft SX Series User Guide V1.0... -
Page 4: Important Safety Instructions
NOTE: It is recommended that all maintenance and service on the product should be carried out by Soundcraft or its authorised agents. Soundcraft cannot accept any liability whatsoever for any loss or damage caused by service, maintenance or repair by unauthor- ised personnel. -
Page 5: Safety Symbol Guide
NOTES Contain important information and useful tips on the operation of your equipment. HEADPHONES SAFETY WARNING Contain important information and useful tips on headphone outputs and monitoring levels. Soundcraft SX Series User Guide V1.0... -
Page 6: Introduction
1. INTRODUCTION Thank you for purchasing the SX Series mixing console. SX2404/SX3204 are available for 24/32 channels. Your SX Series is a remarkable compact mixer that doesn’t find many equals in the market today, with 18/26 MIC and 6 Stereo Line-level inputs for serious live performances. There is a 2-band fixed and 2-band sweep EQ on mono channels, 4-band fixed EQ on stereo channels. -
Page 7: Hookup Diagram
2. HOOKUP DIAGRAM Soundcraft SX Series User Guide V1.0... -
Page 8: Sx Series Controls
3. SX SERIES CONTROLS 3.1 OVERVIEW MONO/STEREO MONO INPUT MASTER SECTION INPUT MONO INPUT Soundcraft SX Series User Guide V1.0... -
Page 9: Front Panel
9- HI-MID This control gives you up to 15 dB boost or cut at 3 kHz. It is useful for controlling voice. It can accurately polish your performance via adjusting this knob. Soundcraft SX Series User Guide V1.0... - Page 10 PAN to completely left, then the signal can be only controlled by Subgroup1 and vice versa. In the same way, pressing the SUB3-4 or MAIN L/R will assign the channel signal to Subgroup 3/4 or MAIN MIX L/R, and will also be affected by PAN. Soundcraft SX Series User Guide V1.0...
- Page 11 This LED indicates that the one or more SOLO button have been activated. When this LED is on, the METERS indicates the level of the signal of the selected channel or mixer section in AFL mode. Soundcraft SX Series User Guide V1.0...
-
Page 12: Rear Panel
Before turning phantom power on, make sure that all faders are totally down. In this way, you will protect your stage monitors and main loudspeakers. LINE IN 4 BAL/UNBAL INSERT Soundcraft SX Series User Guide V1.0 DIRECT OUT... - Page 13 MIC18 3- MONO CHANNEL INSERT This is where you connect external sound processors such as compressor-limiter, equalizers, etc.. MONO channel inserts are available for mono channels 1-12 for SX2404 (mono channels LINE IN 23 LEFT 1-12 and 25-32 for SX3204)
- Page 14 This 1/4” phone jack is used to send out the signal from CENTER Bus to Main MIX, and it is con- trolled by CENTER Fader. 23- MATRIX JACKS These two balanced TRS jacks are for MATRIX A & B output. Soundcraft SX Series User Guide V1.0...
-
Page 15: Usb Player
When the player is searching for USB tracks, the interface is as left shown: When the player is in pause state, the interface is as left shown: When the player is in use, the interface is as left shown: Soundcraft SX Series User Guide V1.0... -
Page 16: Wiring Up
Ring=Right Signal Ring Tip=Left Signal Strain Clamp Sleeve=Ground/Screen Use for Headphone 1/4" Stereo (TRS) Jack Plug Sleeve Tip=Signal Strain Clamp Sleeve=Ground/Screen Use for Mono Line In, Mono 1/4"Jack Plugs 1/4" Mono (TS) Jack Plug Soundcraft SX Series User Guide V1.0... - Page 17 To Channel Insert Ring=Return Signal Ring Sleeve To Processor Output Y-Stereo lead for insert Connection (To be used when the processor does not employ a single jack connection for the In/Out Connections) USB Connection Soundcraft SX Series User Guide V1.0...
-
Page 18: Block Diagram
6. BLOCK DIAGRAM Soundcraft SX Series User Guide V1.0... -
Page 19: Specifications
+/-15dB @12 kHz MID HI-bell(STEREO) +/-12dB @3 kHz MID-bell(MONO) +/-12dB frequency range 100Hz - 8KHz MID LOW-bell(STEREO) +/-12dB @ 500hz Bass-shelving +/-15dB @ 80Hz Hi Pass Filter Slope -18dB/Oct. @75Hz Power Supply Power Supply 100-240V~50/60Hz Soundcraft SX Series User Guide V1.0... -
Page 20: Specifications
7. SPECIFICATIONS Weights and Dimensions SX2404 14.1Kg/31.1Lbs SX3204 18.5Kg/40.8Lbs 183.60 mm (7.23 in) 44.72 mm (1.76 in) 510.87 mm (20.11 in) SX2404: 512.40 mm (20.17 in) SX3204: 1022.40 mm (40.25 in) Soundcraft SX Series User Guide V1.0... -
Page 21: Warranty
The Equipment has been properly installed in accordance with instructions contained in Soundcraft’s manual. b). The End User has notified Soundcraft or the Dealer within 14 days of the defect appear- ing. c). No persons other than authorised representatives of Soundcraft or the Dealer have ef- fected any replacement of parts maintenance adjustments or repairs to the Equipment. - Page 22 Soundcraft Harman International Industries Ltd Cranborne House Cranborne Road Potters Bar Herts. EN6 3JN United Kingdom +44 (0)1707 665000 www.soundcraft.com...
