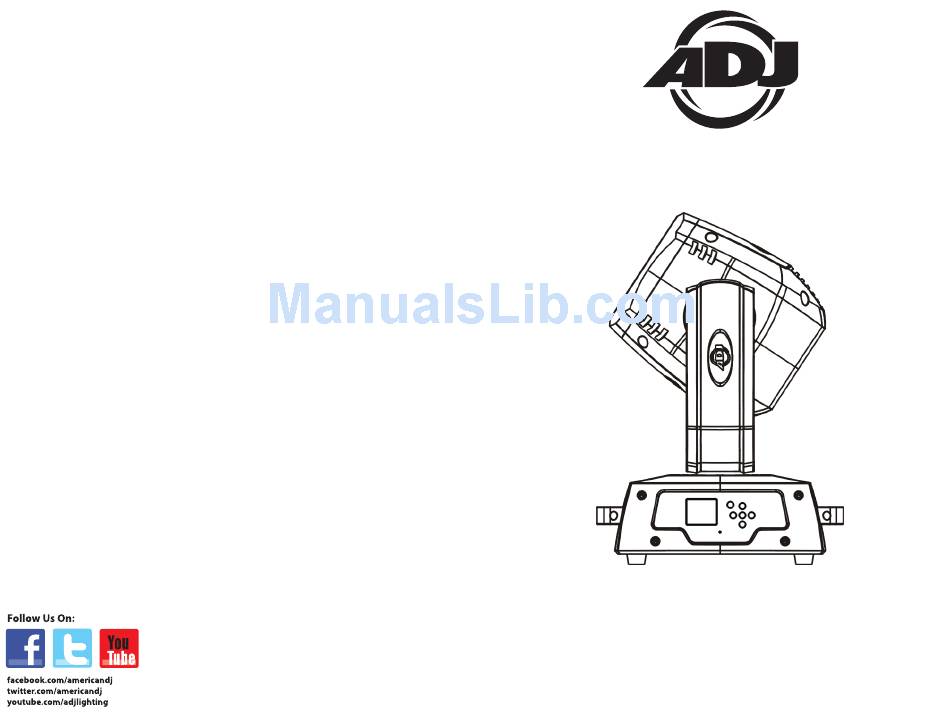

  • Page 1 Vizi Beam Hybrid 2R ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@americandj.com User Instructions A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 Rev.
  • Page 2 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 57...

  • Page 3: Table Of Contents

    Trouble Shooting...............55 Warranty.................56 Specifications..............57 Please see page 7 for important lamp instructions! ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 57 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 2...

  • Page 4: Unpacking

    In the event damage has been found at 800-322-6337 . S end t he product onl y to the ADJ Products, LL C fac tory. All or parts are missing, please contact our toll free customer support shipping charges must be pre-paid.

  • Page 5: Safety Precautions

    C. The appliance does not appear to operate normally or exhibits a marked change in performance. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 55 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 4...

  • Page 6: Features

    The fuse holder has a built-in socket for a spare fuse be sure not to confuse the spare fuse with active fuse. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 5 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 54...

  • Page 7: Handling Precautions

    R.A. number on the outside of the package will be returned to the shipper at the shippers cost. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 53 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 6...

  • Page 8: Important Discharge Lamp Warnings

    See page 22 to Clear the lamp time. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 7 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 52...

  • Page 9: Mounting

    Never use the carrying handles for secondary attachment. 144 - 151 MACRO 3 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 51 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 8...
  • Page 10 GOBO 4 carabine and tighten the safety screw. 40 - 47 GOBO 5 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 9 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 50...

  • Page 11: Controls And Functions

    220 - 239 INTERNAL PROGRAM 7 240 - 255 SOUND ACTIVE PROGRAM ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 49 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 10...
  • Page 12 12. XLR DMX Input Jack - This jack is used to receive an incoming 246 - 255 NO FUNCTION ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 11 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 48...
  • Page 13 DMX signal to another DMX fixture, or transmit a Master/Slave signal 72 - 79 GOBO 9 to the next Vizi Beam Hybrid 2R in the chain. For best results in DMX or 80 - 87 GOBO 10 Master/Slave mode terminate this jack if it is the last unit in the chain.

  • Page 14: Dmx Set-Up

    Operation): The Vizi Beam Hybrid 2R can be controlled via DMX-512 SLOW - FAST protocol. The Vizi Beam Hybrid 2R can be either a 10, 12, or 16 channel GOBOS DMX unit. The DMX address is set electronically using the controls on...
  • Page 15 120 Ohm 1/4 W) between PIN 2 (DMX-) Figure 4 and PIN 3 (DMX +) of the last fixture. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 45 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 14...
  • Page 16 0 - 19 COLOR CHANGE NORMAL 20 - 29 COLOR CHANGE TO ANY POSITION ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 15 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 44...

  • Page 17: System Menu

    200 - 207 MACRO 10 Input By Exterior Rec. Controller XX~XX Automat. scenes rec ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 43 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 16...
  • Page 18 4. Press the MODE/ESC button to exit. 80 - 87 GOBO 10 88 - 95 GOBO 11 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 17 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 42...

  • Page 19: Operation

    3. Either “Master” or “Alone” will be displayed. Use the UP or DOWN buttons to change the operating mode. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 41 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 18...
  • Page 20 3. Either “Master” or “Alone” will be displayed. Using the UP or ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 19 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 40...
  • Page 21 2. Press the UP or DOWN buttons until “Time Information” is dis- played, press ENTER. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 39 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 20...
  • Page 22 (sensor failed or magnet is Lamp Time Password - This will display the lamp timer password. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 21 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 38...
  • Page 23 2. Press the UP or DOWN buttons until “Temperature Info” is dis- played, press ENTER. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 37 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 22...
  • Page 24 UP or DOWN buttons so that “Lamp Control” is highlighted, then directly from the fixture’s control board. Programs can be created ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 23 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 36...
  • Page 25 3. Either “Off” or “On” will be displayed, use the UP and DOWN but- Calibration - With this function you can calibrate and adjust the ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 24 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 35...
  • Page 26 ENTER. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 25 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 34...
  • Page 27 2. Press the UP or DOWN buttons until “Reset Pan/Tilt” is dis- ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 33 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 26...
  • Page 28 UP or DOWN buttons so that “Personality” is highlighted, then press press ENTER. ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 27 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 32...
  • Page 29 4. Either “Off” or “On” will be displayed, use the UP and DOWN but- ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 28 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 31...
  • Page 30 1. Press the MODE/ESC button to access the main menu. Press the ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 29 ADJ Products, LLC - www.adj.com - Vizi Beam Hybrid 2R Instruction Manual Page 30...
