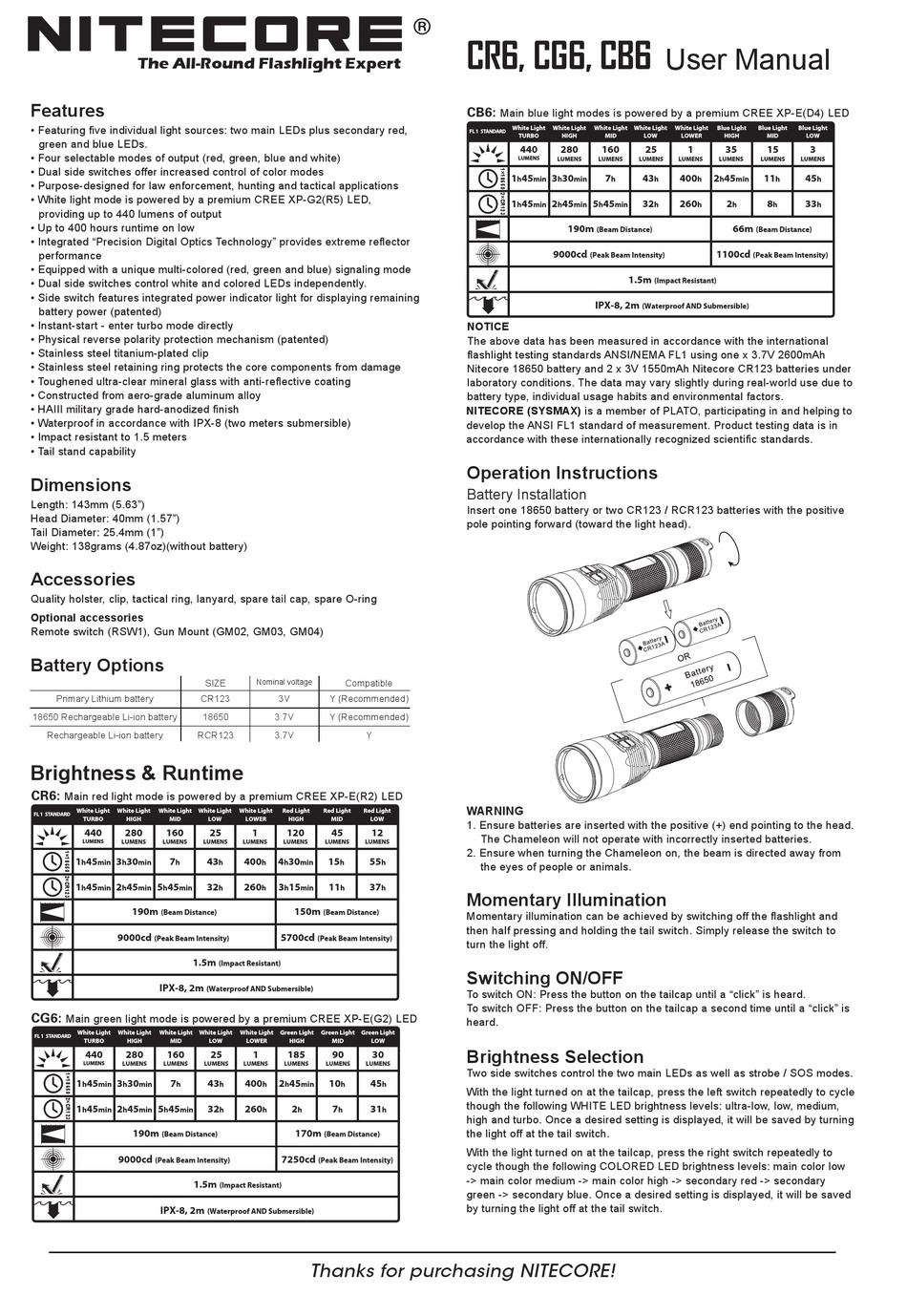

Nitecore CR6 User Manual

The All-Round Flashlight Expert
Features
• Featuring five individual light sources: two main LEDs plus secondary red,
green and blue LEDs.
• Four selectable modes of output (red, green, blue and white)
• Dual side switches offer increased control of color modes
• Purpose-designed for law enforcement, hunting and tactical applications
• White light mode is powered by a premium CREE XP-G2(R5) LED,
providing up to 440 lumens of output
• Up to 400 hours runtime on low
• Integrated "Precision Digital Optics Technology" provides extreme reflector
performance
• Equipped with a unique multi-colored (red, green and blue) signaling mode
• Dual side switches control white and colored LEDs independently.
• Side switch features integrated power indicator light for displaying remaining
battery power (patented)
• Instant-start - enter turbo mode directly
• Physical reverse polarity protection mechanism (patented)
• Stainless steel titanium-plated clip
• Stainless steel retaining ring protects the core components from damage
• Toughened ultra-clear mineral glass with anti-reflective coating
• Constructed from aero-grade aluminum alloy
• HAIII military grade hard-anodized finish
• Waterproof in accordance with IPX-8 (two meters submersible)
• Impact resistant to 1.5 meters
• Tail stand capability
Dimensions
Length: 143mm (5.63")
Head Diameter: 40mm (1.57")
Tail Diameter: 25.4mm (1")
Weight: 138grams (4.87oz)(without battery)
Accessories
Quality holster, clip, tactical ring, lanyard, spare tail cap, spare O-ring
Optional accessories
Remote switch (RSW1), Gun Mount (GM02, GM03, GM04)
Battery Options
Primary Lithium battery
18650 Rechargeable Li-ion battery
Rechargeable Li-ion battery RCR123
Brightness & Runtime
CR6:
Main red light mode is powered by a premium CREE XP-E(R2) LED
White Light White Light White Light White Light
TURBO HIGH MID
440 280 160
LUMENS LUMENS LUMENS
1 45 3 30 7
h min h min h
1 45 2 45 5 45
h min h min h min
190m
(Beam Distance)
9000cd
(Peak Beam Intensity)
1.5m
IPX-8, 2m
CG6:
Main green light mode is powered by a premium CREE XP-E(G2) LED
White Light White Light White Light
TURBO HIGH MID
440 280 160
LUMENS LUMENS LUMENS
1 45 3 30 7
h min h min h
1 45 2 45 5 45
h min h min h min
190m
(Beam Distance)
9000cd
(Peak Beam Intensity)
1.5m
IPX-8, 2m
SIZE Nominal voltage Compatible
CR123 3V Y (Recommended)
18650 3.7V Y (Recommended)
3.7V Y
White Light Red Light Red Light Red Light
LOW LOWER HIGH MID
25 1 120 45
LUMENS LUMENS LUMENS LUMENS LUMENS
43 400 4 30 15
h h h min h
32 260 3 15 11
h h h min h
150m
(Beam Distance)
5700cd
(Peak Beam Intensity)
(Impact Resistant)
(Waterproof AND Submersible)
White Light White Light Green Light Green Light Green Light
LOW LOWER HIGH MID
25 1 185 90
LUMENS LUMENS LUMENS LUMENS LUMENS
43 400 2 45 10
h h h min h
32 260 2 7
h h h h
170m
(Beam Distance)
7250cd
(Peak Beam Intensity)
(Impact Resistant)
(Waterproof AND Submersible)
Thanks for purchasing NITECORE!
®
CR6, CG6, CB6
CB6:
Main blue light modes is powered by a premium CREE XP-E(D4) LED
White Light
TURBO
440
LUMENS
1 45
h min
1 45
h min
NOTICE
The above data has been measured in accordance with the international
flashlight testing standards ANSI/NEMA FL1 using one x 3.7V 2600mAh
Nitecore 18650 battery and 2 x 3V 1550mAh Nitecore CR123 batteries under
laboratory conditions. The data may vary slightly during real-world use due to
battery type, individual usage habits and environmental factors.
NITECORE (SYSMAX) is a member of PLATO, participating in and helping to
develop the ANSI FL1 standard of measurement. Product testing data is in
accordance with these internationally recognized scientific standards.
Operation Instructions

Battery Installation

Insert one 18650 battery or two CR123 / RCR123 batteries with the positive
pole pointing forward (toward the light head).
WARNING
LOW
1. Ensure batteries are inserted with the positive (+) end pointing to the head.
12
The Chameleon will not operate with incorrectly inserted batteries.
2. Ensure when turning the Chameleon on, the beam is directed away from
55
h
the eyes of people or animals.
37
h
Momentary Illumination
Momentary illumination can be achieved by switching off the flashlight and
then half pressing and holding the tail switch. Simply release the switch to
turn the light off.
Switching ON/OFF
To switch ON: Press the button on the tailcap until a "click" is heard.
To switch OFF: Press the button on the tailcap a second time until a "click" is
heard.
LOW
Brightness Selection
30
Two side switches control the two main LEDs as well as strobe / SOS modes.
45
h
With the light turned on at the tailcap, press the left switch repeatedly to cycle
though the following WHITE LED brightness levels: ultra-low, low, medium,
31
h
high and turbo. Once a desired setting is displayed, it will be saved by turning
the light off at the tail switch.
With the light turned on at the tailcap, press the right switch repeatedly to
cycle though the following COLORED LED brightness levels: main color low
-> main color medium -> main color high -> secondary red -> secondary
green -> secondary blue. Once a desired setting is displayed, it will be saved
by turning the light off at the tail switch.
User Manual
White Light White Light White Light White Light Blue Light
HIGH MID LOW LOWER
280 160 25 1
LUMENS LUMENS LUMENS LUMENS LUMENS
3 30 7 43 400 2
h min h h h h
2 45 5 45 32 260
h min h min h h
190m
(Beam Distance)
9000cd 1100cd
(Peak Beam Intensity)
1.5m
(Impact Resistant)
IPX-8, 2m
(Waterproof AND Submersible)
Blue Light Blue Light
HIGH MID LOW
35 15 3
LUMENS LUMENS
45 11 45
min h h
2 8 33
h h h
66m
(Beam Distance)
(Peak Beam Intensity)
