SPEAKER SYSTEM
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.

1. SAFETY PRECAUTIONS

• Be sure to read the instructions in this section
carefully before use.
• Make sure to observe the instructions in this
manual as the conventions of safety symbols and
messages regarded as very important precautions
are included.
• We also recommend you keep this instruction
manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are
used in this manual to prevent bodily injury and
property damage which could result from
mishandling. Before operating your product, read this
manual first so you are thoroughly aware of the
potential safety hazards as well as understand the
safety symbols and messages.
WARNING
hazardous situation which, if mishandled, could
result in death or serious personal injury.
CAUTION
hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or
property damage.

2. GENERAL DESCRIPTION

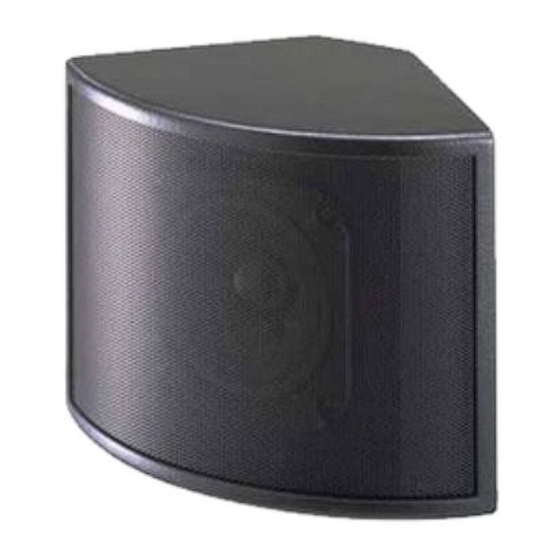

Designed with an emphasis on the sound quality, TOA's corner speaker system can be cleanly mounted in the
corner of the room. The speaker system is small in size yet enhances the low frequencies to reproduce rich
sound when installed in the corner. It can be mounted in the room corner, ceiling, and wall using the
supplied mounting bracket. Its ideal applications include stores and assembly halls.
Indicates a potentially
Indicates a potentially
INSTRUCTION MANUAL
PS-16BM, PS-16WM
PS-32BM, PS-32WM
WARNING
• Install the speaker only in a location that can
structurally support the weight of the speaker and
the mounting bracket. Doing otherwise may result
in the speaker falling down and causing personal
injury and/or property damage.
• Be sure to attach the supplied safety bracket after
mounting the speaker to the mounting bracket.
Failure to attach the safety bracket may cause the
speaker to drop, resulting in personal injuries.
CAUTION
• Do not stand or sit on, nor hang down from the
speaker as this may cause it to fall down or drop,
resulting in personal injury and/or property
damage.
• Do not operate the speaker for an extended period
of time with the sound distorting. This is an
indication of a malfunction, which in turn can cause
heat to generate and result in a fire.
