TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ........................... 2
2. GENERAL DESCRIPTION ......................... 3
3. FEATURES ................................................. 3
4. DIMENSIONAL DIAGRAM ......................... 3
5. INPUT TERMINAL SECTION ..................... 4
PROTECTION CIRCUIT ............................. 4
Thank you for purchasing TOA's Speaker System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
OPERATING INSTRUCTIONS
7. INSTALLATION .......................................... 4
DIGITAL SIGNAL PROCESSOR ............... 7
9. SPECIFICATIONS ...................................... 8
Accessories ................................................. 8
Optional products ........................................ 8
HS-120B
HS-120W
HS-150B
HS-150W
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa HS-120B
Summary of Contents for Toa HS-120B
-
Page 1: Table Of Contents
5. INPUT TERMINAL SECTION ..... 4 Optional products ........8 6. ABOUT THE INPUT OVERLOAD PROTECTION CIRCUIT ......4 Thank you for purchasing TOA's Speaker System. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. -
Page 2: Safety Precautions
1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety. -
Page 3: General Description

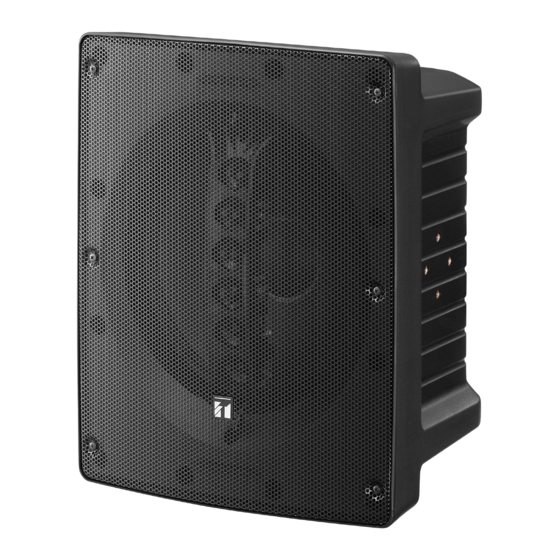

2. GENERAL DESCRIPTION TOA’s HS-120 series and HS-150 series speakers are 2-way speaker systems made of resign, and feature a large diameter woofer. They can be installed in many different applications with combined use of the supplied handles and the optional mounting brackets. -
Page 4: Input Terminal Section
5. INPUT TERMINAL SECTION • As the Speakon connector is internally connected in parallel to the screw terminal as shown below, you can use either of the two. • The usable connector (on the cable end) that matches the NEUTRIK NL4MP Speakon is NEUTRIK NL4FX Speakon. - Page 5 7.1.2. HY-1200HB, HY-1200HW, HY-1500HB and HY-1500HW Mounting Brackets (For horizontal speaker mounting) • These brackets are designed to mount HS series speakers to ceilings or walls horizontally. HY-1200HB and HY-1200HW: For the HS-120 series speaker system HY-1500HB and HY-1500HW: For the HS-150 series speaker system •...
- Page 6 7.1.5. Safety wire installation (For speaker fall prevention) When mounting the speaker system to the ceiling or wall, install a safety wire as needed. When installing the safety wire, be sure to follow the instructions below. WARNING Failure to do so may cause the speaker to fall off, resulting in personal injury.
-
Page 7: Equalizing By The Digital Signal Processor
The speaker system is capable of providing high-efficiency and wide range reproduction without using an equalizer, however more clear and dynamic sound quality can be reproduced by using our digital signal processor and performing its settings as shown in the tables below. [For the HS-120B and HS-120W] [For the HS-150B and HS-150W] Filter... -
Page 8: Specifications
Ceiling mount bracket: HY-C0801, HY-C0801W Wall mount bracket: HY-W0801, HY-W0801W Speaker stand: ST-33B Traceability Information for Europe (EMC directive 2004/108/EC) Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg, Japan Germany URL: http://www.toa.jp/ 533-06-174-10...
