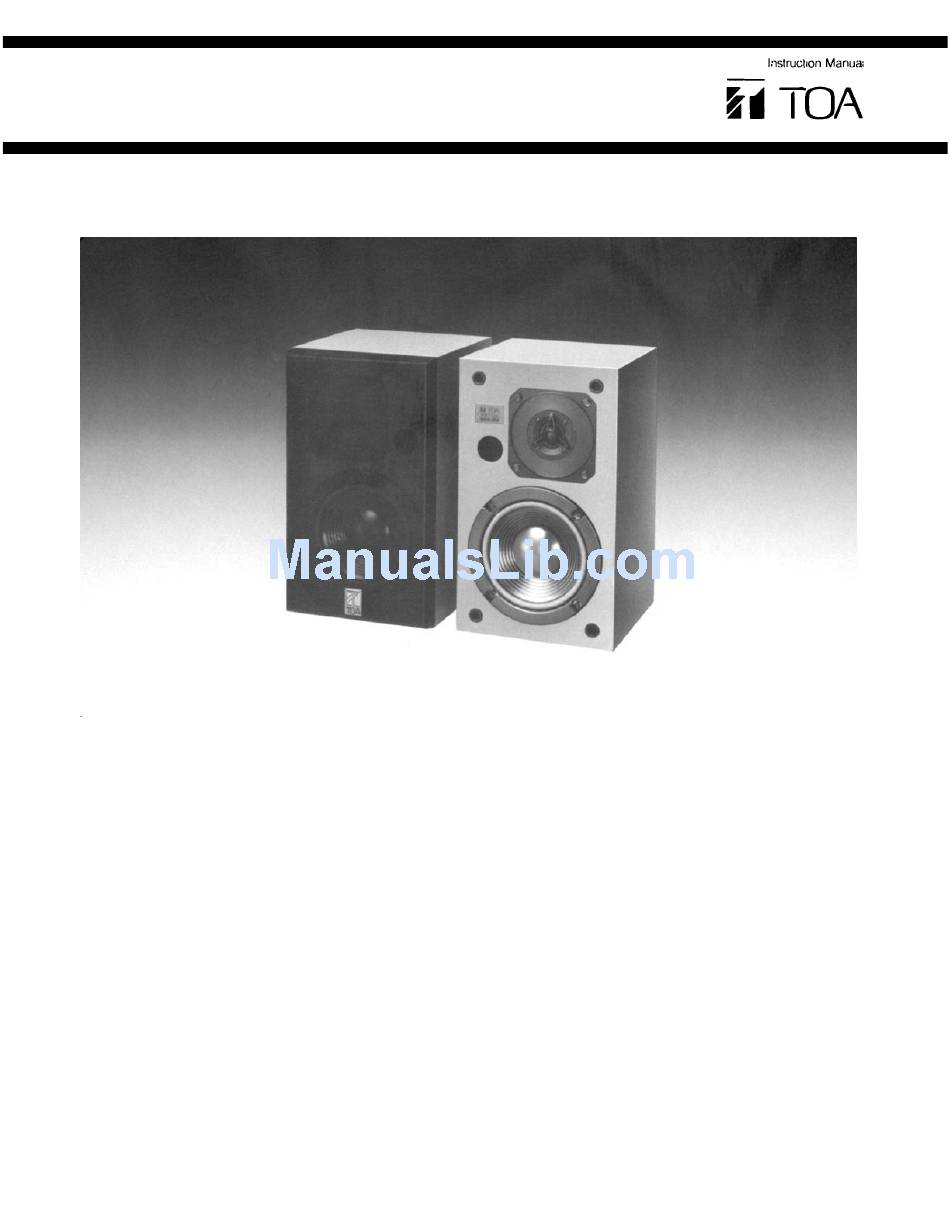

Toa 265-ME-AV Instruction Manual

PROFESSIONAL SOUND SYSTEM

GENERAL DESCRIPTION

The TOA 265-ME-AV is a 2-way reference monitor with
numerous applications in small recording studios, A/V
houses, and control rooms of broadcast facilities. Due to the
magnetically "shielded" components used in the 265-ME-AV,
the speaker enclosure may be physically located adjacent to
color televisions and video monitors with no degradation in
video quality. (Magnetic fields emitted by unshielded
systems may cause distortion and break-up of the video im-
age, when the speaker is placed in close proximity to a video
monitor.)
The 265-ME-AV is a bass-reflex type enclosure, with a
6.3"(16cm) polypropylene woofer, and a 1.2"(3cm) soft dome
tweeter with a diffuser for excellent high frequency response.
A tight, symmetrical component arrangement ensures good
image localization for close-in monitoring, as well as smooth
frequency response, low distortion, wide dispersion, and
superb transient response.
The 265-ME-AV will handle a maximum of 75 watts of con-
tinuous program material. It features push-type input ter-
minals and a removeable front grille. The wooden enclosure
is finished in charcoal gray vinyl sheeting, and T-nuts are pro-
vided on the bottom and back plate for mounting brackets.
Speaker System
Model 265-ME-AV
FEATURES
1 Two-way system.
2. Smooth frequency response, low distortion, superb tran-
sient response, and wide dispersion.
3. Magnetically "shielded" speaker components for inter-
ference free video monitoring.
4. 6.3"(16cm) polypropylene cone woofer.
5. 1.2"(3cm) soft dome tweeter with diffuser for excellent
high frequency response.
6. Symmetrical component arrangement enhances stereo
imaging.
7 Push-type input terminals. .
8. Removeable front grille.
9. Compact and rugged.
10. Easily mounted to the wall or ceiling with optional mount-
ing brackets.
