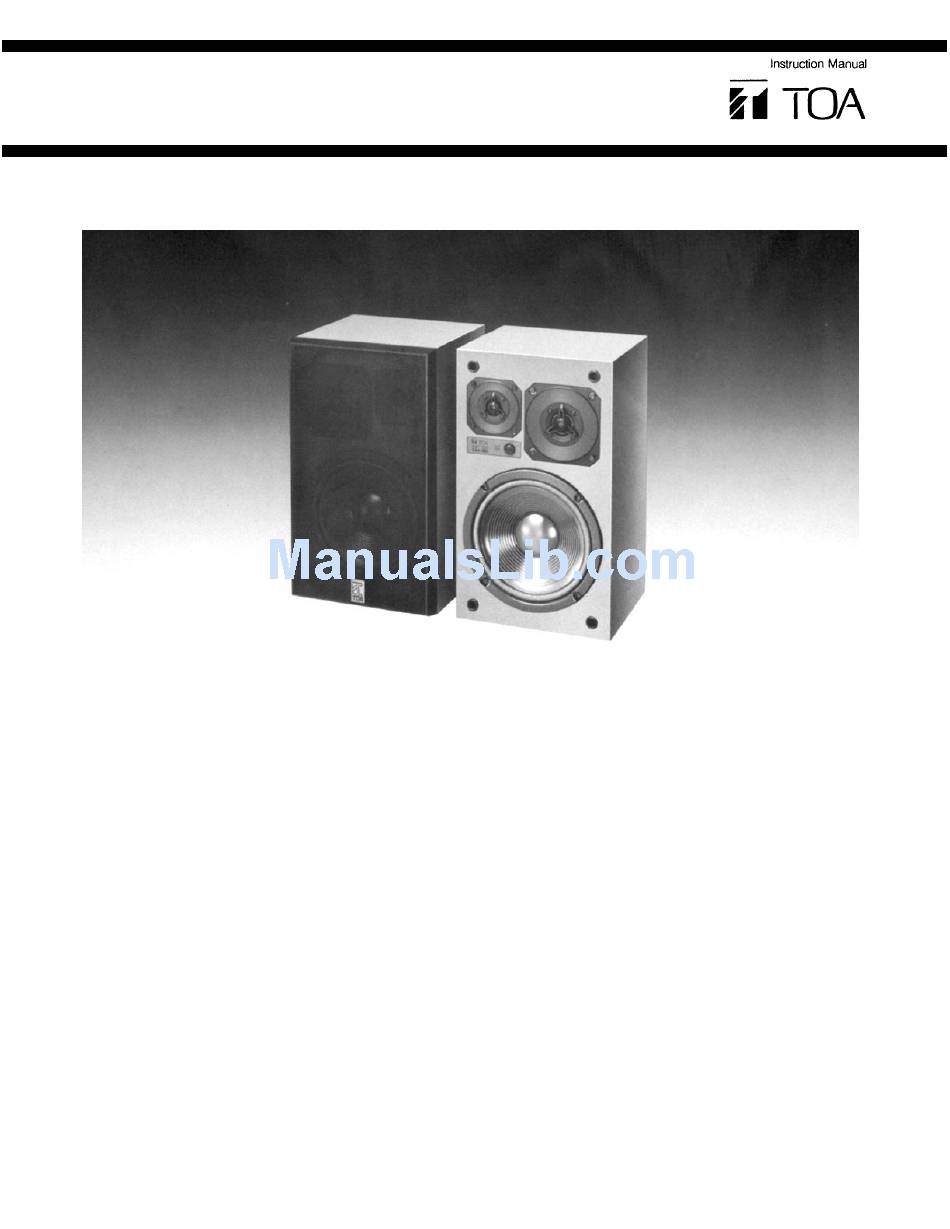

Toa 280-ME-AV Instruction Manual

PROFESSIONAL SOUND SYSTEM

GENERAL DESCRIPTION

The TOA 280-ME-AV is a 3-way reference monitor with
numerous applications in small and medium size recording
studios, A/V houses, and control rooms of broadcast
facilities. Due to the magnetically "shielded" components
used in the 280-ME-AV, the speaker enclosure may be
physically located adjacent to color televisions an video
monitors with no degradation in video quality. (Magnetic
fields emitted by unshielded systems may cause distortion
and break-up of the video image, when the speaker is placed
in close proximity to a video monitor.)
The 280-ME-AV is a sealed type enclosure, with a 7.9"(20cm)
polypropylene woofer, a 1.2"(3cm) soft dome tweeter, and a
polyester dome super tweeter, both with diffusers for ex-
cellent high frequency response. A tight, symmetrical compo-
nent arrangement ensures good image localization for close-
in monitoring, as well as smooth frequency response, low
distortion, wide dispersion, and superb transient response.
The 280-ME-AV will handle a maximum of 90 watts of con-
tinuous program material. It features a high frequency
attenuator conveniently located on the front panel, push-type
input terminals and a removeable front grille. The wooden
enclosure is finished in charcoal gray vinyl sheeting, and T-
nuts are provided on the bottom and back plate for mounting
brackets.
Speaker System
Model 280-ME-AV
FEATURES
1. Three-way system.
2. Smooth frequency response, low distortion, superb tran-
sient response, and wide dispersion.
3. Magnetically "shielded"
terference free video monitoring.
4. 7.9"(20cm) polypropylene cone woofer.
5. 1.2"(3cm) soft dome tweeter and 0.79"(2cm) polyester
dome super tweeter, both with diffusers for excellent high
frequency response.
6. Symmetrical component arrangement enhances stereo
imaging.
.
7 Push-type input terminals.
8. Removeable front grille.
9. Convenient high frequency attenuator
10. Compact and rugged.
11. Easily mounted to the wall or ceiling with optional mount-
ing brackets.
speaker components for in-
