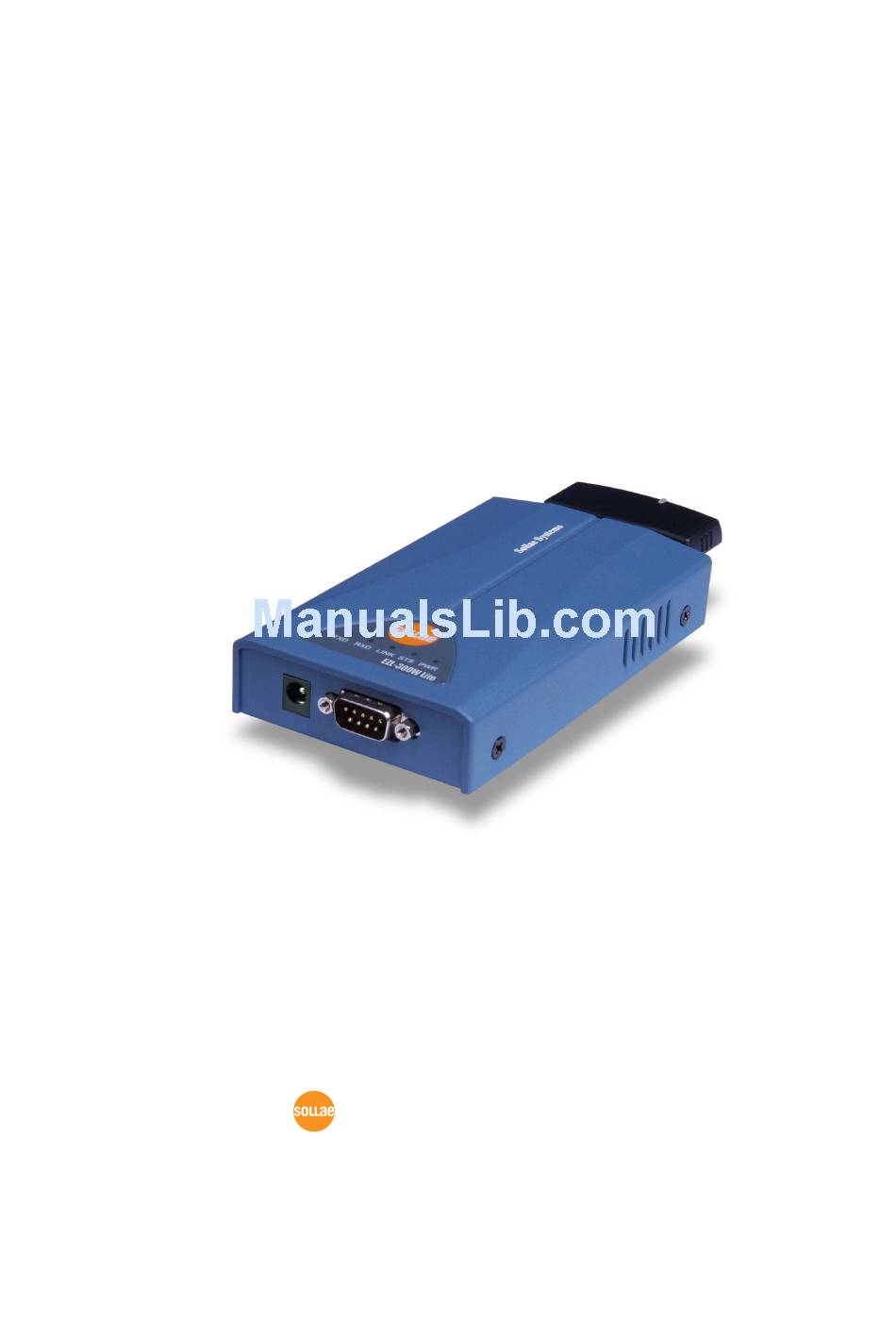

EZL-300W Lite User's Manual
Version 1.0
Sollae Systems Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZL-300W Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sollae Systems EZL-300W Lite

Summary of Contents for Sollae Systems EZL-300W Lite

  • Page 1 EZL-300W Lite User’s Manual Version 1.0 Sollae Systems Co., Ltd.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. OVERVIEW····················································································- 5 - 1.1. Overview ·························································································································- 5 - 1.2. Components ····················································································································- 5 - 1.3. Specifications ··················································································································- 6 - 1.4. Interface Specifications ·································································································- 6 - 1.4.1. Power ··························································································································- 6 - 1.4.2. RS232 Dsub Connector ·······························································································- 7 - 1.4.3.
  • Page 3 3.2. Setting the IP Address and Environment Values······················································- 17 - 3.2.1. ezConfig····················································································································- 18 - 3.2.2. AT Command············································································································- 22 - 3.2.3. Setting the IP Address Using the ARP·······································································- 22 - 3.2.4. Setting IP Address-related Items through the DHCP Server ······································- 23 - 4.
  • Page 4 6.5. Example of Configuration by AT Commands ··························································- 38 - 6.6. Example of Connection ·······························································································- 39 - 6.6.1. Example of Active Connection ··················································································- 39 - 6.6.2. Example of Passive Connection·················································································- 39 - 6.7. Example of Termination······························································································- 39 - 6.7.1. Example of Active Termination ·················································································- 39 - 6.7.2.

  • Page 5: Overview

    Internet. Similarly, the ezTCP series perform TCP/IP protocol processing on data received from the Internet and sends the processed data to the serial port. EZL-300W Lite(it is pronounced as “lait”), which is one of ezTCP products, provides TCP/IP communication through IEEE802.11b (wireless LAN). In other words, like other ezTCP products, EZL-300W Lite TCP/IP-processes data received from the serial port and sends the processed data to the wireless LAN network.

  • Page 6: Specifications

    1.3. Specifications Input Voltage Power Current 320mA typical Consumption (It depends on wireless LAN card) Size 137mm x 78mm x 28mm Weight 305 g Serial 9pin Dsub male Interface Network 16bit PC card RS232 level(1200bps ~ 115200bps) Serial Port RTS/CTS hardware flow-control Network IEEE802.11b wireless LAN(infrastructure/ad-hoc) Protocols...

  • Page 7: Rs232 Dsub Connector

    1.4.2. RS232 Dsub Connector A serial port connector is interfaced through the 9pin Dsub male connector. For specifications of each pin, see the following: No. Name Description Signal Level Direction Remark Receive Data RS232 mandatory Input Transmit Data RS232 mandatory Output Data Terminal Ready RS232...

  • Page 8: Status Led

    1.4.3. Status LED In ezTCP, there are total 5 status LEDs. Each status LED functions as follows: Name Description Color LED Status Description Power Turned on When the power is on Blinking When IP address is once per assigned, but no TCP second connection established Status...

  • Page 9: Installation And Test Operation

    Installation and Test Operation Installation 2.1. Install ezTCP as follows: Sub- Categories Context categories Wireless LAN environment 3.1.1. 1. Checking Items to IP address environment Communication check Serial port setup values Environment Application program to use Setup tool ezSerialConfig 3.1.2. Wireless LAN Types (Infrastructure and ad-hoc) 2.

  • Page 10: Checking Communication Environment

    Checking Communication Environment 2.1.1. Before installing ezTCP, the user must check conditions of the network to install the ezTCP as follows: Wireless LAN network types (infrastructure/ad-hoc) the SSID and the channel of the wireless LAN Whether to use WEP and WEP setup values (the number of bits and key values) Authentication Protocol for wireless LAN access IP address environment (Local IP, subnet mask, gateway, etc.)

  • Page 11: Setting Environment Variables

    LED indicating a connection between the AP and PC to make sure this connection is successfully made. Installing ezTCP 2.2.3. Connect the PC with ezTCP using RS232 cable provided by Sollae Systems, and insert the PCMCIA card. When power is supplied using the power adapter designed for - 11 -...

  • Page 12: Configuring Eztcp

    Sollae Systems, ezTCP attempts making a connection with the AP that replies first. Once ezTCP is connected with the AP, the link LED is turned on and then a communication through the wireless LAN is possible. ※ It is possible that ezTCP connect other AP because SSID is not set. In this case,...

  • Page 13: Connecting Via The Serial Port Of The Pc

    2.2.5. Connect between the serial port of the PC and the serial port of the ezTCP using the serial communication cable provided by Sollae Systems. Then, run a serial communication program such as Hyper Terminal. Select 19200bps for the serial port, 8 bits for the data bit, 1 bit for the stop bit, and no parity.

  • Page 14: Configuring Wireless Lan, Ip Address, And Environment Values

    Configuring Wireless LAN, IP Address, and Environment Values Configuring Wireless LAN 3.1. When configuring the wireless LAN, the user must check the network type and security issues of the network currently being used or to be installed in the future. Items to Check for the Wireless LAN 3.1.1.
  • Page 15 AP. Since communication is established without any AP, the user cannot access an external network or the Internet. This is also called a peer-to-peer mode. <Ad-hoc> Service Set Identifier (SSID) When configuring a network, the user can configure different networks using different APs.

  • Page 16: Setting Wireless Lan Items Of The Eztcp

    This is about security of the wireless LAN. The wireless LAN provides similar security to that of the wired LAN using the WEP. To use the WEP, the user must set the key value. According to the key value, data is encoded in 64 bits or 128 bits for communication.

  • Page 17: Setting The Ip Address And Environment Values

    Setting via ezSerialConfig utility Operate ezTCP in serial configuration mode to utilize ezSerialConfig. Follow the sequence as described below. 1. Run ezSerialConfig program in the PC. 2. With no LAN card inserted, connect ezTCP and the PC by a serial cable and apply power.

  • Page 18: Ezconfig

    BAUD RATE Baud Rate (bps) DATA BITS Data Bit Length Serial Port PARITY Parity FLOW CTRL Flow Control Communication MUX TYPE Communication Mode Mode Connection/ WATER Minimum Number of Bytes to Connection MARK Attempt Connection/Transmission Termination Event TIMEOUT Connection Time Out Using Configuration EZCFG ezConfig Function enable/disable...
  • Page 19 Each button on ezConfig functions as follows: This button is used to search for all of the network-attached ezTCPs. The search results will be displayed on the MAC ADDRESS LIST box and you can select an item using a mouse or cursor as required. The value displayed on the box indicates the MAC ADDRESS of each ezTCP.
  • Page 20 is on, the current IP address, and the data throughput of the serial port are indicated. Double-clicking each item on the MAC ADDRESS LIST will carry out the same function. ezConfig can be used to change the IP address related items, the serial port setup value, the serial port operation mode, and how to setup ezTCP.
  • Page 21 - Select T2S (0) in the [MUX TYPE] field on ezConfig. Setup [LOCAL IP ADDRESS], [LOCAL PORT], and the serial port settings according to a test environment as required. When the setup is completed, pressing [WRITE] will save the changed values in ezTCP. If an error message pops up during storing the configuration, check that ezTCP is connected correctly, and then try again.

  • Page 22: At Command

    AT Command 3.2.2. In ATC mode, the user can set environment variables through the serial port using AT command. “ 6. ATC MODE". Setting the IP Address Using the ARP 3.2.3. On Windows and UNIX(Linux) platform, the command 'arp' enables a user to change the contents of arp cache table from the host computer.

  • Page 23: Setting Ip Address-Related Items Through The Dhcp Server

    rtos:~>arp -s a.b.c.d 00:30:f9:00:00:01 ☜ Change the table. rtos:~>arp ☜ Check changes. Address HWtype HWaddress FLags Mask Iface a.b.c.d ether 00:30:f9:00:00:01 eth0 rtos:~>ping a.b.c.d ☜ pinging to ezTCP Setting IP Address-related Items through the DHCP Server 3.2.4. Under environment with a network operating a DHCP server, DHCP protocol allows the user to automatically set the IP address, subnet mask, gateway, and name server of ezTCP.

  • Page 24: Operation Mode

    <CR>(0x0d), you can see a “000” message. If you should input “flash”, then you can enter ISP mode. Following is the message when ezTCP enters to ISP mode. 100 AVR/64 BOOTLDR 10 SOLLAE SYSTEMS 203 vender: 0x1F, device code: 0x35 Following is an explanation of each mode. Op. Mode...
  • Page 25 Serial Sets up parameters including wireless Configuration ezSerialConfig Not inserted LAN items through the serial port. Mode Upgrades the ezTCP firmware through ISP Mode wflash Not inserted the serial port The Following describes the booting sequence of ezTCP. - 25 -...

  • Page 26: Serial Configuration Mode And Isp Mode

    You can set all items including wireless related items and IP related items via ezSerialConfig in the serial Configuration mode. 4.2.2. ISP Mode In ISP mode, you can download a firmware which is supplied from Sollae Systems. Buadrate 115200 bps...
  • Page 27 Parameter change Connection Comm. through the serial Protocol Topology Type Mode Modification port Passive Not needed Possible Active/Passive Needed Active Not needed Not needed No connection TCP is a protocol that requires a connection process. Connection always takes place a one-to-one basis.

  • Page 28: Normal Communication Modes

    5. NORMAL COMMUNICATION MODES 5.1. T2S (TCP to Serial) In T2S mode, the ezTCP functions as a server. When a TCP connection comes from a remote host to the predefined local port, the ezTCP accepts a TCP connection. When the ezTCP accepts TCP connection, then the TCP connection is established.
  • Page 29 Set the following for T2S mode: Field Description LOCAL IP ADDRESS Local IP address of ezTCP SUBNET MASK Subnet mask GATEWAY Gateway IP address IP Addresses LOCAL PORT Local port number to listen PEER IP ADDRESS PEER PORT BAUD RATE Speed of serial port(bps) DATA BITS Data length...

  • Page 30: Atc (At Command)

    5.2. ATC (AT Command) In ATC mode, the user can control the ezTCP in a similar way to controlling the modem using AT command. In ATC mode, only a TCP connection is possible and both the server and the client can be configured. In ATC mode, the AT command allows the user to set environment variables including address control...
  • Page 31 Set the following for ATC mode: Field Description LOCAL IP ADDRESS Local IP address of ezTCP SUBNET MASK Subnet mask GATEWAY Gateway IP address IP Addresses LOCAL PORT Local port number to listen PEER IP ADDRESS IP address of host to connect PEER PORT Port number of host to connect BAUD RATE...

  • Page 32: Cod(Connect On Demand)

    5.3. COD(Connect On Demand) In COD mode, the ezTCP functions as a client. When data of the pre-specified size [WATER MARK] comes to the serial port, the ezTCP attempts a TCP connection to the TCP port [PEER PORT] of the preset host IP [PEER IP ADDRESS].
  • Page 33 Set the following for COD mode: Field Description LOCAL IP ADDRESS Local IP address of ezTCP SUBNET MASK Subnet mask GATEWAY Gateway IP address IP Addresses LOCAL PORT PEER IP ADDRESS IP address of host to connect PEER PORT Port number of host to connect BAUD RATE Speed of serial port(bps) DATA BITS...

  • Page 34: U2S (Udp To Serial)

    5.4. U2S (UDP to Serial) U2S mode allows for UDP communication. In UDP mode, data are transmitted in blocks, which requires dividing data coming to the serial port into blocks before transmitting data. A procedure for dividing data into blocks is as follows: If data of pre-specified bytes [WATER MARK] comes to the serial port of the ezTCP or if a specified period of time [TIMEOUT] elapses after first data reception, all data received for the same period is recognized as one block which is then...
  • Page 35 U2S 일 때 설정해야 할 사항은 다음과 같습니다. Field Description LOCAL IP ADDRESS Local IP address of ezTCP SUBNET MASK Subnet mask GATEWAY Gateway IP address IP Addresses LOCAL PORT Port number to receive UDP data PEER IP ADDRESS IP address of host to send UDP data PEER PORT Port number of host to send UDP data BAUD RATE...

  • Page 36: Atc Mode

    6. ATC MODE 6.1. Overview In ATC mode, it is possible to set up and control ezTCP by use of AT commands, which are modem commands. For instance, you can set the remote IP to connect by AT+PRIP command and make connection by ATD command. Thus, communication with multiple hosts in turn is possible.

  • Page 37: Extended At Commands

    Enable/disable echo of AT command echo (ATE1-enable, ATE0-diable) off-hook Terminating Connection Inquery Showing ezTCP’s Information Online Toggle to on-line sate The type of response code response code (numeric-V0, verbose-V1) reset Initializing ezTCP 6.3. Extended AT commands Command Function Description +PLIP local IP address +PSM subnet mask...

  • Page 38: How To Switch To Online Command State From Online State

    Online command While TCP connection is not established, AT commands can be state used. While TCP connection is established, all data are converted to Online state TCP/IP. 6.4.1. How to switch to online command state from online state In order to switch from online state to online command state, it is necessary to send a ‘+++’...

  • Page 39: Example Of Connection

    ◀ NO CARRIER<CR><LF> After system resets 6.6. Example of Connection 6.6.1. Example of Active Connection Transmission Data Description AT+PRIP=192.168.1.201<CR> ▶ Set remote IP address to connect ◀ OK<CR><LF> Command OK AT+PRP=1470<CR> ▶ Set remote port number to connect ◀ OK<CR><LF> Command OK ATDT<CR>...

  • Page 40: Example Of Passive Termination

    switching to online command state from [guard time]+++[guard time] ▶ online state. switching to online command state ◀ <CR><LF>OK<CR><LF> completed ▶ TCP termination command ◀ OK<CR><LF> TCP connection terminated 6.7.2. Example of Passive Termination In case an external host attempts to terminate a connection; Data Description Data exchange (TCP connection established)

  • Page 41: Technical Support, Warranty, And Notes On

    Technical Support 7.1. If you have any question regarding operation of the product, visit Customer Support FAQ corner and the message board on Sollae Systems' web site or send us an email at the following address: Website Address for Customer Support: http://www.sollae.co.kr/Support/index.html...

  • Page 42: Notes On Operation

    Notes on Operation 7.1.5. Sollae Systems is not responsible for product failures occurring due to user's alternation of the product. Specifications of the product are subject to change without prior notice for performance improvement. Sollae Systems does not guarantee successful operation of the product if the product was used under conditions deviating from the product specifications.
