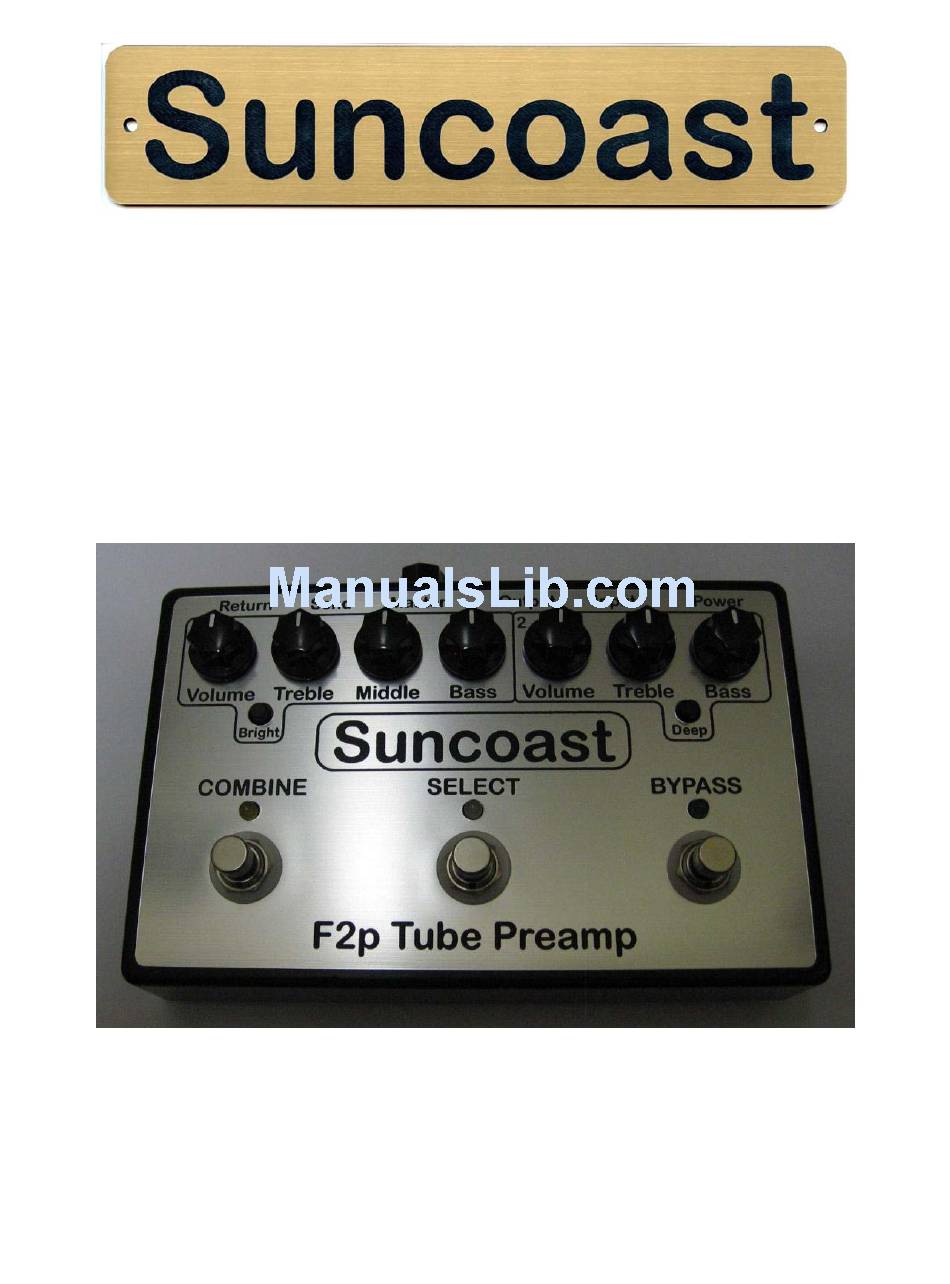

Page 1: Owners Manual
CUSTOM AMPLIFICATION F2p TUBE PREAMP OWNERS MANUAL Copyright 2015, Sluggo Music Technology LLC All Rights Reserved. - Page 2 United States of America. For warranty information in all other countries please refer to your local distributor. Sluggo Music Technology LLC P.O. Box 913 Dunedin, FL 34697-0913 (727) 247-2520 sales@sluggomusic.com service@sluggomusic.com “SUNCOAST” is a trademark of Sluggo Music Technology LLC, Copyright 2015 All Rights Reserved...
-
Page 3: Table Of Contents
1 Overview 1.1 Introduction 1.2 Features 2 Controls 2.1 Front Panel Layout 2.2 Preamp Controls 2.3 Rear Panel Layout 2.4 Rear Panel Jack Description 3 Operation 3.1 External Effects Patching 3.2 Preamp Tone Settings 3.3 Specifications 3.4 Operating Instructions... - Page 4 1.1 Introduction Thank you for purchasing the SUNCOAST – F2p Tube Preamp. It is our commitment to providing our customers with the highest quality, musical instrument preamp/processors, designed and built in the USA. Utilizing our vast experience with classic designs over the past 30 years, we set out to recreate that unique sound from some of our personal favorite artists.
-
Page 5: Front Panel Layout
2.1 Front Panel Layout 2.2 Preamp Controls Bright Channel (Red) Volume - The Volume control adjusts the output level of the preamp. Treble - This tone control adjusts the amount of high frequencies. Middle - This tone control adjusts the amount of midrange frequencies. Bass - This tone control adjusts the amount of low frequencies. -
Page 6: Rear Panel Layout
Master Vol - Master Volume Control. Send - Effects Loop Send jack, (preamp out). Return - Effects Loop Return jack, (limiter in). 3.1 External Effects Patching Instrument F2p Tube Preamp (Input) F2p Tube Preamp (Send) Effects F2p Tube Preamp (Return) F2p Tube Preamp (Output) -
Page 7: Specifications
3.2 Preamp Tone Settings These settings are merely a suggested starting point from which you can set to your own personal taste. Volume – 5 (adjust for desired loudness) Treble – 7 Middle – 3 Bass – 5 Volume – 5 (adjust for desired loudness) Treble –... - Page 8 SAFETY NOTICE: There are no user serviceable parts inside the unit. Refer servicing to qualified personnel only. This unit contains EXTREMELY HIGH VOLTAGES. DO NOT OPERATE THIS UNIT WITH THE BOTTOM COVER REMOVED. SERIOUS RISK OF SHOCK MAY RESULT! TUBE PLATE VOLTAGE - 220VDC! Sluggo Music Technology LLC, Copyright 2015 All Rights Reserved...
