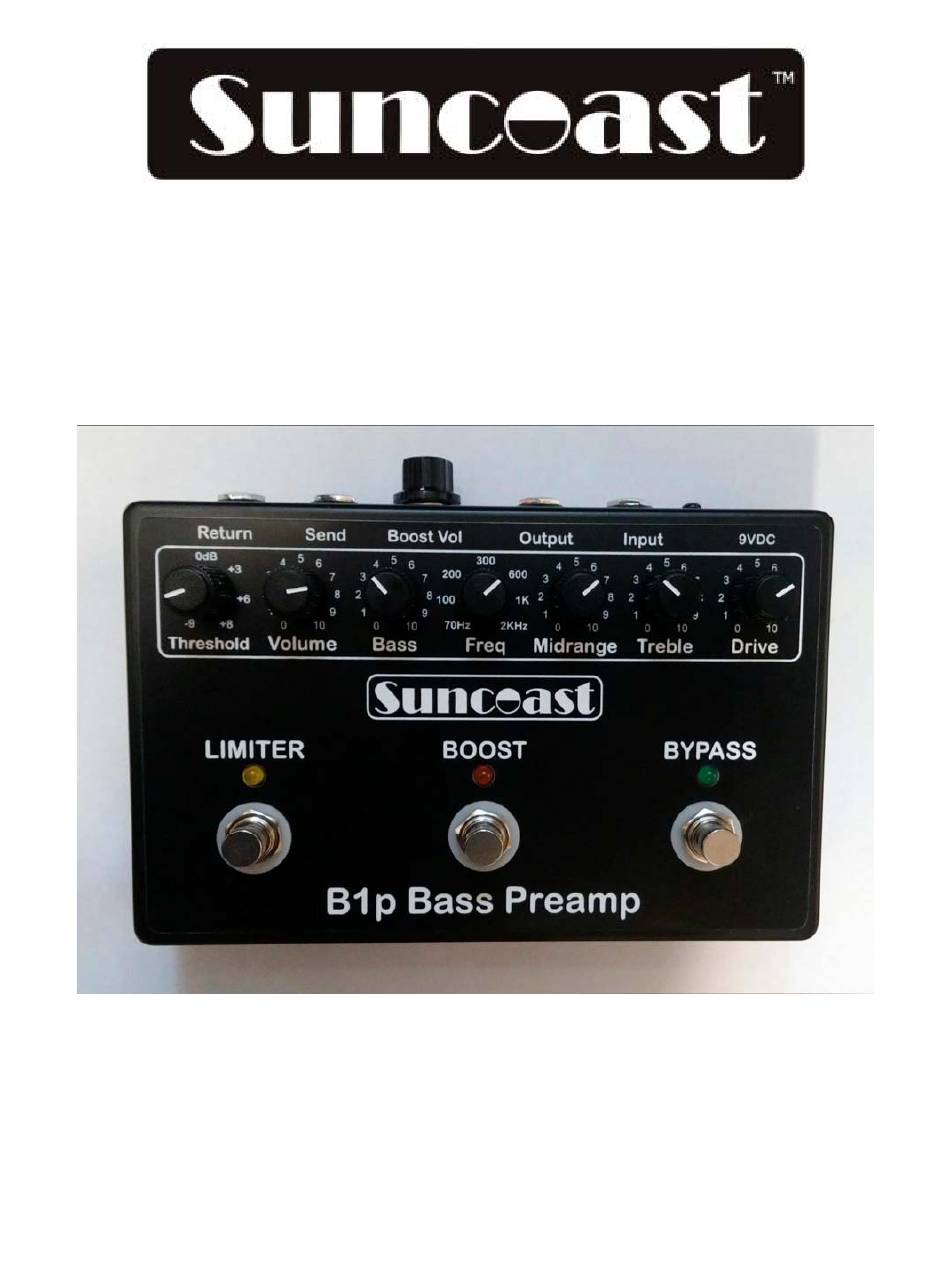

- Page 1 B1p Bass Preamp OWNERS MANUAL REV G Copyright 2020, Sluggo Music Technology LLC All Rights Reserved.
- Page 2 United States of America. For warranty information in all other countries please refer to your local distributor. Sluggo Music Technology LLC P.O. Box 913 Dunedin, FL 34697-0913 (727) 247-2520 sales@sluggomusic.com service@sluggomusic.com SUNCOAST™ is a trademark of Sluggo Music Technology LLC, Copyright 2020 All Rights Reserved...
-
Page 3: Operation
1 Overview 1.1 Introduction 1.2 Features 2 Controls 2.1 Front Panel Layout 2.2 Front Panel Controls 2.3 Rear Panel Layout 2.4 Rear Panel Jack Description 2.5 Internal Overdrive Preamp Controls 3 Operation 3.1 Operating Instructions 3.2 External Effects Patching 3.3 Preamp tone settings 4 Technical 4.1 Specifications 4.2 Block Diagram... - Page 4 1.1 Introduction Thank you for purchasing the SUNCOAST - B1p Bass Preamp. It is our commitment to providing our customers with the highest quality, musical instrument preamps, designed and built in the USA. With our knowledge and experience in classic designs over more than 30 years, we set out to recreate that unique sound from our past utilized by many of your favorite artists.
-
Page 5: Front Panel Layout
2.1 Front Panel Layout 2.2 Front Panel Controls Threshold - This knob adjusts the Compressor/Limiter threshold level. Volume - The Volume control adjusts the output level of the preamp. Bass – This 50Hz tone control adjusts low frequencies +/- 20dB. Freq - This control adjusts the midrange center frequency 70Hz-2KHz. -
Page 6: Rear Panel Layout
Limiter Footswitch – Turns the Limiter On/Off, LED indicates Limiting. Boost Footswitch – Engages the Overdrive Boost Preamp. Bypass Footswitch – Pedal is in Bypass Mode when On. 2.3 Rear Panel Layout 2.4 Rear Panel Jack Description Power Input - Power input jack, 9VDC @ 300mA (Center–Negative). Input - Main instrument input jack. - Page 7 2.5 Internal Overdrive Preamp Controls Overdrive Preamp – Controls are accessable by removing the bottom cover. The internal Drive, Bass, Middle and Treble trimpots can be used to customize your Overdrive level and tone. Overdrive Preamp EQ 1. Drive – Adjusts the input drive gain of Overdrive Preamp. 2.
- Page 8 CH1 Preamp Dip Switch 1. CH1 Boost – +20dB of Gain with Treble boost. 2. CH1 Mid Freq – Mid Frequency select (500Hz/1.2Hz). 3. CH1 HP Filter – Bass Cut (Off) / Full Range (ON). 4. Combine Mode– Channel Switch (Off) / Combine Mode (ON). 3.1 Operating Instructions •...
-
Page 9: External Effects Patching
3.2 External Effects Patching Bass Guitar > Envelope Filter > Flange > Chorus > B1p Input B1p Send > Vol Pedal > Digital Delay > Noise Gate > B1p Return B1p Output > Power Amplifier > Speaker 3.3 Preamp Tone Settings These settings are merely a suggested starting point from which you can set to your own personal taste.
