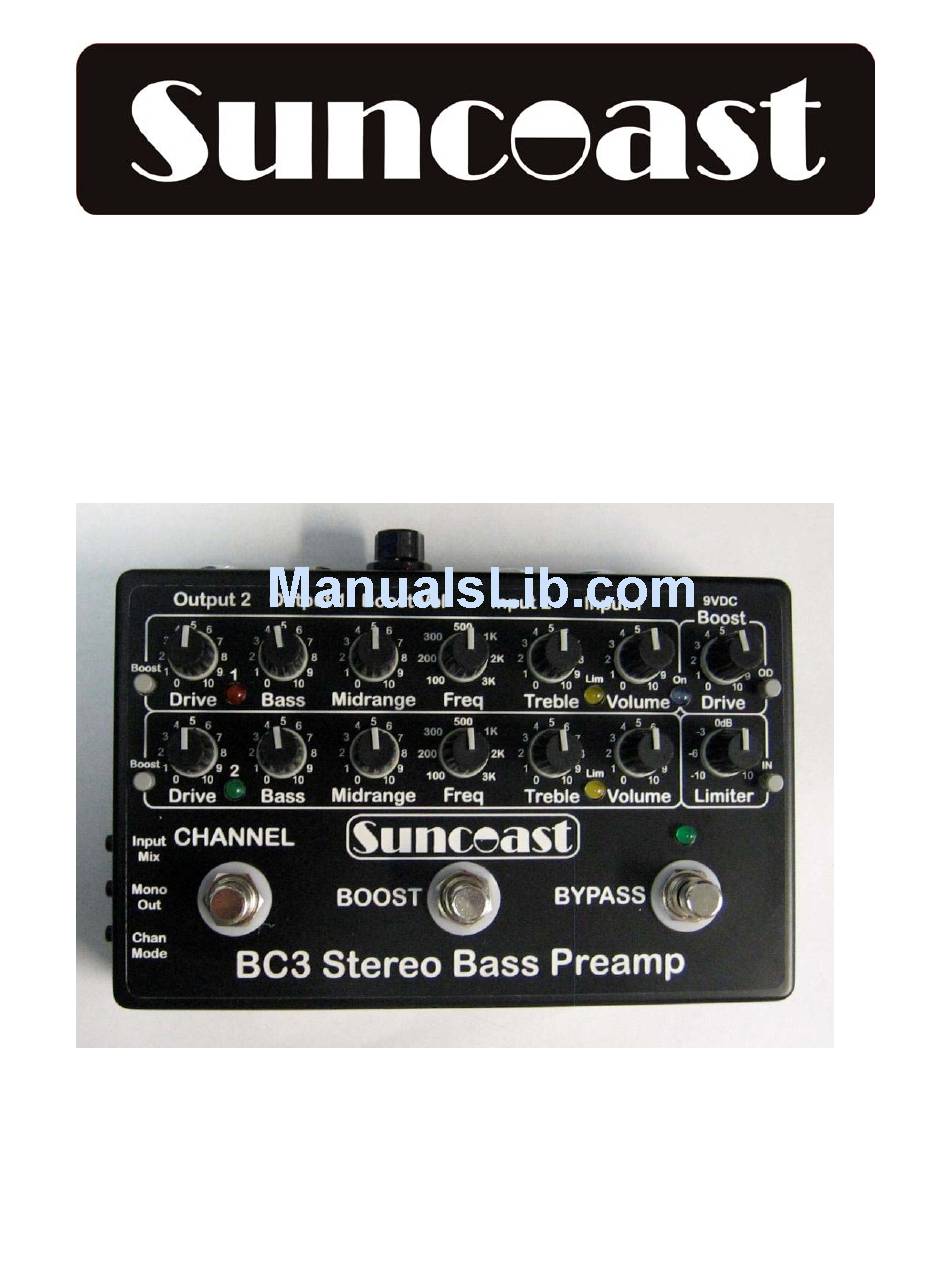

Page 1: Owners Manual
CUSTOM AMPLIFICATION BC3 STEREO BASS PREAMP OWNERS MANUAL Copyright 2017, Sluggo Music Technology LLC All Rights Reserved. - Page 2 United States of America. For warranty information in all other countries please refer to your local distributor. Sluggo Music Technology LLC P.O. Box 913 Dunedin, FL 34697-0913 (727) 247-2520 sales@sluggomusic.com service@sluggomusic.com “SUNCOAST” is a trademark of Sluggo Music Technology LLC, Copyright 2017 All Rights Reserved...
-
Page 3: Operation
1 Overview 1.1 Introduction 1.2 Features 2 Controls 2.1 Front Panel Layout 2.2 Preamp Controls 2.3 Rear Panel Layout 2.4 Rear Panel Jack Description 3 Operation 3.1 External Effects Patching 3.2 Preamp Tone Settings 3.3 Specifications 3.4 Operating Instructions... - Page 4 1.1 Introduction Thank you for purchasing the SUNCOAST – BC3 Stereo Bass Preamp. It is our commitment to providing our customers with the highest quality, musical instrument preamp/processors, designed and built in the USA. Utilizing our vast experience with classic designs over the past 35 years, we set out to recreate that unique sound from some of our personal favorite artists.
-
Page 5: Front Panel Layout
2.1 Front Panel Layout 2.2 Preamp Controls for Channel 1&2 Boost Switch – Adds +20dB extra treble boost to the input Drive control. Drive - This control adjusts the input level of the clean preamp. Bass – The Bass control adjusts the amount of low frequencies. Midrange –... -
Page 6: Rear Panel Layout
Channel Footswitch – Selects Channel 1 or 2. Boost Footswitch – Engages the Overdrive Preamp on CH1. Bypass Footswitch – Engages the Bypass mode. Input Mix Switch – Mixes Input 1&2 signals together “Mono” before Channel 1&2 Drive controls. Mono Out Switch – Mixes Channel 1&2 outputs to “Mono” post Limiter. Channel Mode Switch –... -
Page 7: Preamp Tone Settings
Instrument Patching Instrument BC3 (Input) BC3 (Output) Power Amplifier Speaker 3.1 Preamp Tone Settings These settings are merely a suggested starting point from which you can set to your own personal taste. Drive – 7 (With the Boost switch (IN) adjust to 3 for a starting point) Bass –... -
Page 8: Specifications
3.2 Specifications Input Voltage – 9VDC Current Consumption – 550mA Input Impedance – 1Meg Ohm Output Impedance – 600 Ohms Dimensions – 7.4”W x 4.7”H x 1.3”D Weight – 1.1lbs 3.3 Operating Instructions • Always connect your instrument input and preamp output prior to turning the unit or pedal board ON.
