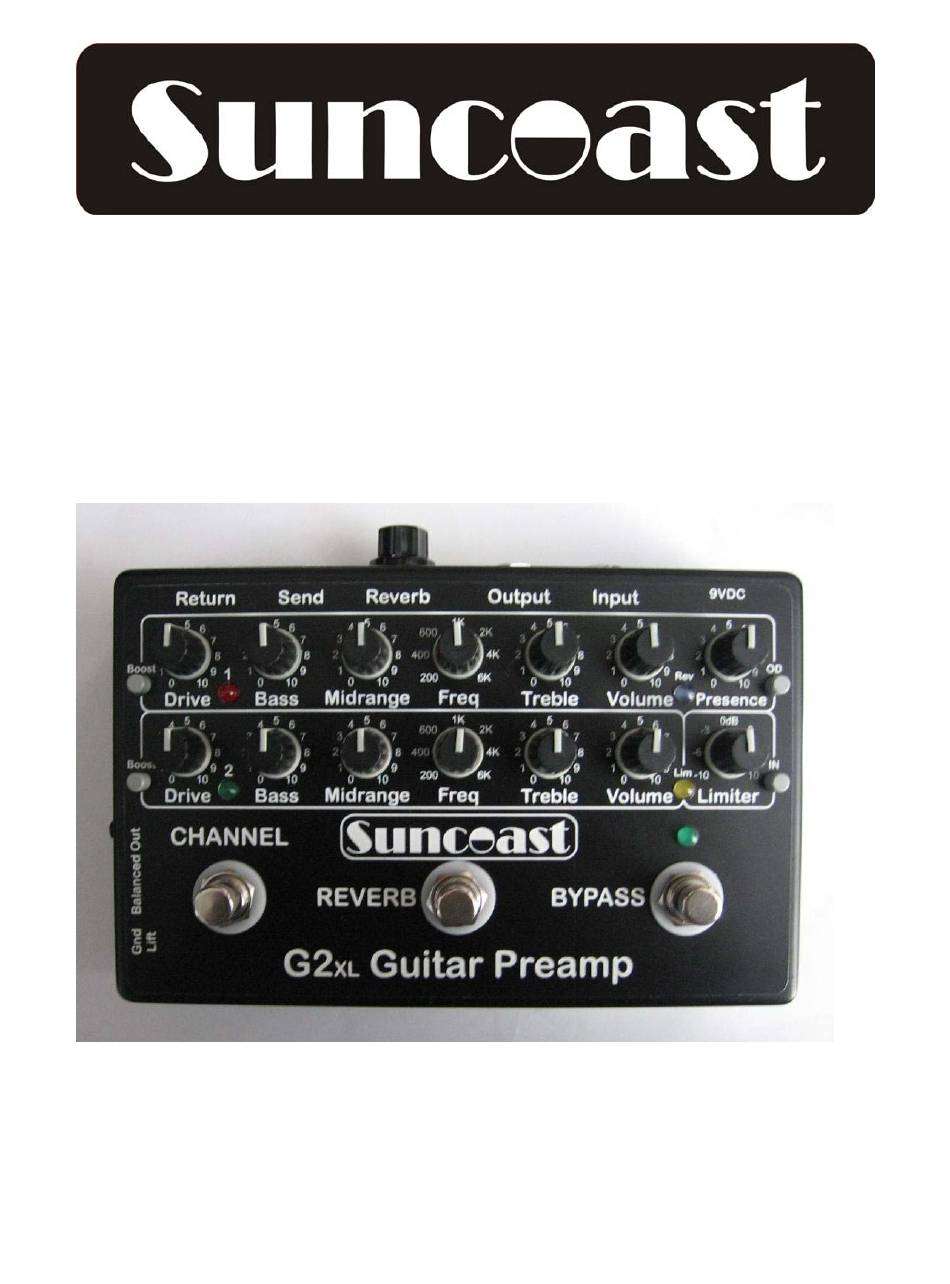

- Page 1 CUSTOM AMPLIFICATION G2xl GUITAR PREAMP OWNERS MANUAL Copyright 2017, Sluggo Music Technology LLC All Rights Reserved.
- Page 2 United States of America. For warranty information in all other countries please refer to your local distributor. Sluggo Music Technology LLC P.O. Box 913 Dunedin, FL 34697-0913 (727) 247-2520 sales@sluggomusic.com service@sluggomusic.com “SUNCOAST” is a trademark of Sluggo Music Technology LLC, Copyright 2017 All Rights Reserved...
- Page 3 1 Overview 1.1 Introduction 1.2 Features 2 Controls 2.1 Front Panel Layout 2.2 Preamp Controls 2.3 Rear Panel Layout 2.4 Rear Panel Jack Description 3 Operation 3.1 External Effects Patching 3.2 Preamp Tone Settings 3.3 Specifications 3.4 Operating Instructions...
- Page 4 1.1 Introduction Thank you for purchasing the SUNCOAST – G2xl Guitar Preamp. It is our commitment to providing our customers with the highest quality, musical instrument preamp/processors, designed and built in the USA. Utilizing our vast experience with classic designs over the past 35 years, we set out to recreate that unique sound from some of our personal favorite artists.

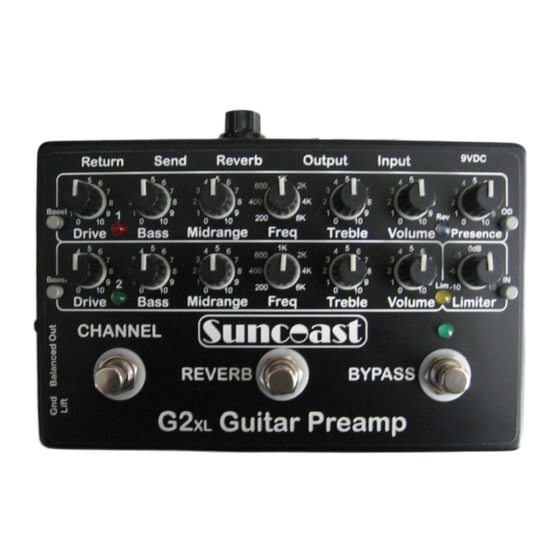

- Page 5 2.1 Front Panel Layout 2.2 Preamp Controls for Channel 1&2 Boost Switch – Adds +20dB extra treble boost to the input Drive control. Drive - This control adjusts the input level of the clean preamp. Bass – The Bass control adjusts the amount of low frequencies. Midrange –...
- Page 6 Channel Footswitch – Selects Channel 1 or 2. Reverb Footswitch – Turns Reverb On/Off. Bypass Footswitch – Engages the Bypass mode. Balanced Output – Balanced XLR output for PA or Recording. Ground Lift Switch – Lifts Pin 3 ground connection on Balanced Output. 2.3 Rear Panel Layout 2.4 Rear Panel Jack Description Power Input - Power input jack, 9VDC @ 1300mA (Center–Negative).
- Page 7 Instrument Patching Instrument G2xl (Input) G2xl (Output) Power Amplifier Speaker 3.1 Preamp Tone Settings These settings are merely a suggested starting point from which you can set to your own personal taste. Drive – 7 (With the Boost switch (IN) adjust to 3 for a starting point) Bass –...
- Page 8 3.2 Specifications Input Voltage – 9VDC Current Consumption – 550mA Input Impedance – 1Meg Ohm Output Impedance – 600 Ohms Dimensions – 7.4”W x 4.7”H x 1.3”D Weight – 1.1lbs 3.3 Operating Instructions • Always connect your instrument input and preamp output prior to turning the unit or pedal board ON.
