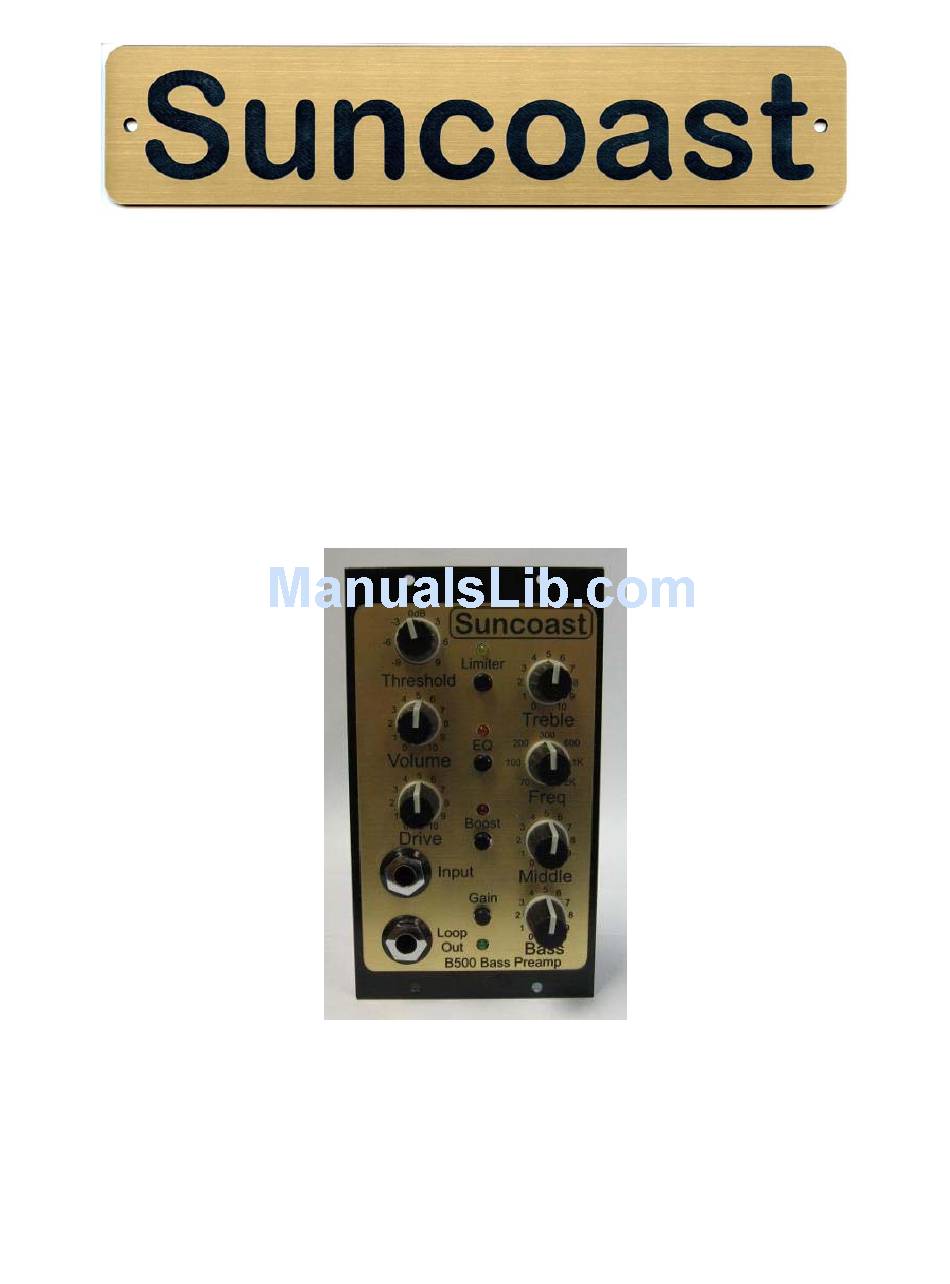

CUSTOM AMPLIFICATION
B500 BASS PREAMP

OWNERS MANUAL

REV B
Copyright 2016, Sluggo Music Technology LLC
All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Suncoast B500

Summary of Contents for Suncoast B500

  • Page 1: Owners Manual

    CUSTOM AMPLIFICATION B500 BASS PREAMP OWNERS MANUAL REV B Copyright 2016, Sluggo Music Technology LLC All Rights Reserved.
  • Page 2 United States of America. For warranty information in all other countries please refer to your local distributor. Sluggo Music Technology LLC P.O. Box 913 Dunedin, FL 34697-0913 (727) 247-2520 sales@sluggomusic.com service@sluggomusic.com SUNCOAST™ is a trademark of Sluggo Music Technology LLC, Copyright 2016 All Rights Reserved...

  • Page 3: Table Of Contents

    1 Overview 1.1 Introduction 1.2 Features 2 Controls 2.1 Front Panel Layout 2.2 Preamp Controls 2.3 Front Panel Jacks 2.4 Front Panel Switches 3 Operation 3.1 Preamp tone settings 3.2 Operating Instructions 4 Technical 4.1 Specifications 4.2 Block Diagram...
  • Page 4 1.1 Introduction Thank you for purchasing the SUNCOAST – B500 Bass Preamp. It is our commitment to providing our customers with the highest quality, musical instrument preamp/processors, designed and built in the USA. 1.2 Features The following is a summary of your B500 Bass Preamp’s unique features: •...

  • Page 5: Front Panel Layout

    2.1 Front Panel Layout 2.2 Preamp Controls Drive - The Drive control adjusts the input level of the preamp. Volume - The Volume control adjusts the output level of the preamp. Threshold - This control adjusts the limiter threshold (-10dB to +10dB). Bass - This tone control adjusts the amount of low frequencies (+/-15dB).

  • Page 6: Preamp Tone Settings

    2.4 Front Panel Switches Gain Switch – Adds +10dB of input gain for low output instrument pickups. Boost Switch – Adds +10dB Mid/Treble Boost. EQ Switch – Shifts Bass, Midrange and Treble center Frequencies. (30/50Hz, 70Hz-2kHz/150Hz-4kHz and 4/6kHz) Limiter Switch – Turns the Limiter On/Off. 3.1 Preamp Tone Settings These settings are merely a suggested starting point from which you can set to your own personal taste.

  • Page 7: Specifications

    4.1 Specifications Input Voltage – +/- 16VDC Current Consumption – 170mA Input Impedance – 1Meg Ohm Output Impedance – 600 Ohms Dimensions – 3”W x 5”H x 7”D Weight – 1 lbs Sluggo Music Technology LLC, Copyright 2016 All Rights Reserved...
