Page 1: Owners Manual

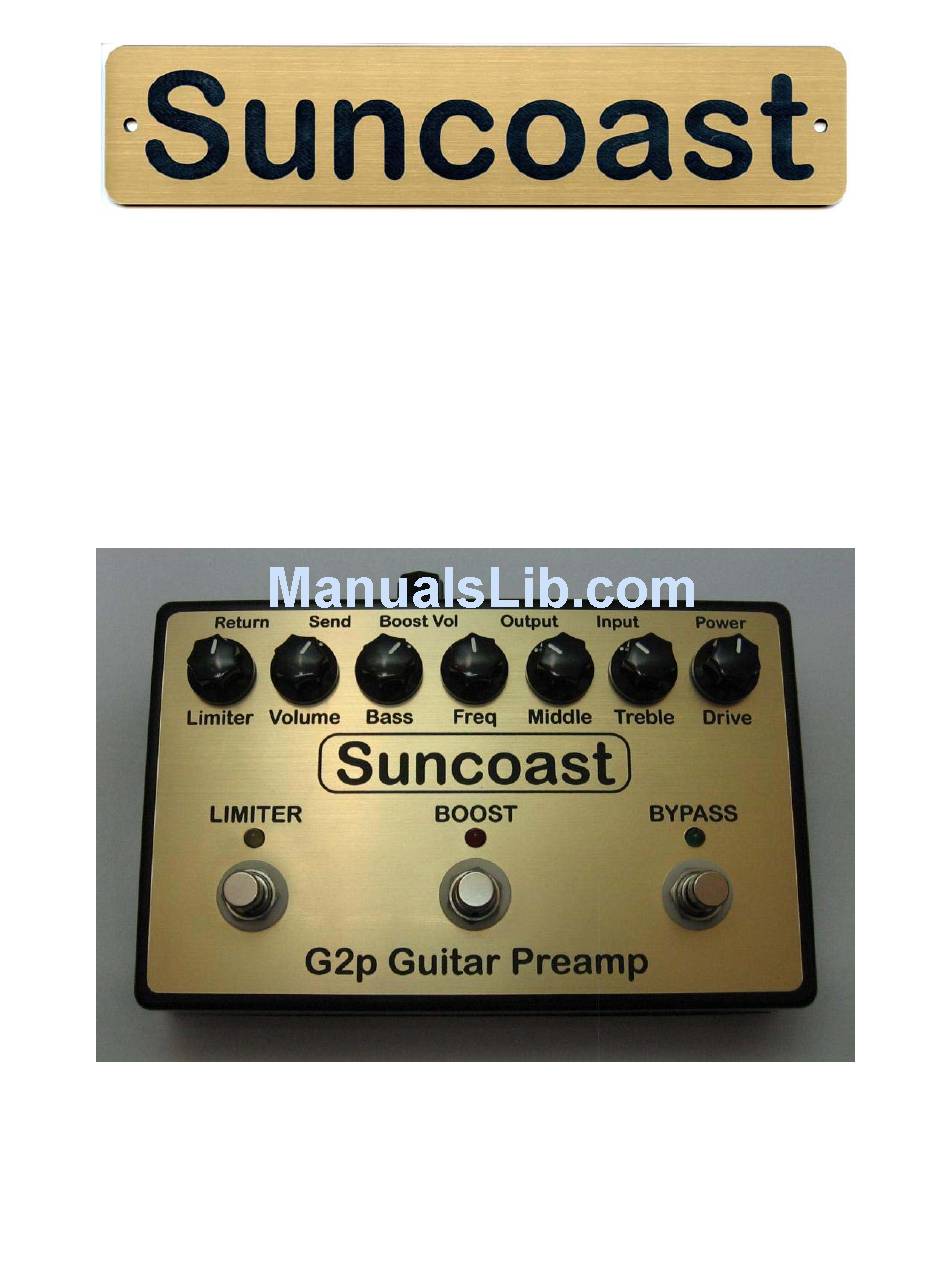

CUSTOM AMPLIFICATION G2p GUITAR PREAMP OWNERS MANUAL Rev E Copyright 2016, Sluggo Music Technology LLC All Rights Reserved. - Page 2 United States of America. For warranty information in all other countries please refer to your local distributor. Sluggo Music Technology LLC P.O. Box 913 Dunedin, FL 34697-0913 (727) 247-2520 sales@sluggomusic.com service@sluggomusic.com SUNCOAST™ is a trademark of Sluggo Music Technology LLC, Copyright 2016 All Rights Reserved...
-
Page 3: Operation
1 Overview 1.1 Introduction 1.2 Features 2 Controls 2.1 Front Panel Layout 2.2 Preamp Controls 2.3 Rear Panel Layout 2.4 Rear Panel Jack Description 2.5 Internal Preamp Controls 3 Operation 3.1 Operating Instructions 3.2 External Effects Patching 3.3 Preamp tone settings 4 Technical 4.1 Specifications 4.2 Block Diagram... - Page 4 1.1 Introduction Thank you for purchasing the SUNCOAST G2p Guitar Preamp. It is our commitment to providing our customers with the highest quality, musical instrument processors, designed and built in the USA. Utilizing our vast knowledge of classic designs from the past 50 years, we set out to recreate that unique sound from some of our personal favorite artists.
-
Page 5: Front Panel Layout
2.1 Front Panel Layout 2.2 Preamp Controls Limiter - This control adjusts the limiter threshold for when it kicks in. Volume – The Volume control adjusts the output level of the preamp. Bass – This tone control adjusts the amount of low frequencies. Freq - This control adjusts the midrange center frequency. -
Page 6: Rear Panel Layout
Rear Panel Layout 2.4 Rear Panel Jack Description Power Input - Power input jack, 9VDC @ 250mA (Center–Negative). Input - Main instrument input jack. Output - Main preamp output jack. Boost Vol - Boost Volume for blending Overdrive preamp with clean tone. Send - Effects Loop Send jack, (preamp out). - Page 7 2.5 Internal Preamp Controls Clean Preamp Dip Switch 1. Crunch Mode – Adds +20dB Mid/Treble boost to Clean preamp. 2. Extra Distortion – Adds clipping distortion to Clean preamp. Overdrive Preamp Dip Switch 1. Boost Mode – Adds +20dB Mid/Treble boost to Boost preamp. 2.
-
Page 8: External Effects Patching
3.2 External Effects Patching Guitar > Wah > Flange > Chorus > G2p Input G2p Send > Vol Pedal > Delay > Reverb > Noise Gate > G2p Return G2p Output > Power Amplifier > Speaker 3.3 Preamp Tone Settings These settings are merely a suggested starting point from which you can set to your own personal taste. -
Page 9: Specifications
4.1 Specifications Input Voltage – 9VDC Current Consumption – 250mA Input Impedance – 4.7 Meg Ohm Output Impedance – 560 Ohms Dimensions – 7.4”W x 4.7”H x 1.3”D Weight – 1.1lbs Sluggo Music Technology LLC, Copyright 2016 All Rights Reserved...
