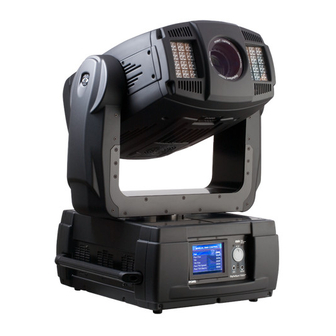

Summary of Contents for Robe Digital Spot 7000 DT

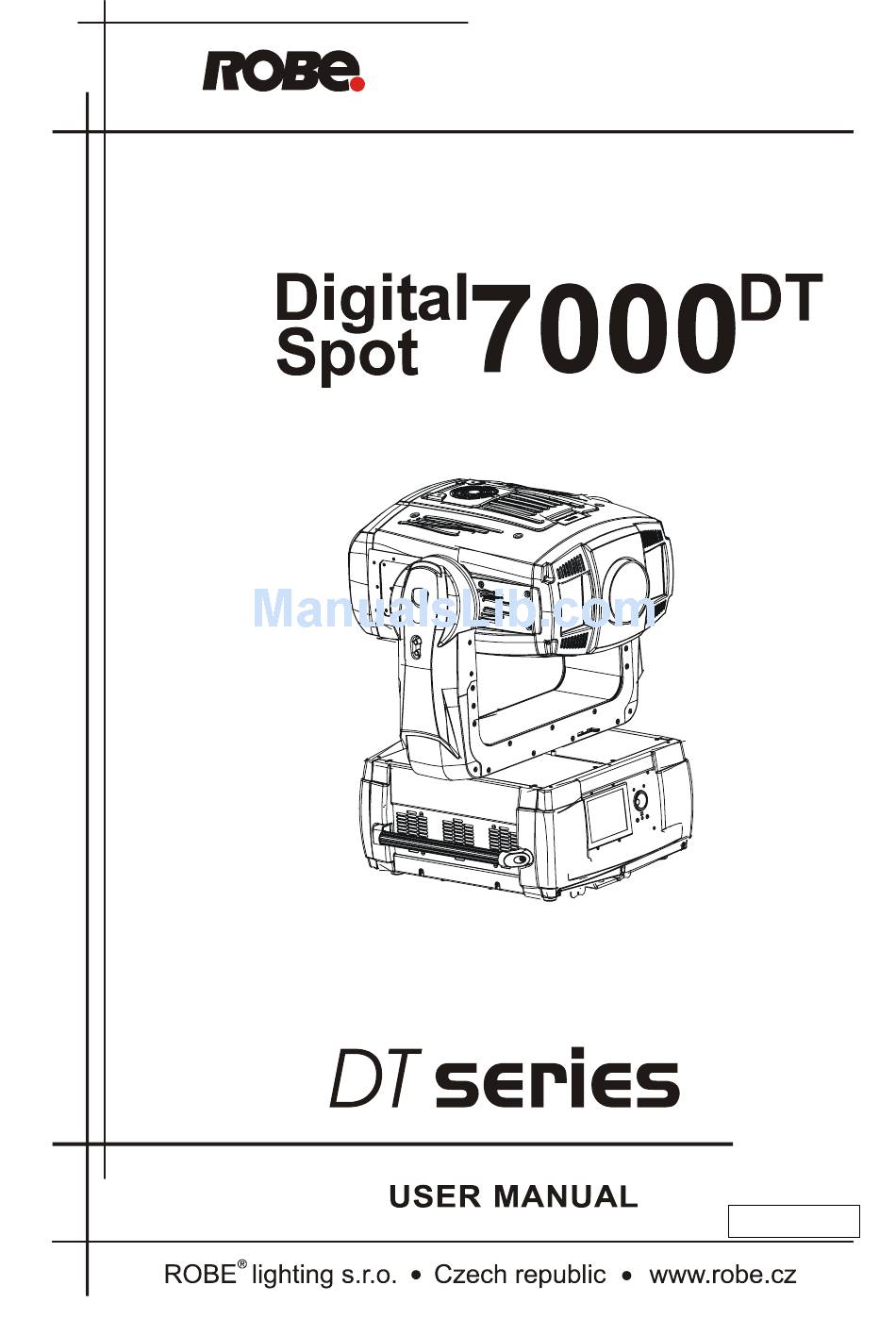

- Page 1 Version 1.3 ...
-
Page 2: Table Of Contents
DigitalSpot 7000 DT Table of contents 1. Safety instructions .............................. 4 2. Unpacking ................................... 5 3. Introduction ................................ 6 4. Fixture exterior view .............................. 6 5. Video inputs ................................ 7 6. Connection to the mains ............................ 7 6.1 Powering on the DigitalSpot 7000 DT ........................ 7 6.2 “Power down” mode ............................ 7 7. Shutting down the DigitalSpot 7000 DT ........................ 7 8. Positioning the DigitalSpot 7000 DT ........................... 8 9. Rigging the fixture ... - Page 3 DigitalSpot 7000 DT 19. Playback speed .............................. 3 4 20. Graphic effects ................................ 3 5 20.1 Kaleidoscopic effect ............................ 3 5 20.2 Circular effect (Fish eye) ........................... 3 7 20.3 RGB (CMY) effects ............................. 3 7 21. Media content management .......................... 4 2 21.1 Moving files between the fixture and PC ...................... 4 2 21.2 Moving files between networked fixtures ...................... 4 6 22. Remote control of the fixture via WWW browser .................... 4 7 23. Picture merging .............................. 5 1 23.1 Picture merging control channels ...
-
Page 4: Safety Instructions
DigitalSpot 7000 DT FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR DIGITALSPOT 7000 DT ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual. The manufacturer will not accept liability for any resulting damages caused by the non‐observance of this manual or any unauthorized modification to the device. Please consider that damages caused by manual modifications to the device are not subject to warranty. The DigitalSpot 7000 DT was designed for indoor use and it is intended for professional application only.It is not for household use. 1. Safety instructions DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT! Make sure that the available voltage is not higher than stated on the rear panel of the fixture. This fixture should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized distributor or local power company. Always disconnect the fixture from AC power before cleaning, removing or installing the fuses, or any part. Make sure that the power switch is set to off‐position before you connect the fixture to the mains. The power plug has to be accessible after installing the fixture. Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this fixture where the cord may be damaged by persons walking on it. Make sure that the power cord is never crimped or damaged by sharp edges. Check the fixture and the power cord from time to time. Refer servicing to qualified service personnel. This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with a protective earthing connection. Do not look straight at the fixture objective lens or LED module during operation. The intense light beam may ... -
Page 5: Unpacking
DigitalSpot 7000 DT This fixture was designed for indoor use only, Do not expose this unit to rain or use near water. When choosing the installation spot, please make sure that the device is not exposed to extreme heat, moisture or dust. Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating. The openings should never be covered with cloth or other materials, and never must be blocked. This fixture should not be placed in a built‐in installation unless proper ventilation is provided. Always use a secondary safety cable when mounting this fixture. Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened. Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture. Do not block the front objective lens with any object when the fixture is under operation. The lamp becomes extremely hot during operation. Allow the fixture to cool approximately 40 minutes prior to removing the lamp assembly for replacement. Do not operate lamps beyond the rated lamp life. Operate the fixture only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the fixture. Most damages are the result of unprofessional operation! Please use the original packaging if the fixture is to be transported. Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons! If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short‐ circuit, burns, electric shock, lamp explosion, crash etc. To switch the DigitalSpot 7000 DT off, always use either option "Fixture Off" in main menu or set a DMX value of channel 8 between 240‐249. Never switch the fixture off by pulling out the power plug from the socket otherwise the fixture may be damaged (projector lamp, operating system...)! 2. Unpacking The DigitalSpot 7000 DT is packaged in either a cardboard box or one‐unit (two‐unit) flight case to protect the ... -
Page 6: Introduction
DigitalSpot 7000 DT 3. Introduction The DigitalSpot 7000 DT features moving head with a video projection and automated lighting technologies including a DMX controllable digital media server installed in a fixture´s base. The built‐in 32‐bit Graphics Engine utilizes Linux and DirectX application programming interface to provide extensive image control of graphic objects. The Digital spot 7000 DT uses DMX512 protocol to control hardware functions like pan, tilt, and focus, as well as media fixture capabilities including loading images and movies. The graphics engine allows you manipulate position, scale, rotation, apply visual effects and colour mix each image. S‐Video and VGA inputs for direct input to data projectors are handy for performing presentations. S-Video and Composite live inputs can be used in graphics effects of DigitalSpot 7000 DT 4. Fixture exterior view 1 ‐ Top head cover 2 ‐ Projector aperture 3 ‐ LED Wash module 4 ‐ Yoke 5 ‐ Pan lock/unlock latch 6 ‐ Control board 7 ‐ Base 8 ‐ Handle ... -
Page 7: Video Inputs
DigitalSpot 7000 DT Rear panel of the fixture base 1 - DVI-I input (optional) - graph. engine 2 - VGA input (optional)- graph.engine 3 - 2x USB 4 - DMX output (5-pin XLR ) 5 - DMX input (5-pin XLR) 6 - ATX switch ... -
Page 8: Positioning The Digitalspot 7000 Dt
DigitalSpot 7000 DT 1. A DMX controller can switch off the projector lamp and shut down the fixture with the "Lamp Off, Fixture Off" option on the control channel 8 (see DMX protocol). 2. The option "Fixture Off" in main menu of DigitalSpot 7000 DT switches off the projector´s lamp and shuts down the fixture. After shutting down the fixture switch the power switch on the rear side of the fixture base to the off position in order to save energy. Removing power directly without the shutdown procedure can reduce fixture reliability! 8. Positioning the DigitalSpot 7000 DT The DigitalSpot 7000 DT is designed to be installed in one of four possible installation locations: 1. Front Table ‐ the fixture is placed near the floor in front of the screen. 2. Front Ceiling ‐ the fixture is suspended upside‐down from the ceiling (truss) in front of the screen. Set Ceiling Projection in the menu Personality ("Personality‐‐‐>"Projection Presetting" ‐‐‐>"Ceiling Projection"‐‐‐>"On") 3. Rear Table ‐ the fixture is placed near the floor behind the screen. Set Rear Projection in the menu Personality ("Personality‐‐‐>"Projection Presetting"‐‐‐>"Rear Projection"‐‐‐>"On") Note that a special rear projection screen is required. 4. Rear Ceiling ‐ the fixture is suspended upside‐down from the ceiling (truss) behind the screen. Set Rear Projection in the menu Personality ("Personality‐‐‐>"Projection Presetting"‐‐‐> "Rear Projection"‐‐‐>"On") and Ceiling Projection ("Personality‐‐‐>"Projection Presetting" ‐‐‐>"Ceiling Projection"‐‐‐>"On") Note that a special rear projection screen is required. ... -
Page 9: Rigging The Fixture
DigitalSpot 7000 DT 9. Rigging the fixture Please consider the respective national norms during the installation! Verify the truss or support will handle the combined weight of all the fixtures on the truss Always use a secondary safety cable when mounting this fixture When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden. The operator has to make sure that safety‐relating and machine‐technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time. The operator has to make sure that safety‐relating and machine‐technical installations are approved by a skilled person once a year. To ensure reliable operation of the product and to protect it from overheating, the vents must not be blocked or covered. Hot air is exhausted from the exhaust vent. Do not put any flammable object near the fixture, hot air is exhausted from the air vents. Keep the exhaust vents at least 1 m away from any objects. Do not touch peripheral parts of the exhaust vent, especially screws, grids and metallic parts. These areas will become hot while the fixture is being used. Do not put anything on the fixture. Objects put on the fixture will not only get damaged but also may cause fire hazard by heat. Allow the fixture to cool for 20 minutes before handling. The fixture should be installed out of the reach of people. We recommend avoiding dusty/smoky environments when operating the fixture. Usage in these environments may cause a poor image quality. When using the fixture under dusty or smoky conditions,dust may accumulate on a lens, liquid crystal panels, or optical elements inside the projector. Such condition may degrade the quality of the projected image. Overhead rigging requires extensive experience, including calculation of working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and or damage to property. The fixture must never be fixed swinging freely in the room. Use 2 appropriate clamps to rig the fixture on a truss. ... -
Page 10: Dmx 512 Connection
DigitalSpot 7000 DT To install the fixture on the truss: 1. Bolt clamp (1) to the omega holder (2) with M12 bolt and lock nut through the hole in the holder. 2. Fasten the omega holders on the bottom of the base by inserting both quick‐lock fasteners (3) into the holes of the base and tighten fully clockwise. 3. Fasten the safety‐rope (4) through the two apertures in the bottom of the base and over the trussing system. Before taking into operation for the first time, the installation has to be approved by an expert! 10. DMX 512 connection The fixture is equipped with both 3‐pin and 5‐pin XLR sockets for DMX input and output. Only use a shielded twisted‐pair cable designed for RS‐485 and 3‐pin/5‐pin XLR‐ connectors in order to connect the controller with the fixture or one fixture with another. 10 ... -
Page 11: Ethernet Connection
DigitalSpot 7000 DT Wiring of the XLR connectors: DMX output DMX input XLR mounting sockets (rear view): XLR mounting plugs (rear view): 1 – Shield 2 - Signal (-) 3 - Signal (+) 4 – Not connected 5 –... -
Page 12: Folder Organization
DigitalSpot 7000 DT 3‐ RX+ 7‐ Not connected 4‐ Not connected 8‐ Not connected Patch cables that connect fixtures to the hubs or LAN sockets are wired 1:1, that is, pins with the same numbers are connected together: 1‐1 2‐2 3‐3 4‐4 5‐5 6‐6 7‐7 8‐8 If only the fixture and the computer are to be interconnected, no hubs or other active components are needed. A cross‐cable has to be used: 1‐3 2‐6 3‐1 4‐8 5‐7 6‐2 7‐5 ... - Page 13 DigitalSpot 7000 DT Inside each folder is a collection of media files that the library folder holds. The media files also should follow the 3‐digit conventions where a 3‐digit number is followed by an underscore and a name e.g.: 001_testfile1.png. Note that for media files the digit starts at 001_ since visual 0 is always considered as being empty. The media files assigned to the DMX values can be sorted either in an alphabetical or numerical order. Default assigning is the alphabetical order. If you need to change this sorting, go to the menu ”Personality“ and select “Gobo selection mode“ option. The numerical order is suitable in the case that you need to exactly assign certain media files to specified DMX addresses. The table below show differences in file DMX assignment between the alphabetical and numerical sorting. The table also includes file names without a correct 3‐digit convention to illustrate their behaviour in the numerical sorting. Media file name DMX value DMX value at Alphabetical Sorting at Numerical Sorting 001_testfile1.png 1 1 020_testfile2.png 2 20 19_testfile3.png 3 19 3_testfile4.png 4 3 460_testfile5.png 5 Not Assigned* testfile6.png 6 Not Assigned** * The 3‐digit number has to be in range of 001‐255. If there is more than 255 media files in the folder, files above 255 are ignored. ** The media file name does not contain any digit. ...
-
Page 14: Control Menu Map
DigitalSpot 7000 DT 13. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 Fixture Set DMX DMX Settings 001‐512 Address Address Activate DMX Mode Ethernet Default IP ... - Page 15 DigitalSpot 7000 DT Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 Lamp Off via On, Off DMX Lamp On If DMX On, Off is Present Lamp Off if On, Off not DMX Display ...
- Page 16 DigitalSpot 7000 DT Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 Default Set Default Settings Values Remove User Media Content Lamp On/Off On, Off ...
- Page 17 DigitalSpot 7000 DT Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 DMX Program 10 in Loop Record DMX DMX Program Program 1 : DMX Program ...
- Page 18 DigitalSpot 7000 DT Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 LED Panel Board 1 LED Panel Board 2 Maximum Projector Nonresetable temp. 1 ...
- Page 19 DigitalSpot 7000 DT Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 Synchronize to Fixture Synchronize from Fixture Update Open Synchronize to ...
-
Page 20: Operating Modes
DigitalSpot 7000 DT 14. Operating modes Before operating the DigitalSpot 7000 DT from a DMX 512 controller, you need to define the source of DMX data, which may be: DMX 512 ‐ data is transmitted over standard DMX cables. Set a valid DMX start address, which is defined as the first channel from which the DigitalSpot 7000 DT will respond to the controller. Please, be sure that you don’t have any overlapping channels in order to control each DigitalSpot 7000 DT correctly and independently from any other fixture on the DMX data link. For DMX start address setting, please refer to the instructions under "Fixture Address". ArtNet ‐ data is transmitted over Ethernet network using Artnet protocol. Set an IP address, Artnet Universe and Artnet Subnet. For Artnet setting, please refer to the instructions under "Fixture Address". 15. Control menu The control panel situated on the front panel of the base offers several features. You can simply set the fixture addresses, configure the fixture, run test, make a reset and also use many functions for setting fixture behaviour. Control elements on the control board: [RNS] encoder wheel‐moves between menu items on the same level, scrolls between values. [ESC] button‐leaves menu without saving changes [ENTER] button‐enters menu, confirms adjusted values and leaves menu After switching the fixture on, than press [ENTER] and the display shows the initial screen: the display shows address: The main menu of the control panel is accessed by pressing the [ENTER] button. To browse through the menu, rotate the [RNS] wheel. To select a function or submenu, press the [ENTER] button. 15.1 Fixture Address Use this menu to set the DMX address. DMX Setting ‐‐‐ Select this submenu to set the DMX start address. ... -
Page 21: Fixture Information
DigitalSpot 7000 DT 3. Press the [ENTER] to move on the second number of the IP address 4. Repeat steps 2 and 3 for the third and fourth number of the IP address. If you want to return back on the previously edited number, press [ESC]. The same way you can set the Netmask Address. Set ArtNet Universe ‐ Select this submenu to set a Universe (0‐15). The Universe is a single DMX 512 frame of 512 channels. Set ArtNet Subnet ‐ Select the option to set Ethernet subnetworks to which the fixture belongs (0‐15) After setting all Artnet parameters confirm setting by using the function "Activate Artnet Mode": Activate Artnet Mode ‐ Data is received from the Ethernet input. ... - Page 22 DigitalSpot 7000 DT Display Permanent On ‐ This function allows you to keep the display permanent on or to turn it off after 5 minutes of inactivity of control buttons (wheel) Display Orientation ‐ Select this function to adjust the display orientation: Normal orientation ‐ A standard display orientation. Rotated Orientation ‐ Inverts the display by 180°. Pan/Tilt Feedback ‐‐‐ This function allows to return the moving head to the required pan/tilt position after changing the position by an external force (e.g. by a stroke). Be careful, the Pan/Tilt Feedback OFF is not the standard operation and the head of the fixture can be damaged! Note: If the feedback was switched off ,the pan/tilt position is changed by an external force and the feedback is switched on again, the moving head might not to be synchronized with the DMX signal. You have to make a reset in order to synchronize the moving head with the DMX signal. Pan/Tilt mode ‐‐‐ Use this menu to set the character of the pan/tilt movement. Time mode ‐‐‐ Pan and tilt will move with different speeds and they will come at the same time to the end point (pan and tilt sets its optimal speed). Speed Mode ‐‐‐ Pan and tilt will move with the same speed as adjusted by the channel 5. (Pan/Tilt speed). E.g. pan will come to the end point and wait for tilt, which has longer track. Active Blackout while: ‐‐‐ Use this function if you wish to close the light output during the following events: During Movement correction ‐‐‐ Select this function to enable the blackout during the head ...
-
Page 23: Lamp On/Off
DigitalSpot 7000 DT Numerical projection ‐‐‐ The media files are assigned to DMX values in a numerical order. Microphone Sensitivity ‐‐‐ Select this item to adjust the microphone sensitivity from 1 (maximum) to 20 (minimum). Default Settings ‐‐‐ Select this option to set default values or to remove user´s content in the fixture. Set Default Values ‐‐‐ Select this option to reset all fixture personalities to the default values. Remove User Media Content ‐‐‐ The item deletes all user media contents except the factory media content. 15.4 Lamp On/Off Use this option in order to switch on/off the projector´s lamp.Do not use the projector continuously for 24 hours or more. If using the projector continuously for long periods, turn it off and leave it for one hour at least once during a 24 hour period. 15.5 Manual control Manual DMX control ‐‐‐Select this menu to control all channels by the control elements on the control board. Video Input Selection ‐‐‐This menu enables to select desired video input: Internal input External VGA Input External SVIDEO Input ... - Page 24 DigitalSpot 7000 DT Edit Program ‐‐‐ Select this menu to edit or create a program. The DigitalSpot 7000 DT has 10 freely‐programmable programs, each up to 99 steps. Each program step has a step time, during which effects last in a current step. Procedure: 1. Select the program you want to edit (“Program 1” ‐ “Program 10”) and press the [ENTER] button. 2. Select “Edit Steps” menu and press [ENTER] button. 3. Select the desired program step (“Step 01” ‐ “Step 99”) and press [ENTER] button. 4. Select the desired item and press the [ENTER] button. Now you can edit a DMX value of selected item by the [RNS] encoder wheel 5. Press the [ENTER] to save adjusted value. 6. Select another effects (channels) and repeat steps 4 an 5. 7. Select “Save” or “Save and Copy” and press the [Enter] to confirm all adjusted values in a current step: “Save” ‐ saves the current prog. step “Save and Copy” ‐ saves and copies the current prog. step to the next prog. step. Option “Snap DMX”‐ inserts current values from DMX to all effects (channels). It is very useful function, you don not have to adjust all effects to desired positions, all values are loaded from DMX. 8. Go to the next prog. step ,press the [ENTER] and repeat this procedure (steps 4 and 7). After creation of the program, you can simply reduced its length (by changing the start/end step) using either the “Start Step” item or the “End Step” item. Music Trigger ‐‐‐ Select this item to enable the sound control of the running programs via the built‐in microphone. Play DMX Program ‐‐‐ Select this menu to run one of 10 programs which have been recorded via the menu “Record DMX program”. By pressing the [ENTER] you can switch the running program into the 3 following modes: Pause, Playing, Playing in Loop. The current program step is shown on the fixture display: Record DMX Program ‐‐‐ The menu allows to record DMX data that receives the fixture and then replay them again via the menu “Play DMX program”. There is a list of 10 programs for recording with unlimited steps each. Select desired program number and press the [ENTER] to enter the recording screen. The data record starts after changing any receiving DMX value. To stop recording, press [ENTER] or [ESC]. ...
-
Page 25: Preview Mode
DigitalSpot 7000 DT Fixture Off Timer ‐‐‐ The menu offers to control the time during which the fixture is on and, for example, plays the recorded program. The adjusted time period is counted from starting the fixture. Deactivated Timer ‐‐‐ The item disables the “Fixture Off Timer” option. Set Timer Hours ‐‐‐ The item enables to set hours for the “Fixture Off Timer”. Set Timer Minutes ‐‐‐ The item enables to set minutes for the “Fixture Off Timer”. 15.7 Preview mode. This item enables to display the image, going from the projector, on the fixture´s display. Note: If this function is called out ,the video sequence from projector will not be played continuously because the fixture´s processor has to display this sequence twice at the same time ( on the wall and on the display) 15.8 Reset functions The DigitalSpot 7000 DT can be reset totally or in function modules. Select a desired function to run a reset: Reset Graphics Engine ‐‐‐ This function resets a graphics engine. Reset Pan/Tilt System ‐‐‐ This function resets a pan/tilt movement. Reset Zoom/Focus system ‐‐‐ This function resets a zoom and a focus module. Reset Iris system ‐‐‐ This function resets iris module. Reset All systems ‐‐‐ This function enables you to return all fixture´s effects to their standard positions. 15.9 Service menu Use this menu to read useful information about the fixture. Power On Time ‐‐‐Select this submenu to read the number of operation hours of the fixture. Total Hours ‐ The function shows the total number of the operation hours since the DigitalSpot 7000 has been fabricated. Resetable Hours ‐ The function shows the number of the operation hours that the DigitalSpot 7000 has been powered on since the counter was last reset. In order to reset this counter to 0, press [ENTER] twice. ... -
Page 26: Special Functions
DigitalSpot 7000 DT Projector temp.3 [°C] ]…………..temperature measured in the data projector Pan /Tilt Board. [°C] ....temperature on the PCB in the fixture base Led Panel Board 1 [°C]....temperature in the LED module 1 Led Panel Board 2 [°C].....temperature in the LED module 2 Air Filters ‐‐‐ Regular cleaning of the air filters is very important for the DigitalSpot 7000 DT life and performance. Buildup of dust, dirt and fog fluid residues reduces the fixture´s light output and cooling ability. The two items of menu help you to keep cleaning period of the air filters. Time To Cleanup Filters ‐ The option allows you to read the time which remains to cleaning air filters. Expired time period is signalized by a negative mark at the time value and a warning icon (triangle) on the display with the following message: "Please , Clean Up Airs Filters." Clean the filters and reset this menu item (by pressing the "Enter" button twice while this menu is highlighted) ... - Page 27 To upload a file/folder from the USB stick to the Media folder in the fixture: 1. Insert the USB stick to the USB port , select "USB Data Synchronize" from the menu and press the [ENTER], "USB1" or "USB2" (depends on used USB port) is displayed on the screen. 2. Press the [ENTER], select "Open", press the [ENTER]. 3. Select "Media", press the [ENTER], 4. If you want to copy all Media folder (including subfolders 000‐240), select item "Synchronize to Fixture". If you want to copy only one subfolder (e.g. 035) ,select "Open", press the [ENTER] , select desired subfolder from a list of subfolders ,press the [ENTER] and select option "Synchronize to Fixture". If you want to copy only one file, select "Open" and press the [ENTER]. Select the desired file, press the [ENTER] and confirm a question in a dialogue box. To download folder from the Media folder to the USB stick. 1. Insert the USB stick to the USB port , select "USB Data Synchronize" from the menu and press the [ENTER]. "USB1" or "USB2" (depends on used USB port) is displayed on the screen. 2. Press the [ENTER], select Open, press the [ENTER]. 3. Select "Media", press the [ENTER], 4. If you want to copy all Media folder from the fixture (including subfolders 000‐240), select item "Synchronize from Fixture". If you want to copy only one subfolder (e.g. 035) ,select "Open", press the [ENTER] , select desired subfolder from a list of subfolders ,press the [ENTER] and select option "Synchronize from Fixture". If you want to copy only one file, select "Open" and press Enter. Select the desired file, press the [ENTER] and confirm a question in a dialogue box. Software Update ‐‐‐ This menu allows to update graphical software or hardware processors software. You have to download the latest version of the DigitalSpot 7000 DT software from ROBE website to your hard disk and then use either Ethernet network or the USB stick to move this file to the relevant folder in the DigitalSpot 7000 DT. Copying software update file from the USB stick to the fixture: 1. Insert the USB stick to the USB port, select "USB Data Synchronize" from the menu and press Enter. There is an USB1 or USB2 (depends on used USB port) displayed on the screen. 2. Press Enter, select Open, press the [ENTER]. 3. Select Update and press the [ENTER]. If you want to upload whole Update folder to the fixture, select option "Synchronize to Fixture". If you only want to copy one or more files to the fixture, select option "Open" and press the [ENTER]. Select desired file, press the [ENTER] and confirm a question in a dialogue box. After copying update file to the fixture, the desired software update will be activated by confirming the follow items: 27 ...
-
Page 28: Fixture Off
DigitalSpot 7000 DT Update Graphical Software ‐ starts update of the graphical software. If the message Please Update HW Processors in Menu "Special Functions" will appear after updating, run update of the hardware functions. Update HW processors Software ‐ starts update of hardware functions like pan, tilt, focus...etc. Update Media Content ‐ starts update of the factory media folders 00‐20 (pictures, videos) Calibrate Values ‐‐‐ This menu serves for a fine calibration of effects. Iris Calibration ‐ allows fine calibration of a mechanical iris. Generate Log File ‐‐‐ This item starts generating a log file. The file is saved in a folder "Log" on the hard disk. This file records events in a certain scope in order to provide an audit trail that can be used to diagnose problems of the fixture. Remote servis ‐‐‐ This menu provides necessary items for remote servis of the DigitalSpot 7000 DT. 15.11 Fixture Off This function shuts down the fixture. The projector lamp is switched off as first and after cca 20 seconds is switched off the fixture. 16. Keystones 16.1 Global keystone parameters If an image is output from the DigitalSpot 7000 DT at an angle the image may be skewed. Eight keystone channels (KeyStone Top Left X, KeyStone Top Left Y, KeyStone Top Right X, KeyStone Top Right Y, KeyStone Bottom Right X, KeyStone Bottom Right Y, KeyStone Bottom Left X, KeyStone Bottom Left Y) adjust the image shape.It is possible to ... -
Page 29: Layer Keystone Parameters
DigitalSpot 7000 DT use channel the KeyStone X‐ratio for correction use the channel KeyStone Y‐ratio for correction 16.2 Layer keystone parameters By the global keystone parameters stated above you can control each of the four corners of the graphics output individually to reshape your image to a form that is projected correctly. By the layer keystone parameters you can control all four corners of the image at the same time. With these parameters you can create the same skewing and shape effects like with the global keystone parameters but on each gobo layer. Major use of these effects is in a situation where the gobo mask is applied on a layer and you need to adjust a mask shape onto some object on the scene. More important is adjusting of the inner part of the image on the layer than the outer shape of the graphics output. Characteristic case is a composition of 2 layers: the layer 1, where is applied a picture of the landscape and the layer 2, where is a gobo mask selected (see picture below). To adjust desired image shape you can use the following (keystone) parameters on the gobo layer 2: 1. Layer zoom in X and Y direction. The channels Gobo zoom X coarse and Gobo zoom X fine allow 8‐bit/16‐bit zooming in X‐direction. The channels Gobo zoom Y coarse and Gobo zoom Y fine allow 8‐bit/16‐bit zooming in Y‐direction. 29 ... - Page 30 DigitalSpot 7000 DT 2. Gobo position in X and Y direction. The channels Gobo position X coarse and Gobo position X fine allow 8‐bit/16‐bit positioning in X‐direction. The channels Gobo position Y coarse and Gobo position Y fine allow 8‐bit/16‐bit positioning in Y‐direction. 3. Layer skewing along X and Y axis. On the channel Gobo effect 1 selection adjust a DMX value=150 and using the control parameters 1 an 2 you can skew the image in either X or Y axis. The channel Gobo effect 1 – Parameter 1 skews the image in X‐axis. 30 ...
- Page 31 DigitalSpot 7000 DT The channel Gobo effect 1 – Parameter 2 skews the image in Y‐axis. 4. Layer Squeezing/Stretching along X and Y axis. On the channel Gobo effect 1 selection adjust a DMX value=150 and using the Control Parameters 3 you can squeeze the image in X axis. The channel Gobo effect 1 – Parameter 3 squeezes/stretches the image edges in Y‐axis. On the channel Gobo effect 2 selection adjust a DMX value=150 and using the control parameters 1 you can squeeze the image in Y axis. Note. To allows this effect, the channel Gobo effect 1 selection has to be set to DMX=150. The channel Gobo effect 2 – Parameter 1 squeezes/stretches the image edges in X‐axis. 31 ...
- Page 32 DigitalSpot 7000 DT 5. Image X‐ratio and Y‐ratio. On the channel Gobo effect 2 selection adjust a DMX value=150 and the second and third parameter control image X‐ratio and Y‐ratio. Note. To allows this effect, the channel Gobo effect 1 selection has to be set at DMX=150. The channel Gobo effect 2 – Parameter 2 compresses or expands the image in X‐ axis The channel Gobo effect 2 – Parameter 3 compresses or expands the image in Y‐ axis. After shaping the image by means of the parameters stated above, you can apply the global banner effects on the whole graphics output and this final image should appear for instance like this: 32 ...
-
Page 33: In Frame And Out Frame Parameters
DigitalSpot 7000 DT 17. In Frame and Out Frame parameters You can select any segment of a video file for playback by assigning parameters for In Frame (start point) and an Out Frame (end point) as pictured below. The In Frame parameter corresponds to a 16‐bit DMX value equal to a starting point for the playback segment of the selected video file. The Out Frame parameter corresponds to a 16‐bit DMX value equal to an end point for the playback segment of the selected video file. 1.Assigning the In Frame DMX values to 0 and Out Frame DMX values to 255 you will playback the entire video file. You can create a segment anywhere between the beginning and the end of the video file It is possible to skip a segment in the video file by setting the In Frame to a point following the Out Frame value. 18. Video Control The channel Gobo control defines how the current layer will be ‘composed’ with the previous layers and the playback options in each mode .The Digital Spot 7000 supports the following options: Copy mode (0‐17 DMX): In this mode, the pixels of the layer are written on top of the previous layers. Addition mode (20‐37 DMX: In this mode, the pixel values of the current layer are added to the ones of the previous layers. This means that “dark” pixels in the current layer image won’t alter the pixels that are underneath while “light” pixel will saturate the image underneath. Subtraction mode (40‐47DMX): In this mode, the pixel values of the current layer are subtracted from the pixel value in the underlying layers. Dark pixel from the current layer won’t alter the pixel of the layers underneath while light pixel will darken them. Multiplication mode (60‐77 DMX): In this mode, the pixels from the current layer will be multiplied by the pixels of the underlying layers. For a pixel to appear bright in the output, the equivalent pixel of ... -
Page 34: Playback Speed
DigitalSpot 7000 DT The playback options: DMX value Playback option Meaning 0. Play forward continuously if dimmer >0 P lays the video segment from In Frame point to Out Frame point, continuous looping. The dimmer value has to be greater than 0. 1 Play forward once if dimmer >0 Plays the video segment from In Frame point to ... -
Page 35: Graphic Effects
DigitalSpot 7000 DT 20. Graphic effects There are two gobo effect channels on each gobo layer (Gobo effect 1 selection, Gobo effect 2 selection), which offer amount of effects that can be applied to the current running picture/video. Each effect channels have three control channels ‐ Parameter 1, Parameter 2, Parameter 3 – which allow to change the behaviour of selected effect (e.g. speed, amount...) 20.1 Kaleidoscopic effect The kaleidoscopic effect section on the channel Gobo effect 1 selection allows selection of the static or dynamic mode of the kaleidoscopic effect according to the desired mosaic segment. DMX value Segment of mosaic Example Source picture Static Dynamic mode mode Square 100 101 Right triangular 102 103 Isosceles triangular ... - Page 36 DigitalSpot 7000 DT DMX value Mosaic effect Examples Source picture Static Dynamic mode mode Centered Kaleidoscope ) (rough Note: As the effect does not cover all projection are, the image from the lower layer can be 110 111 displayed at the sides of the effect. E.g. Centered Kaleidoscope effect has been selected on the layer 4 and the picture on the layer 3 is visible at the sides of the effect. Centered Kaleidoscope ) (fine Note: As the effect does ...
-
Page 37: Circular Effect (Fish Eye)
DigitalSpot 7000 DT If the effect “Centered Kaleidoscope (fine) ” is selected, meaning of the Parameter 1 is the following: DMX value Function 0 ‐ 255 Shape and a number of mirroring planes Gobo effect 1‐ Parameter 2: Size and pulsation of the segments content DMX value Function 0 ‐ 128 Size of segments content from small (0 DMX) to large (128 DMX) 129 ‐ 255 Speed of segment pulsation from slow (129 DMX) to fast (255 DMX) Gobo effect 1‐ Parameter 3: Movement of the segments content DMX value Function 0 ‐ 127 Backward movement of segments content from fast (0 DMX) to slow (127 DMX) 128 No movement 129‐255 Forward movement of segments content from slow (129 DMX) to fast (255 DMX) 20.2 Circular effect (Fish eye) The effect allows to convert a picture from an oblong format to a circle format and adjust the character of the circular effect. The circular effect can be activated on each gobo layer if you set the Gobo Effect 1 Selection channel to a DMX Value of 90. The Parameter 1 of this effect changes the character of the circular effect from concave to convex. The Parameter 2 and Parameter 3 serve for adjusting X ratio and Y ratio of the source image. A default value for all three parameters is 128. Control parameters: Control Controlled item Function parameter ... - Page 38 DigitalSpot 7000 DT Associated control parameters: Control Controlled item Function parameter value Parameter 1 Red colour element 0‐255 no adjustment minimum saturation Parameter 2 Green colour element 0‐255 no adjustment minimum saturation Parameter 3 Blue colour element 0‐255 no adjustment minimum saturation RGB add All Pixels (DMX value=51) – the effect increases colour values across all pixels. Associated control parameters: Control Controlled item Function parameter value Parameter 1 Red colour element 0‐255 no adjustment maximum saturation Parameter 2 Green colour element 0‐255 no adjustment maximum saturation ...
- Page 39 DigitalSpot 7000 DT Swap RGB to GBR (DMX value=56) – the effect swaps red to green, green to blue and blue to red colour in all pixels. Associated control parameters: Control Controlled item Function parameter value Parameter 1 Red colour element 0‐255 no adjustment (0 ) green (255) no adjustment (0 ) blue (255) Parameter 2 Green colour element 0‐255 no adjustment (0 ) red (255) Parameter 3 Blue colour element 0‐255 Swap RGB to BRG (DMX value=57) – the effect swaps red to blue, green to red and blue to green colour in all pixels. Associated control parameters: Control Controlled item Function parameter value no adjustment (0 ) blue (255) Parameter 1 Red colour element ...
- Page 40 DigitalSpot 7000 DT Invert and swap RGB to BRG (DMX value=60) – the effect swaps red, green and blue colour to inverted BRG in all pixels. Associated control parameters: Control Controlled item Function parameter value Parameter 1 Red colour element 0‐255 no adjustment (0 ) full inverted blue (255) no adjustment (0 ) full inverted red (255) Parameter 2 Green colour element 0‐255 no adjustment (0 ) full inverted green (255) Parameter 3 Blue colour element 0‐255 Invert and swap RGB to GBR (DMX value=61) – the effect swaps red, green and blue colour to inverted GBR in all pixels. Associated control parameters: Control Controlled item Function parameter value Parameter 1 Red colour element 0‐255 no adjustment (0 ) ...
- Page 41 DigitalSpot 7000 DT RGB scale (DMX value=68) – the effect changes the output intensity of red, green and blue colour in all pixels. Associated control parameters: Control Controlled item Function parameter value Changes the inclination of conversion line for red colour from max. output intensity (0 ) no adjustment (255) Parameter 1 Red colour 0‐255 Changes the inclination of conversion line for green colour from max. output intensity (0 ) no adjustment (255) Parameter 2 Green colour 0‐255 Changes the inclination of conversion line for blue colour from max. output intensity (0 ) no adjustment (255) Parameter 3 Blue colour 0‐255 Brightness scale (DMX value=69) – the effect changes the output intensity of brightness of the picture. Associated control parameters: Control Controlled item Function parameter value Inclination of the Changes the inclination of conversion line for output brightness Parameter 1 0‐255 conversion line – bottom ...
-
Page 42: Media Content Management
DigitalSpot 7000 DT 21. Media content management As you seen earlier in chapter "12. Folder organization", the DigitalSpot 7000 DT uses the root folder named "Media". This folder contains subfolders (000,001...240) and inside each subfolder is the collection of media that the subfolder holds. The files in subfolders are sorted in an alphabetic or numerical order and assigned to DMX. The first part of the file name should be a 3‐digit number followed by an underscore and a name e.g.: 001_sun.png...... 1 DMX 002_snow_castle.png..2 DMX : 255_apple.png....255 DMX Subfolders 000‐020 are reserved for default (factory) gobos/videos and their contents cannot be changed. User subfolders 21‐240 and their contents can be mowed between fixtures and your local drive (PC) as well as between fixtures. Which method you use depends on: ‐ how much content you want to move ‐ whether the fixture is currently connected to the Ethernet fixture link There is several methods for moving user content files and folders between fixtures and a local drive and between fixtures each other. You can use: ‐ FTP client in Windows explorer window (fixtures have to be connected to Ethernet link) ‐ FTP client in Mozilla Firefox (fixtures have to be connected to Ethernet link) ‐ USB stick ‐ option "Contents Synchronization" in a Remote control program (fixtures have to be connected to Ethernet link). For detail description see articles below. 21.1 Moving files between the fixture and PC 1. FTP client in explorer window. All fixtures have to be linked to the Ethernet link. The proper network configuration and IP address setting of your PC is very important. The following is an example of an IP setting for Windows XP : 42 ... - Page 43 DigitalSpot 7000 DT After network configuration, type the IP address of the DigitalSpot 7000 DT in address line in your Windows ftp:// 2.X.X.X explorer window. Use this format / (e.g. ftp://2.236.2.88/‐ see picture below). If all settings are proper, you will see "Media" and "Update" folders in the Windows explorer window and now you can work with them as local folders and files. See also "Special functions"--> "FTP Server". 43 ...
- Page 44 DigitalSpot 7000 DT 2. FTP client in Mozilla Firefox If you use Mozilla Firefox as your web browser, you can install FTP client into the browser. To install FTP client for Mozilla Firefox on your computer. 1. Run Mozilla Firefox. 2.Select option “ Tools” from the Menu bar, select “Add‐ons” item. 3.Select option “Get Add‐ons” from the standard toolbar, type fireftp into the top left field and press Enter key. 4.Click on the Add to Firefox.. button and follow the installation instructions. 5. Follow the installation instructions until the installation has finished. 5.After installation, go to the “ Tools”, select “Add‐ons” item, select “Extensions” in the toolbar and click on the Options button. Select “Interface” menu and check option “Configure FTP links in Firefox to automatically use FireFTP”. 44 ...
- Page 45 DigitalSpot 7000 DT After installing FTP client, run Mozilla Firefox and type the IP address of desired fixture in ftp format e. g. ftp://2.97.181.89 and a Fire FTP window will appear. If you do not want to keep in mind IP addresses of all connected fixtures, you can use the Remote configuration program (by typing the IP address of one fixture to the web browser in http format e. g. http://2.97.181.89) and go to the Contents Synchronization window where a list of available fixtures is offered. You need to know only IP address of one fixture as the rest of connected fixtures with their IP addresses is displayed in this window. By clicking on the Ftp option (in parenthesis) at desired fixture the FireFTP window will appear: Now you can move files between PC and desired fixture. 3. Via USB stick. Next way, how to add or remove files from the media folders is by means of the USB stick ‐ see "USB Data ".
-
Page 46: Moving Files Between Networked Fixtures
DigitalSpot 7000 DT 21.2 Moving files between networked fixtures The option "Contents Synchronization" in a "Remote control program" running on your PC offers easy control of file transfer between networked fixtures via web browser. (For detail description of the Remote configuration program see chapter "Remote control of the fixture via web browser" below). A window of the Contents Synchronization: There is a list of available fixtures under Device Available for Update. If you connect another fixture to a network, use option "Rescan Devices" to refresh the list of fixtures. A list of available folders with their check boxes is placed under Synchronization Folders. Option "Synchronization Mode" gives you possibility to select how the files will be moved to target folder: "Mirror"‐ a content of the target folder will be fully overwritten by a content of the source folder. "Add"‐ files from the source folder are added to existing files in the target folder. The last folder "Update" next to the gobo folder no. 240 serves for a synchronization of the “update” folders between the fixtures. To move files. 1. Select desired folders check boxes. If you want to select all folders, check All Media check box. 2. Select a target fixture (fixtures) in a list of available fixtures. 3. Select desired Synchronization Mode and click the "Do Synchronization" button to start the file transfer. ... -
Page 47: Remote Control Of The Fixture Via Www Browser
DigitalSpot 7000 DT 22. Remote control of the fixture via WWW browser The DigitalSpot 7000 DT offers a remote control of the fixture and diplaying useful information about the fixture including the gobo folders contents via www browser. The fixtures has to be connected via an ethernet (with Art‐Net communication protocol) to a network. The PC or light console has to be connected to the same network as the fixtures. Use only the IP addresses which have first number 2 like 2.X.X.X, e.g. 2.236.2.88. To run a Remote control program type the IP address of the desired fixture to your www browser (e.g. http://2.236.2.88) and the input window of the Remote Control will appear. Note: if you wish to have access to this utility under password, use the menu "HTTP Access" in "Special functions" to set a password. The Remote Control screen offers these options: Fixture Info ‐ the window with information about current fixture address, disk space, software versions etc. Personality ‐ the window allows you to change the fixture settings like a pan/tilt reverse, feedback, speed, lamp status, DMX protocol selection etc. 47 ... - Page 48 DigitalSpot 7000 DT Status Messages ‐the window under this option displays error and status messages. Special Functions ‐ the window offers several items: "Thumbnails size" ‐ changing the size of the thumbnails. The change takes effect in the item "Content". If you change the thumbnail size, use the button "Update" below the size box. "Log File" ‐ enables to generate log file for service purposes. "System Reboot"‐ starts reboot of the fixture 48 ...
- Page 49 DigitalSpot 7000 DT Content ‐ by entering this window a complete overview of all gobo folders is offered, from which the folder to be view can be selected.Click a desired folder to display its content. Click a desired picture to zoom it in. Contents Synchronization ‐ the window allows you copy (addition) media content from a current fixture to another fixtures on an ethernet network. There is a list of available fixtures under Device Available for Update. If you connect another fixture to a network, use option "Rescan Devices" to refresh the list of fixtures. A list of available folders with their check boxes is placed under Synchronization Folders. Option "Synchronization Mode" gives you possibility to select the way how the files will be moved to target folder: "Mirror"‐ a content of the target folder will be fully overwritten by a content of the source folder. "Add"‐ files from the source folder are added to existing files in the target folder. The last folder "Update" next to the gobo folder no. 240 serves for a synchronization of the “update” folders between the fixtures. To move files. 1. Select desired folders check boxes. If you want to select all folders, check "All Media" check box. 2. Select a target fixture (fixtures) in a list of available fixtures. 3. Select desired Synchronization mode and click the "Do Synchronization" button to start file transfer. 49 ...
- Page 50 DigitalSpot 7000 DT Remote Graphics Output ‐ preview of the current projecting output. Remote RNS Display ‐ the window "takes" the fixture´s control panel. You can browse and adjust all items in this fixture menu by means of your keyboard. Use the Up/Down and Enter/Escape keys. Remote Content ‐ the window offers a table for definition of streaming sources. Type a streaming protocol, an IP address and a port number for the desired streaming source (e.g. laptop) to the first line in the following format: http://2.x.x.x:port number (for example http://2.1.1.3:1234) and click the "Update" button on the right side of the line to save the streaming source address. This source is assigned to the DMX value of 1 on channel "Gobo selection". Up to 20 streaming sources is possible to define in this way. All defined streaming sources are assigned to DMX values of the Gobo selection channel and can be used on each gobo layer. Previous channel Gobo folder selection has to be set at DMX value of 252 in order to allow the use of streaming sources assigned to the Gobo selection channel. See the chapter Streaming video. 50 ...
-
Page 51: Picture Merging
DigitalSpot 7000 DT To end the Remote control program, close WWW browser ( or use option "Logout" if you entered the program using the user name and password). 23. Picture merging The picture merging system allows to create a panoramic projection controlled from a light DMX console. The resulting seamless image consists of the images of the individual projectors. It is possible to create an image field up to 64 segments (non‐mirrored configuration). You can display the original DigitalSpot 7000 DT gobos/videos or custom gobos/videos from user folders. 23.1 Picture merging control channels Global effect 1 DMX values in a range of 1‐7 enable the picture merging procedure. You can select from several predefined widths of the picture overlapping edges (from 0 to 35%). In many cases the projection screen is smaller than the total merged image of the projectors. This total image can be scaled either using Keystoning parameters or, (better) adjusting the width of blending areas. DMX=2 (width=0% ) DMX=1 (width=10%) DMX=7 (width=35%) Global effect 1‐ Parameter 1 The DMX value from the range of 1‐ 235 allows selection of ... - Page 52 DigitalSpot 7000 DT Image field configuration Non‐mirrored configuration Image field Image field DMX Total number of DMX Total number of Configuration Configuration value fixtures value fixtures W x H W x H 1 2 x 1 4 x 8 32 2 1 x 2 8 x 5 40 2 2 x 2 5 x 8 40 4 3 x 1 8 x 6 48 5 1 x 3 6 x 8 48 6 3 x 2 ...
- Page 53 DigitalSpot 7000 DT DMX Image field Total number of DMX Image field Total number of value Configuration fixtures value Configuration fixtures W x H W x H 38 7 x 2 2 x 11 22 39 2 x 7 11 x 3 33 40 7 x 3 3 x 11 33 41 3 x 7 11 x 4 44 42 7 x 4 4 x 11 44 43 4 x 7 11 x 5 55 44 ...
- Page 54 DigitalSpot 7000 DT Horizontally mirrored configuration Image field Image field Total number of Total number of DMX configuration DMX configuration fixtures in base fixtures in base value of base matrix value of base matrix matrix matrix W x H W x H 128 2 x 1 10 x 2 20 129 4 x 1 4 x 5 20 130 2 x 2 10 x 3 30 131 4 x 2 6 x 5 30 132 6 x 1 10 x 4 40 ...
- Page 55 DigitalSpot 7000 DT Vertically mirrored configuration Image field Image field Total number of Total number of DMX configuration DMX configuration fixtures in base fixtures in base value of base matrix value of base matrix matrix matrix W x H W x H 164 1 x 2 5 x 4 20 165 2 x 2 2 x 10 20 166 1 x 4 5 x 6 30 167 2 x 4 3 x 10 30 168 3 x 2 5 x 8 40 ...
- Page 56 DigitalSpot 7000 DT Vertically and horizontally mirrored configuration Image field Image field Total number of Total number of DMX configuration DMX configuration fixtures in base fixtures in base value of base matrix value of base matrix matrix matrix W x H W x H 200 2 x 2 10 x 4 40 201 4 x 2 4 x 10 40 202 2 x 4 10 x 6 60 203 4 x 4 6 x 10 60 204 6 x 2 10 x 8 80 ...
- Page 57 DigitalSpot 7000 DT The mirrored image configurations bring 2 advantages: 1. Resolution of the source image and merged images on the wall is the same in comparison with non‐mirrored configuration (if you use suitable mirrored configuration – see example 3 below). 2. By using the picture merging with mirrored configuration you can cover any size of projection area. The total number of used projectors is unlimited. Examples: 4 DigitalSpots 7000DT are used in the picture merging. Source picture Aspect ratio: 4:3 Resolution: 1024 x 768 Images on the wall: Example 1. Horizontally mirrored configuration 4 x 1 (DMX=129) set on all fixtures All projected images have a resolution of 1024 x 768, but the resolution of 1024 pixels is “made ” from 512 pixels as each fixture projects 1/2 of the source picture (this half has a source resolution 512 x 768). ...
- Page 58 DigitalSpot 7000 DT Global effect 1‐ Parameter 2 The DMX values from the range of 0‐255 are used to step segment by segment throw the image grid. The DMX value of 0 corresponds to the upper left segment of the image grid. The stepping runs from the left to the right and down from top (see example for field 8x3 segments bellow Global effect 1‐ Parameter 3 This channel enables to transform displaying of the segment edges‐sharp or blended edges. You can also display the blue and red auxiliary frame with the alignment marks for easier alignment of the adjacent segments: Channel Value Type of control Type of control Global effect 1 ‐ Parameter 3 0‐130 Displays segment with blended edges (active keystoning) step 131‐141 Displays segment with sharp edges (active keystoning) step ...
-
Page 59: Picture Merging Example
DigitalSpot 7000 DT Global effect 2‐ Parameter 2 The parameter adjust the green gamma value at respective image adge. Global effect 2‐ Parameter 3 The parameter adjust the blue gamma value at respective image adge. 23.2 Picture merging example Here is an example of the image field 3x2. 1. All fixtures that are a part of the picture merging should have a different fixture ID (The fixture ID= the last number of its IP address). The fixture´s IP address consists of four numbers separated by the dot e.g. 002.168.002.010. 2. Select the same gobo/video on the six DigitalSpots 7000 DT. 3. On all fixtures you are configuring set a DMX value=1 at the channel Global Effect 1. On all fixtures you are configuring set a DMX value=6 at the channel Global Effect 1‐Parameter 1. 4. Set a DMX value at the channel Global Effect 1‐ Parameter 3 between 151‐160 to define a sharp edges of segments for a fine alignment. 5. On each individual fixture set a DMX value between 0‐5 at Global Effect 1 ‐ Parameter 2 to select the segment that the fixture will project. 6. Use pan/tilt/zoom and keystone channels to align the projections of individual fixtures in such a way that there is some overlap between the separate portions of the image. This overlap is necessary for the picture merging adjustment. 7. Set a DMX value at Global Effect 1‐ Parameter 3 between 131‐141 to display the segment with sharp edges for fine adjustment by means the fine pan/tilt and keystones channels. After it set this parameter to 0 and the channel Global Effect 2 set to 20 to enable fine RGB gamma correction by means of the Global Effect 2 – Parameter 1‐3. 8. To execute the picture merging ,run the same gobo/video on all six fixtures and set the channels Global Effect 1‐ Parameter 3 to a DMX value of 0‐130. Note: In order to assure a correct playback of videos sequences , all fixtures in the picture merging system should be synchronized to the one (master) fixture ‐ see the chapter bellow. ... - Page 60 DigitalSpot 7000 DT Single segments of the source picture must have the same size (pixels) which is given by: L = L /[x‐(b/100)*(x‐1)] …………. Size of the single segment in X‐axis partX totalX L = L /[y‐(b/100)*(y‐1)] …………. Size of the single segment in Y‐axis partY totalY where = size (pixels) of picture segment in X‐axis L = size (pixels) of picture segment in Y‐axis partX partY = total size (pixels) of the source picture in X‐axis L = total size (pixels) of the source picture in Y‐axis totalX totalY x = number of picture segments in X‐axis y = number of picture segments in Y‐axis b = size of overlapping edges in % Positions at which single picture segments start in the source picture are given by: ...
-
Page 61: Effect Video Synchronization
DigitalSpot 7000 DT ___________________________________________________________________________________________ Note. On the other way round, if you need to calculate the resolution of the source picture to ensure that every fixture will use the resolution of 1024x768 pixels, use the formula: L = L *[x‐(b/100)*(x‐1)] totalX partX for this case: L = 1024 *[ 3‐(10/100)*(3‐1)] L =1024pixels totalX partX L =2867 pixels totalX The source picture should have min. resolution of 2867x768 pixels. ___________________________________________________________________________________________ Positions in X‐axis at which single picture segments start: = (N ‐1)* L *[1.0‐(b/100)] posX partX For the segment 1: ... -
Page 62: Projection Onto Angular, Cylindric Or Spheric Surfaces
DigitalSpot 7000 DT 26. Projection onto angular, cylindric or spheric surfaces If a projection on curved surface is required a correction of the shape distortions is necessary. The DigitalSpot 7000 DT supports projection onto angular screens, cylinders and spheres. 26.1 Curved surface support channels Global effect 2 This channel enables you to select desired shape of the surface: To simplify a correction process, there is a gobo with a net pattern (DMX value = 2) in a factory folder No. 20 (DMX value= 20) on a Gobo folder selection channel each gobo layer. Global effect 2‐ parameter 1 This parameter enables to adjust the total length of the image edge. A value of 0 means no adjustment, a value of 255 means maximum correction. Note. If a corner projection is selected on a Global effect 1 (values of 1‐4), the red guiding line will appear in the image (the gobo with the net pattern has to be projected). Guiding line 62 ... - Page 63 DigitalSpot 7000 DT Global effect 2‐ parameter 2 This parameter enables to adjust the horizontal length of the edge. A DMX Value of 128 = no adjustment, values below 128 move the edge to the left, values above 128 move the edge to the right. Global effect 2‐ parameter 3 This parameter enables to adjust the vertical length of the edge. A DMX Value of 128 = no adjustment, values below 128 move the edge downwards, values above 128 move the edge upwards. These global effect 2 parameters 1‐3 have to be used in combination with the KeyStone and KeyStone X‐ratio (Y‐ ratio) parameters to adjust desired shape of image. Corner projection Example: 1. Project the gobo with a net pattern on the wall (the channel Gobo Folder selection ,is set at a value of 20 ,the channel Gobo selection at a value of 2). 2. Set the channel Global Effect 2 to a Horizontal inside corner mapping (DMX value=3) 3. Use the channel Global Effect 2 ‐Parameter 1 to adjust the length of the image edge. 4. Use the channels Global Effect 2 ‐Parameter 2, and Global Effect 2 ‐Parameter 3 and Keystone channels to correct image on the wall. 5. Use the KeyStone Y‐ratio channel for the final correction of the image. 63 ...
-
Page 64: Rectangle Onto Circle (Sphere) Mapping With Picture Merging
DigitalSpot 7000 DT Note: If a projection of rectangle (square) on a circle (sphere) is selected on the channel Global Effect 2 (DMX value of 10 or 11), the meaning of the Keystone parameters in a DMX chart will be changed as follows: Channel DMX value Function Type of control 23 Image moving in an X‐direction 0 ‐127 Moving the image from left to center proportional 128 Center step 129‐255 Moving the image from center to right proportional 24 Image moving in a Y‐direction 0 ‐127 Moving the image from bottom to center proportional 128 Center step 129‐255 Moving the image from center to top proportional 25 Squeezing in an X‐direction ... -
Page 65: Video Processing On Gobo Layers From A Streaming Video Server
DigitalSpot 7000 DT 27. Video processing on gobo layers from a streaming video server A streaming video is a video that is continuously sent by one device (e.g. PC) and received by another device (DigitalSpot 7000 DT) over an ethernet network. The Streaming video software stated on the pictures below is available at http://www.videolan.org/vlc/. Download VLC media player from this web page and install it on your streaming source (PC, notebook..). Here are important installation points how to prepare a video processing on gobo layers from a remote streaming video source in the fixture. Streaming source (here is an example for PC running Windows XP) 1. Download the VLC media player to the PC (Windows self‐extracting package 0.8.6f), 2. Set PC network card for Art‐Net network: ‐ Menu path: "Start" ‐‐> "Control Panel" ‐‐> "Network Connection" ‐‐> "Connection" ‐ Click on the "Properties" button and the following window will open. 65 ... - Page 66 DigitalSpot 7000 DT ‐ Click on the item "Internet Protocol (TCP/IP)" and the Internet Protocol Properties window will open. Set IP address to something like 2.X.X.X with an IP mask of 255.0.0.0 3. Install a VLC media player. ‐ click on a VLC media player self‐extracting package located on the hard disk and follow the on‐screen instructions. After installing it, run this VLC media player. In a horizontal menu "File" click on "Open" and the following window will open. 66 ...
- Page 67 DigitalSpot 7000 DT Type the name of video file in the "Open" field, check the "Stream/Save" option and click the "Settings" button. The "Stream output" window will open: Check the "HTTP" option in a Outputs column, type an IP address of the PC in the "Address" field and a figure port in the "port" field. Note: If you want to run more videos on this PC, you have to run the VLC media player for each video and every media player has to have a different figure of the port but the IP address will be the same. Select the MPGTS or MPEGPS option in the "Encapsulation method" row. Check the "Video codec" option and select mp2v. In the field "Bitrate kb/s" set value of 1024 or higher. The Bitrate is the number of kbits that are conveyed or processed per second. The higher is the number, the higher is the quality of the projected image. For streaming of desktop we recommend the bitrate of 8192. Click the "OK" button and confirm the "Open" window. The VLC media player is now ready for playing up the video sequences. 67 ...
- Page 68 DigitalSpot 7000 DT PC Desktop streaming. The desktop streaming enables you to sent your presentation directly to the DigitalSpot 7000 DT via an ethernet network. You do not need extra cables for connecting video inputs of the DigitalSpot 7000 DT with your PC. A different setting of VLC media player for streaming of the PC desktop is required. Type the following line in the "Customize" field of the Open window: screen:// screen‐fps=10 :screen‐caching=100 Space The Stream output window has the same setting like for video streaming except the field "Bitrate (kb/s)" which should be set at the value of 8192. Important: The Playback speed channel at corresponding gobo layer should be set at a DMX value of 150‐200. 68 ...
- Page 69 DigitalSpot 7000 DT Control PC (light console) Type the IP address of the DigitalSpot 7000 DT which is to project data from a remote streaming video source in your WWW browser to run the Remote Control program. Select the option "Remote Content" and the following window will open: Type in the "source Address" field the IP address and the port number of the streaming source (in our case it is a PC) in this format: http://2.x.x.x:port number e.g. http://2.1.1.3:1234 and save it by clicking the "Update" button. This way defined streaming source is assigned to a DMX value of 1 at the channel Gobo selection. You can define another videos from the same streaming source ‐ the IP addresses will be the same for all videos only the port numbers have to be different. After specifying all streaming sources close the "Remote Content" window. To run a video processing on the fixture On The DigitalSpot 7000 DT which is to project video data from a streaming video source, set the channel Gobo folder selection at value of 252 and on the following channel "Gobo selection" set a DMX value which responds to the streaming video source defined in the "Remote Content" window. The streaming video processing starts running with a delay of cca 10 seconds. Example for gobo/video layer 1: Channel Value Function Type of control Gobo Folder selection 0-20 Factory folders step 21-240 User folders step 241-250 Reserved Live input (grab. card)-see channel 60 step Streaming from remote source step...
-
Page 70: Rdm
DigitalSpot 7000 DT Fixture linkage: 28. RDM This fixture is ready for RDM operation.RDM (Remote Device Management) is a bi‐directional communications protocol for use in DMX512 control systems, it is the new open standard for DMX512 device configuration and status monitoring. The RDM protocol allows data packets to be inserted into a DMX512 data stream without adversely affecting existing non‐RDM equipment. By using a special „Start Code,“ and by complying with the timing specifications for DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specific moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The ROBE DreamBox allows to utilize all DigitalSpot 7000 DT RDM functionality.Please read the DreamBox user manual for detail description of RDM possibilities. ... -
Page 71: Technical Specifications
DigitalSpot 7000 DT 29. Technical specifications Electrical specifications Auto‐switching power supply Input voltage range: 100‐120V/ 200‐240V AC, 50/60 Hz Max. Pover Consumption @ 230V: 780W (800VA), I=3.3A Power factor: 0.96 Projector Specifications Model:PLC‐XP100L Light output:6,500 ANSI lumens Lamp:330 W NSHA Rated lamp life: 3,000 h (eco mode); 2,000 h (normal mode) Throw distance ratio: 1.8‐2.4 : 1 (standard) Contrast ratio:2000:1 LCD panel system:1.3“ TFT Active Matrix type, 3 panels Panel resolution:1,024 x 768 dots Number of pixels: 2,359,296 (1,024 x 763 x 3 panels) Hardware Motherboard: MSI G31M‐F Processor: Intel Core2 Duo E6750, 2.66 GHz, 1333 MHz FSB Memory: 1GB RAM Graphics card: nVidia 9800 GT Video capture card: AverMedia DVD EZMaker Hard disk: Western Digital 500GB Caviar SE16 3.5” Gigabit Ethernet Operation system Linux OS Graphic engine 4 Digital Gobo Layers for Image and Video Control Layer Media Control Modes (Copy, Add, Subtract, Multi, Minimum and Maximum) Banner Effects creating action scripts for Images or Videos Graphic engine supports a combined total of more than 60,000 original and user‐created videos/gobos usable on all gobo layers Digital Iris effect + 160 masking effects Full Key‐Stone correction Digital strobe effect ... - Page 72 DigitalSpot 7000 DT Electromechanical Effects Zoom Focus Mechanical iris Control 5“ TFT LCD display & Robe navigation system Web access for total control of fixture (user library management) Media Content Synchronization in web interface 169 control channels max. RDM support Pan/Tilt Pan movement range: 530° Tilt movement range: 280° 16 bit movement resolution Controllable speed of Pan/Tilt movement Automatic Pan/Tilt position correction Built‐in Pan/Tilt macro effects LedWash module Light source: 2x 48 Luxeon Rebel LEDs (RGBW) Optical system: 25° beam angle RGB colour mixing Shutter and adjustable strobe sequences Full range dimming Connections video inputs: Data projector: 1 x S‐Video (Mini Din 4 pin) 1 x VGA (Mini D‐sub 15 pin) Graphic Engine: standard: 1 xS‐Video (Mini Din 4 pin) ...
- Page 73 DigitalSpot 7000 DT Optional Accessories P.N. VGA/DVI capture card set ( 99012388) – includes capture card DVI/VGA UFG‐03A STD and mounting accessories SDI/ASI capture card set (P.N. 99012445) – includes capture card SDI/ASI DTA‐145‐SDP and mounting accessories Air filter for DS 7000 DT, PLC‐XP100L (P.N. 17030507) Long throw optics 2.7 – 3.5 : 1 (P.N. 10980056) Short throw optics 1.2 – 1.7 : 1 (P.N. 10980057) Dimensions (mm) Weight 48 kg 73 ...
- Page 74 DigitalSpot 7000 DT Illuminance/Image size chart for Long Throw Optics (throw distance ratio 2.7 ‐ 3.5 : 1) 74 ...
- Page 75 DigitalSpot 7000 DT Illuminance/Image size chart for Short Throw Optics (throw distance ratio 1.2 ‐ 1.7 : 1) 75 ...
-
Page 76: Error And Information Messages
DigitalSpot 7000 DT 30. Error and information messages The warning icon (triangle) on the bottom‐right side of the fixture´s screen indicates some error or information message which appears on the screen by pressing the [ESC] button. Pan Error The message will appear after the reset of the fixture if the yoke´s magnetic‐indexing circuit malfunctions (sensor failed or magnet is missing) or the stepping motor is defective or its driving IC3 on the PCB in the fixture base. The yoke is not located in the default position after the reset of the fixture. Tilt Error The message will appear after the reset of the fixture if the head´s magnetic‐indexing circuit malfunctions (sensor failed or magnet is missing) or the stepping motor is defective or its driving IC3 on the PCB in the fixture base. The head is not located in the default position after the reset of the fixture. Focus Error The message will appear after the reset of the fixture if the focus module´s magnetic‐indexing circuit malfunctions (sensor failed or magnet is missing) or the stepping motor is defective or its driving IC1 on the PCB in the fixture head. The focus is not located in the default position after the reset of the fixture. Zoom Error The message will appear after the reset of the fixture if the zoom´s magnetic‐indexing circuit malfunctions (sensor failed or magnet is missing) or the stepping motor is defective or its driving IC1 on the PCB in the fixture head. The zoom is not located in the default position after the reset of the fixture. Power Down Mode The fixture is in " power down mode"‐ this mode omits fixture reset after switching it on, and reduces the power of motors. “Power down mode” is useful in special cases e. g. if the fixture is in a flight case and you want to set its DMX address without taking it out from the case. To enter „Power down mode”, press and hold [ENTER] button and at the same time switch on the power switch. Now you can set DMX address and behaviour of the fixture by using menu “Personality”. If you want to go to a “normal operation mode”, run a total fixture reset Please Clean Air Filters The message warns you that the time interval adjusted in the menu item Time To Cleanup Filters in the Service ... -
Page 77: Maintenance
DigitalSpot 7000 DT 31. Maintenance 31.1 Replacing the lamp Turn the power off and disconnect the fixture from the mains. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled. 1. Use the tilt lock button (2) to secure the moving head in a horizontal position. If you look at the rear cover of the head, the warning writings has to be in a readable position 2. Remove the rear plastic cover (1) of the head by loosening the four quarter‐turn fasteners (2). 3 Loosen the three quarter‐turn fasteners (3) at the rear part of the projector chassis. 4. Carefully take the projector (4) with the chassis (5) out from the head. The lamp cover (6) is placed next to the filter compartment. 5 Loosen the screw and open the lamp cover. Pull out the lamp by using the built in handle. Do not turn the power on with the lamp cover removed. 6 Replace the lamp with a new one. Make sure that the lamp is properly and fully inserted. 7 Close the lamp cover and secure the screw. 8. Insert the projector with chassis back to the head and secure the three quarter‐turn fasteners (3). ... -
Page 78: Replacing The Projector
DigitalSpot 7000 DT 31.2 Replacing the projector If you need to remove the data projector, turn the power off and disconnect the DigitalSpot 7000 DT from the mains. If the projector lamp is on, wait 25 minutes until the projector has cooled. 1. Use the tilt lock button to secure the moving head in a horizontal position.If you look at the rear cover of the head, the warning writings has to be in a readable position. 2. Remove top/bottom and front/rear plastic covers of the head by loosening the four quarter‐turn fasteners (1) on each cover. 3. Disconnect cables (2) from motors and sensors (3 motor cables and 2 sensor cables) in the front part of the fixture head. 4. Disconnect power and data cables (3) from the rear panel of the projector (4). Cut the cable fixing eyes at the side of the projector chassis. 5. Unscrew the two Allen screws (5) at the bottom part of the projector chassis (7). ... -
Page 79: Accessing To The Projector Control Buttons
DigitalSpot 7000 DT 31.3 Accessing to the projector control buttons If you need to use the projector control buttons which are situated at the side of the projector, move the fixture head to the horizontal position as figured on the picture below (if you look at the rear cover of the head, the warning writings has to be in a readable position), and remove the side plastic cover by loosening the 4 screws 31.4 Installing the DVI/VGA capture card To install the optional DVI/VGA capture card. 1. Disconnect the fixture from power. 2. Remove both top covers (1) of the fixture base by unscrewing 14 screws (2). 3. Remove the cover plate (3) of an unused slots for DVI/VGA connectors on the rear panel of the fixture by unscrewing 4 screws (4). 4. Screw the connecting block (5) with DVI/VGA connectors to the rear panel by means of the 4 hexagonal pillars which have a threaded stud. 5. Remove the capture card (6) from its packaging and gently press it down into the empty PCI slot. Secure the bracket of the card to the chassis by means of the screw (7) with M3 thread. 6. Connect a VGA and DVI cable to the capture card. ... -
Page 80: Installing The Sdi/Asi Capture Card
DigitalSpot 7000 DT 31.5 Installing the SDI/ASI capture card To install the optionsl SDI/ASI capture card. 1. Disconnect the fixture from power. 2. Remove both top covers (1) of the fixture base by unscrewing 14 screws (2). 3. Remove the cover plate (6) of an unused slots for SDI/ASI connectors on the rear panel of the fixture by unscrewing the 2 screws (5) M3x6. 4. Unscrew six fastening screws (4) and carefully tilt the rear panel from the chassis. ... - Page 81 DigitalSpot 7000 DT Warning: The SDI/ASI connectors holder has to be electrically insulated from the rear panel otherwise the capture card can be damaged. Check right placing of the insulating washers. 7. Screw the cover (7) to the SDI/ASI connectors holder (8) with two screws M3x6 (9). Screw the rear panel (3) back to the chassis. 8. Remove the capture card from its packaging and gently press it down into the empty PCI slot. Secure the bracket of the card to the chassis by means of the screw (16) with M3 thread. 9. Connect the SDI/ASI cables to the capture card. The IN/OUT cable has a blue sleeve at BNC connector and the OUT cable has a red one. BNC sockets on the capture card are marked (OUT) and (IN/OUT). ...
-
Page 82: Installing The Optional Optics
DigitalSpot 7000 DT 31.6 Installing the optional optics To install the long throw optics (or short throw optics) follow the steps: 1. Disconnect the DigitalSpot 7000 DT from power. 2. Remove the front cover of the fixture head (2) by loosening the 4 quarter‐turn fasteners (1). 3. Remove the module of the glass cover (4) by loosening the three quarter‐turn fasteners (3). ... -
Page 83: Replacing The Fixture Air Filters
DigitalSpot 7000 DT 31.7 Replacing the fixture air filters Important! Check the air filters periodically and clean before they become clogged! Clean the air filters with a vacuum cleaner or you can wash them and put back dry. Replacing air filters in the fixture head. 1. Disconnect the fixture from power. 2. Raise up the filter cover (fixed by two magnets) on the head cover. 3. Pull the air filter out. 4. Clean or replace the air filter. 5. Snap the filter cover back to the head cover. 6. Reset item "Time To Cleanup Filters" in the "Service menu Head cover Filter cover Air filter Magnets Replacing the air filter in the fixture base. 1. Disconnect the fixture from power. 2. Remove the side cover by loosening the 4 quarter‐turn fasteners. 3. Pull the air filter out. 4. Clean or replace the air filter . 5. Put the side cover back. 6. Reset item "Time To Cleanup Filters" in the "Service menu". ... -
Page 84: Replacing The Filter Cartridge In The Projector
DigitalSpot 7000 DT 31.8 Replacing the filter cartridge in the projector. 1. Turn off the DigitalSpot 7000 DT and unplug the AC power cord from the AC outlet. 2. Remove the projector from the fixture chassis as described in the chapter Replacing the projector. 3. Press on the filter cover to release the latch and open the filter cover. 4. Pull out the filter cartridge. When taking out the filter cartridge, put your finger on the filter cartridge’s tab and then pull. 5. Put the new one back into the position and close the filter cover. Make sure that the filter cartridge is properly and fully inserted. Make sure the filter cartridge is inserted in the projector. If the filter cartridge is not inserted, the projector cannot be turned on. Do not put anything into the air vents. Doing so may result in malfunction of the projector. 6. Turn the projector on and reset the filter counter and the scroll counter as described below. 7. Place the projector back to the fixture chassis. ... -
Page 85: Resseting The Scroll Counter
DigitalSpot 7000 DT 2. Use the Point buttons to move the red frame pointer to Filter counter and then press the SELECT button. A dialog box appears showing the Used time option and the Scrolls remaining option. Use the Point buttons to select Used time. 3. Used time shows the total accumulated time of the filter use, a timer setting option, and the Reset option. Select Reset and the “Filter counter Reset?” appears. Select [Yes] to continue. 4. Another confirmation dialog box appears, select [Yes] to reset the Filter counter. 31.8.2 Resseting the Scroll Counter 1. Press the MENU button on the projector to display the On‐Screen Menu. Use the Point buttons to move the red frame pointer to the Setting Menu icon. 2. Use the Point buttons to move the red frame pointer to Filter counter and then press the SELECT button. A dialog ... -
Page 86: Replacing The Fuse
Warning. The system restore replaces all fixture settings and the Media folder content. This action return the device to a factory state. For a system restore, you will need: ‐ the USB flash drive with a System restore utility (part of Digital 7000 DT delivery) ‐ the USB keyboard Use the following steps to perform a system restore: 1. Plug the USB flash drive with System restore utility and the USB keyboard into two external USB ports on the DigitalSpot 7000 DT. 2. Power on the DigitalSpot 7000 DT. When the fixture boots, press Delete key on the keyboard to enter the fixture´s computer SETUP and set the boot from USB drive (Path: "Advanced Bios Features" ‐‐‐ >"1st boot device"‐‐‐‐> "[USB]). 3. Save this setting and exit SETUP. The fixture continues booting, wait until you see a full‐screen menu titled: Image Manager for ROBE Digital Products Options: Write "rescue" for enter to Main Menu 4. Type the word rescue on the keyboard and the following screen will appear: ... - Page 87 DigitalSpot 7000 DT A soft lint‐free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used! DANGER ! Disconnect from the mains before starting any cleaning and maintenance work The front covering glasses will require weekly cleaning as smoke‐fluid tends to building up residues, reducing the light output very quickly. The cooling fans should be cleaned monthly. The interior of the fixture should be cleaned at least annually using a vacuum‐cleaner or an air‐jet. More complicated maintenance and service operations are only to be carried out by authorized dealers. Cleaning a projection lens of the projector. Apply a non‐abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents or other harsh chemicals might scratch a surface. Lightly wipe a cleaning cloth over projection lens. ...
- Page 88 DMX protocol DigitalSpot 7000 DT ‐ DMX protocol v. 1.4, June 25, 2009 DMX DMX Value Function Type of control Channel 0‐255 Pan movement by 530° proportional Pan Fine 0‐255 Fine control of pan movement proportional Tilt 0‐255 Tilt movement by 280° proportional Tilt Fine 0‐255 Fine control of tilt movement proportional Pan/Tilt speed,Pan/Tilt time Max.speed (tracking mode) step P./T. speed‐set Speed Mode in menu: Pan/Tilt Mode 1‐255 Speed from max. to min.(vector mode) step P./T. time‐set Time Mode in menu: Pan/Tilt Mode Time from 0.1s to 25.5s 1‐255 step Pan/Tilt macro selection 0‐9 Disabled pan/tilt macro step Reserved 10‐31 32‐63 Figure of circle (from small to large) proportional 64‐95...
- Page 89 DMX protocol DMX DMX Value Function Type of control Channel To activate following functions,hold DMX value 3 seconds 130‐139 Lamp On step 140‐149 Pan/Tilt reset step 150‐179 Reserved 180‐189 Zoom/Focus reset step 190‐199 Mechanical iris reset step 200‐209 Total reset step 210‐215 Graphic engine reset/software update executing step 216‐229 Reserved 230‐239 Lamp Off step 240‐249 Lamp Off,Fixture Off (hold DMX value 5 seconds) step 250‐255 Reserved Video input selection 0‐63 Internal graphic engine step 64‐127 External VGA to projector...
- Page 90 DMX protocol DMX DMX Value Function Type of control Channel 224‐255 Shutter open step LED Dimmer 0‐255 Led module dimmer intensity 0 ‐‐> 100 % proportional Common digital effects for all gobo layers KeyStone Top Left X 0‐255 Move top left corner X value to center (0‐default) proportional KeyStone Top Left Y 0‐255 Move top left corner Y value to center (0‐default) proportional KeyStone Top Right X 0‐255 Move top right corner X value to center (0‐default) proportional KeyStone Top Right Y 0‐255 Move top right corner Y value to center (0‐default) proportional KeyStoneBottom Right X 0‐255 Move bottom right corner X value to center (0‐default) proportional KeyStone Bottom Right Y 0‐255 Move bottom right corner Y value to center (0‐default) proportional KeyStone Bottom Left X 0‐255 Move bottom left corner X value to center (0‐default) proportional KeyStone Bottom Left Y...
- Page 91 DMX protocol DMX DMX Value Function Type of control Channel 2500 K step Digital Iris‐type selection Circular ,outside‐‐>in,sharp edge step Circular ,outside‐‐>in,fuzzy edge 1 step Circular ,outside‐‐>in,fuzzy edge 2 step Circular ,outside‐‐>in,fuzzy edge 3 step Circular ,outside‐‐>in,fuzzy edge 4 (maximum) step Circular ,inside‐‐>out,sharp edge step Circular ,inside‐‐>out,fuzzy edge 1 step Circular ,inside‐‐>out,fuzzy edge 2 step Circular ,inside‐‐>out,fuzzy edge 3 step Circular ,inside‐‐>out,fuzzy edge 4 (maximum) step Horizontal ellipse ,outside‐‐>in,sharp edge step Horizontal ellipse ,outside‐‐>in,fuzzy edge 1 step Horizontal ellipse ,outside‐‐>in,fuzzy edge 2 step Horizontal ellipse ,outside‐‐>in,fuzzy edge 3 step step Horizontal ellipse ,outside‐‐>in,fuzzy edge 4 (maximum) Horizontal ellipse ,inside‐‐>out,sharp edge step Horizontal ellipse ,inside‐‐>out,fuzzy edge 1 step...
- Page 92 DMX protocol DMX DMX Value Function Type of control Channel Wedge wipe ,bottom‐‐>up, fuzzy edge 2 step Wedge wipe,bottom‐‐>up, fuzzy edge 3 step Wedge wipe,bottom‐‐>up, fuzzy edge 4 (maximum) step Radial wipe ,left ‐‐>bottom,sharp edge step Radial wipe ,left ‐‐>bottom,fuzzy edge 1 step Radial wipe ,left ‐‐>bottom,fuzzy edge 2 step Radial wipe ,left ‐‐>bottom,fuzzy edge 3 step Radial wipe ,left ‐‐>bottom,fuzzy edge 4 (maximum) step Radial wipe ,bottom‐‐>left,sharp edge step Radial wipe ,bottom‐‐>left,fuzzy edge 1 step Radial wipe ,bottom‐‐>left,fuzzy edge 2 step Radial wipe ,bottom‐‐>left,fuzzy edge 3 step Radial wipe ,bottom‐‐>left,fuzzy edge 4 (maximum) step Radial wipe ,top‐‐>left,sharp edge step Radial wipe ,top‐‐>left,fuzzy edge 1 step Radial wipe ,top‐‐>left,fuzzy edge 2 step Radial wipe ,top‐‐>left,fuzzy edge 3 step Radial wipe ,top‐‐>left,fuzzy edge 4 (maximum) step Radial wipe ,left‐‐>top,sharp edge...
- Page 93 DMX protocol DMX DMX Value Function Type of control Channel Horizontal two‐way band wipe,bottom left‐‐>top right step Vertical one‐way band wipe,top left‐‐>bottom right step Vertical one‐way band wipe,bottom right‐‐>top left step Vertical one‐way band wipe,bottom left‐‐>top right step Vertical one‐way band wipe,top right‐‐>bottom left step Vertical two‐way band wipe,top right‐‐>bottom left step Vertical two‐way band wipe,bottom right‐‐>top left step Vertical two‐way band wipe,bottom left‐‐>top right step Vertical two‐way band wipe,top right‐‐>bottom left step Horizontal bands 4x,top‐‐>bottom step Horizontal bands 4x,bottom‐‐>top step Vertical bands 4x,left ‐‐>right step Vertical bands 4x,right ‐‐>left step Horizontal bands 8x,top‐‐>bottom step Horizontal bands 8x,bottom‐‐>top step Vertical bands 8x,left‐‐>right step Vertical bands 8x,right‐‐>left step Horizontal bands 16x,top‐‐>bottom step Horizontal bands 16x,bottom‐‐>top...
- Page 94 DMX protocol DMX DMX Value Function Type of control Channel 2 diagonal curtains, top left‐‐>center<‐‐ bottom right step Grid wipe 8x8,bottom right‐‐>top left step Grid wipe 8x8,bottom right‐‐>top left,inverse step Grid wipe 8x8,top right‐‐>bottom left step Grid wipe 8x8,top right‐‐>bottom left,inverse step Grid wipe 16x16,bottom right‐‐>top left step Grid wipe 16x16,bottom right‐‐>top left,inverse step Grid wipe 16x16,top right‐‐>bottom left step Grid wipe 16x16,top right‐‐>bottom left,inverse step Grid wipe 32x32,bottom right‐‐>top left step Grid wipe 32x32,bottom right‐‐>top left,inverse step Grid wipe 32x32,top right‐‐>bottom left step Grid wipe 32x32,top right‐‐>bottom left,inverse step 4 sliding triangles step 161‐169 Reserved Rectangular ,outside‐‐>in,sharp edge step Rectangular ,outside‐‐>in,fuzzy edge 1 step Rectangular, outside‐‐>in,fuzzy edge 2 step Rectangular ,outside‐‐>in,fuzzy edge 3...
- Page 95 DMX protocol DMX DMX Value Function Type of control Channel 0‐255 Positioning from left to right (0‐default) proportional Banner left rotation 0‐255 Rotation +/‐ 45° (128‐default) proportional Banner right positioning 0‐255 Positioning from right to left (0‐default) proportional Banner right rotation 0‐255 Rotation +/‐ 45° (128‐default) proportional Banner top positioning 0‐255 Positioning from top to bottom (0‐default) proportional Banner top rotation 0‐255 Rotation +/‐ 45° (128‐default) proportional Banner bottom positioning 0‐255 Positioning from bottom to top (0‐default) proportional Banner bottom rotation 0‐255 Rotation +/‐ 45° (128‐default) proportional All Banners rotation 0‐255 Rotation +/‐ 45° (128‐default) proportional Global Effect 1 No effect...
- Page 96 DMX protocol DMX DMX Value Function Type of control Channel Global effect 1‐ Parameter 3 0‐171 Segment edge display for Pixture merging step 172‐255 Reserved Global Effect 2 None Vertical inside corner mapping P1, P2,P3 Vertical outside corner mapping P1, P2,P3 Horizontal inside corner mapping P1, P2,P3 Horizontal outside corner mapping P1, P2,P3 Vertical convex cylinder mapping P1, P2,P3 Vertical concave cylinder mapping P1, P2,P3 Horizontal convex cylinder mapping P1, P2,P3 Horizontal concave cylinder mapping P1, P2,P3 Orthographic sphere mapping P1, P2,P3 Rectangle on circle (sphere) mapping* P1, P2,P3 Square on circle (sphere) mapping* P1, P2,P3 P1, P2,P3 Rectangle on circle (sphere) mapping with picture merging 13‐19 Reserved P1, P2,P3 Picture merging ‐ R/G/B gamma adjustment in blended edges ...
- Page 97 DMX protocol DMX DMX Value Function Type of control Channel If Grabber Card is installed in the fixture 141‐160 VGA input of DVI/VGA grabber card step 161‐180 DVI‐I input of DVI/VGA grabber card step 181‐200 SDI input of SDI/ASI grabber card step 201‐220 ASI input of SDI/ASI grabber card step 221‐255 Reserved In Frame High Defines the beginning of a media file segment as a 0‐255 proportional percentage of the movie length (0‐default) In Frame Low Defines the beginning of a media file segment as a 0‐255 proportional percentage of the movie length (0‐default) Out Frame High Defines the end of a media file segment as a percentage of 0‐255 proportional the movie length (255‐default) Out Frame Low Defines the beginning of a media file segment as a 0‐255 proportional percentage of the movie length (255‐default) Gobo control Copy mode ...
- Page 98 DMX protocol DMX DMX Value Function Type of control Channel 28‐29 Reserved Video stream 2: 30‐37 The same functionality as for Video stream 1 step 38‐39 Reserved Substraction mode Video stream 1: step Play forward if dimmer (on layer 1) > 0, looping continuously step Play forward if dimmer (on layer 1) > 0, hold on last frame Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 48‐49 Reserved Video stream 2: 50‐57 The same functionality as for Video stream 1 step 58‐59 Reserved Multiplication mode Video stream 1: step Play forward if dimmer (on layer 1) > 0, looping continuously...
- Page 99 DMX protocol DMX DMX Value Function Type of control Channel Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 108‐109 Reserved Video stream 2: 110‐117 The same functionality as for Video stream 1 step 118‐255 Reserved Playback Speed Normal Speed step 1‐127 Slow speeds from slowest ‐‐‐> normal proportional Normal Speed step 129‐255 Faster than Normal ‐‐‐> Fastest proportional Gobo rotation and indexing 0‐63 Clockwise rotation from fast to slow proportional 64‐127 Indexing proportional...
- Page 100 DMX protocol DMX DMX Value Function Type of control Channel Tile xy P1‐amount Tile xy P1‐speed XYZ rot. cube P1‐speed XYZ rot. sphere P1‐speed X rot. cylinder P1‐speed Y rot. cylinder P1‐speed Reserved Kaleidoscope none Squeeze in none Squeeze out none Bend X none Bend Y none Tile frame none Frame none Plane Flip X none Plane Flip Y none Plane Flip XY none Plane mirror X top none Plane mirror X bottom none...
- Page 101 DMX protocol DMX DMX Value Function Type of control Channel Gobo disc mirror Y none Gobo disc mirror XY none 78‐79 Reserved Plane mirror X top inverse none Plane mirror X bottom inverse none Plane mirror Y left inverse none Plane mirror Y right inverse none Plane mirror XY inverse none Plane mirror X‐inverse,Y none Plane mirror X,Y‐inverse none 87‐89 Reserved Circular effect (Fish eye) P1, P2, P3 P1‐character, P2‐X ratio, P3‐Y ratio 91‐99 Reserved kaleidoscope ‐ mode and mosaic segment selection: Square ‐static mode P1, P2, P3 Square ‐dynamic mode P1, P2, P3 Right triangular ‐ static mode P1, P2, P3 Right triangular ‐ dynamic mode P1, P2, P3 Isosceles triangular ‐ static mode...
- Page 102 DMX protocol DMX DMX Value Function Type of control Channel Brightness P1‐amount RGB to GBR P1‐amount RGB to BRG P1‐amount RGB to RBG P1‐amount Black and white to black and white inverse timed P1‐speed Colour to black and white timed P1‐speed Colour to inverse timed P1‐speed Cycle P1‐speed Cycle inverse P1‐speed Reserved Reserved Colour Key P1‐amount Colour Key inverse P1‐amount Key Black P1‐amount Key Black inverse P1‐amount Key White P1‐amount Key White inverse P1‐amount White flash P1‐amount Black flash P1‐amount Alpha flash...
- Page 103 DMX protocol DMX DMX Value Function Type of control Channel Brightness scale P1, P2 P1, P2 ‐ inclination of conversion line 70‐149 Reserved Layer keystoning P1,P2,P3 P1‐squeezing/stretching in X, P2/P3‐compressing & expanding in X/Y 151‐255 Reserved Gobo effect 2 ‐Parameter 1 0‐255 Effect control depends on effect Gobo effect 2 ‐Parameter 2 0‐255 Effect control depends on effect Gobo effect 2 ‐Parameter 3 0‐255 Effect control depends on effect Gobo Position X coarse 0‐127 Movement forward proportional Centre (128‐default) step 129‐255 Movement backward proportional Gobo position X fine 0‐255 Position X fine proportional Gobo position Y coarse ...
- Page 104 DMX protocol DMX DMX Value Function Type of control Channel Streaming from remote sources step 253‐255 Reserved Gobo selection White step 1‐255 255 Gobos (one by one) step If Live input (251 DMX) is selected on channel 87: White screen step 1‐20 Video composite input‐PAL system step 21‐40 SVIDEO input‐ PAL system step 21‐60 Video composite input‐NTSC system step 61‐80 SVIDEO input‐ NTSC system step 81‐100 Video composite input‐SECAM system step 101‐120 SVIDEO input‐ SECAM system step 121‐140 Reserved If Grabber Card is installed in the fixture 141‐160 VGA input of grabber card step 161‐180 DVI‐I input of grabber card...
- Page 105 DMX protocol DMX DMX Value Function Type of control Channel No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 18‐19 Reserved Addition mode Video Stream 1 step Play forward if dimmer (on layer 2) > 0, looping continuously step Play forward if dimmer (on layer 2) > 0, hold on last frame Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 28‐29 Reserved Video stream 2 30‐37 the same functionality as for Video stream 1 step 38‐39 Reserved Substraction mode Video Stream 1 step Play forward if dimmer (on layer 2) > 0, looping continuously step...
- Page 106 DMX protocol DMX DMX Value Function Type of control Channel Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 88‐89 Reserved Video Stream 2 90‐97 the same functionality as for Video stream 1 step 98‐99 Reserved Maximum mode Video stream 1 step Play forward if dimmer (on layer 2) > 0, looping continuously step Play forward if dimmer (on layer 2) > 0, hold on last frame Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame ...
- Page 107 DMX protocol DMX DMX Value Function Type of control Channel XY pos. circle clockwise P1‐speed XY pos. scroll up P1‐speed XY pos. scroll down P1‐speed XY pos. scroll left P1‐speed XY pos.scroll right P1‐speed Right‐left diag. down scroll P1‐speed Right‐left diag. up scroll P1‐speed Left‐right diag. down scroll P1‐speed Left‐right diag. up scroll P1‐speed X rotate P1‐speed Y rotate P1‐speed XY rotate P1‐speed XY inv. rotate P1‐speed X inv. y rotate P1‐speed Tile xy P1‐amount Tile xy P1‐speed XYZ rot. cube P1‐speed XYZ rot. sphere P1‐speed X rot. cylinder...
- Page 108 DMX protocol DMX DMX Value Function Type of control Channel Plane cross tile 5x inverse none Plane cross tiler 5x none Plane cross tiler 5x inverse none Plane bar none Plane bar inverse none Plane bar left‐righ none Plane bar top‐bottom none Reserved Reserved Gobo disc none Gobo disc Flip X none Gobo disc Flip Y none Gobo disc Flip XY none Gobo disc mirror X none Gobo disc mirror Y none Gobo disc mirror XY none 78‐79 Reserved Plane mirror X top inverse none Plane mirror X bottom inverse none Plane mirror Y left inverse...
- Page 109 DMX protocol DMX DMX Value Function Type of control Channel 0‐255 Effect control depends on effect Gobo effect 1 ‐ Parameter 2 0‐255 Effect control depends on effect Gobo effect 1 ‐ Parameter 3 0‐255 Effect control depends on effect Gobo effect 2 Selection No effect Colour to black and white P1‐amount Colour to black and white inverse P1‐amount Black and white to black and white inverse P1‐amount Inversion P1‐amount Black Mask P1‐amount Black Mask inverse P1‐amount Contrast P1‐amount Brightness P1‐amount RGB to GBR P1‐amount RGB to BRG P1‐amount RGB to RBG P1‐amount Black and white to black and white inverse timed P1‐speed...
- Page 110 DMX protocol DMX DMX Value Function Type of control Channel RGB substract/add All Pixels P1, P2, P3 Swap RGB to RBG P1, P2, P3 Swap RGB to GRB P1, P2, P3 Swap RGB to GBR P1, P2, P3 Swap RGB to BRG P1, P2, P3 Swap RGB to BGR P1, P2, P3 RGB invert P1, P2, P3 Invert and swap RGB to BRG P1, P2, P3 Invert and swap RGB to GBR P1, P2, P3 Colour to Alpha P1, P2, P3 Colour to Alpha inverted P1, P2, P3 64‐67 Reserved RGB scale P1, P2, P3 P1‐red, P2‐green, P3‐blue Brightness scale P1, P2 P1, P2 ‐ inclination of conversion line 70‐149 Reserved Layer keystoning P1,P2,P3 P1‐squeezing/stretching in X, P2/P3‐compressing & expanding in X/Y 151‐255 Reserved Gobo effect 2 ‐Parameter 1 ...
- Page 111 DMX protocol DMX DMX Value Function Type of control Channel 0‐255 Zoom Y fine proportional Synchronization to ID No function step 1‐255 Synchronization to fixture ID proportional Gobo layer 3 Dimmer 0‐255 Dimmer intensity from 0% to 100% (255‐default) proportional Gobo Folder selection 0‐20 Factory folders step 21‐240 User folders step 241‐250 Reserved Live input (grab. card)‐see channel 116 step Straming from remote sources step 253‐255 Reserved Gobo selection White step 1‐255 255 Gobos (one by one) step If Live input (251 DMX) is selected on channel 115: ...
- Page 112 DMX protocol DMX DMX Value Function Type of control Channel Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 8‐9 Reserved Video stream 2 ( the same functionality as for Video stream 1): step Play forward if dimmer (on layer 3) > 0, looping continuously step Play forward if dimmer (on layer 3) > 0, hold on last frame Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 18‐19 Reserved Addition mode Video Stream 1 step Play forward if dimmer (on layer 3) > 0, looping continuously step...
- Page 113 DMX protocol DMX DMX Value Function Type of control Channel Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 68‐69 Reserved Video Stream 2 70‐77 the same functionality as for Video stream 1 step 78‐79 Reserved Minimum mode Video stream 1 step Play forward if dimmer (on layer 3) > 0, looping continuously step Play forward if dimmer (on layer 3) > 0, hold on last frame Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 88‐89 Reserved Video Stream 2...
- Page 114 DMX protocol DMX DMX Value Function Type of control Channel Gobo effect 1 Selection No effect Zoom sinus P1‐speed Zoom bump in fade out P1‐speed Zoom fade in bump out P1‐speed Reserved Zoom in fade P1‐speed Zoom out fade P1‐speed Scale xy sinus P1‐speed Reserved Reserved Reserved XY pos. circle counter‐clockwise P1‐speed XY pos. circle clockwise P1‐speed XY pos. scroll up P1‐speed XY pos. scroll down P1‐speed XY pos. scroll left P1‐speed XY pos.scroll right P1‐speed Right‐left diag. down scroll P1‐speed Right‐left diag. up scroll P1‐speed Left‐right diag. down scroll P1‐speed Left‐right diag. up scroll...
- Page 115 DMX protocol DMX DMX Value Function Type of control Channel Plane mirror XY segment 3 P1‐speed Plane mirror XY segment 4 P1‐speed Plane tile 2x P1‐speed Plane tile 3x P1‐speed Plane tile 4x P1‐speed Plane tile 5x P1‐speed Plane cross tile 2x P1‐speed Plane cross tile 2x inverse P1‐speed Plane cross tile 3x P1‐speed Plane cross tile 3x inverse P1‐speed Plane cross tile 4x P1‐speed Plane cross tile 4x inverse P1‐speed Plane cross tile 5x P1‐speed Plane cross tile 5x inverse P1‐speed Plane cross tiler 5x P1‐speed Plane cross tiler 5x inverse P1‐speed Plane bar P1‐speed Plane bar inverse P1‐speed Plane bar left‐righ...
- Page 116 DMX protocol DMX DMX Value Function Type of control Channel Triangular 2 ‐static mode P1, P2, P3 Triangular 2 ‐ dynamic mode P1, P2, P3 Centered mosaic (rough)‐static mode P1, P2, P3 Centered mosaic (rough)‐dynamic mode P1, P2, P3 Centered mosaic (fine)‐static mode P1, P2, P3 Centered mosaic (fine)‐dynamic mode P1, P2, P3 Stat. mode:P1‐density, P2‐content (coarse), P3‐content (fine) Dyn. mode:P1‐density, P2‐size and pulsation, P3‐movement 114‐149 Reserved Layer keystoning P1,P2,P3 P1‐skewing in X, P2‐skewing in Y, P3‐squeezing/stretching in Y 151‐255 Reserved Gobo effect 1 ‐ Parameter 1 0 ‐ 255 Effect control depends on effect Gobo effect 1 ‐ Parameter 2 0 ‐ 255 Effect control depends on effect Gobo effect 1 ‐ Parameter 3 0 ‐ 255 Effect control depends on effect Gobo effect 2 Selection No effect Colour to black and white P1‐amount...
- Page 117 DMX protocol DMX DMX Value Function Type of control Channel Gradient Wipe X P1‐amount Gradient Wipe Y P1‐amount 33‐39 Reserved Gaussian filter P1‐amount Mean filter P1‐amount Laplacian filter P1‐amount Emboss filter P1‐amount Sharpness filter P1‐amount 45‐49 Reserved RGB effects: RGB subtract All Pixels P1, P2, P3 RGB add All Pixels P1, P2, P3 RGB add non‐black Pixels P1, P2, P3 RGB substract/add All Pixels P1, P2, P3 Swap RGB to RBG P1, P2, P3 Swap RGB to GRB P1, P2, P3 Swap RGB to GBR P1, P2, P3 Swap RGB to BRG P1, P2, P3 Swap RGB to BGR P1, P2, P3...
- Page 118 DMX protocol DMX DMX Value Function Type of control Channel 0‐255 Position Y fine proportional Gobo zoom X coarse 0‐127 Narrowing proportional Centre (128‐default) step 129‐255 Widening proportional Gobo zoom X fine 0‐255 Zoom X fine proportional Gobo zoom Y coarse 0‐127 Narrowing proportional Centre (128‐default) step 129‐255 Widening proportional Gobo zoom Y fine 0‐255 Zoom Y fine proportional Synchronization to ID No function step 1‐255 Synchronization to fixture ID proportional Gobo layer 4 Dimmer ...
- Page 119 DMX protocol DMX DMX Value Function Type of control Channel Defines the beginning of a media file segment as a 0‐255 proportional percentage of the movie length (0‐default) Out Frame High Defines the end of a media file segment as a percentage of 0‐255 proportional the movie length (255‐default) Out Frame Low Defines the beginning of a media file segment as a 0‐255 proportional percentage of the movie length (255‐default) Gobo control Copy mode Video stream 1 step Play forward if dimmer (on layer 4) > 0, looping continuously step Play forward if dimmer (on layer 4) > 0, hold on last frame Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 8‐9 Reserved Video stream 2 ( the same functionality as for Video stream 1): step...
- Page 120 DMX protocol DMX DMX Value Function Type of control Channel Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 48‐49 Reserved Video Stream 2 50‐57 the same functionality as for Video stream 1 step 58‐59 Reserved Multiplication mode Video stream 1 step Play forward if dimmer (on layer 4) > 0, looping continuously step Play forward if dimmer (on layer 4) > 0, hold on last frame Pause step Play forward in continuous loop step Play forward once and hold on the last frame step No function Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 68‐69 Reserved Video Stream 2 70‐77 the same functionality as for Video stream 1...
- Page 121 DMX protocol DMX DMX Value Function Type of control Channel Playback Speed Normal Speed step 1‐127 Slow speeds from slowest ‐‐‐> normal proportional Normal Speed step 129‐255 Faster than Normal ‐‐‐> Fastest proportional Gobo rotation and indexing 0‐63 Clockwise rotation from fast to slow proportional 64‐127 Indexing proportional No rotation‐centre (128‐default) step 129‐192 Indexing proportional 193‐255 Anticlockwise rotation from slow to fast proportional Gobo fine indexing (rotation) 0‐255 Fine indexing (rotation) proportional Gobo effect 1 Selection No effect Zoom sinus P1‐speed Zoom bump in fade out P1‐speed Zoom fade in bump out...
- Page 122 DMX protocol DMX DMX Value Function Type of control Channel Bend X none Bend Y none Tile frame none Frame none Plane Flip X none Plane Flip Y none Plane Flip XY none Plane mirror X top none Plane mirror X bottom none Plane mirror Y left none Plane mirror Y right none Plane mirror XY segment 1 none Plane mirror XY segment 2 none Plane mirror XY segment 3 none Plane mirror XY segment 4 none Plane tile 2x none Plane tile 3x none Plane tile 4x none Plane tile 5x...
- Page 123 DMX protocol DMX DMX Value Function Type of control Channel 87‐89 Reserved Circular effect (Fish eye) P1, P2, P3 P1‐character, P2‐X ratio, P3‐Y ratio 91‐99 Reserved kaleidoscope ‐ mode and mosaic segment selection: Square ‐static mode P1, P2, P3 Square ‐dynamic mode P1, P2, P3 Right triangular ‐ static mode P1, P2, P3 Right triangular ‐ dynamic mode P1, P2, P3 Isosceles triangular ‐ static mode P1, P2, P3 Isosceles triangular ‐ dynamic mode P1, P2, P3 Triangular 1 ‐ static mode P1, P2, P3 Triangular 1 ‐dynamic mode P1, P2, P3 Triangular 2 ‐static mode P1, P2, P3 Triangular 2 ‐ dynamic mode P1, P2, P3 Centered kaleidoscope (rough)‐static mode P1, P2, P3 Centered kaleidoscope (rough)‐dynamic mode P1, P2, P3 Centered kaleidoscope (fine)‐static mode P1, P2, P3 Centered kaleidoscope (fine)‐dynamic mode P1, P2, P3 Stat. mode:P1‐density, P2‐content (coarse), P3‐content (fine)
- Page 124 DMX protocol DMX DMX Value Function Type of control Channel Reserved Colour Key P1‐amount Colour Key inverse P1‐amount Key Black P1‐amount Key Black inverse P1‐amount Key White P1‐amount Key White inverse P1‐amount White flash P1‐amount Black flash P1‐amount Alpha flash P1‐amount Invert flash P1‐amount BW Flash P1‐amount Black and white to black and white inverse Flash P1‐amount Gradient Wipe X P1‐amount Gradient Wipe Y P1‐amount 33‐39 Reserved Gaussian filter P1‐amount Mean filter P1‐amount Laplacian filter P1‐amount...
- Page 125 DMX protocol DMX DMX Value Function Type of control Channel 0‐255 Effect control depends on effect Gobo effect 2 ‐Parameter 3 0‐255 Effect control depends on effect Gobo Position X coarse 0‐127 Movement forward proportional Centre (128‐default) step 129‐255 Movement backward proportional Gobo position X fine 0‐255 Position X fine proportional Gobo position Y coarse 0‐127 Movement down proportional Centre (128‐default) step 129‐255 Movement up proportional Gobo position Y fine 0‐255 Position Y fine proportional Gobo zoom X coarse 0‐127 Narrowing proportional...
