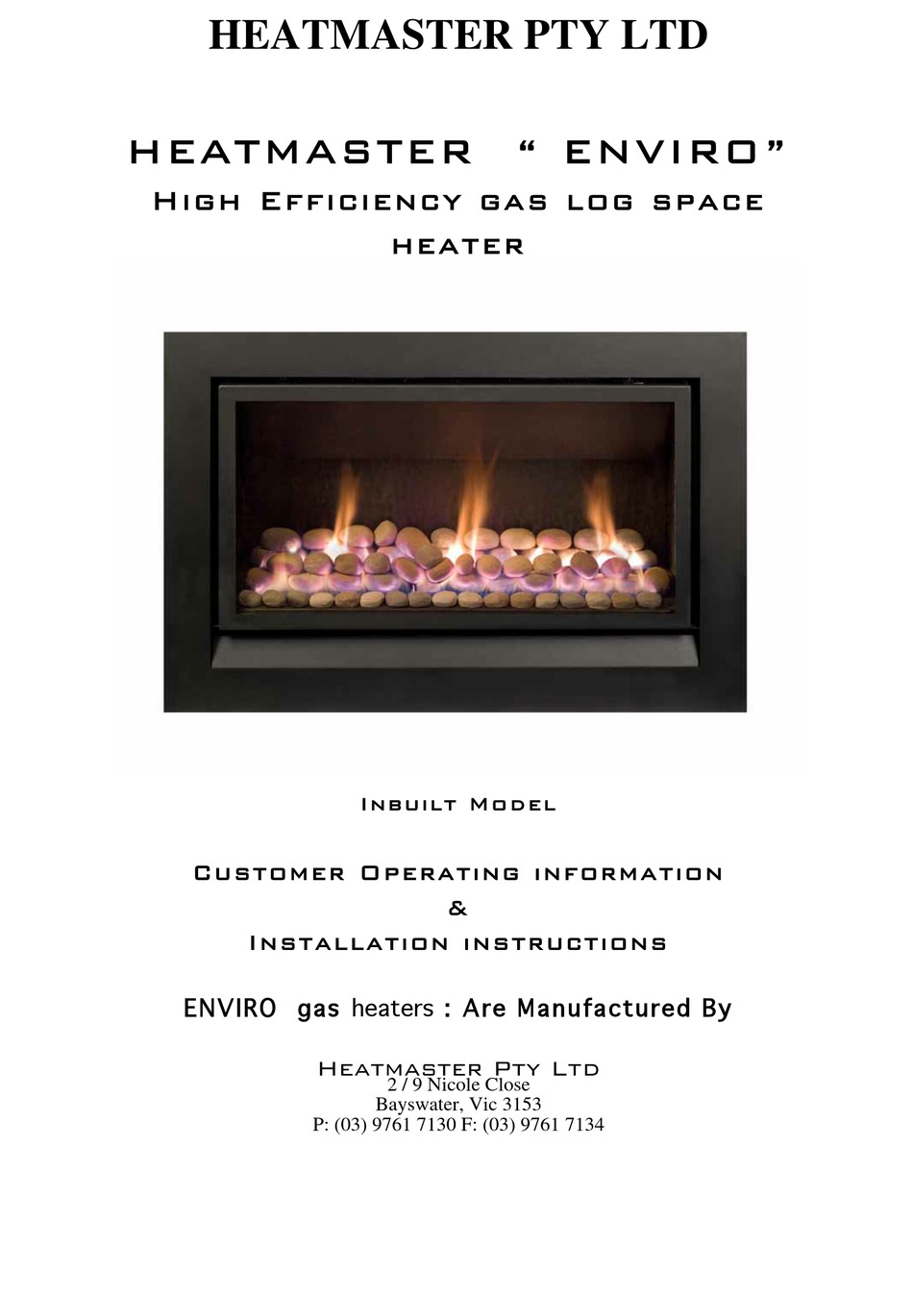

- Page 1 High Efficiency gas log space heater Inbuilt Model Customer Operating information & Installation instructions ENVIRO gas heaters : Are Manufactured By Heatmaster Pty Ltd 2 / 9 Nicole Close Bayswater, Vic 3153 P: (03) 9761 7130 F: (03) 9761 7134...
-
Page 2: Table Of Contents
CONTENTS PRODUCT FEATURES…………………………………………………3 SAFETY PRECAUTIONS………………………………………………4 CUSTOMER OPERATING INSTRUCTIONS..………………………5 SAFETY FEATURES……………………………………………………7 GAS VALVE ADJUSTMENT…………………………………………..8 INSTALLATION INSTRUCTIONS…………………………………..10 DIMENSIONS…………………………………………………………...16 WIRING DIAGRAM………….………………………………………..17 TROUBLE SHOOTING GUIDE……………………………………...18 SERVICING…………………….………………………………………..19 SPARE PARTS…………………………………………………………..20 CARE OF APPLIANCE & WARRANTY……………………………..21 SERVICE CONTACT INFORMATION………………………………21 PLEASE STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE... -
Page 3: Product Features
Product Features HEATMASTER “ ENVIRO “ INBUILT GAS LOG HEATER NAME PLATE MODEL-ENVIRO Manufacturer NATURAL GAS TYPE MODEL TYPE Inbuilt Heatmaster Inbuilt (Pty.Ltd GAS INPUT 41-45 Bendix Drv. HIGH 44.0 MJ/h Clayton, 44.0 MJ/h 23 MJ/h VIC. 3168 23 MJ/h... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION BOOKLET DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS OR SPRAY AEROSOLS NEAR THIS APPLIANCE DO NOT OPERATE WITH PANELS COVERS OR GUARDS REMOVED FROM THIS APPLIANCE DO NOT ENCLOSED THIS APPLIANCE... -
Page 5: Customer Operating Instructions
. OPERATING THE HEATER The Heatmaster Enviro can be operated by two different modes, manually or by the remote controlled thermostat wall unit . For the manual mode: the controls are located in the left of the front bottom grill panel. - Page 6 It is recommended that a secondary guard be used,to prevent access to appliance by children, as outer panels of this appliance may reach high temperatures. NOTE: In the event the electricity supply cord is damaged it must be replaced with the original Heatmaster part obtainable from your authorized dealer.
-
Page 7: Safety Features
SAFETY FEATURES: Automatic Pre-purge: Before heater ignition this operation is done to evacuate any remains of gas or flue products from inside the firebox that could be the cause of a mishap Automatic Shut-off: Should the flame extinguish for any reason there is an automatic shut off of the gas supply. -
Page 8: Gas Valve Adjustment
Pressure adjustment . Your Enviro Heater has been factory preset and does not need to be readjusted during installation. But there will be some situations where some service has to be done and gas pressure may need to be readjusted as per followingInstructions:. - Page 9 Please for your own convenience record the following information in the space Provided: Purchased from: Name………………………………………………………………………… Address……………………………………………………………………… Phone No…………………………………..Date of purchase … ….. ……… Serial No of appliance………………………………………………………….. To be completed by the installer: Name……………………………………………..License No…………………….. Address…………………………………………………………………………….. Phone No……………………………………. Installation Date…………………...
-
Page 10: Installation Instructions
INSTALLATION: ONLY TO BE CARRIED OUT BY AN AUTHORIZED PERSON! The Heatmaster Enviro inbuilt Heater is a zero clearance appliance which can be optionally installed in a false fireplace or wall cavity made of combustible materials such as wood or chipboard. Heatmaster provide the heater with a flue kit of flexible pipes of 65mm and 50mm diameter for the inlet and exhaust. - Page 11 Front View with the 2 Rear logs in position Front View with Rear and Middle logs in position...
- Page 12 Front view of Rear, Middle and the two front logs positioning Front view of Rear, Middle, 2 Front logs and Cross twig positioning...
- Page 13 INSTALLATION OPTION 1: EXISTING FIREPLACE OR ROOF PENETRATION WITH ENVIRO VERTICAL FLUE KIT...
- Page 14 INSTALLATION OPTION 2: FALSE FIREPLACE ON STUMP FLOOR AND WALL PENETRATION WITH ENVIRO HORIZONTAL FLUE KIT.
- Page 15 INSTALLATION OPTION 3: INTERNAL WALL ON STUMPS AND HORIZONTAL FLUE UNDER THE FLOOR.
-
Page 16: Dimensions
DIMENSIONS OF ENVIRO INBUILT MODEL... -
Page 17: Wiring Diagram
Wiring diagram:... -
Page 18: Trouble Shooting Guide
ROUBLESHOOTING UIDE PROBLEM POSSIBLE CAUSE REMEDY Appliance fails No gas or supply pressure Ensure gas supply connected, purged, and pressure to ignite. insufficient. appropriate. No electrical supply. Ensure unit plugged in and switch is on, check supply fuse. Check supply. Active, neutral, & earth must be correctly Incorrectly wired power point. -
Page 19: Servicing
SERVICING INSTRUCTIONS: Warning; before you attempt to service the heater be sure that electric power plug has been disconnected. Your heater should be serviced at least once a year to clean the Room Fans from lint and dust accumulated in the bottom compartment. This heater does not require to be removed to service and maintain any items such as logs , PES, room fan , electronic components. -
Page 20: Spare Parts
SPARE PART COMPONENT LIST OF ENVIRO GAS HEATER Comp. No. Comp. Name Part No Gas Valve 00-ST-845 Electronic PES 00-ST-579 Modulation 00-ML- 03 Digital 00-ML-032 Thermostat Air switch 00-CL-91 Flame sensor 00-CS-110 Spark igniter 00-CS-111 Flue Fan 00-FM-47 Room Fan... -
Page 21: Care Of Appliance & Warranty
1.- Electrical power is on 2.-Gas is turned on 3.-There are no obstruction /blockages of the flue terminal WARRANTY As a purchaser of this Enviro product, Heatmaster (Aust.) Pty.Ltd. provide you with the following warranty: Heat Exchanger ___________10 Years _____________1 Year free labour...
